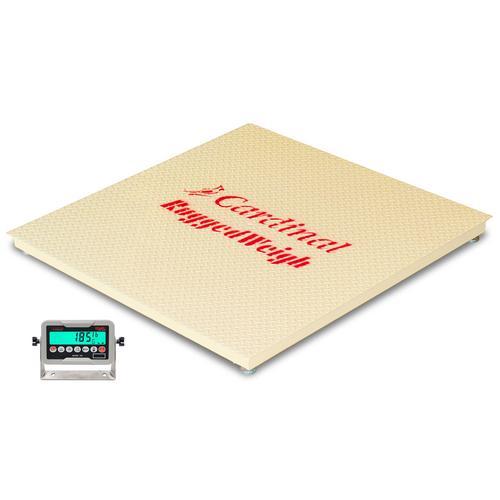

Detecto FH-544F-185 Floor Hugger Heavy-Duty 4 x 4 Floor Scales 5000 x 1 lb |
|
Cardinal’s American-made Rugged Weigh floor scales have a unique channel structure which provides strength and sturdy, enclosed protection for the stainless steel load cells, junction box, and wiring. A low-profile design with flexible four-way approach, checkered steel deck, and special flexible footing that compensates for uneven floors. These scales are economically priced, extremely durable, high-performance pieces of equipment. 4 x 4 Floor Scales 5000 x 1 lb more ... |
Industrial Scales >
Floor Scales >
0 lb to 5000 lb
|
|
|
|
Features
Cardinal Scale’s popular RuggedWeigh series electronic floor scales feature an economical price, robotically-welded manufacturing precision, NTEP legal for trade, adjustable height load cell feet with specialized flexible footing that compensates for uneven floors, baked-on anti-corrosion polyester tan paint, low-profile design with flexible four-way approach, and checkered stainless steel or mild steel scale decks. The unique channel construction underneath the scale deck completely guards the stainless steel load cells, internal wiring, and stainless steel junction box for superior protection against any possible forklift damage.
- Adjustable Height Load Cell Feet
- Baked-on Polyester Tan Paint
- Checkered Deck for Rugged Traction
- Economically Priced – High Value
- Interlocking Ramps Available
- Low-profile Design with Flexible Four-way Approach
- Models Available Pre-Calibrated with the 185 Cardinal Indicator
- Robotically-Welded for Accuracy
|
|
Other Detecto 5000 lb Floor Hugger Heavy-Duty Rugged Weigh Floor Scales
Image |
Name |
Price |
|
|
$1,995.00
|
|
|
$1,999.00
|
|
|
$2,134.65
|
|
Specifications
MODEL |
FH-533F-185 |
FH-544F-185 |
FH-555F-185 |
Capacity x Readability |
5000 lb x 1 lb |
Legal for Trade |
NTEP: 06-056 |
Platform Size |
3 ft x 3 ft |
4 ft x 4 ft |
5 ft x 5 ft |
Indicator |
Detecto Model 185 Digital Weight Indicator - 1 LCD display |
Enclosure Size |
7.7 " W x 4.7" H x 2.6" D 19.6 cm W x 11. 9 cm H x 6. 6 cm D |
Indicator Housing |
IP66-rated ABS indicator enclosure with versatile stainless steel wall or desktop mounting bracket |
Temperature Range |
14 °F to 104 °F / -10 °C to 40 °C |
Display: |
Bold 1-inch/25-mm high backlit LCD |
Standard I/O |
(1) bi-directional RS-232 port |
Standard Features |
Piece Counting, Millivolt Display Diagnostic Function |
Weighing Units |
Pounds(lb), Ounces (oz), Kilograms (kg) |
|
|
|
|
|
|
|
