Detecto DL1030 NTEP Price Scale, 30 lb x 0.01 lb w/ 12 rolls die-cut 6600-3002 UPC Labels

Detecto Medical Scales and Weighing Products
DETECTO’s versatile DL series price computing scales with integral label printers are designed for highly customizable retail use in delis, supermarkets, produce sections, convenience stores, and grocery store meat sections. We've also included a case of 12 rolls of die-cut UPC labels, model number 6600-3002 more ...
Retail Storefront > Deli Scales > Price Computing with Printing
Detecto DL1030 NTEP Price Scale, 30 lb x 0.01 lb w/ 12 rolls die-cut 6600-3002 UPC Labels




Have Questions?
Call USoremail Us
Our Staff will be glad to help

Detecto DL1030 NTEP Price Scale, 30 lb x 0.01 lb w/ 12 rolls die-cut 6600-3002 UPC Labels
FREE Ground Shipping
(48 US States Only)

Price: $876.33


Available to Ship


View More Pictures
View Features

Detecto
SKU: 103002

Features

ALL-IN-ONE PRICE COMPUTING AND LABEL PRINTING SCALE

DETECTO’s versatile DL series price computing scales with integral label printers are designed for highly customizable retail use in delis, supermarkets, produce sections, convenience stores, and grocery store meat sections. With 5,990 PLUs and 2-MB memory, the DL series is economical, durable, user-friendly and incorporates all of the essential features needed for legal-for-trade weighing and label printing. Weve also included a case of 12 rolls of die-cut UPC labels, model number 6600-3002

VIVID DISPLAY

Bright green, easy-to-read LED display readouts ensure visual accuracy for both the operator and the customer. The 5-window display includes 1 dot matrix message display.

CUSTOMIZE WHAT YOU PRINT

DETECTO’s DL series prints labels in a wide variety of styles, sizes, and printed information: bar codes, QR codes, safe handling images, ingredients, weights, date formats with month/day or time, nutritional facts, discounts, logos, and more. 50 label types available via included software with the DL serie

INCLUDES PC SOFTWARE

DETECTO’s DL retail scale is as intuitive to set up as it is to use, simplifying both management and employees tasks. The scale comes with versatile PC setup software and networking capabilities allowing you to make updates to multiple scales for your facility. Customized reporting features provide you with all the information you require to make your accurate business decisions for your store.

Flexible and easy-to-use PC software with drag-and-drop graphics set-up:

  • Over 50 label types are available to set up via included software
  • Simplified exporting and importing PLUs to and from Excel
  • Full control over PLU data

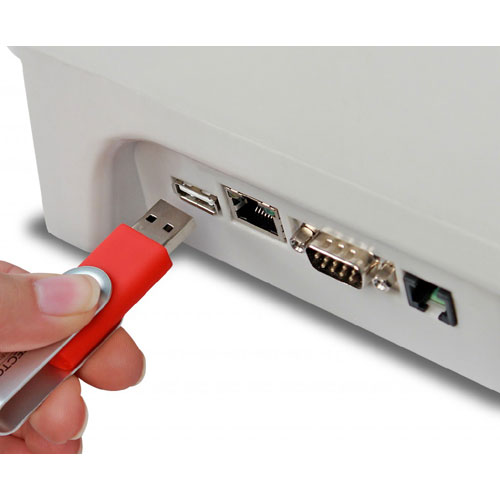

  • Easy firmware USB upgrades using USB drive (flash memory) with no need to break the NTEP inspection seal
  • Full back up of all specifications (duplicates a scale’s setup in minutes)
  • Each PLU can easily be created, viewed, and modified within the DLX50 utility. PLUs created at the scale can be imported to the utility and viewed/modified as well
  • PLU and setup information can be imported and exported via RS232, USB, or Ethernet at the click of a button
  • Custom bitmap graphics can be loaded onto the DL Series scales for use in label printing.
  • Labels have fully customizable layouts and font sizes by use of this user-friendly graphic interface.
  • This graphic display allows PLUs to be quickly assigned to quick keys. This page can then be printed and used as the quick key overlay for the DL Series scale
EXTENSIVE CONNECTIVITY AVAILABLE

The DL Series comes with four communication ports to accommodate the interface requirements of various integration communication setups.

WHATS INCLUDED
  • Scale
  • Operation manual
  • DL series set-up utility CD for PC software
  • Four (4) overlays for PLU shortcuts
  • AC power cord
  • 12 rolls of 6600-3001 die-cut UPC labels


Model Number

DL-1030

DL-1030P

DL-1060

DL-1060P

Capacity x Readability

30 lb x 0.01 lb

30 lb x 0.01 lb

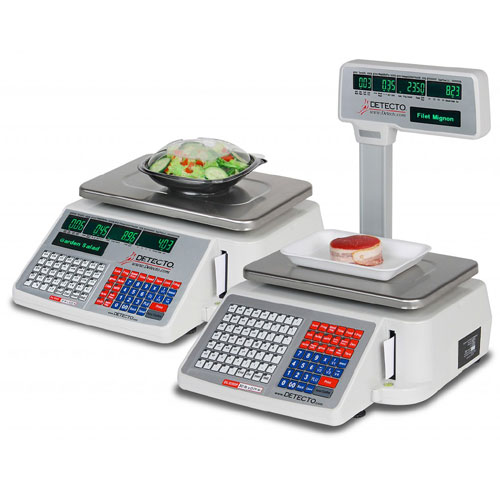

With Tower Pole Display

60 lb x 0.02 lb

60 lb x 0.02 lb
With Tower Pole Display

Display

Front – 4 seven-segment LED screens and 1 dot matrix text screen (with upper and lower case characters);
Back: 4 seven-segment LED screens
Front – 4 seven-segment LED screens and 1 dot matrix text screen (with upper and lower case characters);
Back: 4 seven-segment LED screens and 1 dot matrix text screen (with upper and lower case characters)

Display Digits

4 digit Tare, 6 digit Unit Price, 5 digit Weight, 6 digit Total Price

Max PLU

5,990 PLUs

Total Keys

89
103

Speed Keys

40 (doubles to 80 when pressing SHIFT + the quick key for a second PLU from the same key)
63 (doubles to 126 when pressing SHIFT + the quick key for a second PLU from the same key)

Measurement Type

Load Cell

Printer

Thermal

Label Size

Width: 40 mm – 60 mm; Length: 128 mm

Interface

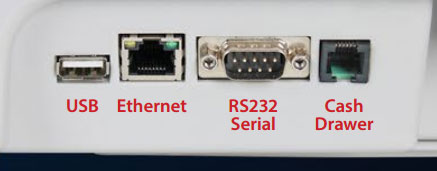

USB, Ethernet, RS232 serial, and cash drawer port

Power Source

120VAC, 50-60 Hz (AC power cord included)

Operating Temperature

32° F – 104° F / 0° C – 40° C

Operating Humidity

15% - 85% relative humidity non-condensing

Construction

Stainless steel platform and ABS plastic scale enclosure

Platform Size

12.8 in W X 8.9 in D / 32.5 cm W X 22.6 cm D

Overall Dimensions

13.8 in W x 15.5 in D x 6.8 in H /
35.1 cm W X 39.4 cm D X 17.3 cm H
13.8 in W x 17.4 in D x 18.1 in H /
35.1 cm W X 44.2 cm D X 46 cm H

Certification

NTEP legal for trade certified

Product Net Weight

13.4 lb / 6.1 kg
15.1 lb / 6.8 kg

Shipping Weight

15.4 lb / 7 kg
17 lb / 7.7 kg

Weight:25.00 lb

Model Number

6600-3001

6600-3002

6600-3003

6600-3004

Description

Separate die-cut UPC

Separate die-cut UPC

Separate die-cut UPC with safe handling image

Separate UPC blank label

Size

2.283 in x 1.57 in
58 mm x 40 mm
2.283 in x 2.362 in
58 mm x 60 mm
2.283 in x 2.362 in
58 mm x 60 mm
2.283 x 1.574 in
58 mm x 40 mm

Labels per Roll

700 500 500 700
