Detecto 7550-AC-W Wall-Mount Fold-Up Wheelchair Scale with a AC Adapter 1000 lb x 0.2 lb

Detecto Medical Scales and Weighing Products

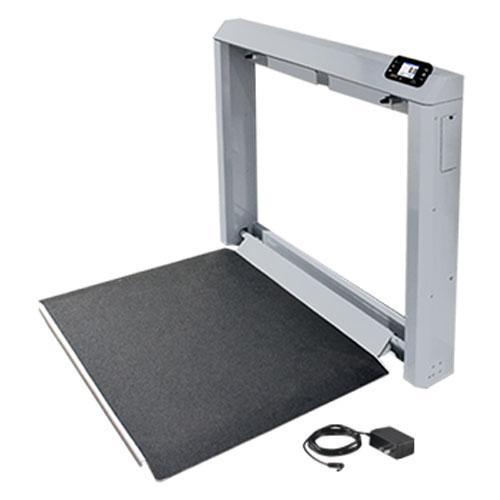

Detecto’s USA-made 7550 wall-mount wheelchair scale features a unique fold-up storage design that saves space when not in use. The 7550 easily accommodates most wheelchairs with its spacious 32.3-in W x 33-in D (82-cm W x 84-cm D) platform, and yet requires very little floor space when folded up. The slim 6.6-inch / 17-cm profile takes up minimal space when installed in a medical facility hallway, clinical office, or patient room. more ...
Medical Equipment > Medical Scales > Wheelchair Scales
Detecto 7550-AC-W Wall-Mount Fold-Up Wheelchair Scale with a AC Adapter 1000 lb x 0.2 lb

Specifications Chart


Have Questions?
Call USoremail Us
Our Staff will be glad to help

Detecto 7550-AC-W Wall-Mount Fold-Up Wheelchair Scale with a AC Adapter 1000 lb x 0.2 lb

Price: $4,167.65


Available to Ship


Optional Accessories

View Features

Detecto
SKU: 7550-AC-W

Features

EFFICIENT MEASUREMENT - The 7550s MedVue® weight indicator is the clinical industrys most advanced, featuring EMR/EHR-ready serial, USB, and optional Wi-Fi connectivity, BMI calculation, yellow "quick keys" for basic weighing, and a multiline LCD display. The scale is powered by 6 C batteries (not included) or optional AC adapter.

The 7550s 1.5-inch/38-mm high platform is very low to the ground for easy patient access. This makes the process simple and minimal effort required in order to roll a patient on and off the weighing platform

  • 2-Way Easy Access Ramps
  • BMI Calculation
  • Compact Vertical Fold-Up Platform Conserves Space
  • Gas Spring Lifting Mechanism
  • May be Used on Carpet or Hard Floor Surfaces
  • RS232 Serial and USB Ports Standard
  • Slim 6.6-inch Profile
  • Spacious Platform
  • Sturdy Steel Construction
  • Wi-Fi and Ethernet Optional

Dimensions
X:
46.00   Y: 38.00   Z: 8.00
Other Detecto 7550 Wall-Mount Fold-Up Wheelchair Scale
Detecto 7550 Wall-Mount Fold-Up Wheelchair Scale 1000 lb x 0.2 lb
7550
Wall-Mount Fold-Up Wheelchair Scale 1000 lb x 0.2 lb

$4,414.51
Detecto 7550-C Wall-Mount Fold-Up Wheelchair Scale with WiFi / Bluetooth 1000 lb x 0.2 lb
7550-C
Wall-Mount Fold-Up Wheelchair Scale with WiFi / Bluetooth 1000 lb x 0.2 lb

$4,422.10

Specifications

Model 7550 7550-AC 7550-C 7550-C-AC
Capacity x Readability 1000 lb x 0.2 lb 1000 lb x 0.2 lb 1000 lb x 0.2 lb 1000 lb x 0.2 lb
450 kg x 0.1 kg 450 kg x 0.1 kg 450 kg x 0.1 kg 450 kg x 0.1 kg
PLATFORM DIMENSIONS (flat portion) 36 in W x 33 in D /
91 cm W x 84 cm D
Width 84 cm D Width 50.3 in
127.6 cm
Depth 39.3 in / 99.7 cm (with platform extended)
7.3 in / 18.4 cm (without platform extended)
Overall Height 44.0 in / 111.7 cm
Display Type 3.2 in (diagonal) full color TFT display, 320 x 240 resolution
Number of Characters Weight: 5 digits, 0.8 in (20 mm) high
Height: 4 digits, 0.35 in (9 mm) high
BMI: 3 digits, 0.35 in (9 mm) high
Keys Mechanical switch type, Power, Zero, Lock/Release, ID, Cycle Display Mode, Menu, Print
Power Requirements Six C size Alkaline, Ni-Cad, or NiMH batteries (not included)
Domestic models: Optional 100 to 240V AC 50/60Hz 12V DC 1A wall plug-in UL/CSA listed
AC power adapter (Cardinal part number 6800-1045)
International models: Optional 100 to 240V AC 50/60Hz 12V DC 1A Multi-Pin Input AC
power adapter (Cardinal part number 6800-1047)
AC adapter Optional Included Optional Included
Connectivity RS232, USB RS232, USB Wi-Fi/Bluetooth Wi-Fi/Bluetooth
Operating Environment Operating Temperature Range: 14 to 104 ºF (-10 to +40 ºC), Humidity: 0 to 90% noncondensing
Construction Steel
Weighing Mechanism Electronic load cells
Lifting Mechanism Gas springs
Net Weight 180 lb / 82 kg
Country of Origin USA
Shipping Weight 238 lb / 108 kg

Optional Accessories


Detecto P220 Direct Thermal Label Printer
more info
Detecto P220 Direct Thermal Label Printer
$640.93

Detecto's P220 desktop printer boasts a surprisingly compact footprint without compromising performance or value. The P220 can connect via serial port with any Detecto digital scale that has serial output capabilities, including any medical scale featuring the 758C weight indicator.

This 2-inch print width printer offers a multitude of user-friendly and innovative features, all packed in a small, but sturdy double-walled casing. With its electronic platform, the P220 delivers high-quality bar code label printing at 3.5 inches per second and is ideal for Point of Sale or product marking in Food Service use or patient tracking or medical record keeping in Health Care use.

Model Printing Method Print Width Print Speed Scale Interface Dimension Power
P150 Line Thermal Printing 1.89"/48MM 1.97'/50 mm per sec RS-232 4.57"Wx3.54"Dx2.01"H Rechargeable battery
(Lithium-Ion)
P220Direct Thermal Printing 2.2"/56MM 3.5'/89 mm per sec RS-232 3.6"Wx7.5"Dx6.8"H 20VDC,2.5A
P185Direct Thermal Printing 2.8"/72MM 3.9'/100 mm per sec RS-232 5.6"Wx7.8"Dx5.2"H 20VDC
Detecto P-150 Mobile Tape Printer With Serial Interface
more info
Detecto P-150 Mobile Tape Printer With Serial Interface
$998.44

Detecto's P150 printer is a battery-operated ticket printer that can be mounted to any 758C with the new serial port. The bracket conveniently mounts to the back of the 758C using 2 existing screws. Printing at 50 mm/sec, the P150 utilizes a long-life lithium-ion battery that supplies up to 40,000 lines of 8 dots/mm (203 dpi) thermal printing on a single charge. PRINT WEIGHT, BODY MASS INDEX, TIME, DATE, AND HEIGHT


Features
  • Portability
  • Lithium Ion battery with up to 20,000 printed weighments before recharging. The batteries recharge to full capacity in only 3 hours
  • RS-232 serial connectivity - includes compact cable ready to plug into Detecto's 758C
  • Battery low status lamp
  • The bracket conveniently mounts to the back of the 758C using 2 existing screws
  • Easy to change paper roll

  • Model Printing Method Print Width Print Speed Scale Interface Dimension Power
    P150 Line Thermal Printing 1.89"/48MM 1.97'/50 mm per sec RS-232 4.57"Wx3.54"Dx2.01"H Rechargeable battery
    (Lithium-Ion)
    P220Direct Thermal Printing 2.2"/56MM 3.5'/89 mm per sec RS-232 3.6"Wx7.5"Dx6.8"H 20VDC,2.5A
    P185Direct Thermal Printing 2.8"/72MM 3.9'/100 mm per sec RS-232 5.6"Wx7.8"Dx5.2"H 20VDC
    Detecto WinDDE Dynamic Data Exchange
    more info
    Detecto WinDDE Dynamic Data Exchange
    $691.22

    WinDDE Server communicates with up to 20 weight indicators attached to a computer. Weight indicators may be connected using standard computer serial ports or via ethernet using TCP/IP. The weight and status of the weight indicators is made available to spreadsheets, databases, and industrial control applications by means of Dynamic Data Exchange, or NetDDE for networked computers. Weight and time stamp information may be automatically captured to Excel® creating a new row of information for each stable weight above threshold. Alternatively, the capture feature may be based on the indicator print button to capture a row of data each time the print key is pressed on the indicator.


    Weight Monitoring Industrial Control Software such as Rockwell RSView®, Automation Direct®, Lookout Direct®, and spreadsheet programs, such as Microsoft Excel® may be used. A spreadsheet cell, such as A1, shows continuously updating weight. The spreadsheet may show a continuously updating bar graph. Formulas in the spreadsheet may show a flashing indication if the weight exceeds or drops below certain levels. The WinDDE command for the spreadsheet to read weight is simply =windde|scale!wt Automatic Stable Weight Capture to Excel® After a weight is placed on the scale and the indicator sees a stable weight, the weight is placed in a spreadsheet cell, such as A5. The operator removes the weight, and the procedure is repeated, but the weight value is placed in the next spreadsheet row, such as A6. Printer Port Capture to Excel® After a weight is placed on the scale, the operator at the indicator may press the Print key on the indicator. Instead of printing, the printout information from the indicator is sent to the computer. The computer sets the spreadsheet cells, such as E3 Gross Weight, F3 Tare Weight, G3 Net Weight, etc. The operator then may remove the weight, and the procedure is repeated, but information is placed in the next spreadsheet row, such as E4, F4, G4, etc. Computer Data Collection After a weight is placed on the scale, the operator may type information at the computer, such as an ID number to associate the weight. The computer stores the information in a database or spreadsheet. The operator then may remove the weight. With certain weight indicators, such as the Cardinal model 220, weight monitoring, automatic stable weight capture to Excel® and printer port capture to Excel® can be used simultaneously. Windows® 2000 or XP must be used if more than ten indicators will be connected.


    Microsoft Excel®, Microsoft Access®, Wonderware InTouch®, Automation Direct®, Lookout Direct®, and Rockwell Automation RSView® are just a few of the well-known applications which can be used with WinDDE.

    Detecto Model WACONNECT Welch Allyn Device
    more info
    Detecto Model WACONNECT Welch Allyn Device
    $276.04

    Connectivity solution allows capture and viewing of DETECTOs 1LOOK weight, height and BMI measurements and automated data transfer to EMRs.

    Welch Allyn, a leading global provider of medical diagnostic equipment, has partnered with DETECTO, America’s largest healthcare scale manufacturer, to enable automated interface between the Welch Allyn Connex® Vital Signs Monitor (Connex VSM), the Welch Allyn Connex® Integrated Wall System (Connex IWS) and select DETECTO medical scales.

    Connectivity-ready DETECTO medical scales included under the agreement include eye-level and waist-high electronic column scales for physician and hospital settings, bariatric, wheelchair and visiting nurse scales (listed below) — designed to accommodate every kind of patient need quickly and accurately. These scales operate digitally and are equipped with BMI, easy-to-read display, and auto-off features, plus several models feature digital height rods to speed the measurement process. These scales feature DETECTO’s unique 1LOOK feature which displays height, weight, and BMI all onscreen simultaneously to be viewed in one scan of the eye for efficient patient recordkeeping.

    WACONNECT Includes:

    • Detecto Welch Allyn Interface License
    • Cable USB A Male to USB B Male
    • Box and Packaging

    Detecto MV1PWR AC Adapter for Detecto MV1
    more info
    Detecto MV1PWR AC Adapter for Detecto MV1
    $79.91

    Detecto MV1PWR AC Adapter for Detecto MV1
