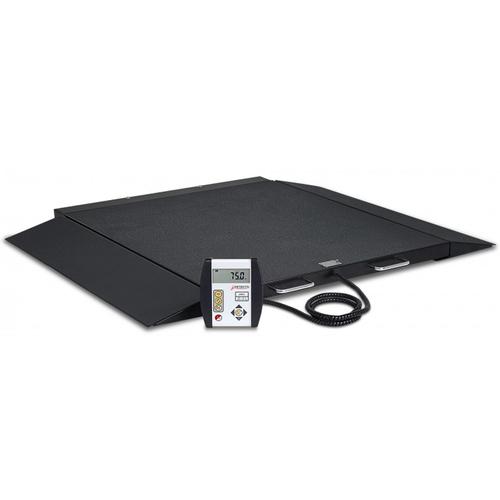

Detecto 6400 Portable Wheelchair Scale 32 in x 36 in - 1000 lb x 0.2 lb |
|
DETECTO low-profile portable wheelchair scale line offers you four different models to choose from based on whether you need to weigh patients in regular size or bariatric wheelchairs and whether you need basic weighing functions or more complex patient measurement operations. more ... |
Medical Equipment >
Medical Scales >
Wheelchair Scales
|
|
|
|
Features
DETECTO low-profile portable wheelchair scale line offers you four different models to choose from based on whether you need to weigh patients in regular size or bariatric wheelchairs and whether you need basic weighing functions or more complex patient measurement operations.
The platform is only 2.2 in / 5.6 cm high for easy patient accessibility and comfort while weighing either standing or in a wheelchair. With a high 1,000 lb / 450 kg capacity, the scales are capable of measuring patients of virtually any weight possible.
For single-pass weighing to save time, choose the models 6500 or BRW1000 which utilize the MedVue indicator. You can enjoy the time saving benefits of these scales by using the convenient pushbutton or keypad tare which allows you to remove the wheelchair weight all in one pass.
- Two-way ramps for accessibility from both sides
- Flexible cable remote display extends up to 14 ft / 4.2 m from scale to indicator
- Quick and easy mobility for transport or vertical storage
- Optional Wi-Fi connectivity for EMR/EHR (models 6500 and BRW1000)
- Battery power for easy mobility (or use with optional AC adapter)
- Black rubber mat included on the scale platform and ramp for superior traction
FLEXIBLE WIRED WEIGHT DISPLAY
Since the display is connected to the scale by a long coiled cable that extends up to 14 ft / 4.2 m, it can be positioned where the healthcare professional can most easily read the results.
By using the versatile mounting bracket that comes with each scale, you may permanently mount the indicator on a wall for long-term static use or set it on a tabletop or desk for more mobile type weighing.
YOUR CHOICE OF DIGITAL KEYPAD WEIGHING FUNCTIONS
- Models 6500/BRW1000 - The MedVue® multifunctional indicator with alphanumeric keypad and RS232 and USB ports (optional Wi-Fi and Welch Allyn connectivity) displays Height, Weight, and Body Mass Index onscreen simultaneously. Capable of 14-digital alphanumeric patient ID entries and 99 stored wheelchair tare weights. Displays in four languages (English, Spanish, French, and German).
- Models 6400/6600 - Model 750 indicator with easy to-use, basic weighing functions. BMI calculation, RS232 serial port, and big bold LCD digits
INCLUDES VERSATILE INDICATOR MOUNTING BRACKETS
- The MedVues® ballmount swivel bracket for the back of the indicator allows wall-mount or mobile tabletop weighing with adjustable viewing.
- The 750 mounting bracket snaps onto the back of the indicator for wall-mount or mobile tabletop weighing.
Dimensions X:
46.00
Y:
38.00
Z:
8.00
|
|
Other Detecto 6400 Portable Wheelchair Scale
|
Specifications
Model |
6400 |
6400-AC |
6400-C |
6400-C-AC |
Capacity x Readability |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
450 kg x 0.1 kg |
450 kg x 0.1 kg |
450 kg x 0.1 kg |
450 kg x 0.1 kg |
Platform Size |
32 in x 36 in x 2.2 in |
81 cm x 91 cm x 5.6 cm |
Ramp Size |
36 in W x 7.9 in L each |
91 cm W x 20.2 cm L each |
Cable Length |
6 ft / 1.8 m coiled cable, 14 ft / 4.2 m fully extended (from scale to indicator) |
Power |
Optional model 6800-1045 AC adapter or 6 AA batteries (not included |
AC adapter(included) or 6 AA batteries (not included |
Optional model 6800-1045 AC adapter or 6 AA batteries (not included |
AC adapter(included) or 6 AA batteries (not included |
Indicator |
Model 750 |
Indicator Dimensions |
6.1 in W x 6.8 in H x 1.8 in D 15.5 cm W x 17.2 cm H x 4.6 cm D |
LCD Digits |
0.7 in / 19 mm high LCD, 6 digit, 7 segment |
Keypad Buttons |
ON/OFF, ZERO, UNITS, LOCK/RELEASE, BMI/ENTER, PRINT, arrow keys |
Connectivity |
RS232 |
RS232 |
Wi-Fi/Bluetooth |
Wi-Fi/Bluetooth |
Operating Temperature |
14 to 104 ºF / -10 to +40 ºC |
Net Weight |
92 lb / 42 kg |
Shipping Weight |
102 lb / 46 kg |
Guide Handles |
2 included |
Transport Wheels |
2 included |
Country of Origin |
USA |
UPC Code |
809161302400 |
809161318302 |
809161321005 |
809161324907 |
Model |
6400 |
6500 |
6600 |
BRW1000 |
Capacity x Readability |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
450 kg x 0.1 kg |
450 kg x 0.1 kg |
450 kg x 0.1 kg |
450 kg x 0.1 kg |
Platform Size |
32 in x 36 in x 2.2 in |
32 in x 40 in x 2.2 in |
81 cm x 91 cm x 5.6 cm |
81 cm x 101 cm x 5.6 cm |
Ramp Size |
36 in W x 7.9 in L each |
40 in W x 7.9 in L each |
91 cm W x 20.2 cm L each |
101 cm W x 20.2 cm L each |
Cable Length |
6 ft / 1.8 m coiled cable, 14 ft / 4.2 m fully extended (from scale to indicator) |
Power |
Optional model 6800-1045 AC adapter or 6 AA batteries (not included |
Optional model MV1PWR AC adapter or 6 C batteries (not included) |
Optional model 6800-1045 AC adapter or 6 AA batteries (not included) |
Optional model MV1PWR AC adapter or 6 C batteries (not included) |
Indicator |
Model 750 |
MedVue® Model MV1 |
Model 750 |
MedVue® Model MV1 |
Indicator Dimensions |
6.1 in W x 6.8 in H x 1.8 in D 15.5 cm W x 17.2 cm H x 4.6 cm D |
9.8 in W x 6.8 in H x 1.8 in D 24.9 cm W x 17.2 cm H x 4.6 cm D |
6.1 in W x 6.8 in H x 1.8 in D 15.5 cm W x 17.2 cm H x 4.6 cm D |
9.8 in W x 6.8 in H x 1.8 in D 24.9 cm W x 17.2 cm H x 4.6 cm D |
LCD Digits |
0.7 in / 19 mm high LCD, 6 digit, 7 segment |
0.9 in / 22 mm high LCD, 5 digit, 7 segment |
0.7 in / 19 mm high LCD, 6 digit, 7 segment |
0.9 in / 22 mm high LCD, 5 digit, 7 segment |
Keypad Buttons |
ON/OFF, ZERO, UNITS, LOCK/RELEASE, BMI/ENTER, PRINT, arrow keys |
ON/OFF, ZERO, UNITS, LOCK/RELEASE, NET/ GROSS, TARE, ID/HEIGHT, BMI, PRINT/ENTER, alphanumeric keys |
ON/OFF, ZERO, UNITS, LOCK/RELEASE, BMI/ENTER, PRINT, arrow keys |
ON/OFF, ZERO, UNITS, LOCK/RELEASE, NET/ GROSS, TARE, ID/HEIGHT, BMI, PRINT/ENTER, alphanumeric keys |
Connectivity |
RS232 serial |
RS232 serial, USB and optional wired and Wi-Fi Ethernet |
RS232 serial |
RS232 serial, USB and optional wired and Wi-Fi Ethernet |
Operating Temperature |
14 to 104 ºF / -10 to +40 ºC |
Net Weight |
92 lb / 42 kg |
117 lb / 53 kg |
Shipping Weight |
102 lb / 46 kg |
127 lb / 58 kg |
Guide Handles |
2 included |
Transport Wheels |
2 included |
Country of Origin |
USA |
UPC Code |
809161302400 |
809161139204 |
809161302509 |
809161139303 |
|
|
|
|
