Chatillon RDWT5000K Centurion Digital Crane Scale, 5000 kg x 2 kg |
|
| Dual function scale with built-in infrared transmitter that provides a wireless link to a remote display unit. Optional remote control/display unit to read and control scale functions at a distance up to 33 ft (10 meters). Safety factor = 4 times capacity more ... |
|
Industrial Scales >
Crane Scales & Dynamometers >
Digital Crane Scales
|
|
|
|
|
|
Features

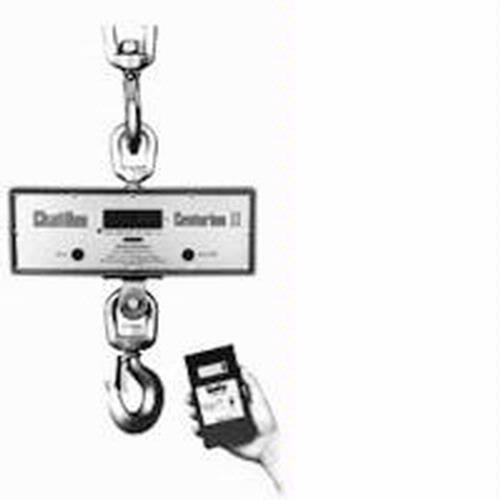

Chatillon Centurion digital crane scales are dual function scales with built in infrared transmitter for wireless link to remote display unit. Battery operated. Cast aluminum housing and internal tare. 5000 x 2 kg capacity x readability.
- Dual function scale with built-in infrared transmitter that provides a wireless link to a remote display unit
- Optional remote control/display unit to read and control scale functions at a distance up to 33 ft (10 meters)
- Battery operated, powered by six D-size Alkaline batteries - 6 months continuous operation when using the infrared transmitter
- Auto zero maintenance (zero-tracking)
- Automatic shut-off in low ambient light conditions (user selectable option)
- Push-button zero and On/Off switch
- Internal tare adjustment up to 10% of rated capacity
- Cast aluminum housing and aluminum front panel for maximum R.F.I. protection
- Standard fixed lifting eye on top and safety swivel hook
- Safety factor = 4 times capacity
- Digital display provides a means to alert scale operator to abnormal conditions
|
1 Year Manufacture Warranty
|
Specifications
| Model |
Capacity |
| DWT-1000 |
1000 lb x 0.5 lb |
| DWT-2000 |
2000 lb x 1 lb |
| DWT-5000 |
5000 lb x 2 lb |
| DWT-10000 |
10000 lb x 5 lb |
| DWT-20000 |
20000 lb x 10 lb |
| DWT-500K |
500 kg x 0.2 kg |
| DWT-1000K |
1000 kg x 0.5 kg |
| DWT-2500K |
2500 kg x 1 kg |
| DWT-5000K |
5000 kg x 2 kg |
| DWT-10000K |
10000 kg x 5 kg |
|
|
|
|
|
|
|
Optional Accessories
more info
|
Chatillon 13404 Swivel Hook, 500-5000 lb
Safety Swivel Hook, 500-5000 lb capacity, for Chatillon dynamometers
Part Number |
Lb Capacity |
Dimensions Inches |
Weight |
P |
Q |
R |
S |
T |
V |
W |
Eye Hook 13400 |
500 - 5000 |
415/1d |
11/2 |
77/8 |
53/4 |
19/16 |
- |
215/16 |
3 lb 12 oz |
Eye Hook 13401 |
10000 - 20000 |
79/16 |
21/4 |
127/16 |
91/16 |
27/16 |
- |
411/16 |
13 lb |
Swivel Hook 13404 |
500 - 5000 |
415/16 |
11/2 |
99/16 |
77/16 |
13/4 |
2 |
31/2 |
4 lb 14 oz |
Swivel Hook 13405 |
10000-20000 |
79/16 |
21/4 |
141/2 |
111/8 |
23/8 |
23/4 |
5 |
15 lb 13 oz |
Swivel Shackle 13402 |
500-5000 |
3 |
23/8 |
713/16 |
69/16 |
19/16 |
13/4 |
- |
2 lb 8 oz |
Swivel Shackle 13403 |
10000-20000 |
4 |
31/16 |
101/8 |
93/8 |
21/16 |
21/4 |
- |
6 lb 2 0z |
|
|
|
|
|
|
|
|
