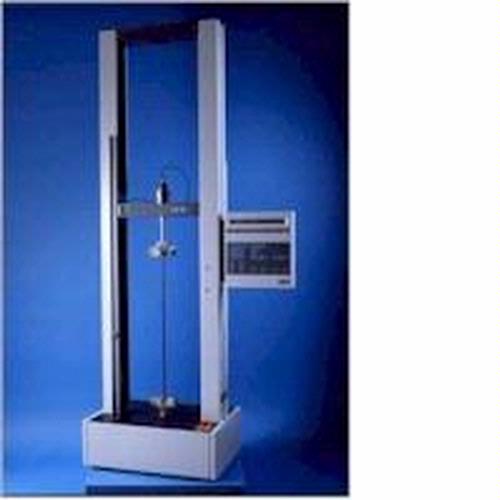

Chatillon LR5K-P Digital Test Stand w/o Console

Advanced Twin Column Materials Testing Stand
Capacity to 1100 lbs

The LR5K Plus advanced, twin column, materials testing stand incorporates an extensive range of features making it ideal for performing complex testing applications up to 5 kN (1100 lbs), at a highly economic price. The digital test stand is microprocessor controlled and incorporates world proven 32 bit technology for highly accurate load measurement and rapid data acquisition. The integral user interface consists of a side mounted control console with large, positive action membrane switches, allowing complex tests to be performed at the touch of a button.

A large LCD display shows the test and set-up information in and extensive choice of user selectable languages and units. The stand alone system is capable of storing up to 600 test results from a choice of 10 programmable test set-ups, or may be connected via its RS232 output to a personal computer running NEXYGEN™ software, providing almost unlimited testing capability, and results processing features.
A range of highly accurate, interchangeable loadcells are available for tension, compression and cycling through zero force measurements. An extensive range of grips and fixtures are also available to support virtually any type of test.

• Simple to set up, operate and maintain
• 2 key press operation
• High accuracy load measurement
• Data sampling rate 1000 Hz
• Large crosshead travel (1000 mm/40 in) for ductile samples
• Saves 600 test results
• 10 programmable test set-ups
• 32 bit micro controller
