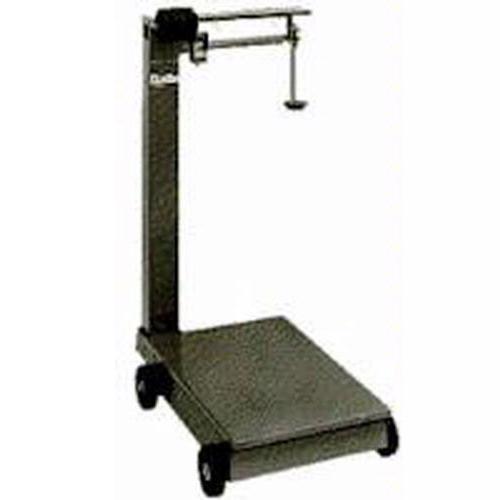

Chatillon HB-1000BA Industrial Beam Scale, 1000 lb x 0.5 lb |
|
1000 lb capacity with 100 lb x 0.5 lb beam graduations (or 500 kg capacity with 50 kg x 0.25 kg). Portable heavy-duty cast iron beam scale designed for rugged, long life in plant or warehouse more ... |
Scales >
Industrial Scales >
Floor Scales
|
|
|
|
Features
1000 lb capacity with 100 lb x 0.5 lb beam graduations. Portable heavy-duty cast iron beam scale designed for rugged, long life in plant or warehouse. Cast iron base, platform levers and wheels. Legal for trade.
The HB1000 series conforms to NIST Handbook 44 Class III Certificate of Conformance No. 88-151PN, issued under the National Type Evaluation Program of the National Conference on Weights and Measures. It is Legal for Trade subject to on-site verifications by local Weights and Measures jurisdictions.
Cast iron construction of base, platform, levers and wheels for added strength and rigidity.
Designed for use in plant, terminal or warehouse, can be rolled to worksite by one person, narrow body for use in narrow aisles
- Can be read from front or rear, Graduations are black on matte background, Weight read at center of poise
- Offset column permits use of entire platform for overhanging loads
- Platform size: 18 x 27
- Shipping weight: 165 lb
- Self-aligning bearings on all four load pivots and at the beam fulcrum
- Loops, bearings and nose irons are corrosion resistant and beam head has friction point side caps, beam is matte aluminum
- Thumbgrip lock screw poise design and case, slotted counterweights
|
HB1000-BA |
HB1000-BM |
Capacity |
1000 lb |
500 kg |
Beam Graduations |
100 lb x 0.5 lb |
50 kg x 0.25 kg |
Price |
$548 |
$548 |
|
1 Year Manufacture Warranty
|
