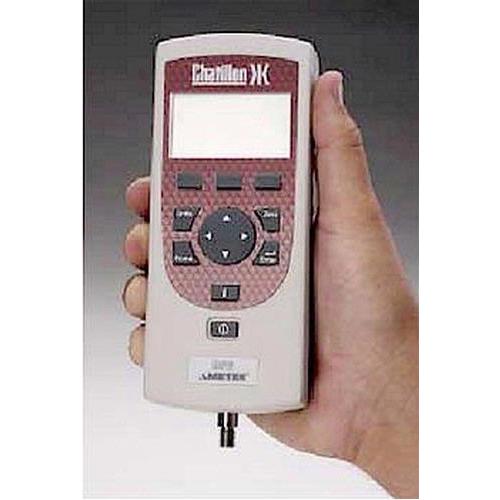

Chatillon E-DFE-100 Force Gauge, 100 x 0.1 lb

The E-DFE Series comes with digital and analog outputs. This compact, easy to use force gauge is designed for economy applications without compromising functionality. For both test stand and hand held applications more ...
Test Equipment > Force Gauges > Digital Force Gauges
Chatillon E-DFE-100 Force Gauge, 100 x 0.1 lb

View Full Detail Page


Have Questions?
Call USoremail Us
Our Staff will be glad to help

Chatillon E-DFE-100 Force Gauge, 100 x 0.1 lb
FREE Ground Shipping
(48 US States Only)

Price: $1,300.00


In Stock - Ships within 24 hours

Optional Accessories
Chatillon SPK-FMG-008B Chisel Point Adapter 500 lbf, 2.5 kN 5/16-18F Chatillon SPK-FMG-008B Chisel Point Adapter 500 lbf, 2.5 kN 5/16-18F , $40.50
Chatillon ML3868 Swivel Hook, 500 lbf (2.5 kN) Chatillon ML3868 Swivel Hook, 500 lbf (2.5 kN) , $81.70
Chatillon SPK-FMG-009A Point Adapter  100 lbf (500 N) Chatillon SPK-FMG-009A Point Adapter 100 lbf (500 N) , $28.80
Chatillon SPK-DF-HANDLE Handle Assembly Chatillon SPK-DF-HANDLE Handle Assembly , $88.35
Chatillon SPK-FMG-009B Point Adapter  500 lbf, 2.5 kN 5/16-18F Chatillon SPK-FMG-009B Point Adapter 500 lbf, 2.5 kN 5/16-18F , $40.50
Chatillon SPK-FMG-010A Notch Adapter 100 lbf (500 N) Chatillon SPK-FMG-010A Notch Adapter 100 lbf (500 N) , $28.80
Chatillon ML3867 Swivel Hook, 20 lbf 112 N Chatillon ML3867 Swivel Hook, 20 lbf 112 N , $29.45
Chatillon SPK-FMG-010B Notch Adapter 500 lbf, 2.5 kN 5/16-18F Chatillon SPK-FMG-010B Notch Adapter 500 lbf, 2.5 kN 5/16-18F , $35.15
Chatillon P-10020  #10-32 to 5/16-18 Female to Male Thread Adapter Chatillon P-10020 #10-32 to 5/16-18 Female to Male Thread Adapter , $36.00
Chatillon ML3850 Swivel Hook, 100 lbf 500 N Chatillon ML3850 Swivel Hook, 100 lbf 500 N , $38.95
Chatillon NC002500 Hook with Latch 500 lbf Thread 5/16-18F Chatillon NC002500 Hook with Latch 500 lbf Thread 5/16-18F , $135.85
Chatillon SPK-FMG-013A Extension Rod, Low Capacity  (#10-32) Chatillon SPK-FMG-013A Extension Rod, Low Capacity (#10-32) , $40.50
Chatillon SPK-FMG-008A Chisel Point Adapter 100 lbf (500 N) Chatillon SPK-FMG-008A Chisel Point Adapter 100 lbf (500 N) , $28.80
Chatillon SPK-FMG-013B Extension Rod, 6-inch 500 lbf Thread 5/16-18F Chatillon SPK-FMG-013B Extension Rod, 6-inch 500 lbf Thread 5/16-18F , $57.60
Chatillon SPK-MT-0001 Adapter Gauge to MT150 for LG Series Force Gauge Models Chatillon SPK-MT-0001 Adapter Gauge to MT150 for LG Series Force Gauge Models , $99.00
Chatillon SPK-MT-0004 Adapter Gauge to MT500 for DF Series Chatillon SPK-MT-0004 Adapter Gauge to MT500 for DF Series , $225.00
Chatillon SPK-DF-LTCM LTCM-100 Series Adapter Chatillon SPK-DF-LTCM LTCM-100 Series Adapter , $123.00
Chatillon NC002582 Adapter Gauge to TT Tester Chatillon NC002582 Adapter Gauge to TT Tester , $165.60
Chatillon NC000850-2 RS232 Cable (10 ft, 3m) Chatillon NC000850-2 RS232 Cable (10 ft, 3m) , $156.43
Chatillon NC000654  RS232 9-Pin output to a 10-Pin Mitutoyo Input - 5ft Chatillon NC000654 RS232 9-Pin output to a 10-Pin Mitutoyo Input - 5ft , $214.20
Chatillon ENC0157  RS232 9-Pin output to a 10-Pin Mitutoyo Input - 6ft Chatillon ENC0157 RS232 9-Pin output to a 10-Pin Mitutoyo Input - 6ft , $148.50
Chatillon ENC-0125 Interface Cable Chatillon ENC-0125 Interface Cable , $152.95
Chatillon SPK-DF-USB Gauge Adaptor Chatillon SPK-DF-USB Gauge Adaptor , $195.30

View Features

Chatillon Ametek
SKU: E-DFE-100

Features

The Chatillon DFE series digital force gauge marks a new era in force measurement. This compact, easy to use force gauge is designed for economy applications without compromising functionality. The Chatillon DFE digital force gauge is ideal for both hand held and test stand applications. The DFE gauge is available in capacities from 2 pounds (10 N) to 500 pounds (2500 N). The DFE features an integral loadcell with a measurement accuracy of better than 0.25% full scale.

A large, easy to read, high resolution dot matrix LCD display supports a variety of standard gauge functions, including normal and peak readings, high / low limits, setpoints, pass / fail results, statistical results, loadcell actuation and direction. Loads are displayed in oz, g, lb, kg and N units. The display can be inverted and displayed results may be hidden from the operator.

The Chatillon DFE digital force gauge may be specified with or without RS232 serial communication. All DFE gauges come with a carrying case, adapter / charger, testing accessories and NIST Certificate of Calibration with data.

Features:

  • Two models and 7 capacities each
    • DFE Series (no outputs)
    • E-DFE Series (with digital and analog outputs)
  • Advanced Operating Modes
    • Normal
    • Peak tension and compression
    • Load limits
    • Pass-fail limits
  • Statistical Calculations
    • Mean with maximum and minimum values
    • Coefficient of variation with mean and standard deviation
    • Standard deviation with variance and mean
    • Percent differentiation
  • Integral Loadcells
    • Accuracy ±0.25% full scale
    • Mechanical overload protection to 150% full scale
  • Simple Operator Interface
    • High resolution display
    • Menus, prompts and function keys for easy use
  • Optional Outputs (standard on E-DFE models): RS-232 serial data, Mitutoyo Digimatic, ±2Vdc Analog
  • NIST Calibration with Data - available IEC/ISO17025 cert with uncertainty
  • 2 year warranty

Model DFE Series Without Outputs
ounce gram pound kilogram Newton
DFE-002 32 x 0.04 1000 x 1 2 x 0.002 1 x 0.001 10 x 0.01
DFE-010 160 x 0.2 5000 x 5 10 x 0.01 5 x 0.005 50 x 0.05
DFE-025 400 x 0.5 10000 x 10 25 x 0.02 10 x 0.01 100 x 0.1
DFE-050 800 x 1 25000 x 20 50 x 0.05 25 x 0.02 250 x 0.2
DFE-100 1600 x.2 50000 x 50 100 x 0.1 50 x 0.05 500 x 0.5
DFE-200 3200 x 4 - 200 x 0.2 100 x 0.1 1000 x 1
DFE-500 8000 x 10 - 500 x 0.5 250 x 0.2 2500 x 2
Model E-DFE Series with RS232, Mitutoyo and Analog Outputs
E-DFE-002 32 x 0.04 1000 x 1 2 x 0.002 1 x 0.001 10 x 0.01
E-DFE-010 160 x 0.2 5000 x 5 10 x 0.01 5 x 0.005 50 x 0.05
E-DFE-025 400 x 0.5 10000 x 10 25 x 0.02 10 x 0.01 100 x 0.1
E-DFE-050 800 x 1 25000 x 20 50 x 0.05 25 x 0.02 250 x 0.2
E-DFE-100 1600 x.2 50000 x 50 100 x 0.1 50 x 0.05 500 x 0.5
E-DFE-200 3200 x 4 - 200 x 0.2 100 x 0.1 1000 x 1
E-DFE-500 8000 x 10 - 500 x 0.5 250 x 0.2 2500 x 2

Specifications

  • Accuracy: ±0.25% of full scale ± LSC
  • Certification: calibration with NIST data, IEC/ISO17025 optional
  • Data Sampling Rate: 5000 Hz
  • Peak Capture Rate: 5000 Hz
  • Display Update Rate: 10 Hz
  • Tare Capacity: 10% full scale
  • Overload Protection: 150% full scale
  • Display Characteristics: high resolution, dot matrix LCD, 8 lines, 40 characters, adjustable contrast, invert and hide capability
  • Automatic Shut Down: configurable time. May be disabled.
  • Data Storage: 10 results, optional NEXYGEN software for unlimited storage and automated testing and analysis.
  • Test Stand Control: Compatible with Chatillon TCD series test stands
  • Outputs (E-DFE models) : RS-232, Mitutoyo (Digimatic) and ±2Vdc analog
  • Power: Battery or direct AC operation. Universal Power: 120V / 230V, Rechargeable nickel metal hydride (supplied)
  • Battery Life: 30 hours, continuous use. Gauge may be operated with direct AC power source
  • Instrument Weight: 1.5 lbs
  • Operating Temperature: 40 to 100 F (4 to 38 C)
  • Warranty: 2 years

Do More... Pay Less!

The new Chatillon DFS series force gauges deliver more features without compromising easy of use, accuracy and, very importantly, costs to you. Youll do more with a Chatillon DFS series gauge and youll get the reliability and quality that youve come to expect from Chatillon force measurement instruments.

Easy to Read Display

A large, easy to read dot matrix display can display up to eight lines of information. The high resolution display features contrast adjustments and can be inverted when required. The display can even be hidden at the press of a button. A load bar graph indicated load direction, measured load and safe load and helps to prevent overloads. The integral loadcells feature mechanical overload protection of 150% full scale.

Single Touch Operation

The rubber keypad features dedicated and dynamic function keys. The function keys correspond to displayed options and guide the user during operation. A navigation pod lets you navigate through the menus and to scroll and change values quickly. The innovative i key can be used to display critical information on the gauge such as gauge capacity and resolution, battery life, loadcell overload history, even service information including last calibration date or the location of service centers.

Data Outputs and Personal Computer Integration

The DFS force gauge features RS-232 and Mitutoyo Digimatic digital outputs. the gauge also features a ±2Vdc analog output. Measured values may be transmitted to an external device using a manual command at the gauge, or a measured value may be transmitted based on an an externally driven command, e.g. from a personal computer or other serially interfaced device.

Comprehensive Results

The rubber keypad features dedicated and dynamic function keys. The function keys correspond to displayed options and guide the user during operation. A navigation pod lets you navigate through the menus and to scroll and change values quickly. The innovative i key can be used to display critical information on the gauge such as gauge capacity and resolution, battery life, loadcell overload history, even service information including last calibration date, or the location of service centers.

Dependable Measurements

The DFS series force gauge features an internal loadcell sensor that delivers repeatable, accurate results. The innovative load bar graph shows dynamic load, direction of load and warns you of pending overload conditions.

Calibrate and Verify Status

The DFE-series force gauge incorporates flash memory and hosts a set of self-diagnostic functions for monitoring the display, keypad and electronics. Using the i key, you have immediate access to battery conditions, including estimated battery life remaining. You can also view loadcell status, including the number of overloads that have been applied to the gauge. Zero offset verification is standard and a step by step calibration procedure is built into the gauge, allowing you to calibrate your DFS gauge with certified standards.


Weight: 10.00 lb
