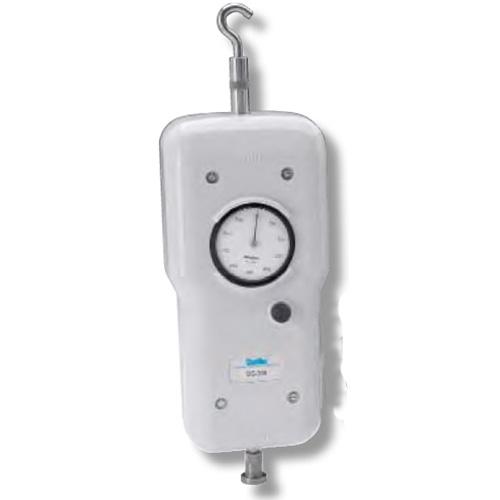

Chatillon DG-400 Mechanical Force Gauge, 400 lb x 2 lb

Digital force gauges with 200 to 500 lbs capacities - With a large dial for improved readability, peak hold button, universal mounting plate. Ideal for tension or compression testing more ...
Test Equipment > Force Gauges > Mechanical Force Gauges
Chatillon DG-400 Mechanical Force Gauge, 400 lb x 2 lb

View Full Detail Page


Have Questions?
Call USoremail Us
Our Staff will be glad to help

Chatillon DG-400 Mechanical Force Gauge, 400 lb x 2 lb
FREE 3 Day Shipping
(48 US States Only)

Price: $1,195.00


Available to Ship


Optional Accessories
Chatillon SPK-MT-0005 Adapter for DG Series to MT150 and MT500 Chatillon SPK-MT-0005 Adapter for DG Series to MT150 and MT500 , $198.90
Chatillon SPK-DG-TT Adapter DG Gauge to TT Tester Chatillon SPK-DG-TT Adapter DG Gauge to TT Tester , $165.60
Chatillon NC002845 Soft Carrying Case, Fanny Pack Chatillon NC002845 Soft Carrying Case, Fanny Pack , $85.50
Chatillon NC002500 Hook with Latch 500 lbf Thread 5/16-18F Chatillon NC002500 Hook with Latch 500 lbf Thread 5/16-18F , $135.85
Chatillon NC000725 V-Notch Fixture, Large 500 lbf Thread 5/16-18F Chatillon NC000725 V-Notch Fixture, Large 500 lbf Thread 5/16-18F , $63.65
Chatillon NC000721 V-Notch Fixture, Small 500 lbf Thread 5/16-18F Chatillon NC000721 V-Notch Fixture, Small 500 lbf Thread 5/16-18F , $55.10
Chatillon SPK-FMG-142 Curved Compression Fixture 500 lbf Thread 5/16-18F Chatillon SPK-FMG-142 Curved Compression Fixture 500 lbf Thread 5/16-18F , $57.00
Chatillon SPK-FMG-143 Compression Plate, Flat 500 lbf Thread 5/16-18F Chatillon SPK-FMG-143 Compression Plate, Flat 500 lbf Thread 5/16-18F , $61.75
Chatillon SPK-FMG-144 Palm Fixture (Mushroom) 500 lbf Thread 5/16-18F Chatillon SPK-FMG-144 Palm Fixture (Mushroom) 500 lbf Thread 5/16-18F , $133.00
Chatillon SPK-FMG-145 Compression Plate, Large (Rectangular) 500 lbf Thread 5/16-18F Chatillon SPK-FMG-145 Compression Plate, Large (Rectangular) 500 lbf Thread 5/16-18F , $45.60
Chatillon NC002844 Grasping Loop 500 lbf Chatillon NC002844 Grasping Loop 500 lbf , $57.00
Chatillon SPK-DG-HANDLE Handle Assembly Chatillon SPK-DG-HANDLE Handle Assembly , $164.35

View Features

Chatillon Ametek
SKU: DG-400

Features

Capacity: 400 pounds.

The Chatillon DG-series mechanical force gauge is ideal for a wide range of force testing applications up to 500 pounds. Based on Chatillons popular DPPH series force gauge, the DG-series force gauges feature a larger, 2.25 dial for improved resolution and readability, peak hold button, durable plastic housing, universal mounting plate, ergonomic shape and improved accuracy of +/-0.5% of full scale. The DG force gauge is an excellent, economical solution for tensile or compression testing.

The Chatillon DG Series gauge may be used as a hand-held device or can be equipped with optional handle set for two-hand operation. It is ideal for test stand applications, and when combined with the MT-500 series mechanical test stand, offers you a versatile, economic test system with a capacity of up to 500 pounds.

The DG-series force gauge features an easy to read concentric dial that measures clockwise only. Dial rotates 360 degrees for taring. A peak hold switch captures peak readings and can be easilly and quickly returned to zero. A mechanical overload feature protects the gauge from damage. Available in pounds, kilograms, or newtons versions. The DG gauges come complete with a protective carrying case and a set of stainless steel attachments. A certificate of calibration with NIST data is supplied standard.

Features:

  • Easy to use, durable construction
  • Tensile or compression testing
  • Intrinsically safe
  • Capacity up to 500 pounds (also newtons and kilograms versions available)
  • Push or pull operation
  • Tare ring
  • Peak capture
  • Universal Mounting Plate
  • NIST calibration with data

Specifications:

  • Accuracy: +/-0.5% of full scale
  • Overload capacity: 110% of rated capacity
  • Maximum overload: 150% of rate capacity
  • Tare Capacity: 10% of rated capacity
  • Dial resolution: 0.5% of full scale
  • Deflection: 10 mm (.394) at full scale
  • Operation Temperature: +40° to 110°F (+5° to +45° C)
  • Instrument Weight: 5 lbs
  • Shipping Weight 10 lbs
  • Warranty: 2 years

Optional Accessories: Optional gripping fixtures add flexibility to production, laboratory and general testing use.

Test Stand Usage: The DG push pull gauge can be mounted on Chatillon test stands for greater control of repetitive testing.

Model Capacity x Graduation
DG-200 200 x 1 lb
DG-300 300 x 1.5 lb
DG-400 400 x 2 lb
DG-500 500 x 2.5 lb
DG-100KG 100 x 0.5 kg
DG-250KG 250 x 1.25 kg
DG-1000N 1000 x 5 N
DG-2500N 2500 x 12.5 N

Weight: 10.00 lb
2 Year Manufacture Warranty
Other Chatillon Ametek DG Mechanical Force Gauges
Chatillon DG-2500N Mechanical Force Gauge, 2500 N x 12.5 N
Chatillon DG-2500N
Mechanical Force Gauge
2500 N x 12.5 N

$1,195.00
Chatillon DG-1000N Mechanical Force Gauge, 1000 N x 5 N
Chatillon DG-1000N
Mechanical Force Gauge
1000 N x 5 N

$1,195.00
Chatillon DG-250KG Mechanical Force Gauge, 250 kg x 1.25 kg
Chatillon DG-250KG
Mechanical Force Gauge
250 kg x 1.25 kg

$1,195.00
Chatillon DG-100KG Mechanical Force Gauge, 100 kg x 0.5 kg
Chatillon DG-100KG
Mechanical Force Gauge
100 kg x 0.5 kg

$1,195.00
Chatillon DG-200 Mechanical Force Gauge, 200 lb x 1 lb
Chatillon DG-200
Mechanical Force Gauge
200 lb x 1 lb

$1,195.00
Chatillon DG-400 Mechanical Force Gauge, 400 lb x 2 lb
Chatillon DG-400
Mechanical Force Gauge
400 lb x 2 lb

$1,195.00

You are viewing this product
Chatillon DG-500 Mechanical Force Gauge, 500 lb x 2.5 lb
Chatillon DG-500
Mechanical Force Gauge
500 lb x 2.5 lb

$1,195.00
Chatillon DG-300 Mechanical Force Gauge, 300 lb x 1.5 lb
Chatillon DG-300
Mechanical Force Gauge
300 lb x 1.5 lb

$1,195.00
