Features

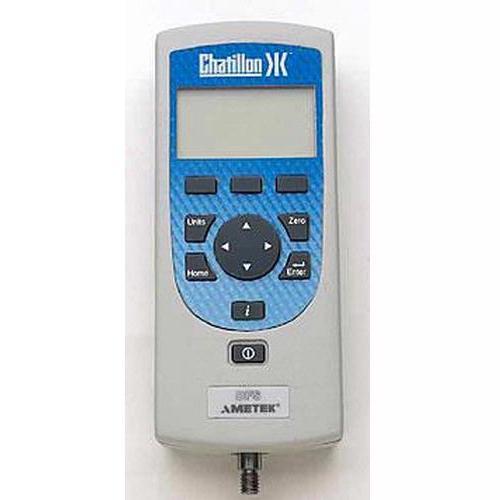

Advanced Digital Force Gauges with Integral Load Cell
The Chatillon DFS series offers the best price performance of any digital force gauge available today. This compact, easy to use force gauge is designed for basic and complex applications. Ideal for hand held or test stand applications, the DFS may be equipped with integral loadcells or smart remote sensors for load measurement or torque measurement. Measurement accuracy is better than 0.1% full scale. A large, easy to read, high resolution dot matrix LCD display supports a variety of standard gauge functions including normal and peak readings, high/low limits, setpoints, pass/fail results, statistical results, load averaging, load comparisons, percentage and sharp break detection, loadcell actuation and direction. Loads are displayed in ozf, gf, lbf, kgf and N units. The display can be inverted and displayed results may be hidden from the operator.
The Chatillon DFS force gauge comes standard with an RS-232 cable, carrying case, battery adapter / charger, testing accessories and NIST Certificate of Calibration with data.
Features:
- Eight models and capacities
- Advanced Operating Modes
- Normal
- Peak tension and compression
- Percentage or sharp break detection
- Load comparisons and load averaging
- Contact closure
- Load limits
- Pass-fail limits
- Statistical Calculations
- Mean with maximum and minimum values
- Coefficient of variation with mean and standard deviation
- Standard deviation with variance and mean
- Percent differentiation
- Integral Loadcells
- Accuracy ±0.1% full scale
- Mechanical overload protection to 150% full scale
- Simple Operator Interface
- High resolution display
- Menus, prompts and function keys for easy use
- Standard Outputs - RS-232 serial data, Mitutoyo Digimatic, ±2Vdc Analog
- NIST Calibration with Data - available IEC/ISO17025 cert with uncertainty
- 2 year warranty
| Model |
ounce |
gram |
pound |
kilogram |
Newton |
| DFS-250G |
8 x 0.004 |
250 x 0.05 |
0.5 x 0.0001 |
- |
2.5 x 0.0005 |
| DFS-002 |
32 x 0.004 |
1000 x 0.1 |
2 x 0.002 |
1 x 0.0001 |
10 x 0.001 |
| DFS-010 |
160 x 0.02 |
5000 x 0.5 |
10 x 0.001 |
5 x 0.0005 |
50 x 0.005 |
| DFS-025 |
400 x 0.05 |
10000 x 1 |
25 x 0.002 |
10 x 0.001 |
100 x 0.01 |
| DFS-050 |
800 x 0.1 |
25000 x 2 |
50 x 0.005 |
25 x 0.002 |
250 x 0.02 |
| DFS-100 |
1600 x 0.2 |
50000 x 5 |
100 x 0.01 |
50 x 0.005 |
500 x 0.05 |
| DFS-200 |
3200 x 0.4 |
- |
200 x 0.02 |
100 x 0.01 |
1000 x 0.1 |
| DFS-500 |
8000 x 1 |
- |
500 x 0.05 |
250 x 0.02 |
2500 x 0.2 |
Specifications
- Accuracy: ±0.1% of full scale
- Certification: calibration with NIST data, IEC/ISO17025 optional
- Data Sampling Rate: 5000 Hz
- Peak Capture Rate: 5000 Hz
- Display Update Rate: 10 Hz
- Tare Capacity: 10% full scale
- Overload Protection: 150% full scale
- Display Characteristics: high resolution, dot matrix LCD, 8 lines, 40 characters, adjustable contrast, invert and hide capability
- Automatic Shut Down: configurable time. May be disabled.
|
- Data Storage: 10 results, optional NEXYGEN software for unlimited storage and automated testing and analysis.
- Test Stand Control: Compatible with Chatillon TCD series test stands
- Outputs: RS-232, Mitutoyo (Digimatic) and ±2Vdc analog
- Power: Battery or direct AC operation. Universal Power: 120V / 230V, Rechargeable nickel metal hydride (supplied)
- Battery Life: 30 hours, continuous use. Gauge may be operated with direct AC power source
- Instrument Weight: 1.5 lbs
- Operating Temperature: 40 to 100 F (4 to 38 C)
- Warranty: 2 years
|
Weight:
6.00 lb
|
2 Year Manufacture Warranty
|
