Chatillon BP15-100K-T Mechanical Bench Scale, 15 Dial 100 kg x 250 g |
|
These quality crafted bench platform scales feature a 15-inch glass-covered dial with knife-edge pointer. Designed for platform use, the BP Series features a rugged cast-iron base and heavy gauge steel platform. more ... |
Scales >
Industrial Scales >
Mechanical Scales
|
|
|
|
Features

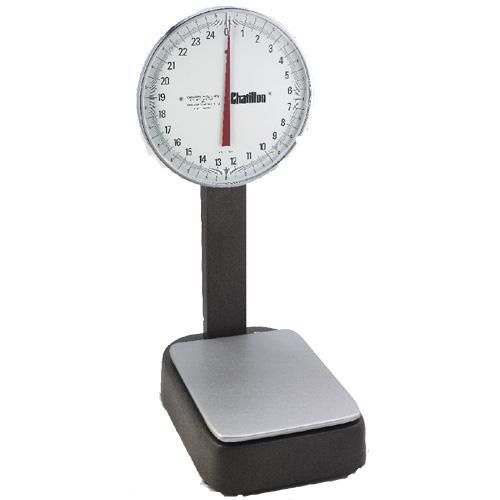

The CHATILLON® BP15 Series bench platform scale features a large, easy-to-read 15-inch (380 mm) dial with knife-edge pointer for accurate measurements.
Scales are supplied for H44 Class III “Legal for Trade” applications. Designed for platform use, the BP15 features a rugged cast-iron base with heavy-gauge
steel platform for excellent stability. The scale’s mounting feet are adjustable. Options include a stainless steel platform, 7-inch (178 mm) deep provisional
pan and quick tare knob. Tare adjustments may be made up to 10% of rated capacity. The scale’s head cover and column back are removable for easy
access to the dial mechanism and the dashpot. Units are shipped assembled.
Features
- H44 Class III "Legal for Trade" and No Class Models
- Pound or Kilogram Dials- Capacities up to 400 lbs & 200 kg
- Rugged Cast Iron Base and Heavy-Gauge Steel Construction
- Large, 15-inch (380 mm) Easy-to-Read Dial with Knife-edge Pointer
- 1 Year Warranty
Model BP15
- Chatillons finest quality bench platform scale with large 15"
dial
- 13-1/2" x 19" platform
Model BP13
- The same rugged construction features as BP15, but with a 13"
dial. Excellent for industrial weighing
These quality crafted bench platform scales feature a 15-inch glass-covered dial with knife-edge pointer. Designed for platform use, the BP Series features a rugged cast-iron base and heavy gauge steel platform. Adjustable leveling feet and spirit level indicator are standard. Tare is adjustable to 10% capacity. Class III "Legal For Trade" models are subject to on-site verification by local Weights and Measures jurisdictions. Available with avoirdupois or metric graduations. BP15 Series have temperature compensated springs.
|
1 Year Manufacture Warranty
|
Other Chatillon Ametek BP15 15 Inch Dail Mechanical Bench Scales
|
Specifications
Model |
BP15-050-T |
BP15-100-T |
BP15-200-T |
BP15-400-T |
BP15-25K-T |
BP15-50K-T |
BP15-100K-T |
BP15-200K-T |
Capacity x Readability |
50 lb x 2 oz |
100 lb x 2 oz |
260 lb x 8 oz |
520 lb x 1 lb |
25 kg x 50 g |
50 kg x 100 g |
100 kg x 250 g |
200 kg x 500 g |
Legal for Tade |
Class III Certificate# 88-096A1 |
- |
Platform Size (W x L) |
13.5 x 19 Inch |
Dial Size |
15 Inch |
Maximum Overload |
125% of Rated Capacity |
Tare Capacity |
10% of Rated Capacity |
Zero Tracking |
Auto (programmable range) |
Dial Revolutions |
Full Scale in 1 Revolution |
Dial Resolution |
100:1 |
Operating Temperature |
45°F to 100°F (7°C to 38°C) |
Warranty |
1 Year Limited Manufacturer Warranty |
|
|
|
|
|
|
|
