Cambridge 680UL48721 Model 680 Ultra-Lo Series 48 x 72 x 2 Base Only 10000 lb (3875-1011-00) |
|

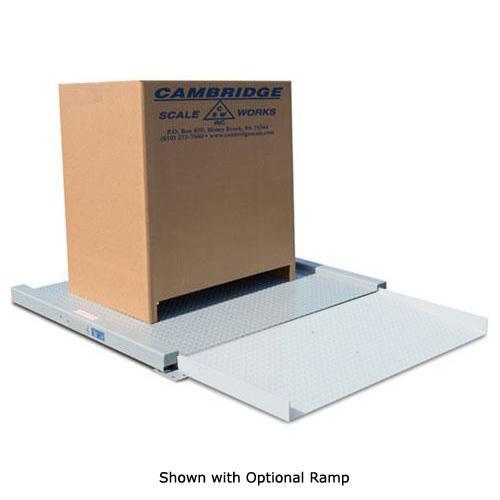

| Cambridge Scale Works Model 680 Series Ultra-Lo Profile Floor Scale shown with optional easy incline ramp. more ... |
|
Scales >
Industrial Scales >
Floor Scales
|
Note: This product can only be shipped Ground Delivery.
|
|
|
|
|
|
|
|
Features
Cambridge Scale Works Model 680 Series Ultra-Lo Profile Floor Scale are Live safety side rails for oversized loads and roll off protection have a Structural tubular steel design. Anti-skid diamond deck plate and Anti-skid leveling feet Its hight is from 1.5 to 2.5 inches
MODEL 680 STANDARD FEATURES
- Live safety side rails for oversized loads and roll off protection
- Structural tubular steel design
- Anti-skid diamond deck plate
- Anti-skid leveling feet
- 100% end loading capacity
- 200% overload protection
- 20’ indicator cable
- Four internally mounted NTEP certified 5000 division class III/IIIL water resistant environmentally protected load cells
- Easy access leveling feet
- Easy access junction board for corner adjusting
- Shielded signal and load cell cables
- Ultra-lo profile design for jack truck & cart weighing
- Powder coated finish
- One part in 5000 accuracy
Underside has structural tubular steel design. Load cell position allows live side rails.
OPTIONS
- Easy incline ramps
- Bumper rail assembly
- Harsh environment package
- Remote stainless steel junction box
- Smooth plate
- Stainless steel load cells
- "FM" load cells
Dimensions
X:
48.00
Y:
72.00
Z:
2.00
|
1 Year Manufacture Warranty
|
Other Cambridge Scale Model 680 Series
|
Specifications
| Model |
Pan Size (Inch) |
Capacity x Readability |
Legal For Trade |
Overall Size (Inch) |
| 680UL30301 |
30 x 30 x 1.5 |
1,000 x 0.1 lb |
NO |
- |
36 x 30 |
| 680UL30302 |
30 x 30 x 1.5 |
2,500 x 0.5 lb |
NO |
- |
36 x 30 |
| 680UL36361 |
36 x 36 x 1.5 |
1,000 x 0.1 lb |
NO |
- |
42 x 36 |
| 680UL36362 |
36 x 36 x 1.5 |
2,500 x 0.5 lb |
NO |
- |
42 x 36 |
| 680UL36481 |
36 x 48 x 1.5 |
1,000 x 0.1 lb |
NO |
- |
42 x 48 |
| 680UL36482 |
36 x 48 x 1.5 |
2,500 x 0.5 lb |
NO |
- |
42 x 48 |
| 680UL48485 |
48 x 48 x 2 |
5,000 x 0.5 lb |
NO |
- |
54 x 48 |
| 680UL48481 |
48 x 48 x 2 |
10,000 x 1 lb |
NO |
- |
54 x 48 |
| 680UL48605 |
48 x 60 x 2 |
5,000 x 0.5 lb |
NO |
- |
54 x 60 |
| 3860-1013-00 |
48 x 60 x 2 |
10,000 x 1 lb |
NO |
- |
54 x 60 |
| 680UL48725 |
48 x 72 x 2 |
5,000 x 0.5 lb |
NO |
- |
54 x 72 |
| 680UL48721 |
48 x 72 x 2 |
10,000 x 1 lb |
NO |
- |
54 x 72 |
| 680UL60605 |
60 x 60 x 2.5 |
5,000 x 0.5 lb |
NO |
- |
66 x 60 |
| 680UL60601 |
60 x 60 x 2.5 |
10,000 x 1 lb |
NO |
- |
66 x 60 |
| 680UL60725 |
60 x 72 x 2.5 |
5,000 x 0.5 lb |
NO |
- |
66 x 72 |
| 680UL60601 |
60 x 72 x 2.5 |
10,000 x 1 lb |
NO |
- |
66 x 72 |
| 680UL60845 |
60 x 84 x 2.5 |
5,000 x 0.5 lb |
NO |
- |
66 x 84 |
| 680UL60841 |
60 x 84 x 2.5 |
10,000 x 1 lb |
NO |
- |
66 x 84 |
|
|
|
|
|
|
|
|
|
|
|
|
