Cambridge 680SS48721 Model SS680 Stainless Steel Legal For Trade Ultra-Lo 48 x 72 x 2 Base Only 10000 lb (3876-1011-00) |
|

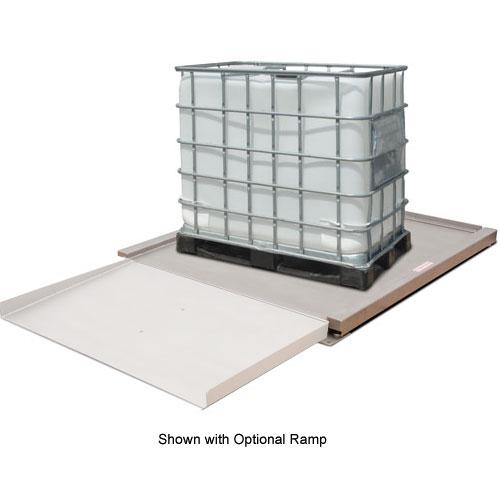

Cambridge Scale Works Model SS680 Series Ultra-Lo Profile Floor Scale shown with optional easy incline ramp and bumper rail. more ... |
Scales >
Industrial Scales >
Floor Scales
|
Note: This product can only be shipped Ground Delivery.
|
|
|
|
|
|
Features
MODEL SS680 STANDARD FEATURES
Live safety side rails for oversized loads and roll off protection
Structural tubular stainless steel design
Capped and sealed tubes throughout
Smooth stainless steel deck plates
Stainless steel anti-skid leveling feet
100% end loading capacity
200% overload protection
Remote stainless steel NEMA IV junction box with ten foot Sealtite® protective conduit.
Four internally mounted NTEP certified 5000 division class III/IIIL water resistant environmentally protected IP 67 rated stainless steel load cells
Easy access stainless steel leveling feet
Shielded signal and load cell cables
Ultra-lo profile design for jack truck & cart weighing
Glass bead stainless steel finish
One part in 5000 accuracy
OPTIONS
Stainless steel easy incline ramps
Stainless steel bumper rail assembly
Type 316 stainless steel
Stainless steel diamond tread plate
Hermetically sealed stainless steel load cells
"FM" stainless steel load cells
Dimensions X:
48.00
Y:
72.00
Z:
2.00
|
1 Year Manufacture Warranty
|
Other Cambridge Scale Model SS680 Stainless Steel Series
|
Specifications
Cambridge Scale MODEL SS680 Stainless Steel Ultra-Low Profile Floor Scales
Model |
Pan Size (Inch) |
Capacity x Readability |
Legal For Trade |
Price Base Only |
Price with CSW-10AT Indicator |
Overall Size (Inch) |
680SS30301 |
30 x 30 x 1.5 |
1,000 x 0.1 lb |
NO |
- |
36 x 30 |
680SS30302 |
30 x 30 x 1.5 |
2,500 x 0.5 lb |
NO |
- |
36 x 30 |
680SS36361 |
36 x 36 x 1.5 |
1,000 x 0.1 lb |
NO |
- |
42 x 36 |
680SS36362 |
36 x 36 x 1.5 |
2,500 x 0.5 lb |
NO |
- |
42 x 36 |
680SS36481 |
36 x 48 x 1.5 |
1,000 x 0.1 lb |
NO |
- |
42 x 48 |
680SS36482 |
36 x 48 x 1.5 |
2,500 x 0.5 lb |
NO |
- |
42 x 48 |
680SS48485 |
48 x 48 x 2 |
5,000 x 0.5 lb |
NO |
- |
54 x 48 |
680SS48481 |
48 x 48 x 2 |
10,000 x 1 lb |
NO |
- |
54 x 48 |
680SS48605 |
48 x 60 x 2 |
5,000 x 0.5 lb |
NO |
- |
54 x 60 |
680SS48601 |
48 x 60 x 2 |
10,000 x 1 lb |
NO |
- |
54 x 60 |
680SS48725 |
48 x 72 x 2 |
5,000 x 0.5 lb |
NO |
- |
54 x 72 |
680SS48721 |
48 x 72 x 2 |
10,000 x 1 lb |
NO |
- |
54 x 72 |
680SS60605 |
60 x 60 x 2.5 |
5,000 x 0.5 lb |
NO |
- |
66 x 60 |
680SS60601 |
60 x 60 x 2.5 |
10,000 x 1 lb |
NO |
- |
66 x 60 |
680SS60725 |
60 x 72 x 2.5 |
5,000 x 0.5 lb |
NO |
- |
66 x 72 |
680SS60721 |
60 x 72 x 2.5 |
10,000 x 1 lb |
NO |
- |
66 x 72 |
680SS60845 |
60 x 84 x 2.5 |
5,000 x 0.5 lb |
NO |
- |
66 x 84 |
680SS60841 |
60 x 84 x 2.5 |
10,000 x 1 lb |
NO |
- |
66 x 84 |
|
|
|
|
|
|
|
