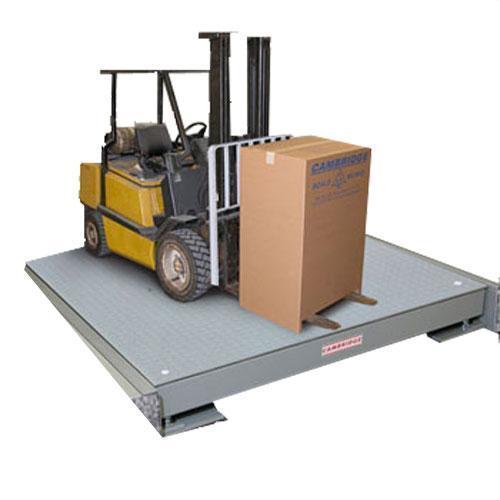

Cambridge 3877-1027-00 Model 660 Classic HD 72 x 96 x 7 Base Only 40000 lb |
|
Stainless Steem NEMA 4x junction box shown with top access plated removed. Top access simplified periodic adjustments. Each load cell is pocketed in the frame of the scale protecting both the load cell and wiring. more ... |
Scales >
Industrial Scales >
Floor Scales
|
Note: This product can only be shipped Ground Delivery.
|
|
|
|
|
|
Features
Stainless Steem NEMA 4x junction box shown with top access plated removed. Top access simplified periodic adjustments.
Each load cell is pocketed in the frame of the scale protecting both the load cell and wiring.
ACCESSORIES
- PIT FORMS
Includes everything but the concrete. Each Cambridge Scale Works pit is custom built to exactly contain the scale you order. These forms feature welded tubular steel sections on all sides and corner plates for easy installation.
- BUMPER GUARDS
Protect your investment and add years to the life of your scale with our diamond steel bumpers. Angled design deflects fork lift blades and prevents unwanted movement and damage to scale. Bumpers are available in 360° surround style or any combination of sides to fit your specific application/ Each Cambridge Scale Works bumper guard is custom built to exactly fit your scale.
- EASY INCLINE RAMPS
These back saving ramps are ideal when a pit application is impossible. Easy 6° incline ramps are designed to fit all four sides of any 660 scale and lock in place with the attached brackets. Includes lag down brackets.
- CONCENTRATED LOAD CRADLE
Designed to secure round objects, such as coils, from moving during weighing. The cradle is designed to work with our 660-Coil series scale and is adjustable to match the diameter of the object being weighed.
- INDICATOR / PRINTER STANDS
360° of movement as well as telescoping capability make these rugged, sturdy stands ideal for the secure mounting of your valuable indicator or printer or both. Both models feature adjustable leveling feet for a wobble free stance on almost any floor environment. These stands work equally well as a companion to many of the other scales in the Cambridge Scale Works line.
LOCATOR BRACKETS
These heavy steel brackets help to keep your 660 securely where you want it. Choose lag downs for floor mounting or pit spacers for pit applications.
STANDARD FEATURES
- 10,000 through 40,000 Lb capacities
- Cross strutted structural tubular steel construction.
- 3/8 inch thick diamond steel deck plate.
- Four internally mounted, IP 67 rated water resistant load cells.
- Polycarbonate NEMA 4x junction trim box.
- Top access junction box and leveling feet.
- Self checking, captive ball leveling feet.
- 20 foot shielded indicator cable.
- Eye bolt holes for easy setup and moving.
OPTIONS
- Stainless steel load cells
- "FM" approved load cells
Dimensions X:
72.00
Y:
72.00
Z:
7.00
|
1 Year Manufacture Warranty
|
Other Cambridge Scale Model 660 Classic HD
|
Specifications
Model |
Size (Inch) |
Capacity |
Legal For Trade |
660HD484861 |
48 x 48 x 6 |
10,000 x 2 lb |
YES cc# 96-157A1 |
660HD484862 |
48 x 48 x 6 |
20,000 x 4 lb |
YES cc# 96-157A1 |
660HD484863 |
48 x 48 x 7 |
30,000 x 3 lb |
- |
660HD484864 |
48 x 48 x 7 |
40,000 LB. |
- |
660HD487261 |
48 x 72 x 6 |
10,000 x 4 lb |
YES cc# 96-157A1 |
660HD487262 |
48 x 72 x 6 |
40,000 x 4 lb |
YES cc# 96-157A1 |
660HD487263 |
48 x 72 x 7
| 30000 x 4 lb |
- |
660HD487264 |
48 x 72 x 7
| 40000 x 4 lb |
- |
660HD606061 |
60 x 60 x 6
| 10,000 LB. |
YES cc# 96-157A1 |
660HD606062 |
60 x 60 x 6
| 20,000 LB. |
YES cc# 96-157A1 |
660HD606063 |
60 x 60 x 7
| 30,000 LB. |
- |
660HD606064 |
60 x 60 x 7
| 40,000 LB. |
- |
660HD608461 |
60 x 84 x 6
| 10,000 LB. |
YES cc# 96-157A1 |
660HD608462 |
60 x 84 x 6
| 20,000 LB. |
YES cc# 96-157A1 |
660HD608463 |
60 x 84 x 7
| 30,000 LB. |
- |
660HD608464 |
60 x 84 x 7
| 40,000 LB. |
- |
660HD609661 |
60 x 96 x 6
| 10,000 LB. |
YES cc# 96-157A1 |
660HD609662 |
60 x 96 x 6
| 20,000 LB. |
YES cc# 96-157A1 |
660HD609663 |
60 x 96 x 7
| 30,000 LB. |
- |
660HD609664 |
60 x 96 x 7
| 40,000 LB. |
- |
660HD601263 |
60 x 120 x 7
| 30,000 LB. |
- |
660HD601264 |
60 x 120 x 7
| 40,000 LB. |
- |
660HD727261 |
72 x 72 x 6
| 10,000 LB. |
- |
660HD727262 |
72 x 72 x 6
| 20,000 LB. |
- |
660HD727263 |
72 x 72 x 7
| 30,000 LB. |
- |
660HD727264 |
72 x 72 x 7
| 40,000 LB. |
- |
660HD729662 |
72 x 96 x 6
| 20,000 LB. |
- |
660HD729663 |
72 x 96 x 7
| 30,000 LB. |
- |
660HD729664 |
72 x 96 x 7
| 40,000 LB. |
- |
660HD721263 |
72 x 120 x 7
| 30,000 LB. |
- |
660HD721264 |
72 x 120 x 7
| 40,000 LB. |
- |
|
|
|
|
Optional Accessories
more info
|
Cambridge CSW-10AT LED Digital Weight Indicator Legal for Trade
Cambridge CSW-10AT Digital Weight Indicator Legal for Trade
- Selectable: NTEP 5,000 Division - Non-NTEP 20,000 Division
- Net/Gross Display Modes
- Full Range Auto Tare
- Adjustable Digital Filtering
- All Push-button Controls
- LED Display (Bright)
- Printer Data Output on Demand
- 9 Pin Load Cell Connection
- Simple No-Soldering Load Cell Connection
- Clearly, Visible Center of Zero Indication on Display
- Lb/Kg Conversion
- Keypad Calibration with Audit Trail
- Weight Totalization 1 to 5 points of Digital Calibration available
- Span Adjustment at Increasing or Decreasing Weights
- Full Range Push Button Zero
- (1) RS-232 Port for Interface with:
- Printer Output of Gross/Tare/Net
- Computer Data Output
- Scoreboard Continuous Output Alphanumeric or Numeric
- AC Adapter Provided
- Auto Zero Tracking
- Adjustable Motion Detection
- ABS Plastic Dust-Tight Enclosure with Stainless Steel Swivel Stand
Applications:
- Floor Scales
- Bench Scales
- Hopper Scales
- Tank Scales
- Fork Lift Scales
- General Purpose Weighing
- Remote Display Configuration
Optional Features:
Models CSW-10AT
- 110 VAC Dry Contact Set Point
- 12 VDC Accessory Port Power Cable
- Peak Weight Hold
- Digital Scroll Tare
- Scale Warning System - strobe light with audible warns operator when sets limits have been exceeded
- WiFi transmitter to customers wireless hub
- Ethernet Connection
|
|
more info
|
Cambridge CSW-10AT-B LED Digital Weight Indicator Legal for Trade - Battery Operated
Cambridge CSW-10AT-B Digital Weight Indicator Legal for Trade
- Selectable: NTEP 5,000 Division - Non-NTEP 20,000 Division
- Net/Gross Display Modes
- Full Range Auto Tare
- Adjustable Digital Filtering
- All Push-button Controls
- LED Display (Bright)
- Printer Data Output on Demand
- 9 Pin Load Cell Connection
- Simple No-Soldering Load Cell Connection
- Clearly, Visible Center of Zero Indication on Display
- Lb/Kg Conversion
- Keypad Calibration with Audit Trail
- Weight Totalization 1 to 5 points of Digital Calibration available
- Span Adjustment at Increasing or Decreasing Weights
- Full Range Push Button Zero
- (1) RS-232 Port for Interface with:
- Printer Output of Gross/Tare/Net
- Computer Data Output
- Scoreboard Continuous Output Alphanumeric or Numeric
- AC Adapter Provided
- Auto Zero Tracking
- Adjustable Motion Detection
- ABS Plastic Dust-Tight Enclosure with Stainless Steel Swivel Stand
Applications:
- Floor Scales
- Bench Scales
- Hopper Scales
- Tank Scales
- Fork Lift Scales
- General Purpose Weighing
- Remote Display Configuration
Model CSW-10AT-B
For portable applications where battery operation is required. Includes all standard CSW-10AT features plus:
- Battery/AC Operation
- Internal Battery Charger
- Lithium-Ion Battery
- Sleep Mode
Optional Features:
Model CSW-10AT-B
- 110 VAC Dry Contact Set Point
- Digital Scroll Tare
- spare Battery Wall Charger (p/n 1165-1012-00)
- 12 VDC Accessory Port Power Cable
- Peak Weight Hold
|
|
more info
|
Cambridge SSCSW-10AT Stainless Steel LED Digital Weight Indicator Legal for Trade
Cambridge CSW-10AT Digital Weight Indicator Legal for Trade
- Stainless Steel NEMA 4X Enclosure with Stainless Steel Swivel Stand
- Selectable NTEP 5,000 Divisions Non-NTEP 20,000 Divisions
- Net/Gross Display Modes
- Full Range Auto Tare
- Adjustable Digital Filtering
- All Pushbutton Controls
- LED Display (Bright)
- Printer Data Output on Demand
- Clearly, Visible Center of Zero Indication on Display
- Lb/Kg Conversion
- Keypad Calibration with Audit Trail
- Weight Totalization
- 1 to 5 points of Digital Calibration
- Span Adjustment at Increasing or Decreasing Weights
- Full Range Push Button Zero
- (1) RS-232 Port for Interface with:
- Printer Output of Gross/Tare/Net
- Computer Data Output
- Scoreboard Continuous Output Alphanumeric or Numeric
- 120 VAC Cord with Ground
- Auto Zero Tracking
- Adjustable Motion Detection
- (6) Pin Water Tight Signal Connection
- RFI / EMI Screened
Options:
Models SSCSW-10AT
- 110 VAC Dry Contact Set Point
- Peak Weight Hold
- Digital Scroll Tare
- WiFi transmitter to customers wireless hub
|
|
more info
|
Cambridge SSCSW-10AT-B LED Stainless Steel Digital Weight Indicator Legal for Trade - Battery Operated
- Stainless Steel NEMA 4X Enclosure with Stainless Steel Swivel Stand
- Selectable NTEP 5,000 Divisions Non-NTEP 20,000 Divisions
- Net/Gross Display Modes
- Full Range Auto Tare
- Adjustable Digital Filtering
- All Pushbutton Controls
- LED Display (Bright)
- Printer Data Output on Demand
- Clearly, Visible Center of Zero Indication on Display
- Lb/Kg Conversion
- Keypad Calibration with Audit Trail
- Weight Totalization
- 1 to 5 points of Digital Calibration
- Span Adjustment at Increasing or Decreasing Weights
- Full Range Push Button Zero
- (1) RS-232 Port for Interface with:
- Printer Output of Gross/Tare/Net
- Computer Data Output
- Scoreboard Continuous Output Alphanumeric or Numeric
- 120 VAC Cord with Ground
- Auto Zero Tracking
- Adjustable Motion Detection
- (6) Pin Water Tight Signal Connection
- RFI / EMI Screened
Model SSCSW-10AT-B
For portable applications where battery operation is required. Includes all standard SSCSW-10AT features plus:
- Battery/AC Operation
- Internal Battery Charger
- Internal Lithium-Ion Battery
- Sleep Mode
Options:
Models SSCSW-10AT-B
- Digital Scroll Tare
- Spare Battery (P/N 1165-1012-00)
- Peak Weight Hold
|
|
more info
|
Cambridge CSW-15AT 1.5 LED Indicator Legal for Trade with Wireless Remote
Standard Features Include
- Wireless Remote Control
- 1.5" Red LED Display
- Selectable NTEP 5,000 Division Non-NTEP 20,00 Division
- Net/Gross Display Modes
- Full Range Auto Tare
- Adjustable Digital Filtering
- All Pushbutton Controls
- LED Display (Bright)
- Printer Data Output on Demand
- 9 Pin Load Cell Connection
- Clearly, Visible Center of Zero Indication on Display
- Weight Totalization
- Keypad Calibration with Audit Trail
- 1 to 5 Points of Digital Calibration
- Span Adjustment @ Increasing or Decreasing Weights
- Lb/Kg Conversion
- Complete Digital Calibration
- Full Range Push Button Zero
- (1) RS-232 Port for Interface with:
- Printer Output of Gross/Tare/Net
- Computer Data Output
- Scoreboard Continuous Output Alphanumeric or Numeric
AC Adapter Provided
Auto Zero Tracking
Adjustable Motion Detection
Die-Cast Aluminum Dust-Tight Enclosure with Swivel Stand
Applications:
- Floor Scales
- Bench Scales
- Hopper Scales
- Tank Scales
- Axle Scales
- General Purpose Weighing
- Remote Display Configuration
Optional Features: for Model CSW-15AT
- 110 VAC Dry Contact Set Point
- Peak Weight Hold
- Digital Scroll Tare
- RFL-Radio Frequency Link
- WiFi transmitter to customers wireless hub
- Ethernet Connection
- Scale Warning System - strobe light with audible warns operator when sets limits have been exceeded
|
|
more info
|
Cambridge CSW-15AT-B 1.5 LED Indicator Legal for Trade with Battery and Wireless Remote
Standard Features Include
- Wireless Remote Control
- 1.5" Red LED Display
- Selectable NTEP 5,000 Division Non-NTEP 20,00 Division
- Net/Gross Display Modes
- Full Range Auto Tare
- Adjustable Digital Filtering
- All Pushbutton Controls
- LED Display (Bright)
- Printer Data Output on Demand
- 9 Pin Load Cell Connection
- Clearly, Visible Center of Zero Indication on Display
- Weight Totalization
- Keypad Calibration with Audit Trail
- 1 to 5 Points of Digital Calibration
- Span Adjustment @ Increasing or Decreasing Weights
- Lb/Kg Conversion
- Complete Digital Calibration
- Full Range Push Button Zero
- (1) RS-232 Port for Interface with:
- Printer Output of Gross/Tare/Net
- Computer Data Output
- Scoreboard Continuous Output Alphanumeric or Numeric
AC Adapter Provided
Auto Zero Tracking
Adjustable Motion Detection
Die-Cast Aluminum Dust-Tight Enclosure with Swivel Stand
Applications:
- Floor Scales
- Bench Scales
- Hopper Scales
- Tank Scales
- Axle Scales
- General Purpose Weighing
- Remote Display Configuration
Model CSW-15AT-B -
For portable applications where battery operation is required. Includes all standard CSW-15AT-B features plus:
- Battery/AC Operation
- Internal Battery Charger
- Lithium-Ion Battery Charger
- Sleep Mode
Optional Features: for Model CSW-15AT-B
- Peak Weight Hold
- Digital Scroll Tare
- RFL-Radio Frequency Link
- WiFi transmitter to customers wireless hub
- Spare Battery
- Spare Battery Charger
|
|
more info
|
Cambridge CSW-20AT LED Indicator Legal for Trade with Full Numeric Keypad
Standard Features Include
- Die Cast Aluminum Enclosure
- Stainless Steel Swivel Stand
- 6-Digit .56” Red LED Display
- 9-Pin Connection for Signal & communications Ports
- No Solder Strain Relief Connections
- Red LED Annunciators
- Full Numeric Keypad
- 1 to 5 Points of Linearization
- Span Adjustment at Increasing or Decreasing Weights
- Keypad Configuration & Calibration with Audit Trail
- Front Panel Lock Out
- Keypad / Auto Tare
- Auto Zero Tracking
- Adjustable Motion Detecting
- Adjustable Digital Filtering
- Time & Date
- (2) RS-232 Ports
- Print Configuration
- Scale ID Entry (30 Alpha Numeric)
- Weight Totalization (99 Weights)
- ID# Entry (20 Digits)
- Piece Counting
- AC Adapter
- Selectable: NTEP 5,000 Divisions NON-NTEP 20,000 Divisions
Applications:
- Floor Scales
- Bench Scales
- Hopper Scales
- Tank Scales
- Fork Lift Scales
- Counting Scales
- General Purpose Weighing
Optional Features for CSW-20AT:
- 110 VAC Dry Contact Set Point
- RFL-Radio Frequency Link
- Bar Code Scanner (Pen or Laser)
- WiFi Transmitter Connection
- Ethernet Connection
- Scale Warning System
- WI-CELL®-LT wireless
communication from carriage
to indicator now available
|
|
more info
|
Cambridge CSW-20AT-B LED Indicator Legal for Trade with Battery and Full Numeric Keypad
Standard Features Include
- Die Cast Aluminum Enclosure
- Stainless Steel Swivel Stand
- 6-Digit .56” Red LED Display
- 9-Pin Connection for Signal & communications Ports
- No Solder Strain Relief Connections
- Red LED Annunciators
- Full Numeric Keypad
- 1 to 5 Points of Linearization
- Span Adjustment at Increasing or Decreasing Weights
- Keypad Configuration & Calibration with Audit Trail
- Front Panel Lock Out
- Keypad / Auto Tare
- Auto Zero Tracking
- Adjustable Motion Detecting
- Adjustable Digital Filtering
- Time & Date
- (2) RS-232 Ports
- Print Configuration
- Scale ID Entry (30 Alpha Numeric)
- Weight Totalization (99 Weights)
- ID# Entry (20 Digits)
- Piece Counting
- AC Adapter
- Selectable: NTEP 5,000 Divisions NON-NTEP 20,000 Divisions
Applications:
- Floor Scales
- Bench Scales
- Hopper Scales
- Tank Scales
- Fork Lift Scales
- Counting Scales
- General Purpose Weighing
Model CSW-20AT-B
For portable applications where battery operation is required. Includes all standard CSW-20AT features plus:
- Sleep Mode
- Battery/AC Operation
- Internal Battery Charger
- Lithium-Ion Battery
Optional Features for CSW-20AT-B:
- 110 VAC Dry Contact Set Point
- RFL-Radio Frequency Link
- Bar Code Scanner (Pen or Laser)
- WiFi Transmitter Connection
- WI-CELL®-LT wireless
communication from carriage
to indicator now available
- Replacment Battery
- Replacment Battery Charger
|
|
more info
|
Cambridge SSCSW-20AT LED Indicator Stainless Steel Legal for Trade with Full Numeric Keypad
Standard Features Include
- Stainless Steel Nema 4X Enclosure
- Stainless Steel Swivel Stand
- 6-Digit .56” Red LED Display
- 6-Pin Watertight Signal Cable Connections
- No Solder Strain Relief Communication Connections
- Red LED Annunciators
- Full Numeric Keypad
- 1 to 5 Points of Linearization
- Span Adjustment at Increasing or Decreasing Weights
- Keypad Configuration & Calibration with Audit Trail
- Front Panel Lock Out
- Keypad / Auto Tare
- Auto Zero Tracking
- Adjustable Motion Detecting
- Adjustable Digital Filtering
- Time & Date
- (2) RS-232 Ports
- Print Configuration
- Scale ID Entry (30 Alpha Numeric)
- Weight Totalization (99 Weights)
- ID# Entry (20 Digits)
- Piece Counting
- 120 VAC Cord with Ground
- Selectable: NTEP 5,000 Divisions NON-NTEP 20,000 Divisions
Applications:
- Floor Scales
- Bench Scales
- Hopper Scales
- Tank Scales
- Fork Lift Scales
- Counting Scales
- General Purpose Weighing
Optional Features for SSCSW-20AT:
- 110 VAC Dry Contact Set Point
- RFL-Radio Frequency Link
- Bar Code Scanner (Pen or Laser)
- WiFi Transmitter Connection
- Ethernet Connection
- WI-CELL®-LT wireless
communication from carriage
to indicator now available
|
|
more info
|
Cambridge SSCSW-20AT-B LED Indicator Stainless Steel Legal for Trade with Battery and Full Numeric Keypad
Standard Features Include
- Stainless Steel Nema 4X Enclosure
- Stainless Steel Swivel Stand
- 6-Digit .56” Red LED Display
- 6-Pin Watertight Signal Cable Connections
- No Solder Strain Relief Communication Connections
- Red LED Annunciators
- Full Numeric Keypad
- 1 to 5 Points of Linearization
- Span Adjustment at Increasing or Decreasing Weights
- Keypad Configuration & Calibration with Audit Trail
- Front Panel Lock Out
- Keypad / Auto Tare
- Auto Zero Tracking
- Adjustable Motion Detecting
- Adjustable Digital Filtering
- Time & Date
- (2) RS-232 Ports
- Print Configuration
- Scale ID Entry (30 Alpha Numeric)
- Weight Totalization (99 Weights)
- ID# Entry (20 Digits)
- Piece Counting
- 120 VAC Cord with Ground
- Selectable: NTEP 5,000 Divisions NON-NTEP 20,000 Divisions
Applications:
- Floor Scales
- Bench Scales
- Hopper Scales
- Tank Scales
- Fork Lift Scales
- Counting Scales
- General Purpose Weighing
Optional Features for SSCSW-20AT:
- 110 VAC Dry Contact Set Point
- RFL-Radio Frequency Link
- Bar Code Scanner (Pen or Laser)
- WiFi Transmitter Connection
- Ethernet Connection
- WI-CELL®-LT wireless
communication from carriage
to indicator now available
|
|
more info
|
Cambridge - (50267) Attached Indicator Column with Indicator Mounting Plate for 660 48 inch high
Sturdy stands ideal for the secure mounting of your valuable indicator. Feature adjustable leveling feet for a wobble free stance on almost any floor environment. , rigid 48 inches high.
|
|
more info
|
Cambridge BUM727 Bumper Guard for 660-Classic-HD Series - 72 x 7
Protect your investment and add years to the life of your scale with our diamond steel bumpers. Angled design deflects fork lift blades and prevent unwanted movement and damage to scale. Bumpers are available in 360° surround style or any combination of sides to fit your specific application. Our 360° surround bumper is also available with fork lift skids to add portability to your existing scale. Each Cambridge Scale Works bumper guard is custom built to exactly fit your scale.
|
|
more info
|
Cambridge PIT72727- Pit Form for 660-Classic-HD Series - 72 x 72 x 7
Includes everything but the concrete. Each Cambridge Scale Works pit form is custom built to exactly contain the scale you order. These forms feature welded reinforcing rods on all sides and corner plates for easy installation.
|
|
|
|
|
|
|
