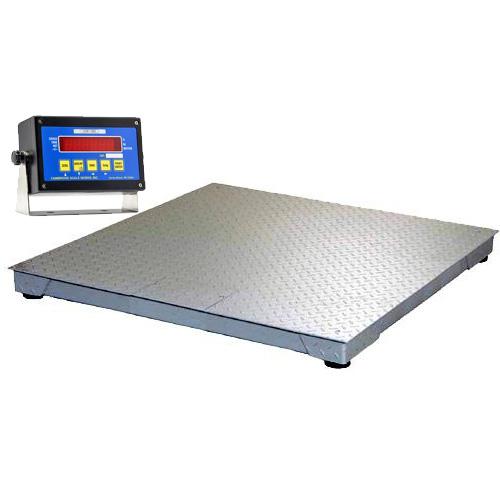

Cambridge 3860-1031-00 MODEL 660 NTEP Low Profile 72x120x5 Scale -20000 x 4 lb |
|
Cambridge Scale MODEL 660 Series Low Profile Floor Scales with Shock Load Protection, 20 Foot Shielded Indicator Cable, Top Access Plastic NEMA 4x Junction Box, Heavy Diamond Tread Deck Plate ,Heavy Structural Tubular Steel Construction. Including the Cambridge CSW-10AT Digital Weight Indicator are a perfect match more ... |
Industrial Scales >
Floor Scales >
10001 lb and up
|
Specifications Chart
View Full Detail Page
|
Legal for Trade |
Have Questions? Our Staff will be glad to help |
Capacity x Readability
Non Legal Mode:20000 lbx 2 lb
Legal For Trade: 20000 lb x 4 lb
Pan Size
6 x 10 ft
|
Note: This product can only be shipped Ground Delivery.
|
|
This Item Contains the following items
|
|
|
|
Features
Cambridge Scale MODEL 660 Series Low Profile Floor Scales with Shock Load Protection, 20 Foot Shielded Indicator Cable, Top Access Plastic NEMA 4x Junction Box, Heavy Diamond Tread Deck Plate ,Heavy Structural Tubular Steel Construction. Including the Cambridge CSW-10AT Digital Weight Indicator are a perfect match. You will get a stong floor scale but you will get the Indicator with all the Features you need for most basic environments (note we do offer wireless Indicator,Stainless Steel and counting Indicators as well) including a LED Display, RS-232 port,Adjustable Motion Detection and much more.
Cambridge Scale MODEL 660 Series Low Profile Floor Base
Cambridge Scale MODEL 660 Series Low Profile Floor Scales with Shock Load Protection, 20 Foot Shielded Indicator Cable, Top Access Plastic NEMA 4x Junction Box, Heavy Diamond Tread Deck Plate ,Heavy Structural Tubular Steel Construction.
STANDARD FEATURES (only NTEP market models are Legal For Trade)
- 1 Part in 5,000 Accuracy (NTEP)
- 1 Part in 10,000 Accuracy (Non-NTEP)
- Heavy Structural Tubular Steel Construction
- Heavy Diamond Tread Deck Plate
- Top Access Plastic NEMA 4x Junction Box
- Top Access Leveling
- Stainless Steel Captive Ball Leveling Feet
- 150% Overload Protection
- 100% End Loading Capacity
- Low Profile Design Allows Easy Incline Ramping
- Eye-Bolt Holes for Easy Set-Up and Moving
- 20 Foot Shielded Indicator Cable
- Shielded signal and load cell cables protected inside tubular steel frame.
- Shock Load Protection
- Four Internally Mounted
Shear Beam Load Cells:
- NTEP Certified-5,000 Division
- Class III/III L
- Environmentally Protected
- IP 67 Water Resistant Rated
OPTIONS
- Remote junction box.
- Harsh environment package.
- Fork lift package
ACCESSORIES
- Easy incline ramps
- Bumper guards
- Pit forms
- Indicator/Printer stands
- Locator brackets
Cambridge CSW-10AT Digital Weight Indicator Legal for Trade
- Selectable: NTEP 5,000 Division - Non-NTEP 20,000 Division
- Net/Gross Display Modes
- Full Range Auto Tare
- Adjustable Digital Filtering
- All Pushbutton Controls
- LED Display (Bright)
- Printer Data Output on Demand
- 9 Pin Load Cell Connection
- Simple No-Soldering Load Cell Connection
- Clearly, Visible Center of Zero Indication on Display
- Lb/Kg Conversion
- Keypad Calibration with Audit Trail
- Weight Totalization 1 to 5 points of Digital Calibration available
- Span Adjustment at Increasing or Decreasing Weights
- Full Range Push Button Zero
- (1) RS-232 Port for Interface with:
- Printer Output of Gross/Tare/Net
- Computer Data Output
- Scoreboard Continuous Output Alphanumeric or Numeric
- AC Adapter Provided
- Auto Zero Tracking
- Adjustable Motion Detection
- ABS Plastic Dust-Tight Enclosure with Stainless Steel Swivel Stand
Applications:
- Floor Scales
- Bench Scales
- Hopper Scales
- Tank Scales
- Fork Lift Scales
- General Purpose Weighing
- Remote Display Configuration
Optional Features:
Models CSW-10AT
- 110 VAC Dry Contact Set Point
- 12 VDC Accessory Port Power Cable
- Peak Weight Hold
- Digital Scroll Tare
- Scale Warning System - strobe light with audibile warns oprator when sets limits have been exceeded
- WiFi transmitor to customers wireless hub
- Ethernet Connction
Dimensions X:
72.00
Y:
120.00
Z:
5.00
|
1 Year Manufacture Warranty
|
Other Cambridge Scale MODEL 660 Low Profile Floor Scales
|
Specifications
Model |
Size (Inch) |
Capacity x Readability |
Legal For Trade |
66024241k |
24 x 24 x 3 |
1,000 x 0.05 lb |
NO |
- |
660242425k |
24 x 24 x 3 |
2,500 x 0.13 lb |
NO |
- |
66030301k |
30 x 30 x 3 |
1,000 x 0.05 lb |
NO |
- |
660303025k |
30 x 30 x 3 |
2,500 x 0.13 lb |
NO |
- |
66036361k |
36 x 36 x 3 |
1,000 x 0.05 lb |
NO |
- |
660363625k |
36 x 36 x 3 |
2,500 x 0.13 lb |
NO |
- |
66036365k |
36 x 36 x 3 |
5,000 x 0.25 lb |
NO |
- |
66048481k |
48 x 48 x 3 |
1,000 x 0.05 lb |
NO |
- |
660484825k |
48 x 48 x 3 |
2,500 x 0.13 lb |
NO |
- |
66048485k |
48 x 48 x 3 |
5,000 x 0.25 lb |
#69-157A1, #06-070A1 |
5,000 x 1 lb |
660484810k |
48 x 48 x 3 |
10,000 x 0.5 lb |
#69-157A1, #06-070A1 |
10,000 x 2 lb |
660484820k |
48 x 48 x 4 |
20,000 x 1 lb |
#69-157A1, #06-070A1 |
20,000 x 4 lb |
66048605k |
48 x 60 x 3 |
5,000 x 0.25 lb |
#69-157A1, #06-070A1 |
5,000 x 1 lb |
660486010k |
48 x 60 x 3 |
10,000 x 0.5 lb |
#69-157A1, #06-070A1 |
10,000 x 2 lb |
660486020k |
48 x 60 x 4 |
20,000 x 1 lb |
#69-157A1, #06-070A1 |
20,000 x 4 lb |
66048725k |
48 x 72 x 3 |
5,000 x 0.25 lb |
#69-157A1, #06-070A1 |
5,000 x 1 lb |
660487210k |
48 x 72 x 3 |
10,000 x 0.5 lb |
#69-157A1, #06-070A1 |
10,000 x 2 lb |
660487220k |
48 x 72 x 4 |
20,000 x 1 lb |
#69-157A1, #06-070A1 |
20,000 x 4 lb |
66060605k |
60 x 60 x 3 |
5,000 x 0.25 lb |
#69-157A1, #06-070A1 |
5,000 x 1 lb |
660606010k |
60 x 60 x 3 |
10,000 x 0.5 lb |
#69-157A1, #06-070A1 |
10,000 x 2 lb |
660606020k |
60 x 60 x 4 |
20,000 x 1 lb |
#69-157A1, #06-070A1 |
20,000 x 4 lb |
660608410k |
60 x 84 x 4 |
10,000 x 0.5 lb |
#69-157A1, #06-070A1 |
10,000 x 2 lb |
660608420k |
60 x 84 x 4 |
20,000 x 1 lb |
#69-157A1, #06-070A1 |
20,000 x 4 lb |
660609610k |
60 x 96 x 4 |
10,000 x 0.5 lb |
#69-157A1, #06-070A1 |
10,000 x 2 lb |
6606012010k |
60 x 120 x 5 |
10,000 x 0.5 lb |
#69-157A1, #06-070A1 |
10,000 x 2 lb |
6606012020k |
60 x 120 x 5 |
20,000 x 1 lb |
#69-157A1, #06-070A1 |
20,000 x 4 lb |
660727210k |
72 x 72 x 4 |
10,000 x 0.5 lb |
#69-157A1, #06-070A1 |
10,000 x 2 lb |
660727220k |
72 x 72 x 4 |
20,000 x 1 lb |
#69-157A1, #06-070A1 |
20,000 x 4 lb |
660729610k |
72 x 96 x 4 |
10,000 x 0.5 lb |
#69-157A1, #06-070A1 |
10,000 x 2 lb |
660729620k |
72 x 96 x 5 |
20,000 x 1 lb |
#69-157A1, #06-070A1 |
20,000 x 4 lb |
6607212010k |
72 x 120 x 5 |
10,000 x 0.5 lb |
#69-157A1, #06-070A1 |
10,000 x 2 lb |
6607212020k |
72 x 120 x 5 |
20,000 x 1 lb |
#69-157A1, #06-070A1 |
20,000 x 4 lb |
|
|
|
|
|
|
|
|
