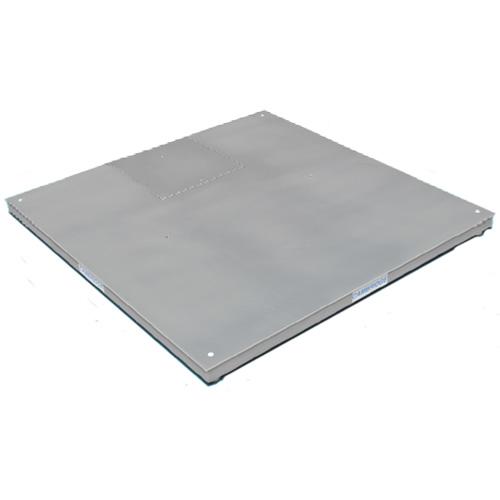

Cambridge 3860-1018-SS MODEL SS660-OB NTEP Stainless Steel Low Profile 60x60x3 Base Only -5000 lb |
|
Cambridge Scale MODEL 660SS Series Low Profile Floor Scales with Shock Load Protection, 20 Foot Shielded Indicator Cable, Top Access Plastic NEMA 4x Junction Box, optional Heavy Diamond Tread Deck Plate , Stainless steel Type 304 construction. more ... |
Scales >
Industrial Scales >
Floor Scales
|
Note: This product can only be shipped Ground Delivery.
|
|
|
|
|
|
Features
Cambridge Scale MODEL 660SS Series Low Profile Floor Scales with Shock Load Protection, 20 Foot Shielded Indicator Cable, Top Access Plastic NEMA 4x Junction Box, optional Heavy Diamond Tread Deck Plate , Stainless steel Type 304 construction.
STANDARD FEATURES (only NTEP market models are Legal For Trade)
- 1 Part in 5,000 Accuracy (NTEP)
- 1 Part in 10,000 Accuracy (Non-NTEP)
- “ON-BOARD” stainless steel NEMA IV, water seal rated junction box
- Smooth plate stainless steel Type 304
- Stainless steel Type 304 construction
- Capped and sealed stainless steel structural tubing
- Stainless steel IP67 waterseal rated load cells
- 20 ft. shielded signal cable
- Eye bolt lift holes for easy set-up
- 100% end loading protection
- 200% overload & shock load protection
- Easy access leveling
Shear Beam Load Cells:
- NTEP Certified-5,000 Division
- Class III/III L
- Environmentally Protected
- IP 67 Water Resistant Rated
OPTIONS
- Diamond deck plate
- Type 316 construction
- Hermetically sealed and/or "FM" approved load cells
- Fork lift skid package
- 48" indicator column (attached)
- Captive ball leveling feet
ACCESSORIES
- Ramp
- Pit form
- Bumper guard
- Bumper guard surround
- 48" indicator column (free standing)
- Lag down bracket
- Portability cart
Dimensions X:
60.00
Y:
60.00
Z:
3.00
|
1 Year Manufacture Warranty
|
Other Cambridge Scale MODEL SS660 Stainless Steel Low Profile Bases Only
Cambridge 3860-1001-SS MODEL SS660-OB Stainless Steel Low Profile 24x24x3 Base Only -2500 lb
$3,505.50
|
Cambridge 3860-1000-SS MODEL SS660-OB Stainless Steel Low Profile 24x24x3 Base Only -1000 lb
$3,505.50
|
Cambridge 3860-1003-SS MODEL SS660-OB Stainless Steel Low Profile 30x30x3 Base Only -2500 lb
$3,685.50
|
Cambridge 3860-1002-SS MODEL SS660-OB Stainless Steel Low Profile 30x30x3 Base Only -1000 lb
$3,685.50
|
Cambridge 3860-1004-SS MODEL SS660-OB Stainless Steel Low Profile 36x36x3 Base Only -1000 lb
$4,135.50
|
Cambridge 3860-1005-SS MODEL SS660-OB Stainless Steel Low Profile 36x36x3 Base Only -2500 lb
$4,135.50
|
Cambridge 3860-1006-SS MODEL SS660-OB Stainless Steel Low Profile 36x36x3 Base Only -5000 lb
$4,135.50
|
Cambridge 3860-1007-SS MODEL SS660-OB Stainless Steel Low Profile 48x48x3 Base Only -1000 lb
$4,495.50
|
Cambridge 3860-1008-SS MODEL SS660-OB Stainless Steel Low Profile 48x48x3 Base Only -2500 lb
$4,495.50
|
Cambridge 3860-1009-SS MODEL SS660-OB NTEP Stainless Steel Low Profile 48x48x3 Base Only -5000 lb
$4,495.50
|
Cambridge 3860-1010-SS MODEL SS660 NTEP Stainless Steel Low Profile 48x48x3 Base Only -10000 lb
$4,945.50
|
Cambridge 3860-1012-SS MODEL SS660-OB NTEP Stainless Steel Low Profile 48x60x3 Base Only -5000 lb
$5,125.50
|
Cambridge 3860-1015-SS MODEL SS660-OB NTEP Stainless Steel Low Profile 48x72x3 Base Only -5000 lb
$5,755.50
|
Cambridge 3860-1018-SS MODEL SS660-OB NTEP Stainless Steel Low Profile 60x60x3 Base Only -5000 lb
$5,845.50
You are viewing this product
|
Cambridge 3860-1013-SS MODEL SS660-OB NTEP Stainless Steel Low Profile 48x60x3 Base Only -10000 lb
$7,015.50
|
Cambridge 3860-1016-SS MODEL SS660-OB NTEP Stainless Steel Low Profile 48x72x3 Base Only -10000 lb
$7,735.50
|
Cambridge 3860-1019-SS MODEL SS660-OB NTEP Stainless Steel Low Profile 60x60x3 Base Only -10000 lb
$7,825.50
|
Cambridge 3860-1020-SS MODEL SS660-OB NTEP Stainless Steel Low Profile 60x60x4 Base Only -20000 lb
$8,167.50
|
Cambridge 3860-1021-SS MODEL SS660-OB NTEP Stainless Steel Low Profile 60x84x4 Base Only -10000 lb
$8,275.50
|
Cambridge 3860-1022-SS MODEL SS660-OB NTEP Stainless Steel Low Profile 60x84x4 Base Only -20000 lb
$10,345.50
|
|
Specifications
Cambridge Scale MODEL SS660-OB Series Low Profile STAINLESS STEEL Floor Scales
ON-BOARD STAINLESS STEEL JUNCTION BOX
Model |
Size (Inch) |
Capacity x Readability |
Legal For Trade |
3860-1000-SS |
24 x 24 x 3 |
1,000 x 0.1 lb |
NO |
- |
3860-1001-SS |
24 x 24 x 3 |
2,500 x 0.2 lb |
NO |
- |
3860-1002-SS |
30 x 30 x 3 |
1,000 x 0.1 lb |
NO |
- |
3860-1003-SS |
30 x 30 x 3 |
2,500 x 0.2 lb |
NO |
- |
3860-1004-SS |
36 x 36 x 3 |
1,000 x 0.1 lb |
NO |
- |
3860-1005-SS |
36 x 36 x 3 |
2,500 x 0.2 lb |
NO |
- |
3860-1006-SS |
36 x 36 x 3 |
5,000 x 0.5 lb |
NO |
- |
3860-1007-SS |
48 x 48 x 3 |
1,000 x 0.1 lb |
NO |
- |
3860-1008-SS |
48 x 48 x 3 |
2,500 x 0.2 lb |
NO |
- |
3860-1009-SS |
48 x 48 x 3 |
5,000 x 0.5 lb |
#96-157A1 |
5,000 x 1 lb |
3860-1010-SS |
48 x 48 x 3 |
10,000 x 1 lb |
#96-157A1 |
10,000 x 2 lb |
3860-1012-SS |
48 x 60 x 3 |
5,000 x 0.5 lb |
#96-157A1 |
5,000 x 1 lb |
3860-1013-SS |
48 x 60 x 3 |
10,000 x 1 lb |
#96-157A1 |
10,000 x 2 lb |
3860-1015-SS |
48 x 72 x 3 |
5,000 x 0.5 lb |
#96-157A1 |
5,000 x 1 lb |
3860-1016-SS |
48 x 72 x 3 |
10,000 x 1 lb |
#96-157A1 |
10,000 x 2 lb |
3860-1018-SS |
60 x 60 x 3 |
5,000 x 0.5 lb |
#96-157A1 |
5,000 x 1 lb |
3860-1019-SS |
60 x 60 x 3 |
10,000 x 1 lb |
#96-157A1 |
10,000 x 2 lb |
3860-1020-SS |
60 x 60 x 4 |
20,000 x 2 lb |
#96-157A1 |
20,000 x 4 lb |
3860-1021-SS |
60 x 84 x 4 |
10,000 x 1 lb |
#96-157A1 |
10,000 x 2 lb |
3860-1022-SS |
60 x 84 x 4 |
20,000 x 2 lb |
#96-157A1 |
20,000 x 4 lb |
|
|
|
|
|
|
|
|
