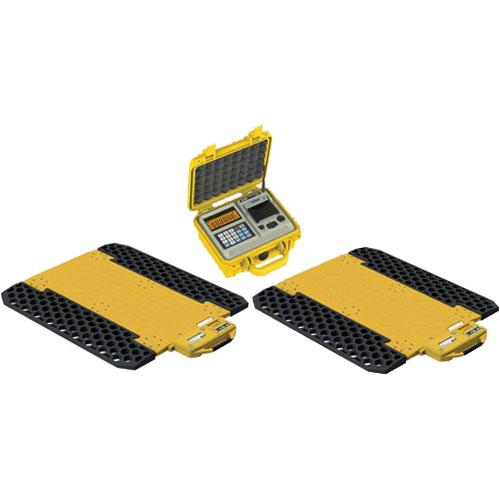

CAS RWT-920F - 2 Wireless Wheel Weighing Scale with Indicator 40,000 x 20 lb

Name: CAS RWT-920F - 2 Wireless Wheel Weighing Scale with Indicator 40,000 x 20 lb
Brand: CAS
SKU: 37630
Price: 8190.00 USD
Availability: InStock
Rating: 5 (1 reviews)

The RWT-F Series wheel weigher pads are available in 4 different sizes and 4 capacities. The ultra low profile platforms are designed to weigh trucks with a multitude of axle configurations and capacity requirements. Each wheel weigher platform includes an integral weight display, and can be wirelessly interfaced up to 12 platforms via the RWT-5000F Indicator/ Printer. This kit includes 2 Scales and an Indicator. more ...

Wheel Weighing Scales > Wheel Load Systems > 2 Scale Wheel Load System

CAS RWT-920F - 2 Wireless Wheel Weighing Scale with Indicator 40,000 x 20 lb

Specifications Chart View Full Detail Page

Have Questions?

email Us

Our Staff will be glad to help

This Item Contains the following items

2 x CAS RWT-920F Wireless Wheel Weighing Scale 40,000 x 20 lb

1 x CAS RWT-5000F Wireless Indicator for RWT wireless wheel weighers

Features

This kit includes 2 Scales and an Indicator.

Each RWT-F Series wheel weigher includes (2) two rechargeable Lithium Polymer (Li-Po) batteries and optional lightweight urethane ramps

10K, 20K, 30K,& 40K Capacities
Ultra Low Profile Design - 1.4" (34mm) high
Rechargeable Lithium Polymer Battery Pack
Optional Portable Indicator w/Thermal Printer
Connect up to 12 Wireless Platforms Simultaneously
Static and In-Motion Weighing Capabilities

Build the Right Wheel Weigher System for your specific needs!

Utilizing optional dummy plates and dummy plate connectors, build a wheel weigher system that fits your specific needs! For in-motion weighing applications, use a single axle layout (2 scale platforms) including sufficient ramps and dummy plates to insure optimum level weighing conditions. For static weighing, the RWT-F wheel weighers may be joined via optional plates and connectors, allowing up to 12 platforms to be wirelessly interfaced via the RWT-5000F Indicator/Printer.

The RWT-5000F Indicator/Printer is enclosed in a portable, water tight case and provides weight information that includes individual wheel weight, individual axle weight, and total weight. Also included in RWT-5000F are built in USB and RS-232C ports, optional USB memory stick, memory for up to 10,000 vehicles, and connectivity to model CRD2300F/3000F wireless Remote Display units. Self Contained Portable Unit The RWT-5000F Wireless Indicator is housed in a protective hardened plastic case with waterproof seals when closed. Zigbee Wireless The RW-Z Series Wheel Weighers features Zigbee Wireless technology. Connect up to 12 RWT-F Wheel Weighing Pads within the same communication range. Printer The RWT-5000F includes a high speed thermal printer. Prints receipts with 100 mm/sec speed and 202 dpi resolution. Use with CAS Receipt Paper #TS-25050 Interface The RWT-5000F is equipped with a RS-232 output for PC interface, USB port, DC jack, and wireless communication capabilities to CAS Wirelsss Remote Displays Display & Keypad The RWT-5000F is equipped with a backlit LCD Display and numeric keypad

2 Year Manufacture Warranty

Other CAS RWT-F-Series Wireless Wheel Weighing Scales

RWT-DMY2 Dummy Plat for RWT wireless wheel weighers 35.4 x 8.2 inch $50.00	RWT-5000F Wireless Indicator for RWT wireless wheel weighers $1,350.00	RWT-505F Wireless Wheel Weighing Scale 10 000 x 5 lb $1,710.00	RWT-910F Wireless Wheel Weighing Scale 20 000 x 10 lb $2,640.00	RWT-705F Wireless Wheel Weighing Scale 10 000 x 5 lb $2,700.00
RWT-710F Wireless Wheel Weighing Scale 20 000 x 10 lb $2,700.00	RWT-715F Wireless Wheel Weighing Scale 30 000 x 20 lb $2,880.00	RWT-915F Wireless Wheel Weighing Scale 30 000 x 20 lb $3,150.00	RWT-920F Wireless Wheel Weighing Scale 40 000 x 20 lb $3,420.00	RWT-505F - 2 Wireless Wheel Weighing Scales with Indicator 2 x 10 000 x 5 lb $4,770.00
RWT-910F - Wireless Wheel Weighing Scale with Indicator 20 000 x 10 lb $6,630.00	RWT-705F - 2 Wireless Wheel Weighing Scales with Indicator 10 000 x 5 lb $6,750.00	RWT-710F - 2 Wireless Wheel Weighing Scales with Indicator 20 000 x 10 lb $6,750.00	RWT-715F - 2 Wireless Wheel Weighing Scale with Indicator 30 000 x 20 lb $7,110.00	RWT-915F - Wireless Wheel Weighing Scale with Indicator 30 000 x 20 lb $7,650.00
RWT-920F - 2 Wireless Wheel Weighing Scale with Indicator 40 000 x 20 lb $8,190.00 You are viewing this product

Specifications

Model	RWT-505F	RWT-705F	RWT-710F	RWT-715F	RWT-910F	RWT-915F	RWT-920F
Capacity x Readability	10,000 x 5 lb	10,000 x 5 lb	20,000 x 10 lb	30,000 x 20 lb	20,000 x 10 lb	30,000 x 20 lb	40,000 x 20 lb
Capacity x Readability	5,000 x 2 kg	5,000 x 2 kg	10,000 x 5 kg	15,000 x 10 kg	10,000 x 5 kg	15,000 x 10 kg	20,000 x 10 kg
Display	5 Digit LCD - Height: 0.6 in/15mm - Backlight
Keypad	On/Off, Zero, Sum, Backlight
Accuracy	0.1%
In-Motion Speed	Up to 6 miles per hour / 10 kilometers per hour
Operating Time	Approx 70hr
Operating Temp	-4¢ªF ~ 140¢ªF / -20¢ªC ~ +60¢ªC
Power	3.7VDC Lithium Polymer Battery
Product Weight	33.1 lbs / 15 kg	37.5 lbs / 17 kg		44.1 lbs / 20 kg	61.7 lbs / 28 kg	61.7 lbs / 28 kg	88.2 lbs / 40 kg
Safe Overload	150% of rated capacity
Warranty	2
Platform Dimensions (inches)(mm)	19.7 (W) x 15 (D) x 1.4 (H)	27.6 (W) x 16.1 (D) x 1.4 (H)			35.4 (W) x 20 (D) x 1.4 (H)		35.4 (W) x 24 (D) x 1.4 (H)
Platform Dimensions (inches)(mm)	500 (W) x 380 (D) x 34 (H)	700 (W) x 410 (D) x 34 (H)			900 (W) x 510 (D) x 34 (H)		900 (W) x 600 (D) x 34 (H)
Total Dimensions (inches)(mm)	26.5 (W) x 20.9 (D) x 2 (H)	34.9 (W) x 28.8 (D) x 2 (H)			42 (W) x 33 (D) x 2 (H)		42 (W) x 37 (D) x 2 (H)
Total Dimensions (inches)(mm)	674 (W) x 532 (D) x 50 (H)	886 (W) x 730 (D) x 50 (H)			1066 (W) x 840 (D) x 50 (H)		1066 (W) x 940 (D) x 50 (H)
