CAS RWT-910F - Wireless Wheel Weighing Scale with Indicator 20,000 x 10 lb |
|
The RWT-F Series wheel weigher pads are available in 4 different sizes and 4 capacities. The ultra low profile platforms are designed to weigh trucks with a multitude of axle configurations and capacity requirements. Each wheel weigher platform includes an integral weight display, and can be wirelessly interfaced up to 12 platforms via the RWT-5000F Indicator/ Printer. This kit includes 2 Scales and an Indicator. more ... |
Wheel Weighing Scales >
Wheel Load Systems >
2 Scale Wheel Load System
|
|
|
This Item Contains the following items
|
|
|
|
Features

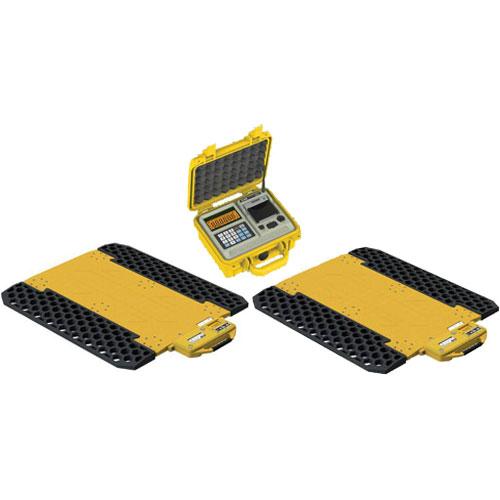

This kit includes 2 Scales and an Indicator
The RWT-F Series wheel weigher pads are available in 4 different sizes and 4 capacities. The ultra low profile platforms are designed to weigh trucks with a multitude of axle configurations and capacity requirements. Each wheel weigher platform includes an integral weight display, and can be wirelessly interfaced up to 12 platforms via the RWT-5000F Indicator/ Printer.
Full Featured & Fully Accessorized
Each RWT-F Series wheel weigher includes (2) two rechargeable Lithium Polymer (Li-Po) batteries and optional lightweight urethane ramps
- 10K, 20K, 30K,& 40K Capacities
- Ultra Low Profile Design - 1.4" (34mm) high
- Rechargeable Lithium Polymer Battery Pack
- Optional Portable Indicator w/Thermal Printer
- Connect up to 12 Wireless Platforms Simultaneously
- Static and In-Motion Weighing Capabilities
Build the Right Wheel Weigher System for your specific needs!
Utilizing optional dummy plates and dummy plate connectors, build a wheel weigher system that fits your specific needs! For in-motion weighing applications, use a single axle layout (2 scale platforms) including sufficient ramps and dummy plates to insure optimum level weighing conditions. For static weighing, the RWT-F wheel weighers may be joined via optional plates and connectors, allowing up to 12 platforms to be wirelessly interfaced via the RWT-5000F Indicator/Printer.
The RWT-5000F Indicator/Printer is enclosed in a portable, water tight case and provides weight information that includes individual wheel weight, individual axle weight, and total weight. Also included in RWT-5000F are built in USB and RS-232C ports, optional USB memory stick, memory for up to 10,000 vehicles, and connectivity to model CRD2300F/3000F wireless Remote Display units.
Self Contained Portable Unit The RWT-5000F Wireless Indicator is housed in a protective hardened plastic case with waterproof seals when closed.
Zigbee Wireless The RW-Z Series Wheel Weighers features Zigbee Wireless technology. Connect up to 12 RWT-F Wheel Weighing Pads within the same communication range.
Printer The RWT-5000F includes a high speed thermal printer. Prints receipts with 100 mm/sec speed and 202 dpi resolution. Use with CAS Receipt Paper #TS-25050
Interface The RWT-5000F is equipped with a RS-232 output for PC interface, USB port, DC jack, and wireless communication capabilities to CAS Wirelsss Remote Displays
Display & Keypad The RWT-5000F is equipped with a backlit LCD Display and numeric keypad
|
2 Year Manufacture Warranty
|
Other CAS RWT-F-Series Wireless Wheel Weighing Scales
RWT-DMY2 Dummy Plat for RWT wireless wheel weighers 35.4 x 8.2 inch
$50.00
|
RWT-5000F Wireless Indicator for RWT wireless wheel weighers
$1,350.00
|
RWT-505F Wireless Wheel Weighing Scale 10 000 x 5 lb
$1,710.00
|
RWT-910F Wireless Wheel Weighing Scale 20 000 x 10 lb
$2,640.00
|
RWT-705F Wireless Wheel Weighing Scale 10 000 x 5 lb
$2,700.00
|
RWT-710F Wireless Wheel Weighing Scale 20 000 x 10 lb
$2,700.00
|
RWT-715F Wireless Wheel Weighing Scale 30 000 x 20 lb
$2,880.00
|
RWT-915F Wireless Wheel Weighing Scale 30 000 x 20 lb
$3,150.00
|
RWT-920F Wireless Wheel Weighing Scale 40 000 x 20 lb
$3,420.00
|
RWT-505F - 2 Wireless Wheel Weighing Scales with Indicator 2 x 10 000 x 5 lb
$4,770.00
|
RWT-910F - Wireless Wheel Weighing Scale with Indicator 20 000 x 10 lb
$6,630.00
You are viewing this product
|
RWT-705F - 2 Wireless Wheel Weighing Scales with Indicator 10 000 x 5 lb
$6,750.00
|
RWT-710F - 2 Wireless Wheel Weighing Scales with Indicator 20 000 x 10 lb
$6,750.00
|
RWT-715F - 2 Wireless Wheel Weighing Scale with Indicator 30 000 x 20 lb
$7,110.00
|
RWT-915F - Wireless Wheel Weighing Scale with Indicator 30 000 x 20 lb
$7,650.00
|
RWT-920F - 2 Wireless Wheel Weighing Scale with Indicator 40 000 x 20 lb
$8,190.00
|
|
Specifications
Model |
RWT-505F |
RWT-705F |
RWT-710F |
RWT-715F |
RWT-910F |
RWT-915F |
RWT-920F |
Capacity x Readability |
10,000 x 5 lb |
10,000 x 5 lb |
20,000 x 10 lb |
30,000 x 20 lb |
20,000 x 10 lb |
30,000 x 20 lb |
40,000 x 20 lb |
5,000 x 2 kg |
5,000 x 2 kg |
10,000 x 5 kg |
15,000 x 10 kg |
10,000 x 5 kg |
15,000 x 10 kg |
20,000 x 10 kg |
Display |
5 Digit LCD - Height: 0.6 in/15mm - Backlight |
Keypad |
On/Off, Zero, Sum, Backlight |
Accuracy |
0.1% |
In-Motion Speed |
Up to 6 miles per hour / 10 kilometers per hour |
Operating Time |
Approx 70hr |
Operating Temp |
-4¢ªF ~ 140¢ªF / -20¢ªC ~ +60¢ªC |
Power |
3.7VDC Lithium Polymer Battery |
Product Weight |
33.1 lbs / 15 kg |
37.5 lbs / 17 kg |
44.1 lbs / 20 kg |
61.7 lbs / 28 kg |
61.7 lbs / 28 kg |
88.2 lbs / 40 kg |
Safe Overload |
150% of rated capacity |
Warranty |
2 |
Platform Dimensions (inches)(mm) |
19.7 (W) x 15 (D) x 1.4 (H) |
27.6 (W) x 16.1 (D) x 1.4 (H) |
35.4 (W) x 20 (D) x 1.4 (H) |
35.4 (W) x 24 (D) x 1.4 (H) |
500 (W) x 380 (D) x 34 (H) |
700 (W) x 410 (D) x 34 (H) |
900 (W) x 510 (D) x 34 (H) |
900 (W) x 600 (D) x 34 (H) |
Total Dimensions (inches)(mm) |
26.5 (W) x 20.9 (D) x 2 (H) |
34.9 (W) x 28.8 (D) x 2 (H) |
42 (W) x 33 (D) x 2 (H) |
42 (W) x 37 (D) x 2 (H) |
674 (W) x 532 (D) x 50 (H) |
886 (W) x 730 (D) x 50 (H) |
1066 (W) x 840 (D) x 50 (H) |
1066 (W) x 940 (D) x 50 (H) |
|
|
|
|
