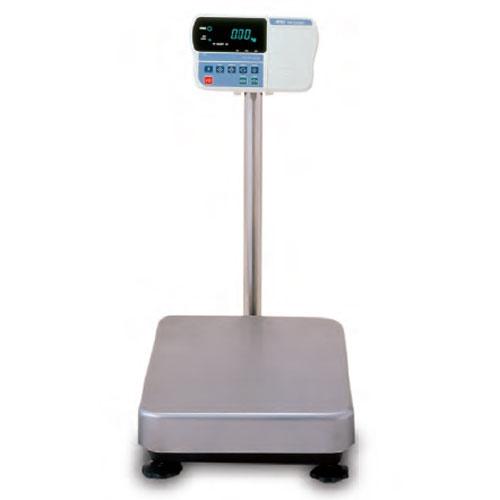

AND Weighing HW-60KGV Platform Scale, 150 x 0.01 lb with Column, VFD |
|
1/10,000 resolution with either LCD or VFD display, stainless steel platform, standard RS-232 interface. Weighs in lb, kg, oz. With comparator, counting and percentage modes. Available with or without column more ... |
|
|
|
|
Features
The AND Weighing HV-G Series NTEP Legal for Trade industrial platform scales provide counting, percentage, and comparator functions. These versatile platform scales are useful for packaging, shipping, pharmaceutical, and other applications.
- Comparator - Set the high and low weight targets and show HI/OK/LO on the disipaly
- 1/10,000 High Resolution
- Large and clear LCD or VFD display: 1 inch (25 mm) high digits on the LCD / 0.8 inch (20 mm on VFD
- Stainless Steel weighing pan
- Water and dust protection for Load Cell sensor: the Gore-tex® membrane wicks moisture away and keeps it away
- Optional comparator buzzer - optional comparator output sounds buzzer on selected comparator sounds
- Setpoint control for simple batching - The weighing data can be controlled at three setpoints: Full Flow, Preliminary, Zero Band outputs
- Tilting meter head - Meter head tilts on the column to adjust for the best viewing angle. Relieves neck and eye strain
- Standard RS-232C - Bidirectional RS232C interface to connect with printer or PC
- Works with WinCT Software
- Measures in lbs, kgs, oz
- Counting and percent functions
- M+ function for totaling weighing data
- Water and dust resistant
- 2 year warranty
With LCD Display:
Model |
HW-10KGL |
HW-60KGL |
HW-100KGL |
HW-200KGL |
Price with Column |
$744 |
$831 |
$920 |
$920 |
Price without Column (-NC) |
$655 |
$743 |
$831 |
$831 |
Capacity x Readability (lb) |
20 x 0.002 lb |
150 x 0.01 lb |
200 x 0.02 lb |
500 x 0.05 lb |
Capacity x Readability (kg) |
10 x 0.001 kg |
60 x 0.005 kg |
100 x 0.01 kg |
220 x 0.02 kg |
Operating Temperature |
-10 C to 40 C
|
Linearity (±g) |
2 |
10 |
20 |
40 |
Pan Size (in/mm) |
9.8 x 9.8 / 250 x 250 |
13 x 16.7 / 330 x 424 |
15.4 x 20.9 / 390 x 530 |
Physical Dimensions (in/mm) |
10.8 x 18.7 x 14.5 / 275 x 474 x 368
|
13 x 24.4 x 30 / 330 x 621 x 771
|
15.4 x 28 x 30.4 / 390 x 712 x 773
|
Power |
AC adapter or 6 DD alkaline batteries (600 hrs)
|
Approximate Weight |
13.2 lb / 6 kg
|
24.3 lb / 11 kg |
37.5 lb / 17 kg |
Standard Accessories |
AC adapter, Display cover, Manual
|
With VFD Display:
Model |
HW-10KGV |
HW-60KGV |
HW-100KGV |
HW-200KGV |
Price with Column |
$787 |
$875 |
$963 |
$963 |
Price without Column (-NC) |
$699 |
$787 |
$875 |
$875 |
Capacity x Readability (lb) |
20 x 0.002 lb |
150 x 0.01 lb |
200 x 0.02 lb |
500 x 0.05 lb |
Capacity x Readability (kg) |
10 x 0.001 kg |
60 x 0.005 kg |
100 x 0.01 kg |
220 x 0.02 kg |
Operating Temperature |
-10 C to 40 C
|
Linearity (±g) |
2 |
10 |
20 |
40 |
Pan Size (in/mm) |
9.8 x 9.8 / 250 x 250 |
13 x 16.7 / 330 x 424 |
15.4 x 20.9 / 390 x 530 |
Physical Dimensions (in/mm) |
10.8 x 18.7 x 14.5 / 275 x 474 x 368
|
13 x 24.4 x 30 / 330 x 621 x 771
|
15.4 x 28 x 30.4 / 390 x 712 x 773
|
Power |
AC adapter or 6 DD alkaline batteries (600 hrs)
|
Approximate Weight |
13.2 lb / 6 kg
|
24.3 lb / 11 kg |
37.5 lb / 17 kg |
Standard Accessories |
AC adapter, Display cover, Manual |
Weight:
28.00 lb
|
|
|
|
|
|
|
|
|
