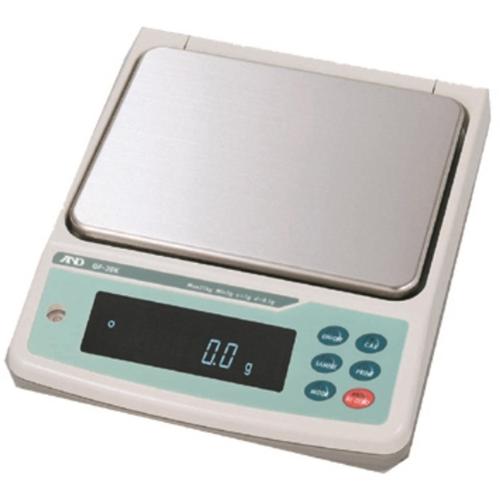

AND Weighing GF-8K Industrial Balance IP65/NEMA4, 8 kg x 0.01 g |
|
GFK series scales feature super hybrid sensor technology -- improves response speed, accuracy and minimizes maintenance costs. The fastest response speed in its class. RS232, GLP, IP65, multiple weighing modes, interval weighing, data memory and more. more ... |
|
|
|
|
Features
AND Weighings GF-K industrial scales utilize the revolutionary Super Hybrid Sensor® (SHS) technology. SHS improves response speed, accuracy and minimizes maintenance costs. SHS combines the best of magnetic force restoration and single point parallelogram load cell technologies. Its unique design provides the fastest response speed in its class - just 1.5 seconds! Capacities from 2 to 30 kg with maximum 0.01 g readability
- IP65/NEMA64 protection against dust and spills
- Stainless steel weighing pan
- Standard RS-232C bi-directional communication Windows compatible data collection software
- GLP/GMP/ISO compliant to either Ad-8121B printer or computer. Transmits date, time, ID number, serial number and calibration data
- Time and date built in and complies with GLP and interval weighing in the Data Memory Function
- Interval time setting for automatic weighing at intervals of 2, 5, 10, 30 seconds to 1, 2, 5, 10 minutes in the Data Memory Function
- Five Year Warranty
- Multiple Weighing Modes
- Time and Date Built-in
- Vacuum Fluorescent Display
- Windows Compatible Data Collection Software
- Data Memory Function for 40 sets of weighing data and 50 sets of unit weight for Counting Mode
- Multiple weighing modes including kg, g, lb, lb-oz, ct, mm, GN, and custom unit, plus animal weighing, comparator, ACAI counting, percentage weighing and density determination
- Vacuum fluorescent display
- 5 year warranty
Specifications
- Stabilization Time: 1 second
- Display Refresh: 5 times per second / 10 times per second
- Dimensions: 11.81 x 13.98 x 4.37 inches (270 W x 210 D x 300 W mm)
- Pan Size 10.62 x 8.26 inches (300 W x 355 D mm)
- Operating Temp: 5°C ~ 40 °C (14°F ~ 104°F)
- Power: 110, 120, 210, 220 VAC, 50/60 Hz
Model |
GF-8K |
GF-10K |
GF-8K2 |
GF-12K |
GF-20K |
GF-30K |
GF-32K |
Weighing capacity |
8.1kg |
10.1kg |
8.1kg/2.1kg |
12kg |
21kg |
31kg |
31kg/6.1kg |
Minimum weighing value |
0.01g |
0.01g |
0.1g/0.01g |
0.1g |
0.1g |
0.1g |
1g/0.1g |
Repeatability (Standard Deviation) |
0.01g |
0.01g |
0.05g/0.01g |
0.1g |
0.1g |
0.1g |
0.5g/0.1g |
Pound (lb) |
17.85745x0.00005 |
23.15x0.00005 |
17.8575x0.0005 4.62970x0.00005 |
26.4555x0.0005 |
46.2970x0.0005 |
68.3435x0.0005 |
68.345x0.005 13.4480x0.0005 |
Pound/Ounce (lb/oz) |
17L 13.719x0.001 |
23L 2.4x0.001 |
17L 13.72x0.01 4L 10.075x0.001 |
26L 7.29x0.01 |
46L 4.75x0.010 |
68L 5.49x0.01 |
68L 5.5x0.1 13L 7.17x0.01 |
Decimal ounce (oz) |
285.7190x0.0005 |
370.4x0.0005 |
285.720x0.005 74.0755x0.0005 |
423.290x0.005 |
740.755x0.005 |
1093.495x0.005 |
1093.50x0.05 215.170x0.005 |
Troy ounce (ozt) |
260.4210x0.0005 |
337.6x0.0005 |
260.420x0.005 67.5165x0.0005 |
385.810x0.005 |
675.165x0.005 |
996.675x0.005 |
996.65x0.05 196.120x0.005 |
Pennyweight (dwt) |
5208.42x0.01 |
6751.5x0.01 |
5208.4x0.1 1350.33x0.01 |
7716.2x0.1 |
13503.3x0.1 |
19933.5x0.1 |
19933x1 3922.4x0.1 |
Carat (ct) |
40500.00x0.05 |
50,500x0.05 |
40500.0x0.5 10500.00x0.05 |
60000.0x0.5 |
105000.0x0.5 |
155000.0x0.5 |
155000x5 30500.0x0.5 |
Momme (mom) |
2160.000x0.005 |
2800.000x0.005 |
2160.00x0.05 560.000x0.005 |
3200.00x0.05 |
5600.00x0.05 |
8266.65x0.05 |
8266.5x0.5 1626.65x0.05 |
Grain unit (GN) |
125002.2x0.2 |
162040x0.2 |
125002x2 32408.0x0.2 |
185188x2 |
324080x2 |
478404x2 |
- |
Linearity |
±0.02g |
±0.1g/±0.02g |
±0.2g |
1g |
Stabilization time (typical at FAST) |
Approximately 1.5 seconds |
Sensitivity drift
(10°C to 30°C, when auto. self cal. is not used) |
±2ppm/°C |
±3ppm/°C |
±5ppm/°C |
Operating temperature & humidity |
5°C to 40°C, below 85%RH (no condensation) |
Display fresh rate |
5 times/second or 10 times a second |
Counting Mode - Min. unit mass |
0.01g |
0.1g |
1g |
Percent Mode - Min. 100% ref. mass |
0.01g |
10g |
100g |
Percent Mode - Min. % display |
0.01%, 0.1%, 1% (depends on reference mass stored) |
Standard Interface |
RS-232C (provided as standard, with WinCT, our proprietary data transmission software) |
Water and dust proof specifications |
Compliant with IP65 |
Calib. weights to be used for calib. ext |
2kg, 3kg, 4kg, 5kg, 6kg, 7kg, 8kg |
5kg, 10kg |
10kg, 20kg |
20kg, 30kg |
Weighing pan dimensions |
270(W) x 210(D) mm (10.62 x 8.26 inch) |
Net weight |
Approximately 8.3kg/18.3lbs |
GF Physical Dimensions (mm/inches)
Weight:
20.00 lb
|
|
