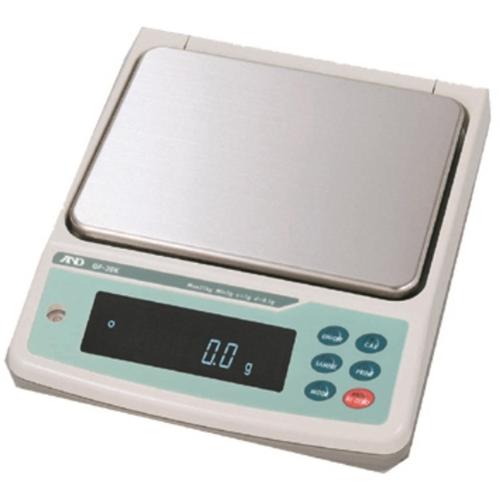

AND Weighing GF-10K Industrial Balance IP65/NEMA4, 10.1kg x 0.01 g

GFK series scales feature super hybrid sensor technology -- improves response speed, accuracy and minimizes maintenance costs. The fastest response speed in its class. RS232, GLP, IP65, multiple weighing modes, interval weighing, data memory and more. more ...
AND Weighing GF-10K Industrial Balance IP65/NEMA4, 10.1kg x 0.01 g

View Full Detail Page


Have Questions?
Call USoremail Us
Our Staff will be glad to help

AND Weighing GF-10K Industrial Balance IP65/NEMA4, 10.1kg x 0.01 g
FREE Ground Shipping
(48 US States Only)

Price: $2,495.00


Available to Ship


View Features

AND Weighing
SKU: GF-10K

Features

AND Weighings GF-K industrial scales utilize the revolutionary Super Hybrid Sensor® (SHS) technology. SHS improves response speed, accuracy and minimizes maintenance costs. SHS combines the best of magnetic force restoration and single point parallelogram load cell technologies. Its unique design provides the fastest response speed in its class - just 1.5 seconds! Capacities from 2 to 30 kg with maximum 0.01 g readability
  • IP65/NEMA64 protection against dust and spills
  • Stainless steel weighing pan
  • Standard RS-232C bi-directional communication Windows compatible data collection software
  • GLP/GMP/ISO compliant to either Ad-8121B printer or computer. Transmits date, time, ID number, serial number and calibration data
  • Time and date built in and complies with GLP and interval weighing in the Data Memory Function
  • Interval time setting for automatic weighing at intervals of 2, 5, 10, 30 seconds to 1, 2, 5, 10 minutes in the Data Memory Function
  • Five Year Warranty
  • Multiple Weighing Modes
  • Time and Date Built-in
  • Vacuum Fluorescent Display
  • Windows Compatible Data Collection Software
  • Data Memory Function for 40 sets of weighing data and 50 sets of unit weight for Counting Mode
  • Multiple weighing modes including kg, g, lb, lb-oz, ct, mm, GN, and custom unit, plus animal weighing, comparator, ACAI counting, percentage weighing and density determination
  • Vacuum fluorescent display
  • 5 year warranty

Specifications

  • Stabilization Time: 1 second
  • Display Refresh: 5 times per second / 10 times per second
  • Dimensions: 11.81 x 13.98 x 4.37 inches (270 W x 210 D x 300 W mm)
  • Pan Size 10.62 x 8.26 inches (300 W x 355 D mm)
  • Operating Temp: 5°C ~ 40 °C (14°F ~ 104°F)
  • Power: 110, 120, 210, 220 VAC, 50/60 Hz

Model GF-8K GF-10K GF-8K2 GF-12K GF-20K GF-30K GF-32K
Weighing capacity 8.1kg 10.1kg 8.1kg/2.1kg 12kg 21kg 31kg 31kg/6.1kg
Minimum weighing value 0.01g 0.01g 0.1g/0.01g 0.1g 0.1g 0.1g 1g/0.1g
Repeatability (Standard Deviation) 0.01g 0.01g 0.05g/0.01g 0.1g 0.1g 0.1g 0.5g/0.1g
Pound (lb) 17.85745x0.00005 23.15x0.00005 17.8575x0.0005
4.62970x0.00005
26.4555x0.0005 46.2970x0.0005 68.3435x0.0005 68.345x0.005
13.4480x0.0005
Pound/Ounce (lb/oz) 17L 13.719x0.001 23L 2.4x0.001 17L 13.72x0.01
4L 10.075x0.001
26L 7.29x0.01 46L 4.75x0.010 68L 5.49x0.01 68L 5.5x0.1
13L 7.17x0.01
Decimal ounce (oz) 285.7190x0.0005 370.4x0.0005 285.720x0.005
74.0755x0.0005
423.290x0.005 740.755x0.005 1093.495x0.005 1093.50x0.05
215.170x0.005
Troy ounce (ozt) 260.4210x0.0005 337.6x0.0005 260.420x0.005
67.5165x0.0005
385.810x0.005 675.165x0.005 996.675x0.005 996.65x0.05
196.120x0.005
Pennyweight (dwt) 5208.42x0.01 6751.5x0.01 5208.4x0.1
1350.33x0.01
7716.2x0.1 13503.3x0.1 19933.5x0.1 19933x1
3922.4x0.1
Carat (ct) 40500.00x0.05 50,500x0.05 40500.0x0.5
10500.00x0.05
60000.0x0.5 105000.0x0.5 155000.0x0.5 155000x5
30500.0x0.5
Momme (mom) 2160.000x0.005 2800.000x0.005 2160.00x0.05
560.000x0.005
3200.00x0.05 5600.00x0.05 8266.65x0.05 8266.5x0.5
1626.65x0.05
Grain unit (GN) 125002.2x0.2 162040x0.2 125002x2
32408.0x0.2
185188x2 324080x2 478404x2 -
Linearity ±0.02g ±0.1g/±0.02g ±0.2g 1g
Stabilization time (typical at FAST) Approximately 1.5 seconds
Sensitivity drift (10°C to 30°C, when auto. self cal. is not used) ±2ppm/°C ±3ppm/°C ±5ppm/°C
Operating temperature & humidity 5°C to 40°C, below 85%RH (no condensation)
Display fresh rate 5 times/second or 10 times a second
Counting Mode - Min. unit mass 0.01g 0.1g 1g
Percent Mode - Min. 100% ref. mass 0.01g 10g 100g
Percent Mode - Min. % display 0.01%, 0.1%, 1% (depends on reference mass stored)
Standard Interface RS-232C (provided as standard, with WinCT, our proprietary data transmission software)
Water and dust proof specifications Compliant with IP65
Calib. weights to be used for calib. ext 2kg, 3kg, 4kg, 5kg, 6kg, 7kg, 8kg 5kg, 10kg 10kg, 20kg 20kg, 30kg
Weighing pan dimensions 270(W) x 210(D) mm (10.62 x 8.26 inch)
Net weight Approximately 8.3kg/18.3lbs

GF Physical Dimensions (mm/inches)


Weight: 20.00 lb
Other AND Weighing GF-K Series Industrial Balances IP65/NEMA4
AND Weighing GF-8K2 Industrial Balance IP65/NEMA4, 2.1kg x 0.1 g and  8 kg x 0.01 g
GF-8K2
Industrial Balance IP65/NEMA4
2.1kg x 0.1 g and 8 kg x 0.01 g

$2,015.00
AND Weighing GF-12K Industrial Balance IP65/NEMA4, 12 kg x 0.1 g
GF-12K
Industrial Balance IP65/NEMA4
12 kg x 0.1 g

$2,056.95
AND Weighing GF-20K Industrial Balance IP65/NEMA4 20 kg x 0.1 g
GF-20K
Industrial Balance IP65/NEMA4 20 kg x 0.1 g

$2,265.00
AND Weighing GF-8K Industrial Balance IP65/NEMA4, 8 kg x 0.01 g
GF-8K
Industrial Balance IP65/NEMA4
8 kg x 0.01 g

$2,325.00
AND Weighing GF-32K Industrial Balance IP65/NEMA4, 30 kg x 0.1 g
GF-32K
Industrial Balance IP65/NEMA4
30 kg x 0.1 g

$2,395.00
AND Weighing GF-10K Industrial Balance IP65/NEMA4, 10.1kg x 0.01 g
GF-10K
Industrial Balance IP65/NEMA4
10.1kg x 0.01 g

$2,495.00

You are viewing this product
AND Weighing GF-30K Industrial Balance IP65/NEMA4, 30 kg x 0.1 g
GF-30K
Industrial Balance IP65/NEMA4
30 kg x 0.1 g

$2,560.95
