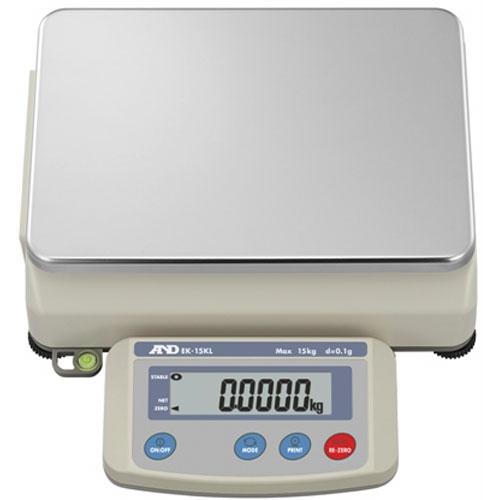

AND Weighing EK-15KL Precision Bench Scale - 15 kg x 0.1 g |
|
| Ideal for use when large capacity and high resolution are required at the same time. The EK-15KL has 0.1 g readability across its full 15 kg capacity. The EK-30KL has a smart range function. more ... |
|
Industrial Scales >
Bench Scales >
High Capacity Precision
|
|
|
|
|
|
Features
Ideal for use when large capacity and high resolution are required at the same time. The EK-15KL has 0.1 g readability across its full 15 kg capacity. The EK-30KL has a smart range function. This is especially useful when the gross weight exceeds 3 kg yet 0.1 g readability is needed to measure net weight when using heavy tare containers. A single press of the re-zero key restores the 0.1 g precision range up to 3 kg.
Standard Features
- Large (11.8 × 8.2 in.) pan for convenient weighing of bulky objects.
- Hygienic stainless steel (SUS430) weighing platter.
- Easy-to-read LCD display with clear, white backlight ( 7/8" character height).
- Multiple weighing units: g, kg, oz, lb, ozt.
- Application modes: parts counting, % weighing, HI/LOW/OK comparator and Display hold.
- Security ring for wire-locking the scale to prevent theft.
- Data output to a PC or printer, via RS-232C interface.
- Auto Power-OFF function. Operation with either AC adapter or optional rechargeable battery.
- Cast metal base with ABS housing.
Dimensions
X:
17.00
Y:
9.00
Z:
16.00
Weight:
9.00 lb
|
|
|
|
Other AND Weighing EK-L Series - Precision Bench Scales
|
Add to Cart for Warranty Information |
| Image |
Name |
Price |
|
|
$505.62
|
|
|
$599.00
|
|
|
$553.32
|
|
|
$599.00
|
|
|
|
$505.62
|
Specifications
| EK-KL Precision Bench Scales - Specifications |
| Model |
EK-15KL |
EK-15KLN |
EK-30KL |
EK-30KLN |
| Capacity x Readability |
15 kg x 0.1 g
33 x 0.0005 lb |
15 kg x 0.1 g
33 x 0.0005 lb |
3 kg x 0.1 g
6 x 0.0005 lb |
30 kg x 1 g
66 x 0.0005 lb |
30 kg x 1 g
66 x 0.0005 lb |
| Legal for Trade |
- |
15 kg x 2g
33 x 0.005 lbs |
- |
- |
30 kg x 5g
60 x 0.01 lbs |
| - |
NTEP CC # 25-064
Class III
Measurement Canada
Approval Number:
AM-6267 |
- |
- |
NTEP CC # 25-064
Class III
Measurement Canada
Approval Number:
AM-6267 |
| Min unit weight |
0.1 g |
2 g |
0.1 g |
1 g |
2 g |
| Repeatability (standard deviation) |
0.3 g |
0.3 g |
0.3 g |
1 g |
1 g |
| Linearity |
+0.6 g |
+0.6 g |
+0.6 g |
+1 g |
+0.6 g |
| Sensitivity drift |
+20 ppm/..C (10 to 30..C/50 to 86..F) |
| Counting Mode |
Min. unit weight |
0.1 g |
| No. of samples |
5, 10, 25, 50 or 100 pieces |
| Percent mode |
Min. % display |
0.1% |
| Min. 100% weight |
10 g |
| Operating temperature |
10 to 40..C/50 to 104..F, 85% RH or less (no condensation) |
| Battery life (on a full charge) |
Approx. 100 hours (at 25..C with backlight off) |
| Weighing pan size |
11.8 x 8.2 inches (300 x 210 mm) |
| Net weight |
Approx. 4.2 kg |
Approx. 4.2 kg |
Approx. 4.9 kg |
Approx. 4.9 kg |
| Calibration weight |
15 kg |
15 kg |
30 kg |
30 kg |
| Standard accessories |
AC adapter, Instruction manual |
|
|
|
* within the 48 continental US States
|
|
|
|
|
|
|
