AND SV-10, Viscometers 0.3cP - 10,000 cP

Newly developed Tuning-fork Vibration Method* promises you high accuracy and wide measurement range without replacing sensor plates!! more ...
Test Equipment > Specialty Testers > Viscometers
AND SV-10, Viscometers 0.3cP - 10,000 cP

Specifications Chart View Full Detail Page


Have Questions?
Call USoremail Us
Our Staff will be glad to help

AND SV-10, Viscometers 0.3cP - 10,000 cP

Price: $3,223.20


Available to Ship


Optional Accessories

View More Pictures
View Features

AND Weighing
SKU: SV-10

Features

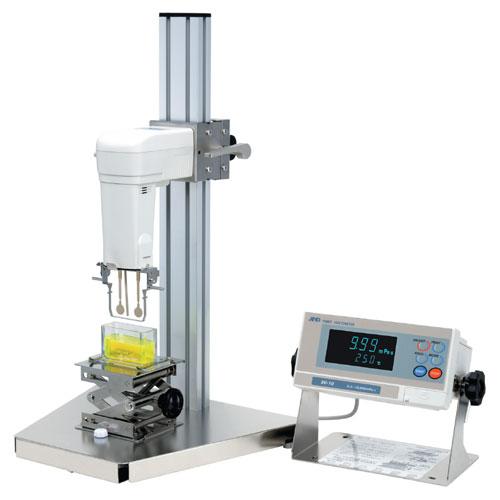

Viscometer SV-10 / SV-100

Newly developed Tuning-fork Vibration Method* promises you high accuracy and wide measurement range without replacing sensor plates!! *Patent pending. Sine-wave Vibro Viscometer SV-10/SV-100 measures viscosity by detecting the driving electric current necessary to resonate the two sensor plates at constant frequency of 30Hz and amplitude of less than 1mm.

Features:

High Measurement Accuracy
Tuning-fork Vibration Method turns into reality for excellent repeatability of 1% of reading for viscosity measurement by Sine-wave Vibro Viscometer SV-10 / SV-100.

Selectable Wide Measurement Range
Sample with Low viscosity to high viscosity can be measured without changing the sensor plates, so a wide range of measurements can be made continuously. SV-10: 0.3 - 10,000 mPa?s ( cP) SV-100: 1000 - 100,000 mPa?s ( cP)

Real-Time Measurement
The sensor plate for the SV series is of a thin and small size, in area and in mass, making it is less influenced by the temperature change of the sample fluid and as a result the viscosity measurement tracks the change of viscosity of sample fluid.

Temperature Measurement
It is very important to measure the temperature of the fluid correctly because the viscosity is very much dependent upon the temperature of the fluid. SV series can detect accurate temperature immediately because the fluid and the detection unit (sensor plates) with small surface area/thermal capacity reach the thermal equilibrium in only a few seconds.

Continuous measurement
SV series, Tuning-fork Vibration Method does not cause damage to the sample fluid and allows measurement of cloud point of samples such as surface active agents and of surface/interface changes such as wettability because of its excellent feature for wide measurement range without the need to replace the sensor plates.

Viscosity Calibration
With Viscosity Standard, viscosity calibration can be easily done. 1 point calibration or 2 points calibration is selectable in the calibration mode.

Non-Newtonian Sample Viscosity Measurement
Thin sensor plates allow little deformation of sample texture and thus enable measurement of stable viscosity values.

Foaming Sample Measurement
Low drive frequency of 30Hz allows measurement of foaming samples without breaking minute foams and with less influence scattering larger foams.

Flowing Sample Measurement
Even the viscosity of flowing samples can be measured, including liquid in turbulent flow, which enables field management with identical data used at the laboratories.

Separated type model
SV series is composed of the Display Unit and Main Unit offering excellent placement flexibility.

Vacuum Fluorescent Display
You can avoid unnecessary reading errors with easy-to-read, large, clear display: 13mm height for viscosity measurement and 11mm height for temperature measurement.

Small Sample Size
Standard sample cup requires the sample fluid of just more than 35 ml so you do not need to waste too much sample fluid.

Easy Cleaning
Due to the simple structure, the SUS 304 Stainless steel sensor plates and temperature sensor (all gold plated) and SUS 304 stainless steel protector can be easily and quickly cleaned.

Sol and Gel Measurement
Sol and Gel sample fluid like a starch can be measured during the change of material characteristic.

Standard RS-232C Interface
The RS-232C comes standard for your PC or Printer connectivity and the connection cable (25 pin - 9 pin) is also standard accessory for your convenience

Data Collection And Graphing Software
WinCT-Viscosity (RsVisco) is software to import the measured data of viscosity and temperature to a PC and display graphically the changes in real-time for your analysis.


Weight: 20.00 lb
Other AND Weighing Viscometers SV-10 Series
AND SV-10, Viscometers 0.3cP - 10,000 cP
AND SV-10

Viscometers 0.3cP - 10
000 cP

$3,223.20

You are viewing this product
AND SV-100, Viscometers 10 P - 1,000 P (1,000 cP - 100,000 cP)
AND SV-100

Viscometers 10 P - 1
000 P (1
000 cP - 100
000 cP)

$3,223.20
AND RV-10000 Tuning Fork Vibro Rheometer
AND RV-10000
Tuning Fork Vibro Rheometer

$13,145.60
AND RV-10000A Tuning Fork Vibro Rheometerr
AND RV-10000A
Tuning Fork Vibro Rheometerr

$17,021.25

Specifications

Model SV-10 SV-100
MEASUREMENT RANGE 0.3 cP (mPa.s) ~ 10,000 cP (mPa.s) 10 P ~ 1,000 P
UNIT OF MEASURE mPa.s, Pa.s, cP, P Pa.s, P
Vibration Frequency 30Hz 30Hz
Measurement Method Tuning Fork Vibration Method
Accuracy (Repeatability) 1% of Reading (Full Range) (S.D. , 20 - 30°C, No-condensation )
Operating Temperature 10 - 40°C ( 50 - 104 F°)
Minimum Sample Amount Standard Sample Cup 35 ml, Optinal Small Sample Cup 10ml,
  Optinal Glass Sample Cup 13ml
Temperature Measurement 0 - 160°C / 0.1 °C( 32 - 212 F / 0.1 F°)
Display Vacuum Fluorescent Display (VFD)
Interface RS-232C
Power Supply AC Adaptor
Power Consumption Approx. 14VA
Physical Dimensions Main Unit: 332 (W) x 314 (D) x 536 (H) mm / Approx. 5.0 kg
  Display Unit: 238 (W) x 132 (D) x 170 (H) mm / Approx. 1.3 kg
Connection Cable Length 1.5m ( Between the Main Unit and the Display Unit )
Standard Accessories Manual, AC Adaptor, CD-ROM (WinCT-Viscosity), Sample Cups,
  RS-232C Cable (25 pins - 9 pins)

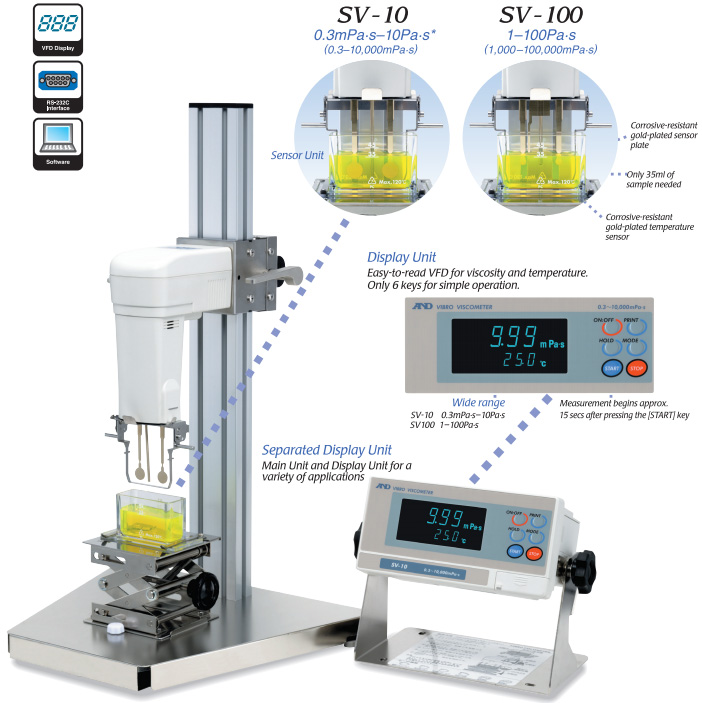

image Alt 13417

Optional Accessories


AND AD-1682 Rechargeable Battery Pack
more info
AND AD-1682 Rechargeable Battery Pack
$656.00

Rechargeable Battery Pack for AND Weighing balances

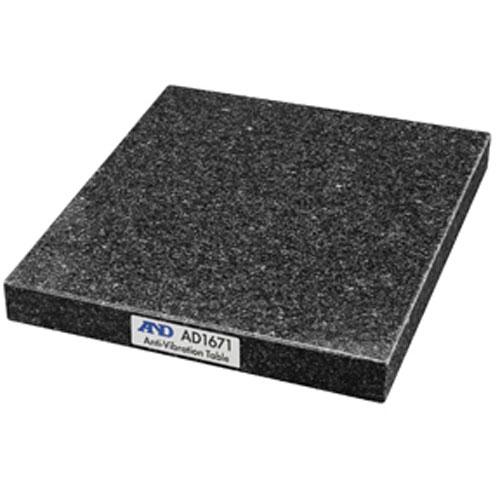

A&D Weighing-AD1671- Anti-Vibration Table for Balances (Slab)
