Pennsylvania Scale SS7800MAX Legal for Trade Bench Scales	Authorized Dealer

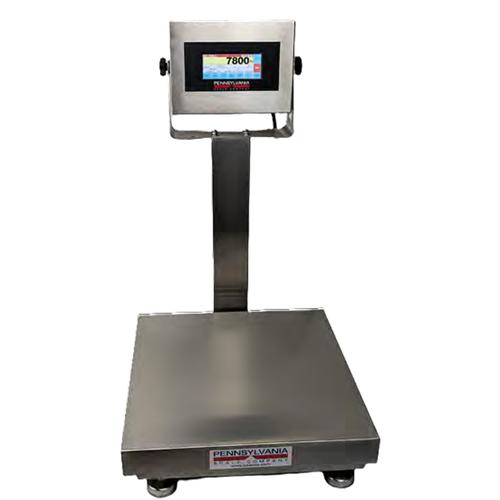

The Pennsylvania Scale SS7800MAX Washdown Bench Scale is a rugged, high-performance solution designed for demanding industrial environments where cleanliness and durability are non-negotiable. Built with full 304 stainless steel construction—including the load cell and hardware—it offers complete IP69K washdown protection to withstand harsh cleaning chemicals and rigorous sanitation protocols.

Industrial Scale

Have Questions? or email Us Our Staff will be glad to help Legal For Trade Canada Measurement View Specifications Chart Pennsylvania Scale SS7800MAX Legal for Trade Touchscreen Bench Scales Select 12 x 12 inch 25 X 0.005 lb $2,244.55 50 X 0.01 lb $2,244.55 100 X 0.02 lb $2,244.55 12 x 16 inch 50 X 0.01 lb $2,244.55 100 X 0.02 lb $2,244.55 150 X 0.05 lb $2,244.55 16 x 16 inch 100 X 0.02 lb $2,244.55 250 X 0.05 lb $2,244.55 500 X 0.1 lb $2,244.55

Packed with advanced features, the SS7800MAX includes a full QWERTY keyboard, 750-item product database, and powerful checkweighing and setpoint relay functions. It adapts to multiple units of measure and offers exceptional connectivity with dual serial ports and optional upgrades like Ethernet/IP, Wi-Fi, USB, and Bluetooth. With impressive internal resolution and user-friendly operation, it’s engineered to meet complex weighing demands while delivering precision and speed. Backed by a four-year limited warranty, the SS7800MAX is a smart investment for operations requiring peak performance, flexibility, and maximum sanitation compliance.

• IP69K Wash down protection with a 304 stainless steel design including load cell and all hardware resists corrosion from harsh cleaning chemicals and repeated washdown
• Hygienic and easy to clean design, completely sealed indicator and welded corners on platform cover along with an open design base structure makes this easy to clean without areas to collect water or debris
• Interior mounted display overlay, unique gasket and support design provides washdown seal with only four (4) bolts on backplate.
• Full alpha-numeric QWERTY keyboard for easy entry of scale data points
• Check weighing and Setpoint relay operation
• 750 SKU/Product ID Database to store and recall by alphanumeric Part#, Description, 3 user-defined Fields, Tare Weight, Over/Under Check weigh Settings, Setpoint/Relay Target settings
• Adaptive changes to show 4 units of measurement, including lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
• Two powerful and flexible standard serial ports, optional EtherNet/IP, Wired Ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth
• Four Year Limited Warranty

• Power AC line voltages 115/230 VAC, 50/60 Hz (Specify when ordering)
• Power Consumption 0.25A at 115 VAC, 0.13A at 230 VAC
• Circuit Protection RFI, EMI, ESD Protection ADC shielded
• Display: 0.56 LED Red, bright, stable and easy to read
• Operating Temperature 14^O to 104^O, -10^O to 40^O
• Internal Resolution 1/8,000,000
• Displayed Resolution. Standard 1/10,000. Up to 1/50,000
• 5 VDC excitation to power 350-ohm load cells
• Two Year Limited Warranty

• Ethernet IP
• Dual base input
• External power input 12 or 24 VDC, specify at time of order, requires external power supply of 12 or 24 VDC
• 220/230 VAC Operation
• 1 Alarm Buzzer Mounted inside scale or indicator
• Setpoint/relays DC or AC
• EtherNet/IP, Wired Ethernet and Wi-Fi TCP/IP
• USB com port and keyboard emulation HID Bluetooth com port and keyboard emulation HID

Pennsylvania Scale SS7800MAX Washdown Bench Scale Floor Scales with 7800MAX Indicator
Models	SS7800MAX-1212-25	SS7800MAX-1212-50	SS7800MAX-1212-100	SS7800MAX-1216-50	SS7800MAX-1216-100	SS7800MAX-1216-150	SS7800MAX-1616-100	SS7800MAX-1616-250	SS7800MAX-1616-500
Price	$2,244.55 Add to Cart	$2,244.55 Add to Cart	$2,244.55 Add to Cart	$2,283.05 Add to Cart	$2,283.05 Add to Cart	$2,283.05 Add to Cart	$2,321.55 Add to Cart	$2,321.55 Add to Cart	$2,321.55 Add to Cart
Capacity	25 X 0.005 lb 11.35 X 005 kg	50 X 0.01 lb 22.65 X 0.005 kg	100 X 0.02 lb 45.36 X 0.01 kg	50 X 0.01 lb 22.65 X 0.005 kg	100 X 0.02 lb 45.36 X 0.01 kg	150 X 0.05 lb 68.00 X 0.02 kg	100 X 0.02 lb 45.36 X 0.01 kg	250 X 0.05 lb 113.4 X 0.05 kg	500 X 0.1 lb 226.8 X 0.05 kg
Size	12 X 12 inch	12 X 12 inch	12 X 12 inch	12 X 16 inch	12 X 16 inch	12 X 16 inch	16 X 16 inch	16 X 16 inch	16 X 16 inch
Legal for trade	Base:NTEP COC 90-097A3 Indicator:NTEP: 97-009A31 Base:Measurement Canada COC S.WA-4456 Rev. 3 Rev. 4 Indicator:Canadian Weights & Measures: AM-5647 4869, Rev. 3
Communication	Bidirectional RS-232 standard options include: USB Virtual Comport, USB HID Keyboard Emulation, Wired Ethernet, WiFi, Analog Output, selectable 0-10VDC or 4-20m
Column	14"
Power	AC line voltages 115
Operating Temperature	14O to 104O, -10O to 40O
units	lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
Rating	IP69K
Circuit Protection	RFI, EMI, ESD Protection ADC shielded
Touchscreen Display	800 X 320 dot resolution, and 4.6" full-color LCD display with resistive touch panel
Indications	Gross, Net, Tare, Count, Piece Weight, % Accuracy, Check Weigh Over/Under/Accept, Setpoint Status, Active ID and Base 2
SKU Lookup	750 (optional upto 3000)
Internal Resolution	1/8,000,000
Displayed Resolution	Standard 1/10,000. Up to 1/50,000
load cells	5 VDC excitation to power up to 12, 350 ohm load cells
Warranty	Two Year Limited Warranty
	Made in USA
