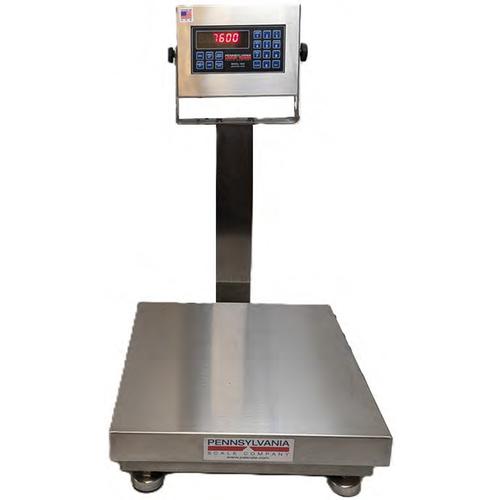

Pennsylvania Scale SS7600MAX Legal for Trade IP69K Washdown Bench Scales	Authorized Dealer
The Pennsylvania Scale SS7800MAX Washdown Bench Scale is a rugged, high-performance solution designed for demanding industrial environments where cleanliness and durability are non-negotiable. Built with full 304 stainless steel construction—including the load cell and hardware—it offers complete IP69K washdown protection to withstand harsh cleaning chemicals and rigorous sanitation protocols.

Industrial Scale

Have Questions? or email Us Our Staff will be glad to help Legal For Trade Canada Measurement View Specifications Chart Pennsylvania Scale SS7600MAX Legal for Trade IP69K Washdown Bench Scales Select 12 x 12 inch 25 X 0.005 lb $1,651.65 50 X 0.01 lb $1,651.65 100 X 0.02 lb $1,651.65 12 x 16 inch 50 X 0.01 lb $1,728.65 100 X 0.02 lb $1,728.65 150 X 0.05 lb $1,728.65 16 x 16 inch 100 X 0.02 lb $1,767.15 250 X 0.05 lb $1,767.15 500 X 0.1 lb $1,767.15

The SS7600MAX offers intuitive operation with comprehensive weighing functions—Zero, Tare, Gross/Net, Piece Count, Print, and more—alongside the ability to display weight in two simultaneous units from a broad selection including lb, kg, oz, and grams. It includes a standard bi-directional serial port and supports upgrades for Ethernet, Wi-Fi, USB, and Bluetooth for seamless integration into your workflow. With advanced circuit protection, high internal resolution, and a bright LED display, this scale provides the reliability and flexibility you need, backed by a solid two-year limited warranty. The SS7600MAX is the perfect blend of rugged design and user-friendly functionality.

• Outstanding performance in washdown sanitary production environments
• Washdown rating of IP69K/Nema 4X for high pressure washdown protection
• 304 stainless steel design including load cell and all hardware resists corrosion from harsh cleaning chemicals and repeated washdown
• 300% overload protection
• Hygienic and easy to clean design, completely sealed indicator and welded corners on platform cover along with an open design base structure makes this easy to clean without areas to collect water or debris
• Includes 14" or 18" Column
• 7600 With full functions with Sample, Zero, Tare, Keypad Tare, Gross/Net, Piece Weight, Print, Base and Units
• Weight displayed in any two units of measurement, including lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. – oz
• Serial com port standard, bi-directional and programmable, optional Ethernet, Wi-Fi, USB, Bluetooth and analog output

• Power AC line voltages 115/230 VAC, 50/60 Hz (Specify when ordering)
• Power Consumption 0.25A at 115 VAC, 0.13A at 230 VAC
• Circuit Protection RFI, EMI, ESD Protection ADC shielded
• Display: 0.56 LED Red, bright, stable and easy to read
• Operating Temperature 14 to 104, -10 to 40
• Internal Resolution 1/8,000,000
• Displayed Resolution. Standard 1/10,000. Up to 1/50,000
• 5 VDC excitation to power 350-ohm load cells
• Two Year Limited Warranty

• Dual base input
• External power input 12 or 24 VDC, specify at time of order, requires external power supply of 12 or 24 VDC
• 220/230 VAC Operation
• 1 Alarm Buzzer Mounted inside scale or indicator
• Setpoint/Relays DC or AC
• Wired Ethernet and Wi-Fi TCP/IP
• USB com port and keyboard emulation HID
• Bluetooth com port and keyboard emulation HID

Pennsylvania Scale SS7600MAX Washdown Bench Scale Floor Scales with 7600MAX Indicator
Models	SS7600MAX-1212-25	SS7600MAX-1212-50	SS7600MAX-1212-100	SS7600MAX-1212-25	SS7600MAX-1212-50	SS7600MAX-1212-100	SS7600MAX-1616-100	SS7600MAX-1616-250	SS7600MAX-1616-500
Price	$1,651.65 Add to Cart	$1,651.65 Add to Cart	$1,651.65 Add to Cart	$1,728.65 Add to Cart	$1,728.65 Add to Cart	$1,728.65 Add to Cart	$1,767.15 Add to Cart	$1,767.15 Add to Cart	$1,767.15 Add to Cart
Capacity	25 X 0.005 lb 11.35 X 005 kg	50 X 0.01 lb 22.65 X 0.005 kg	100 X 0.02 lb 45.36 X 0.01 kg	50 X 0.01 lb 22.65 X 0.005 kg	100 X 0.02 lb 45.36 X 0.01 kg	150 X 0.05 lb 68.00 X 0.02 kg	100 X 0.02 lb 45.36 X 0.01 kg	250 X 0.05 lb 113.4 X 0.05 kg	500 X 0.1 lb 226.8 X 0.05 kg
Size	12 X 12 inch	12 X 12 inch	12 X 12 inch	12 X 16 inch	12 X 16 inch	12 X 16 inch	16 X 16 inch	16 X 16 inch	16 X 16 inch
Legal for trade	Base:NTEP COC 90-097A3 Indicator:NTEP: 97-009A31 Base:Measurement Canada COC S.WA-4456 Rev. 3 Rev. 4 Indicator:Canadian Weights & Measures: AM-5647 4869, Rev. 3
Communication	Bidirectional RS-232 standard options include: Wired Ethernet, Wi-Fi TCP/IP, USB com port ,Bluetooth com port , keyboard emulation HID and Setpoint/Relays DC or AC
Column	14"
Power	AC line voltages 115
Operating Temperature	14o to 104o, -10o to 40o
units	lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
Rating	IP69K
Circuit Protection	RFI, EMI, ESD Protection ADC shielded
Display	0.56 LED Red, bright, stable and easy to read
Indications	Sample, Zero, Tare, Keypad Tare, Gross/Net, Piece Weight, Print, Base and Units
Internal Resolution	1/8,000,000
Displayed Resolution	Standard 1/10,000. Up to 1/50,000
load cells	5 VDC excitation to power up to 12, 350 ohm load cells
Warranty	Two Year Limited Warranty
	Made in USA
