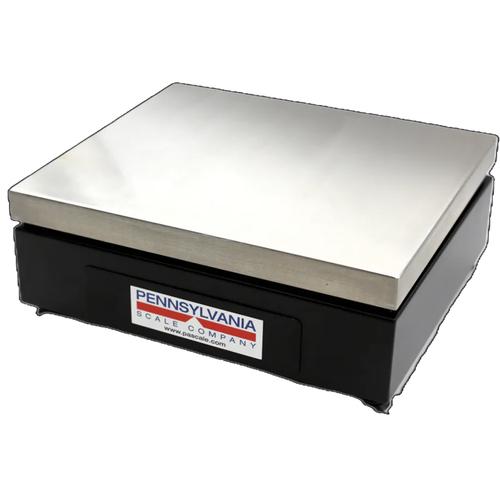

Sustained accuracy and long life are built into the heart of every 7000 series remote platform. Clean, rugged design and high resolution make the 7000 series the ideal choice for whatever you count or weigh in a wide range of requirements.
For low capacity requirements, the 2lb/907 g and 5 lb/2268 g models use a compact 8 x 8” fabricated design.
10 lb/4536 g through 200 lb/90.72 kg units use a rugged cast structure with a standard 12 x 14” platform.
- Heavy duty cast construction with stainless steel platform (Compact fabricated construction on 2 lb/907 g and 5 lb/2268 g models)
- Clean, convenient design
- Equipped with 10’/3 m cable and CPC connector
- High accuracy, ideal for parts counting applications
- Compatible with a wide range of indicators and scales
- Four-Year Limited Warranty
Applications
- System upgrades, added remote platforms
- Remote weighing systems
- Buying or selling certain products by weight
- Ideal sample or bulk scale for counting systems
- Shipping, manifest systems or SPC/SQC weighing
Guaranteed accuracy 1 part in 10,000; suitable for a wide range of applications in other weight units and resolutions with a variety of Pennsylvania or other scales, indicators, or scale systems.
|
|
Load Cell Specifications
- Drive voltage: 15vDC maximum
- Output: 2 mv/V (1 mv/V for 10 lb/4536 g unit)
- Non-linearity: 0.01% of rated output
- Hysteresis: 0.02% of rated output
Physical Dimensions
- 2 lb/907 g and 5 lb/2268 g Models:
- 8” (L) x 8” (W) x 3.5” (H); 8 lb
- 203 mm (L) x 203 mm (W) x 89 mm (H); 3.7 kg
Note: Other capacities available by special order
10 lb/4536 g to 200 lb/90.72 kg
Models: 14" (L) x 12" (W) x 4" (H); 18 lb
356 mm (L) x 305 mm (W) x 10 mm (H); 8 kg
Options
- Custom load cell cables or connections (contact factory)
- 12 x 14" ball transfer top plate
- For wet or harsh environments, use Model 6200 series
- Pennsylvania scales, indicators, or weighing systems contact your distributo
Approvals
- NTEP (National Type Evaluation Program)
- Canadian Weights & Measures
Warranty
The parts and components of these Pennsylvania Scale Company products are warranted for four years from the date of retail delivery against defects in materials and workmanship, subject to the terms and conditions of our standard warranty.
| Models |
7000-2HR |
7000-5HR |
7000-10HR |
7000-20HR |
7000-50HR |
7000-100HR |
7000-150HR |
7000-200HR |
| Price |
$535.15
|
$535.15
|
$535.15
|
$535.15
|
$535.15
|
$535.15
|
$535.15
|
$535.15
|
| Capacity x Readability |
2 X 0.0001 lb
907.2 X 0.05 g |
5 X 0.0002 lb
2268 X 0.2 g |
10 X 0.0005 lb
4536 X 0.5 g |
20 X 0.001 lb
9.072 X 0.0005 kg |
50 X 0.002 lb
22.68 X 0.005 kg |
100 X 0.005 lb
45.36 X 0.005 kg |
150 X 0.01 lb
68.04 X 0.005 kg |
200 x 0.02 lb
90.72 X 0.005 kg |
| Platform size |
8" x 8"
203 x 203 mm |
12" x 14"
305 x 356 mm |
| Fabricated |
YES |
YES |
Special Order |
- |
- |
- |
- |
| CAST |
- |
- |
YES |
YES |
YES |
YES |
YES |
YES |
| Construction |
STAINLESS STEEL TOP COVER PLATE |
| Legal For Trade |
NO |
NO |
YES |
YES |
YES |
YES |
YES |
YES |
NTEP 10,000 divisions COC #91-149A7
Canadian Weights & Measures 10,000 divisions COC #AM-4869 Rev. 3 |
| Load Cell Specifications |
Drive Voltage: 15 vDC maximum
Output: 2 mv/V (1 mv/V for 10 lb./4536 g unit)
Non-linearity: 0.01% of rated output
Hysteresis: 0.02% of rated output
|
| Compatible With |
7400EXP, 7500EXP, 7600EXP, 7400+, 7600E, 7500+, 7600+ Indicators |
| Warranty |
Four-year |
| Sccuracy |
1 part in 10,000; |
older models
| Models |
7000-2 |
7000-5 |
7000-10 |
7000-20 |
7000-50 |
7000-100 |
7000-150 |
7000-200 |
| Price |
$442.75
|
$442.75
|
$442.75
|
$442.75
|
$442.75
|
$442.75
|
$442.75
|
$442.75
|
| Capacity x Readability |
2 x 0.0002 lb
907.2 x 0.1 g |
5 x 0.0005 lb
2268 x 0.2 g |
10 x 0.001 lb
4536 x 0.5 g |
20 x 0.002 lb
9.072 x 0.001 kg |
50 x 0.005 lb
22.68 x 0.005 kg |
100 x 0.01 lb
45.36 x 0.005 kg |
150 x 0.01 lb
68.04 x 0.005 kg |
200 x 0.02 lb
90.72 x 0.01 kg |
| Platform size |
8" x 8"
203 x 203 mm |
12" x 14"
305 x 356 mm |
| Fabricated |
YES |
YES |
Special Order |
- |
- |
- |
- |
| CAST |
- |
- |
YES |
YES |
YES |
YES |
YES |
YES |
| Construction |
Aluminum |
STAINLESS STEEL TOP COVER PLATE |
| Legal For Trade |
YES |
YES |
NO |
NO |
YES |
YES |
YES |
YES |
| NTEP 10,000 divisions, Canadian Weights & Measures 10,000 divisions |
| Load Cell Specifications |
Drive Voltage: 15 vDC maximum
Output: 2 mv/V (1 mv/V for 10 lb./4536 g unit)
Non-linearity: 0.01% of rated output
Hysteresis: 0.02% of rated output
|
| Compatible With |
7400EXP, 7500EXP, 7600EXP, 7400+, 7600E, 7500+, 7600+ Indicators |
| Warranty |
Four-year |
| Sccuracy |
1 part in 10,000; |
|
