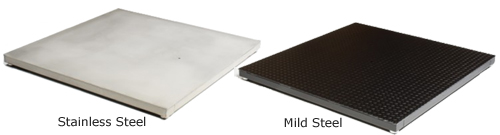

Pennsylvania Scale 6600 Mild & Stainless Steel Heavy Duty Floor Scale Bases	Authorized Dealer
Whatever your requirement – portable or permanent; on floor or in-pit; wet or dry; drop & weigh or drive-on, there’s a 6600 platform scale to exceed your expectations. With thousands of satisfied users, the 6600 has a reputation for quality, value, and lowest life cost of any floor scale available.

Pennsylvania Scale 7000 Legal for Trade Heavy Duty Shipping Scales

Base Only Indicator old Separately


Legal For Trade	Canada Measurement

View Specifications Chart

Whatever your requirement – portable or permanent; on floor or in-pit; wet or dry; drop & weigh or drive-on, there’s a 6600 platform scale to exceed your expectations. With thousands of satisfied users, the 6600 has a reputation for quality, value, and lowest life cost of any floor scale available..

Sustained Accuracy for rugged industrial applications

Rugged, heavy duty design for rough industrial use
Available in custom capacities/sizes at standard pricing
Four Sensortronics™ or premium load cells
Adjustable leveling feet
Powder coating standard on 48" x 48" 5,000 lb. base
Designed for permanent or portable installations
Optional four-way ramp access
Safety diamond plate surface (except stainless)
20' cable to digital indicator or counting scale
Special requirements for unique loading
Structural performance assured with computer aided design
Full support for legacy products
FREE Factory matching when ordered with any Pennsylvania counting scale or digital indicator
5-year limited warranty.

NTEP COC 90-097A3
Canada AM-4941/S.WA-4456 Rev. 3 - 5000 Div.

OPTIONS FOR MILD STEEL FLOOR SCALES - Factory Installed
	Pennsylvania Scale 57670 Upgrade Load Cells and Leveling Feet to SS for 6600 - 1K, 2K, 5K, + 10K Capacities - Factory Installed, add $292.50
	Pennsylvania Scale SS LEVELING FEET 0.5 in -20 Upgrade to SS Leveling Feet for 6600 1K, 2K, 5K 10K Capacities - Factory Installed, add $72.00
	Pennsylvania Scale SS LEVELING FEET 0.75 in -16 Upgrade to SS Leveling Feet for 6600 10K or 20K Capacities - Factory Installed, add $108.00
	Pennsylvania Scale SS LEVELING FEET 1 inch -8 Upgrade to SS Leveling Feet for 6600 30K or 40K Capacities - Factory Installed, add $139.50
	Pennsylvania Scale 56690 Top access junction box, Accessible through top plate for 6600 - Factory Installed, add $225.00
	Pennsylvania Scale 56699-1 SS NEMA 4X summing box, used for Remote Summing applications e for 6600 - Factory Installed, add $180.00
	Pennsylvania Scale HERMETICALLY SEALED UPGRADE for 6600 MS Models- Factory Installed, add $846.00
	Pennsylvania Scale 56728-3 BASE-MOUNTED Indicator column 38 inch for 6600 MS Models- Factory Installed, add $265.50

MOUNTING OPTIONS FOR MS FLOOR SCALES
	Pennsylvania Scale 56764-3 Pit Spacers for 6600 1K, 2K, 5K, 10K capacity bases, Set of (4) pieces, add $60.00
	Pennsylvania Scale 56764-2 Pit Spacers for 6600 20K capacity bases,complete Set of (4) pieces, add $60.00
	Pennsylvania Scale 56764-4 Pit Spacers for 6600 30K or 40k capacity bases,complete Set of (4) pieces, add $72.00
	Pennsylvania Scale 59352-1 (4) Plated Steel Base Anchors, for 6600 up to 10K cap. Bases (2-1/8 in opening fits 2 in diameter foot)., add $90.00
	Pennsylvania Scale 59352-2 (4) Plated Steel Base Anchors, for 6600 20K cap. Bases (3-1/8 in opening fits 3 in diameter foot)., add $103.50

Ramps
	Pennsylvania Scale R-49958-1 Mild Steel Ramp 24 x 36 x 3 inch for 6600 up to 5k , add $482.00
	Pennsylvania Scale R-49958-2 Mild Steel Ramp 30 x 36 x 3 inch for 6600 up to 5k , add $572.00
	Pennsylvania Scale R-49958-12 Mild Steel Ramp 36 x 36 x 3 inch for 6600 up to 10k, add $595.00
	Pennsylvania Scale R-49958-10 Mild Steel Ramp 48 x 36 x 3 inch for 6600 up to 10k, add $620.00
	Pennsylvania Scale R-49958-4 Mild Steel Ramp 48 x 48 x 3 inch for 6600 up to 10k, add $705.00
	Pennsylvania Scale R-49958-11 Mild Steel Ramp 60 x 36 x 3 inch for 6600 up to 10k, add $725.00
	Pennsylvania Scale R-49958-5 Mild Steel Ramp 60 x 48 x 3 inch for 6600 up to 10k, add $797.00
	Pennsylvania Scale 6600-RAMP-72x36 Mild Steel Ramp 72 x 36 x 3 inch for 6600 up to 10k, add $725.00
	Pennsylvania Scale R-49958-13 Mild Steel Ramp 48 x 48 x 4 inch for 6600 for 20k, add $1,525.50
	Pennsylvania Scale R-49958-21 Stainless Steel Ramp 24 x 36 x 3 inch for 6600 up to 5k , add $985.50
	Pennsylvania Scale R-49958-22 Stainless Steel Ramp 30 x 36 x 3 inch for 6600 up to 5k , add $1,255.50
	Pennsylvania Scale R-49958-23 Stainless Steel Ramp 36 x 36 x 3 inch for 6600 up to 10k, add $1,255.50
	Pennsylvania Scale SS6600-RAMP-48x36 Stainless Steel Ramp 48 x 36 x 3 inch for 6600 up to 10K, add $2,245.50
	Pennsylvania Scale R-49958-25 Stainless Steel Ramp 48 x 48 x 3 inch for 6600 up to 10k, add $2,335.50
	Pennsylvania Scale R-49958-31 Stainless Steel Ramp 60 x 36 x 3 inch for 6600 up to 10k, add $2,515.50
	Pennsylvania Scale R-49958-39 Stainless Steel Ramp 60 x 48 x 3 inch for 6600 up to 10k, add $2,695.50

Pennsylvania Scale 6600
Mild & Stainless Steel Heavy Duty Floor Scale Bases
Price From: $1,687.50

Select Indicator (Must be added with scale)
	Pennsylvania Scale 7400EXP Legal for Trade Indicator , Add $404.25
	Pennsylvania Scale 7500EXP Legal for Trade Indicator , Add $404.25
	Pennsylvania Scale 7600EXP Legal for Trade Indicator , Add $423.50
	Pennsylvania Scale 7400+ Series Weighing & Batching Indicator , Add $499.00
	Pennsylvania Scale 7500+ Series Universal Weighing & Counting Indicato , Add $479.00
	Pennsylvania Scale7600+ Series Full Keyboard Universal Weighing & Counting Indicator , Add $564.00
	Pennsylvania Scale 7600E Series Truck Weighing & Batching Indicator , Add $579.00

Fork Lift Skids - Factory Installed (Just like a Fork Lift Channel)
	Pennsylvania Scale 59241-3 Forklift skids (channel) for 6600 36 inch wide MS Models- Factory Installed, add $225.00
	Pennsylvania Scale 59241-4 Forklift skids (channel) for 6600 48 inch wide MS Models- Factory Installed, add $243.00
	Pennsylvania Scale 59241-5 Forklift skids (channel) for 6600 60 inch wide MS Models- Factory Installed, add $351.00
	Pennsylvania Scale 59241-6 Forklift skids (channel) for 6600 72 inch wide MS Models- Factory Installed, add $279.00
	Pennsylvania Scale 59241-7 Forklift skids (channel) for 6600 84 inch wide MS Models- Factory Installed, add $297.00

PIT FRAMES
	Pennsylvania Scale 57599-4 Pit Frame Fits 6600 36 x 36 inch 1K, 2K, 5K or 10K capacity bases , add $517.50
	Pennsylvania Scale 57599-1 Pit Frame Fits 6600 48 x 48 inch 1K, 2K, 5K or 10K capacity bases , add $625.50
	Pennsylvania Scale 57599-2 Pit Frame Fits 6600 48 x 60 inch 1K, 2K, 5K or 10K capacity bases , add $652.50
	Pennsylvania Scale 57599-21 Stainless Steel Pit Frame Fits 6600 48 x 48 inch 1K, 2K, 5K or 10K capacity bases , add $1,525.50
	Pennsylvania Scale 57599-3 Pit Frame Fits 6600 60 x 60 inch 1K, 2K, 5K or 10K capacity bases , add $697.50

BUMPER GUARDS
	Pennsylvania Scale 56260-2 Bumper Guard, 36 x 3 inch safety yellow finish for 6600, add $202.50
	Pennsylvania Scale 56260-3 Bumper Guard, 48 x 3 inch safety yellow finish for 6600, add $225.00
	Pennsylvania Scale 59351-3 Bumper Guard, 48 x 4 inch safety yellow finish for 6600 20k, add $292.50
	Pennsylvania Scale 56260-4 Bumper Guard, 60 x 3 inch safety yellow finish for 6600 , add $355.50

SS6600 MOUNTING OPTIONS FOR SS FLOOR SCALES
	Pennsylvania Scale 56764-23 Stainless Steel Pit Spacers for SS6600 1K, 2K, 5K, 10K capacity bases, Set of (4) pieces, add $135.00
	Pennsylvania Scale 56764-22 Stainless Steel Pit Spacers for SS6600 20K capacity bases, 1 Set of (4) pieces, add $135.00
	Pennsylvania Scale 56764-24 Stainless Steel Pit Spacers for SS6600 30K or 40k capacity bases, 1 Set of (4) pieces, add $135.00

SS6600 OPTIONS & UPGRADES FOR SS FLOOR SCALES
	Pennsylvania Scale HERMETICALLY SEALED UPGRADE FOR SS BASES for 6600 SS Models- Factory Installed, add $585.00

ADDITIONAL FEATURES (Stainless Steel Models)

302/304 stainless steel construction
Smooth plate deck (provides more surface contact than optional
diamond plate in wet areas)
All stainless steel load cells, hardware, and construction
Remote stainless steel summing box, NEMA 4 rated

OPTIONS (Mild Steel Models)

Stainless steel load cells and hardware
Remote stainless steel summing box, NEMA 4 rated

LOAD CELL SPECIFICATIONS

Premium load cells are NTEP approved
100% end loading plus positive overload protection

ADDITIONAL OPTIONS

Stainless steel load cells or remote stainless steel junction box (standard on galvanized and stainless units)
Top access or remote load cell summing
RS-232 digital "smart base," self-contained
Portability cart and handle
Side rails welded to deck
Custom sizes, loading requirements – Call us 800-832-0055
Pennsylvania digital indicators, counting systems, and mounting options

Legal For Trade
NTEP COC 90-097A3 Canada AM-4941/S.WA-4456 Rev. 3 - 5000 Div.

Base Only Indicator old Separately Call for price - Prices changes very offen Call for a quote
Other sizes and capacities are available. Contact the us for quotation.

Size (W x D)	Height	Capacity	Mild Steel	MS Price		Stainless Steel	SS Price
24" x 24"	3"	1,000 x 0.2 lb	M6600-2424-1K		$1,276.00	SS6600-2424-1K	Call for Price
		2,000 x 0.5 lb	M6600-2424-2K		$1,276.00	SS6600-2424-2K	Call for Price
		5,000 x 1 lb	M6600-2424-5K		$1,276.00	SS6600-2424-5K	Call for Price
30" x 30"	3"	1,000 x 0.2 lb	M6600-3030-1K		$1,276.00	SS6600-3030-1K	Call for Price
		2,000 x 0.5 lb	M6600-3030-2K		$1,276.00	SS6600-3030-2K	Call for Price
		5,000 x 1 lb	M6600-3030-5K		$1,276.00	SS6600-3030-5K	Call for Price
36" x 36"	3"	1,000 x 0.2 lb	M6600-3636-1K		$1,276.00	SS6600-3636-1K	Call for Price
		2,000 x 0.5 lb	M6600-3636-2K		$1,276.00	SS6600-3636-2K	Call for Price
		5,000 x 1 lb	M6600-3636-5K		$1,276.00	SS6600-3636-5K	Call for Price
		10,000 x 2 lb	M6600-3636-10K		$1,276.00	SS6600-3636-10K	Call for Price
36" x 48"	3"	1,000 x 0.2 lb	M6600-3648-1K		$1,276.00	SS6600-3648-1K	Call for Price
		2,000 x 0.5 lb	M6600-3648-2K		$1,276.00	SS6600-3648-2K	Call for Price
		5,000 x 1 lb	M6600-3648-5K		$1,276.00	SS6600-3648-5K	Call for Price
		10,000 x 2 lb	M6600-3648-10K		$1,276.00	SS6600-3648-10K	Call for Price
48" x 48"	3"	1,000 x 0.2 lb	M6600-4848-1K		$1,276.00	SS6600-4848-1K		$3,596.00
		2,000 x 0.5 lb	M6600-4848-2K		$1,276.00	SS6600-4848-2K		$3,996.00
		5,000 x 1 lb	M6600-4848-5K		$1,276.00	SS6600-4848-5K		$3,996.00
		10,000 x 2 lb	M6600-4848-10K		$1,320.00	SS6600-4848-10K		$3,996.00
	4"	20,000 x 4 lb	M6600-4848-20K		$2,876.00	SS6600-4848-20K	Call for Price
	5"	30,000 x 5 lb	M6600-4848-30K		$3,196.00	SS6600-4848-30K	Call for Price
	5"	40,000 x 8 lb	M6600-4848-40K		$3,436.00	SS6600-4848-40K	Call for Price
48" x 60"	3"	5,000 x 1 lb	M6600-4860-5K		$1,596.00	SS6600-4860-5K	Call for Price
	3"	10,000 x 2 lb	M6600-4860-10K		$1,676.00	SS6600-4860-10K	Call for Price
	4"	20,000 x 4 lb	M6600-4860-20K	Call for Price		SS6600-4860-20K	Call for Price
	5"	30,000 x 5 lb	M6600-4860-30K	Call for Price		SS6600-4860-30K	Call for Price
	5"	40,000 x 8 lb	M6600-4860-40K	Call for Price		SS6600-4860-40K	Call for Price
48" x 72"	3"	5,000 x 1 lb	M6600-4872-5K	Call for Price		SS6600-4872-5K	Call for Price
	3"	10,000 x 2 lb	M6600-4872-10K	Call for Price		SS6600-4872-10K	Call for Price
	4"	20,000 x 4 lb	M6600-4872-20K	Call for Price		SS6600-4872-20K	Call for Price
	5"	30,000 x 5 lb	M6600-4872-30K	Call for Price		SS6600-4872-30K	Call for Price
	5"	40,000 x 8 lb	M6600-4872-40K	Call for Price		SS6600-4872-40K	Call for Price
48" x 84"	3"	5,000 x 1 lb	M6600-4884-5K	Call for Price		SS6600-4884-5K	Call for Price
	4"	10,000 x 2 lb	M6600-4884-10K	Call for Price		SS6600-4884-10K	Call for Price
	4"	20,000 x 4 lb	M6600-4884-20K	Call for Price		SS6600-4884-20K	Call for Price
	5"	30,000 x 5 lb	M6600-4884-30K	Call for Price		SS6600-4884-30K	Call for Price
	5"	40,000 x 8 lb	M6600-4884-40K	Call for Price		SS6600-4884-40K	Call for Price
48" x 96"	4"	5,000 x 1 lb	M6600-4896-5K	Call for Price		SS6600-4896-5K	Call for Price
		10,000 x 2 lb	M6600-4896-10K	Call for Price		SS6600-4896-10K	Call for Price
		20,000 x 4 lb	M6600-4896-20K	Call for Price		SS6600-4896-20K	Call for Price
	5"	30,000 x 5 lb	M6600-4896-30K	Call for Price		SS6600-4896-30K	Call for Price
	5"	40,000 x 8 lb	M6600-4896-40K	Call for Price		SS6600-4896-40K	Call for Price
48" x 120"	4"	5,000 x 1 lb	M6600-48120-5K	Call for Price		SS6600-48120-5K	Call for Price
		10,000 x 2 lb	M6600-48120-10K	Call for Price		SS6600-48120-10K	Call for Price
		20,000 x 4 lb	M6600-48120-20K	Call for Price		SS6600-48120-20K	Call for Price
	5"	30,000 x 5 lb	M6600-48120-30K	Call for Price		SS6600-48120-30K	Call for Price
	5"	40,000 x 8 lb	M6600-48120-40K	Call for Price		SS6600-48120-40K	Call for Price
60" x 60"	3"	5,000 x 1 lb	M6600-6060-5K		$2,316.00	SS6600-6060-5K	Call for Price
	3"	10,000 x 2 lb	M6600-6060-10K		$2,396.00	SS6600-6060-10K	Call for Price
	4"	20,000 x 4 lb	M6600-6060-20K		$3,036.00	SS6600-6060-20K	Call for Price
	5"	30,000 x 5 lb	M6600-6060-30K			SS6600-6060-30K	Call for Price
	5"	40,000 x 8 lb	M6600-6060-40K	Call for Price		SS6600-6060-40K	Call for Price
60" x 72"	3"	5,000 x 1 lb	M6600-6072-5K	Call for Price		SS6600-6072-5K	Call for Price
	4"	10,000 x 2 lb	M6600-6072-10K	Call for Price		SS6600-6072-10K	Call for Price
	4"	20,000 x 4 lb	M6600-6072-20K	Call for Price		SS6600-6072-20K	Call for Price
	5"	30,000 x 5 lb	M6600-6072-30K	Call for Price		SS6600-6072-30K	Call for Price
	5"	40,000 x 8 lb	M6600-6072-40K	Call for Price		SS6600-6072-40K	Call for Price
60" x 84"	4"	5,000 x 1 lb	M6600-6084-5K	Call for Price		SS6600-6084-5K	Call for Price
		10,000 x 2 lb	M6600-6084-10K	Call for Price		SS6600-6084-10K	Call for Price
		20,000 x 4 lb	M6600-6084-20K	Call for Price		SS6600-6084-20K	Call for Price
	5"	30,000 x 5 lb	M6600-6084-30K	Call for Price		SS6600-6084-30K	Call for Price
	5"	40,000 x 8 lb	M6600-6084-40K	Call for Price		SS6600-6084-40K	Call for Price
60" x 96"	4"	5,000 x 1 lb	M6600-6096-5K	Call for Price		SS6600-6096-5K	Call for Price
	4"	10,000 x 2 lb	M6600-6096-10K	Call for Price		SS6600-6096-10K	Call for Price
	5"	20,000 x 4 lb	M6600-6096-20K	Call for Price		SS6600-6096-20K	Call for Price
		30,000 x 5 lb	M6600-6096-30K	Call for Price		SS6600-6096-30K	Call for Price
		40,000 x 8 lb	M6600-6096-40K	Call for Price		SS6600-6096-40K	Call for Price
72" x 72"	4"	5,000 x 1 lb	M6600-7272-5K	Call for Price		SS6600-7272-5K	Call for Price
	4"	10,000 x 2 lb	M6600-7272-10K	Call for Price		SS6600-7272-10K	Call for Price
	5"	20,000 x 4 lb	M6600-7272-20K	Call for Price		SS6600-7272-20K	Call for Price
		30,000 x 5 lb	M6600-7272-30K	Call for Price		SS6600-7272-30K	Call for Price
		40,000 x 8 lb	M6600-7272-40K	Call for Price		SS6600-7272-40K	Call for Price
72" x 84"	4"	5,000 x 1 lb	M6600-7284-5K	Call for Price		SS6600-7284-5K	Call for Price
	4"	10,000 x 2 lb	M6600-7284-10K	Call for Price		SS6600-7284-10K	Call for Price
	5"	20,000 x 4 lb	M6600-7284-20K	Call for Price		SS6600-7284-20K	Call for Price
		30,000 x 5 lb	M6600-7284-30K	Call for Price		SS6600-7284-30K	Call for Price
		40,000 x 8 lb	M6600-7284-40K	Call for Price		SS6600-7284-40K	Call for Price
72" x 96"	4"	5,000 x 1 lb	M6600-7296-5K	Call for Price		SS6600-7296-5K	Call for Price
	4"	10,000 x 2 lb	M6600-7296-10K	Call for Price		SS6600-7296-10K	Call for Price
	5"	20,000 x 4 lb	M6600-7296-20K	Call for Price		SS6600-7296-20K	Call for Price
		30,000 x 5 lb	M6600-7296-30K	Call for Price		SS6600-7296-30K	Call for Price
		40,000 x 8 lb	M6600-7296-40K	Call for Price		SS6600-7296-40K	Call for Price
72" x 120"	4"	5,000 x 1 lb	M6600-72120-5K	Call for Price		SS6600-72120-5K	Call for Price
	4"	10,000 x 2 lb	M6600-72120-10K	Call for Price		SS6600-72120-10K	Call for Price
	5"	20,000 x 4 lb	M6600-72120-20K	Call for Price		SS6600-72120-20K	Call for Price
		30,000 x 5 lb	M6600-72120-30K	Call for Price		SS6600-72120-30K	Call for Price
		40,000 x 8 lb	M6600-72120-40K	Call for Price		SS6600-72120-40K	Call for Price
84" x 108"	4"	5,000 x 1 lb	M6600-84108-5K	Call for Price		SS6600-84108-5K	Call for Price
	4"	10,000 x 2 lb	M6600-84108-10K	Call for Price		SS6600-84108-10K	Call for Price
	5"	20,000 x 4 lb	M6600-84108-20K	Call for Price		SS6600-84108-20K	Call for Price
		30,000 x 5 lb	M6600-84108-30K	Call for Price		SS6600-84108-30K	Call for Price
		40,000 x 8 lb	M6600-84108-40K	Call for Price		SS6600-84108-40K	Call for Price
84" x 120"	4"	5,000 x 1 lb	M6600-84120-5K	Call for Price		SS6600-84120-5K	Call for Price
	4"	10,000 x 2 lb	M6600-84120-10K	Call for Price		SS6600-84120-10K	Call for Price
	5"	20,000 x 4 lb	M6600-84120-20K	Call for Price		SS6600-84120-20K	Call for Price
		30,000 x 5 lb	M6600-84120-30K	Call for Price		SS6600-84120-30K	Call for Price
		40,000 x 8 lb	M6600-84120-40K	Call for Price		SS6600-84120-40K	Call for Price
96" x 120"	4"	5,000 x 1 lb	M6600-96120-5K	Call for Price		SS6600-96120-5K	Call for Price
	4"	10,000 x 2 lb	M6600-96120-10K	Call for Price		SS6600-84120-10K	Call for Price
	5"	20,000 x 4 lb	M6600-96120-20K	Call for Price		SS6600-96120-20K	Call for Price
		30,000 x 5 lb	M6600-96120-30K	Call for Price		SS6600-96120-30K	Call for Price
		40,000 x 8 lb	M6600-96120-40K	Call for Price		SS6600-96120-40K	Call for Price

Call for price - Prices changes very offen Call for a quote
Other sizes and capacities are available. Contact the us for quotation.
