The OHAUS BW Series Compact Bench Scale is a cost-effective portioning, packing and general weighing
scale designed to provide fast and accurate weighing performance in dry and washdown environments.
With an internal sealed rechargeable lead-acid battery, NEMA 4 / IP65 housing and a high-speed display,
the OHAUS BW Series offers durability and dependability in an affordable design.
| Model (Single Display) |
BW1.5US |
BW3US |
BW15US |
| Price |
N/A |
$334.22
|
N/A |
| Model (Dual Display) |
BW1.5TUS |
BW3TUS |
BW15TUS |
| Price |
$399.11
|
$399.11
|
$399.11
|
| NTEP Certified* Capacity x Readability |
1.5 kg x 0.5 g
3 lb x 0.001 lb
50 oz x 0.02 oz |
3 kg x 1 g
6 lb x 0.002 lb
100 oz x 0.05 oz |
15 kg x 5 g
30 lb x 0.01 lb
500 oz x 0.2 oz |
| NTEP Certified* Resolution (lb/kg) |
1:3,000 |
| Legal for Trade |
NTEP (CC No. 08-059 for lb, kg, g units
Measurement Canada (Approval No. AM-5706 for g, lb, oz units) |
| Construction |
ABS plastic housing with stainless steel pan |
| Protection |
NEMA 4 / IP65 |
| Pan Dimensions (W x D) |
9 x 7 in / 230 x 180 mm |
| Leveling Components |
4 adjustable rubber feet with integral panel mounted level bubble indicator |
| Display |
Single or dual, red LED with adjustable brightness 6-digit, 7-segment, 0.55 in / 14 mm high characters |
| Weighing Units |
lb, oz, g |
| Keyboard |
4 raised positive feedback mechanical keys |
| Span Calibration |
2/3 and full scale capacity, lb/g |
| Over Range Capacity |
To full scale capacity +9d |
| Tare Range |
Full capacity by subtraction |
| Zero Range |
Power-on: +10% / keyboard: +2% full scale capacity |
| Stabilization Time |
Within 2 seconds |
| Power |
12VDC 0.84A AC Adapter / 6V 5Ah rechargeable lead acid battery |
| Battery Life |
50 hours continuous use with 15 hour recharge time |
| Safe Overload |
150% of full scale capacity |
| Operating Temperature Range |
10oF to 104oF / -10oC to 40oC |
| Storage Temperature Range |
0oF to 122oF / -25oC to 50oC |
| Humidity Range |
10% to 85% humidity, non-condensing |

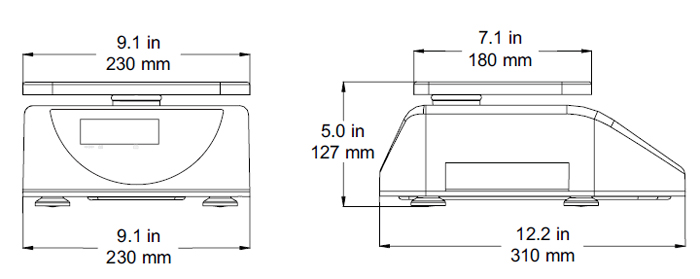

| Scale Dimensions (W x D x H) |
9 x 12.2 x 5 in / 230 x 310 x 127 mm |
| Shipping Dimensions (W x D x H) |
11.6 x 15 x 7.5 in / 295 x 381 x 190 mm |
| Scale Unit Weight |
9.7 lb / 4.4 kg |
| Shipping Weight |
12.5 lb / 5.7 kg |
