Ohaus Mini Vortex Mixers
Authorized Dealer
Four Mini Vortex Mixer models for gentle to high-speed mixing are available. Analog model offers variable speed control, and digital model allows input of the exact speed and time to achieve reproducible results.
Ohaus Scales
Ohaus Mini Vortex Mixers
Have Questions?
Call USoremail Us
Our Staff will be glad to help

Specifications Chart

Accessories

Built Sturdy to Provide Stable and Reliable Vortexing Action
Four Mini Vortex Mixer models for gentle to high-speed mixing are available. Analog model offers variable speed control, and digital model allows input of the exact speed and time to achieve reproducible results. Pulsing model features a unique pulse action that reduces heat generation,while providing more effective mixing and cell disruption. Fixed speed model offers one-touch,high-speed mixing.

Standard Features:
  • Select from Two Modes of Operation—Touch or ContinuousAvailable as analog and digital models with a rocker switch to select from two modes— Touch mode which activates mixing when depressing the cup head or Continuous mode when using accessory attachments.
  • Variable Speed Models Offer Low RPM Start Up to High-Speed Mixing Analog and digital models offer speed control from low RPM start up for gentle shaking to high-speed mixing for vigorous vortexing of samples (analog: 300 to 3200 rpm and digital: 500 to 3000 rpm).
  • Fixed Speed Models Provide Full RPM for Vigorous Mixing Fixed speed vortex mixers start mixing when the cup head is depressed. Ideal for mixing samples when a variable speed is not needed. Speed is a full 3200 rpm to provide vigorous mixing of samples.

Other Standard Features and Equipment Detachable 3-wire cord and plug, cup head and 3-inch accessory platform for beakers, flasks, test tubes etc. (included with all models), stainless steel microtube holder for 12 tubes (included with pulsing model only).

Compliance
  • Product Safety: CAN/CSA C22.2 61010-1, CAN/CSA C22.2 61010-2-051, UL 61010-1
  • Electromagnetic Compatibility: ICES-003 Class A, FCC Part 15 Class A
  • Compliance Marks: TÜV SÜD
Ohaus Mini Vortex Mixers

FREE UPS Ground Shipping
(within the 48 continental US States)



Ohaus 30400235 Cup Head
Ohaus 30400235 Cup Head, add $38.70
Ohaus 30400236 7.6 cm Head (3 in.)
Ohaus 30400236 7.6 cm Head (3 in.), add $38.70
Ohaus 30400237 7.6 cm Rubber Head Cover (3 in.)
Ohaus 30400237 7.6 cm Rubber Head Cover (3 in.), add $38.70
Ohaus 30400196 8 cm Head with Rubber Cover
Ohaus 30400196 8 cm Head with Rubber Cover, add $53.10


More Accessories

VXMNFS
30392108
VXMNAL
30392115
VXMNDG
30392122
VXMNPS
30392129

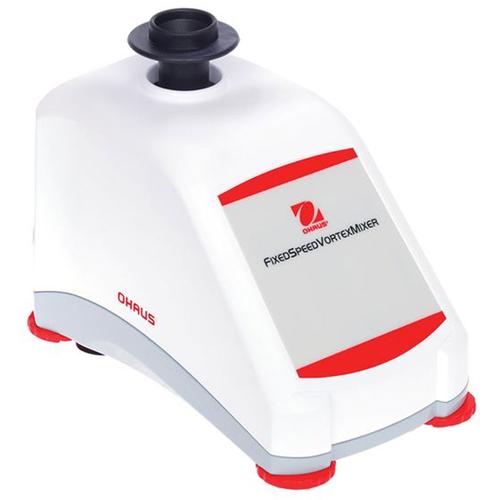

Price Ohaus VXMNFS Fixed Speed Mini Vortex Mixer - 3200 rpm
$214.20
Ohaus VXMNAL Analog Mini Vortex Mixer - 300 rpm – 3200 rpm
$244.04
Ohaus VXMNDG Digital Mini Vortex Mixer - 500 rpm – 3000 rpm
$312.89
Ohaus VXMNPS Pulsing Mini Vortex Mixer - 500 rpm – 3000 rpm
$380.97
Control Fixed Speed Analog Digital Pulsing, digital
Speed Range 3200 rpm 300 rpm – 3200 rpm 500 rpm – 3000 rpm 500 rpm – 3000 rpm
Orbit 4.9 mm (0.19 in.) 2.5 mm (0.098 in.)
Duty Rating Intermittent
Working Environment 39 °F – 104 °F, 20% – 85% relative humidity, non-condensing
Power 120V, 1.2A, 50/60Hz
Power Consumption 135 W
Dimensions (W × L × H) 4.8 × 8.3 × 6.5 in. / 123 × 210 × 165 mm
Net Weight 9 lb / 4.4 kg
Dims

Mini Vortex Accessories

Item No. Description VXMNFS VXMNAL VXMNDG VXMNPS Image Price
30400235 Cup Head YES YES YES YES Ohaus 30400235 Cup Head
$38.70
30400236 7.6 cm Head (3 in.) YES YES YES YES Ohaus 30400236 7.6 cm Head (3 in.)
$38.70
30400237 7.6 cm Rubber Head Cover (3 in.) YES YES YES YES Ohaus 30400237 7.6 cm Rubber Head Cover (3 in.)
$38.70
30400196 8 cm Head with Rubber Cover YES YES YES YES Ohaus 30400196 8 cm Head with Rubber Cover
$53.10
30400197 Tube Holder Kit with Retainer - YES YES YES Ohaus 30400197 Tube Holder Kit with Retainer
$193.50
30400198 Micro Tube and Well Plate Holder Kit - YES YES YES Ohaus 30400198 Micro Tube and Well Plate Holder Kit
$113.40
30400199 Micro Well Plate Kit with Retainer - YES YES YES Ohaus 30400199 Micro Well Plate Kit with Retainer
$113.40
30400200 Microtube Kit with Retainer - YES YES YES Ohaus 30400200 Microtube Kit with Retainer
$113.40
30400201 Foam Insert Variety Pack - YES YES YES Ohaus 30400201 Foam Insert Variety Pack
$57.60
30400202 Single Tube Holder - YES YES YES Ohaus 30400202 Single Tube Holder
$165.60
30400203 Single Tube Holder Adapter Vortex Genie - YES YES YES Ohaus 30400203 Single Tube Holder Adapter Vortex Genie
$84.60
30400204 0.5 mL Micro-Tube Holder - YES YES YES Ohaus 30400204  0.5 mL Micro-Tube Holder
$72.00
30400205 1.5-2.0 mL Micro-Tube Holder - YES YES YES Ohaus 30400205 1.5-2.0 mL Micro-Tube Holder
$72.00
30400206 1.5-2.0 mL Stainless Steel Tube Holder - YES YES YES Ohaus 30400206 1.5-2.0 mL Stainless Steel Tube Holder
$262.80
30400207 Ampule Tube Holder - Small (15-17 mm) - YES YES YES Ohaus 30400207 Ampule Tube Holder - Small (15-17mm)
$122.40
30400208 Ampule Tube Holder - Large (10-17 mm) - YES YES YES Ohaus 30400208 Ampule Tube Holder - Large (10-17mm)
$171.90
30400227 Insert Retainer - YES YES YES Ohaus 30400227 Insert Retainer
$127.80
30400228 Vessel Harness, Pack of 2 - YES YES YES Ohaus 30400228 Vessel Harness, Pack of 2
$10.80
30400229 Holder For 9-13 mm Tubes, Pack of 2 - YES YES YES Ohaus 30400229 Holder For 9-13 mm Tubes, Pack of 2
$31.50
30400230 Holder For 14-19 mm Tubes, Pack of 2 - YES YES YES Ohaus 30400230 Holder For 14-19 mm Tubes, Pack of 2
$31.50
30400231 Holder For 20-25 mm Tubes, Pack of 2 - YES YES YES Ohaus 30400231 Holder For 20-25 mm Tubes, Pack of 2
$31.50
30400232 Micro-Tube Holder, Pack of 2 - YES YES YES Ohaus 30400232 Micro-Tube Holder, Pack of 2
$65.70
30400233 Micro-Well Plate Holder, Pack of 2 - YES YES YES Ohaus 30400233 Micro-Well Plate Holder, Pack of 2
$65.70
30400234 Flat Foam Insert, Pack of 2 - YES YES YES Ohaus 30400234 Flat Foam Insert, Pack of 2
$29.70
