Milligram Model with Round Platform
(draftshield included)
|
Round Platform
|
Square Platform
|
The Next Generation of Portable Balances for your Classroom
Designed for education applications, the OHAUS Scout with large backlit LCD backed by education software is the ideal balance for your classroom. It is built to endure demanding classroom applications with superior overload protection. Features including, faster stabilization time, increased capacity, multiple connectivity options and stackable design make Scout the best weighing experience for the next generation classroom.

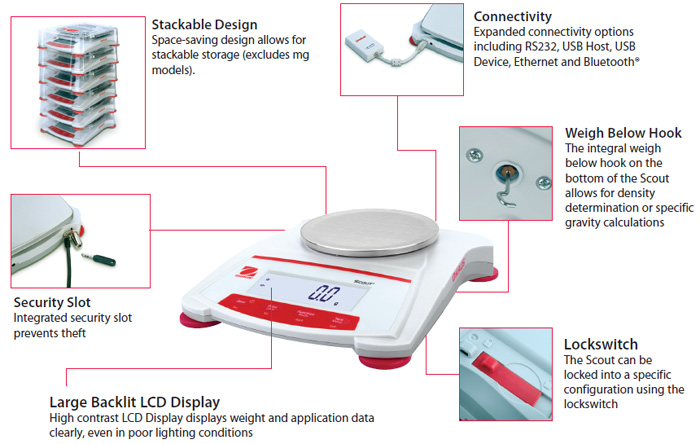

Standard Features Include:
- Superior Overload Protection & Practical Stackable Design for Convenient Storage Integrated superior overload protection system rated at 10x capacity protects the balance in demanding classroom environments. Space-saving design allows for stackable storage (excluding 1mg model).
- Improved Functionality with Bright Backlit LCD and 4 Button Operation Combined with a simplified 4 button operation, the Scout’s large backlit display increases readability in dim lighting conditions, and makes it easier to view results from across a desk or lab bench.
- Multiple Connectivity Options Available for Data Logging and Communication With expanded connectivity options including RS232, USB Host, USB Device, Ethernet and Bluetooth®, the Scout provides added versatility to your data collection and transfer needs.
- Geared for Classroom Use with Education Specific Software Applications With specific gravity software, density kit and weigh below hook, the Scout is uniquely designed for science classroom lessons. The Mole weighing mode allows students to check their Mole calculations.
Scout can Handle Demanding Classroom Environments
The superior mechanical overload protection system of the Scout is comprised of a high-strength stainless steel pan and an impact-resistant plastic pan support. This enables the balance to safely withstand loads up to 10 times its rated capacity, and survive in demanding classroom environments where capacity may be frequently exceeded. Scout’s unique stacking and storage cover allows the balance to be safely stored away when not in use. The integrated transportation lock protects the load cell from damage during stacking storage and transportation.
User-Friendly Experience Guaranteed with Backlit Display and 4-Button Operation
4 clearly marked buttons remove complexity, and guide you quickly and easily through balance setup, unit of measure changes, calibration and more. Poor lighting in the lab or classroom is not an issue with the Scout. The large, bright backlit LCD display improves readability in conditions where lighting is poor, and makes it easy to see the weighing results from a distance.
Expanded Connectivity Options Allow for a More Modern Weighing Experience
Scout has multiple connectivity options—RS232, USB Host, USB Device, Ethernet and Bluetooth®*. With expanded connectivity options, the OHAUS Scout offers more versatility for convenient data logging, communication and remote functionality. Utilize the Bluetooth accessory to remotely control the balance from your mobile device or tablet for Android™**. Perform functions such as Zero, Tare, Print, Power Off and more. With the USB Host option, you can simply save and transfer data from the balance to a USB drive.
|
|
Backed by Education Specific Software
It’s all about accuracy and efficiency with the OHAUS Scout balance. Stabilization time as fast as 1 sec combined with high resolution deliver extremely precise and repeatable weighing results that you can count on time and time again. This makes the Scout ideal for routine experiments and other weighing applications in your classroom.
Draftshield Model Available
Scout’s ingenious draftshield (1mg model only) was designed with an easy to remove top cover piece. This serves as a wind protection ring which keeps the weighing surface stable in rough environments, while maintaining weighing speed.
* The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OHAUS is under license.
**Android is a trademark of Google Inc.
| Model |
SKX123 |
SKX222 |
SKX422 |
SKX622 |
SKX1202 |
SKX2202 |
SKX421 |
SKX621 |
SKX2201 |
SKX6201 |
SKX8200 |
Price |
$567.70
In Stock - Ships within 24 hours
|
$414.40
In Stock - Ships within 24 hours
|
$583.80
In Stock - Ships within 24 hours
|
$686.00
In Stock - Ships within 24 hours
|
$788.20
In Stock - Ships within 24 hours
|
$890.40
In Stock - Ships within 24 hours
|
$239.40
In Stock - Ships within 24 hours
|
$332.50
In Stock - Ships within 24 hours
|
$426.30
In Stock - Ships within 24 hours
|
$713.30
In Stock - Ships within 24 hours
|
$350.00
In Stock - Ships within 24 hours
|
| Capacity X Readability (g) |
120 x 0.001 |
220 x 0.01 |
420 x 0.01 |
620 x 0.01 |
1200 x 0.01 |
2200 x 0.01 |
420 x 0.1 |
620 x 0.1 |
2200 x 0.1 |
6200 x 0.1 |
8200 x 1 |
| Repeatability (Std. Dev.) (g) |
0.002 |
0.01 |
0.02 |
0.1 |
1 |
| Linearity (g) |
+/-0.003 |
±0.01 |
±0.02 |
±0.03 |
±0.1 |
±0.2 |
±1 |
| Capacity X Readability (kg) |
- |
- |
- |
- |
1.2 x 0.00001 kg |
2.2 x 0.00001 kg |
- |
- |
2.2 x 0.0001 kg |
6.2 x 0.0001 kg |
8.2 x 0.001 kg |
| Capacity × Readability (lb) |
- |
- |
- |
1.36690 x 0.00005 lb |
2.64555 x 0.00005 lb |
4.85020 x 0.00005 lb |
- |
1.3670 x 0.0005 lb |
4.8500 x 0.0005 lb |
13.6685 x 0.0005 lb |
18.080 x 0.005 lb |
| Span Calibration Mass* |
100 g |
200 g |
200 g |
300 g |
1 kg |
2 kg |
200 g |
300 g |
2 kg |
5 kg |
8 kg |
| Linearity Calibration Mass* |
50, 100 g |
100, 200 g |
200, 400 g |
300, 600 g |
500g, 1 kg |
1 kg, 2 kg |
200, 400 g |
300, 600 g |
1 kg, 2 kg |
3 kg, 5 kg |
4 kg, 8 kg |
| Stabilization Time (s) |
1.5 |
1 |
1 |
1 |
1.5 |
1.5 |
1 |
1 |
1 |
1 |
1 |
| Construction |
ABS housing & stainless steel pan |
| Draftshield |
Yes |
No |
| Calibration |
User-selectable external span or linearity calibration/Digital with external weight |
| Tare Range |
Full capacity by subtraction |
| Weighing Units |
g, kg, N, oz, lb, lb:oz |
| Application Modes |
Weighing, Density Determination, Mole Weighing |
| Power Requirements |
AC adapter (included) or 4 AA batteries (not included) |
| Typical Battery Life (Hours) |
80 |
120 |
80 |
120 |
80 |
120 |
| Communication |
Available as an accessory:RS232, USB Host, USB Device, Ethernet or Bluetooth® |
| Display Type |
Liquid crystal display (LCD) with backlight |
| Display Size |
0.78 in/20 mm digits |
| Overload Capacity |
10 times rated capacity |
| Operating Temperature Range |
50°F / 10°C to 104°F / 40°C at 10% to 85% relative humidity, non-condensing |
| Storage Conditions |
-20°C (-4°F) to 55°C (131°F) at 10% to 90% relative humidity, non-condensing |
Pan Size
(W × D) |
3.7in
93 mm diameter |
4.7in
120 mm diameter |
6.7 x 5.5 in
170 × 140 mm |
4.7in
120 mm diameter |
6.7 x 5.5 in
170 × 140 mm |

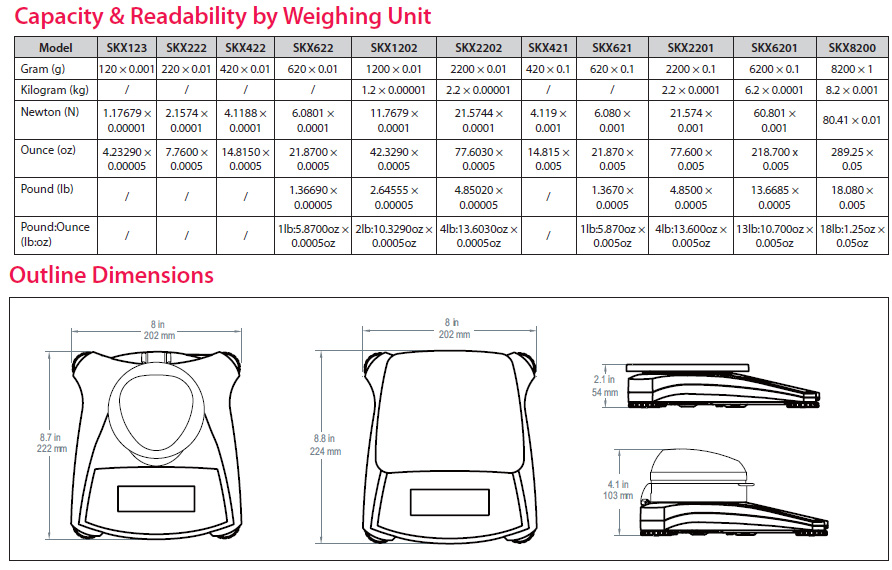

Dimensions
W x H x D |
8 × 8.7 × 4.1 in
202 × 222 × 103 mm |
8 × 8.8 × 2.1 in
202 × 224 × 54 mm |
Dimensions
W x H x D |
11.8 × 9.8 × 5.1 in
300 × 250 × 129 mm |
11.8 × 9.8 × 3.4 in
300 × 250 × 86 mm |
| Net Weight |
1 kg |
| Shipping Weight |
1.5 kg |
Other Standard Features and Equipment - Transportation lock, stainless steel pan, menu & calibration lockout switch, mechanical and software overload/ underload protection, stability indicator, auto tare, low battery indicator, auto shut-off, user selectable printing options, user-selectable communication settings
Compliance
- Product Safety: IEC/EN 61010-1; CAN/CSA C22.2 No. 61010-1; UL Std. No. 61010-1
- Electromagnetic Compatibility: IEC/EN 61326-1 Class B; FCC Part 15 Class B; Industry Canada ICES-003 Class B
Accessories
RS232 Interface Kit: 30268982
USB Host Interface Kit: 30268983
USB Device Interface Kit: 30268984
Bluetooth Interface Kit: 30268985
Ethernet Interface Kit: 30268986
Stacking & Storage Cover (6 pcs): 30268987
Stacking & Storage Cover (1 pc): 30268988
Printer, Impact, SF40A, AM: 30064203
Auxiliary Display Kit: 30269019
Security Device: 80850043
Top Loading Kit for Density Determination: 30269020
Carrying Case : 30269021
In-use Cover.: 30269022
|
