Ohaus ISRK & ISWV Incubating Rocking Waving Shakers |
Authorized Dealer |
| OHAUS Incubating Rocking and Waving Shakers are designed to incubate samples from 5oC above ambient to 65oC to provide accurate and repeatable results. Rocking shakers provide a see-saw like motion, while waving shakers offer a smooth, low-foaming three-dimensional “wave” motion. All models feature LED displays with touchpad controls. Both models include safety features that protect both the user and samples
|
| Ohaus Scales |

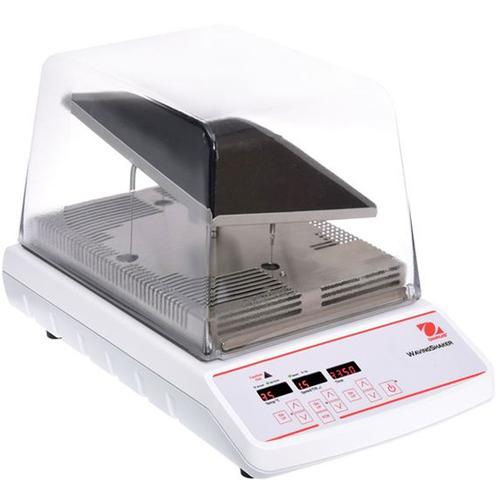

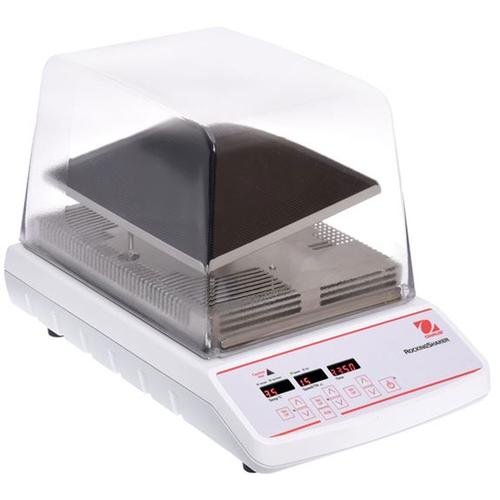

OHAUS Incubating Rocking and Waving Shakers are designed to incubate samples from 5oC above ambient to 65oC to provide accurate and repeatable results. Rocking shakers provide a see-saw like motion, while waving shakers offer a smooth, low-foaming three-dimensional “wave” motion. All models feature LED displays with touchpad controls. Both models include safety features that protect both the user and samples.
Standard Features:
- Independent LEDs and Touchpad Control for Temperature, Speed/Tilt Angle and Time Equipped with LED displays and touchpad controls for temperature, speed/tilt angle and time. Timer will display elapsed time or when programmed to a set time, will turn off when time reaches zero.
- Microprocessor with PID Temperature Control Microprocessor control provides electronic tilt angle adjustment, allowing easy adjustment in 1o increments for tilt and 1 rpm for speed while unit is running. PID controller for precise temperature control.
- Safety Features Include Speed Ramping and Overload Protection Units slowly increase speed to desired setpoint to avoid splashing, and feature overload protection. Audible and visual signals will activate when system detects an obstruction or overload of the tray.
Other Standard Features and Equipment
Spill-resistant design, caution hot indicator, detachable 3-wire cord and plug (included)
Compliance
- Product Safety: CAN/CSA C22.2 61010-1, CAN/CSA C22.2 61010-2-010, CAN/CSA C22.2 61010-2-051, UL 61010-1
- Electromagnetic Compatibility: ICES-003 Class A, FCC Part 15 Class A
- Compliance Marks: TÜV SÜD
Applications
Hybridizations, cell cultures, blotting techniques, staining and destaining gels
|
ISRK04HDG
30391980 |
ISWV02HDG
30391987 |
| Price |
$3,658.40
|
$3,581.05
|
| Shaker Type |
Rocking Shaker |
Waving Shaker |
| Control |
Digital |
| Motion / Tilt Angle |
Rocking, 0 – 15o |
Waving, 0 – 20o |
| Speed Range |
1 – 50 rpm |
1 – 30 rpm |
| Speed Accuracy |
+ 1 rpm |
| Temperature Range |
Ambient +5 oC – 65 oC |
| Temperature Uniformity |
+ 0.5 oC at 37 oC |
| Timer |
1 second – 160 hours |
| Capacity |
4.5 kg |
2.3 kg |
| Working Environment |
41 oF – 104 oF, 80% RH*, non-condensing / 5 oC – 40 oC, 80% RH, non-condensing |
| Drive System |
Stepper Motor |
| Overall Dimensions (L x W x H) |
10 x 7.5 in. / 254 x 191 mm |
9.25. x 7.25 in. / 235 x 184 mm |
| Tray Construction |
Aluminum |
| Overall Dimensions (L x W x H) |
16.5 x 10.1 x 10.8 in. / 419 x 257 x 274 mm |
| Inner Dimensions (L x W x H) |
10.75 x 7.75 x 3.8 in. / 273 x 197 v 970 mm |
10.75 x 7.75 x 3.4 in. / 273 x 197 x 860 mm |
| Net Weight |
12.6 lb / 5.7 kg |
13.7 lb / 6.2 kg |
| Power |
120V, 3.74A, 50/60Hz |
| Power Consumption |
420 W |
Platforms Heavy Duty Orbital Shakers
| Item No. |
Description |
ISRK04HDG |
ISWV02HDG |
Image |
Price |
| 30400141 |

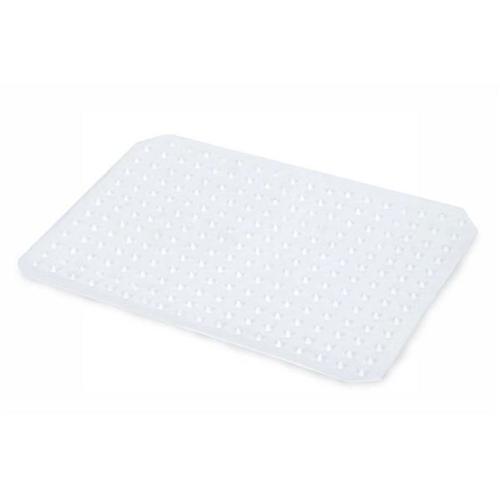

Dimpled Mat, Incubating Rocker ISRK04HDG |
YES |
- |
|
$68.40
|
|
