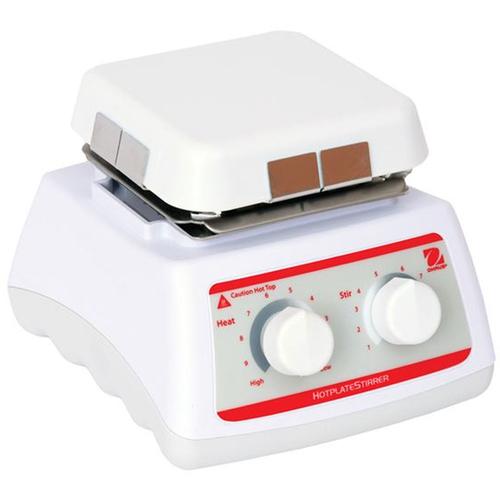

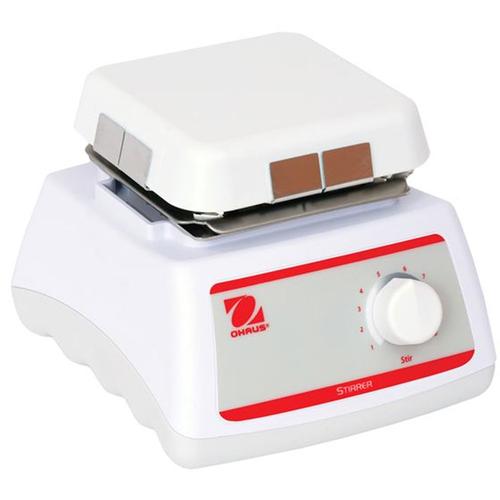

Ohaus HSM Mini Hotplates and Stirrers	Authorized Dealer
OHAUS Mini Hotplate Stirrers are rugged, compact units that can heat and stir up to 1000 mL of water. These stirrers are ideal for educational and other lab environments that require consistent stirring. Models include Hotplates, Stirrers, Hotplate-Stirrers, Fixed Temperature Hotplates and Auto Stirrers. All models feature a 10.2x10.2 cm, easy-to-clean ceramic top plate and cool-touch housing
Ohaus Scales

Have Questions? or email Us Our Staff will be glad to help Specifications Chart Accessories

Ohaus HSM Mini Hotplates and Stirrers FREE UPS Ground Shipping (within the 48 continental US States) Select Heating HSMNHP4CFT $284.40 Stirring, Auto Start/Stop HSMNAS4CAL $278.40 Heating and Stirring HSMNHS4CAL $398.40 Accessories

OHAUS Mini Hotplate Stirrers are rugged, compact units that can heat and stir up to 1000 mL of water. These stirrers are ideal for educational and other lab environments that require consistent stirring. Models include Hotplates, Stirrers, Hotplate-Stirrers, Fixed Temperature Hotplates and Auto Stirrers. All models feature a 10.2x10.2 cm, easy-to-clean ceramic top plate and cool-touch housing

• Chemical-Resistant, Easy-to-Clean Ceramic Top Plate Designed with ease-of-use in mind, all of our mini-hotplate stirrer models feature easy-to-clean, chemical-resistant ceramic top plate with a reflective white surface.
• Constructed of Cool-Touch, Chemical-Resistant Housing Our mini hotplate stirrer housing is constructed of a heat-resistant polymer that is not only cool to the touch, but also chemical-resistant.
• Equipped with a Built-In Support Rod Holder All units are equipped with a built-in support rod holder with a locking knob, which accepts the optional support rod kit.

	HSMNHP4CFT 30392031	HSMNAS4CAL 30392038	HSMNHS4CAL 30392024
Price	$284.40 Add to Cart	$278.40 Add to Cart	$398.40 Add to Cart
Function	Heating	Stirring, Auto Start/Stop	Heating and Stirring
Speed Range	-	100 to 1200 rpm	100 to 1200 rpm
Temperature Range	500 oC	-	to 500 oC
Capacity	1000 mL
Plate Size (L x W)	4 in. x 4 in. / 10.2 cm x 10.2 cm
Control	Analog
Plate Construction	Ceramic

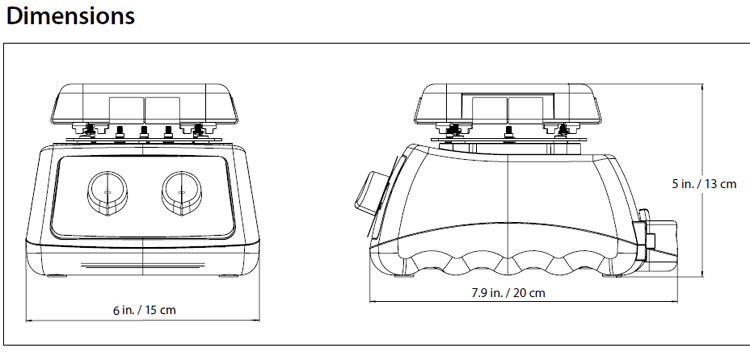

Dimensions (H x L x W)	5 in. x 7.9 in. x 6 in. / 12.7 cm x 20.1 cm x 15.2 cm
Net Weight	4 lb / 1.8 kg
Power	120V, 1.8A, 50/60Hz	120V, 0.5A, 50/60Hz	120V, 2.6A, 50/60Hz
Power	200 W	20 W	200 W
Working Environment	41 oF–104 oF, 80% RH, non-condensing / 5 oC–40 oC, 20% to 85% RH, non-condensing

Ohaus HSM Mini Hotplates and Stirrers Accessories

Item No.	Description	HSMNHP4CAL	HSMNHP4CFT	HSMNST4CAL	HSMNAS4CAL	HSMNHS4CAL	Image	Price
30400145	Ultra Flex Support Kit	YES	YES	YES	YES	YES		$254.52 Add to Cart
30400146	Support Rod And Clamp Kit	YES	YES	YES	YES	YES		$210.90 Add to Cart
30400147	Spinbar 2.5 cm PTFE	-	-	YES	YES	YES		$20.00 Add to Cart
30400148	Spinbar 3.8 cm PTFE	-	-	YES	YES	YES		$21.00 Add to Cart
30400149	Spinbar 7 cm PTFE	-	-	YES	YES	YES		$62.31 Add to Cart
30400150	Spinbar 10 cm with Pivot Ring PTFE	-	-	YES	YES	YES		$104.55 Add to Cart
