Durable Hotplate Stirrers with Superior Safety Features and Intelligent Performance
OHAUS Guardian 7000 Hotplate Stirrers are designed with outstanding safety features and superior heating and mixing performance. The SmartHousing™ is chemical resistant with an innovative, easy-to-clean design that channels spills away from internal components and the angled glass control panel. The bright LCD display includes intuitive icons, temperature, speed and time settings - all designed to monitor performance from across the lab.

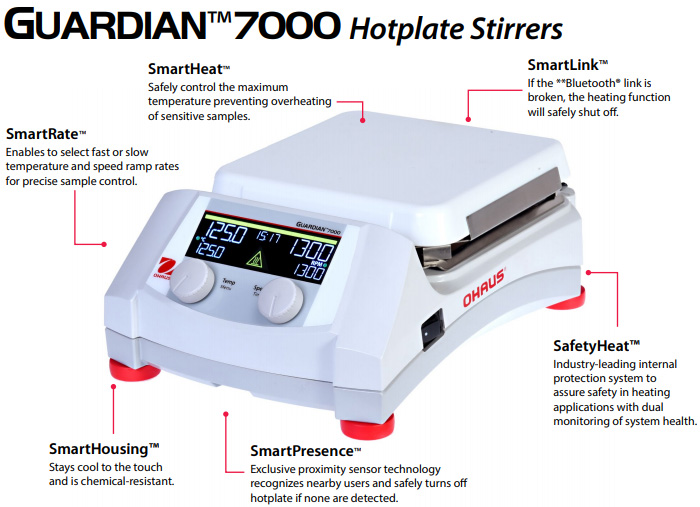

Unique Features:
- SmartPresence™ and SmartLink™ Technologies Ensure Supervised Operation Protect your lab with patented SmartPresence™ and SmartLink™ technologies. These exclusive features automatically shut off the heater if no one is detected after a user set “time out” period has passed.
- SafetyHeat™ System Protects the Lab An industry-leading early detection system that uses two independent safety controls to continuously monitor the electronics and shut off heating before an overtemperature condition occurs.
- Powerful, Consistent Stirring Performance Precise stirring from 60 to 1600 rpm is made possible by the design of a powerful motor, strong magnet and software controlled ramp rate, ensuring secure magnetic coupling for viscous applications.
- Customized Performance for Precise Applications SmartHeat™ allows you to set the maximum temperature of the unit and SmartRate™ enables fast or slow temperature and speed ramp rates. The programming feature allows storage of 5 multi-step programs.
|
e-G71HS07C |

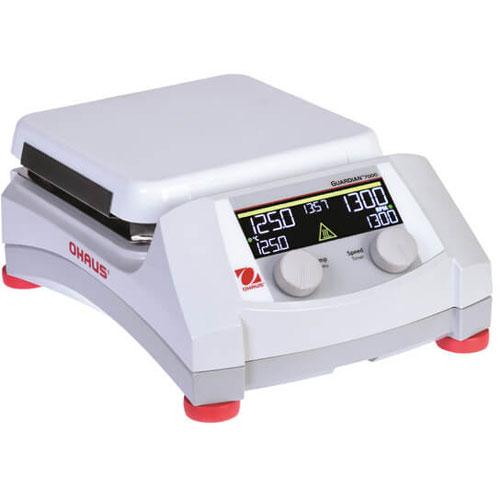

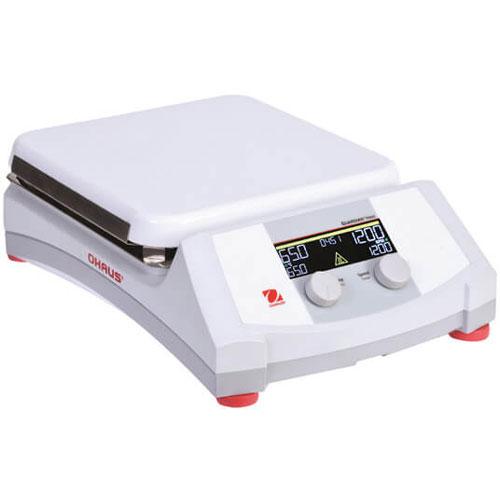

e-G71HS10C |

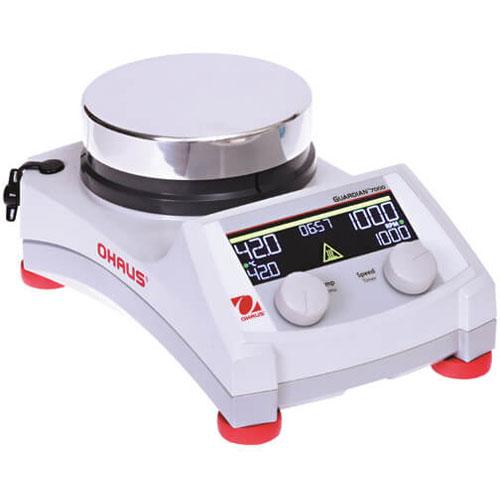

e-G71HSRDM |
| Price |
$1,031.18
|
$1,436.32
|
$936.70
|
| Function |
Heating and Stirring |
| Top Plate Size |
7 x 7 in
17.8 x 17.8 cm |
10 x 10 in
25.4 x 25.4 cm |
5.3 in diameter
13.5 cm |
| Speed Range |
60 rpm to 1600 rpm |
| Speed Stability |
+/- 2 % |
| Temperature Range |
Ambient + 5 oC – 500 oC |
Ambient + 5 oC – 380 oC |
| Temperature Stability* |
+/- 1 % Plate, below 100 C +/-1 oC
and +/- 0.5 % Probe, below 100 oC +/-1 oC |
| Temperature Accuracy* |
Plate +/- 5 oC (after Single Point Calibration) and Probe +/- 0.5 oC (after Single Point Calibration) |
| Temperature Calibration |
Five Plate and Five Probe |
| Timer |
1 minute to 99 hours and 59 minutes |
| Control |
Digital |
| Display |
Custom Backlit LCD |
| Communication |
USB |
| Capacity |
15 L |
18 L |
20 L |
| Top Plate Material |
Ceramic |
Aluminum |

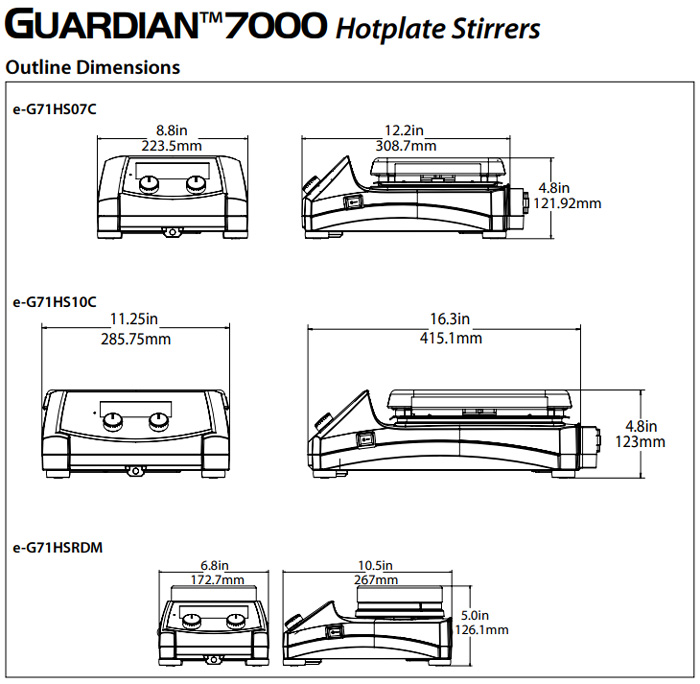

| Dimensions (H x L x W) |
4.8 x 12.2 x 8.8 in
12.2 x 30.9 x 22.3 cm |
4.8 x 16.3 x 11.3 in
12.2 x 41.5 x 28.6 cm |
5.0 x 10.5 x 6.8 in
12.6 x 26.7 x 17.3 cm |
| Net Weight |
5.7 lb. / 2.6 kg |
11.5 lb. / 5.2 kg |
5.7 lb. / 2.6 kg |
| Power |
120V, 10A, 50/60Hz
230V, 6.0A, 50/60Hz |
120V, 11.2A, 50/60Hz
230V, 7A, 50/60Hz |
120V, 8.3A, 50/60Hz
230V, 4.6A, 50/60Hz |
| Power Consumption |
1080 W (120V)
1242W (230V) |
1210 W (120V)
1449 (230V) |
896 W (120V)
952 (230V) |
| Working Environment |
41 oF – 104 oF, 80 % RH, non-condensing / 5 oC – 40 oC, 80 % RH, non-condensing |
| Accessories |
Temperature Probe and In Use Cover (Included) |
* Conditions permitting. Variations in temperature measurement process, vessel, ambient and sample will impact actual performance.
**The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OHAUS is under license
Ohaus Guardian 7000 and Stirrers Accessories
Have Questions?
Our Staff will be glad to help |
| Item No. |
Description |
e-G71HS07C |
e-G71HS10C |
e-G71HSRDM |
Price |
| 30500570 |
Base Plate, 135 mm |
|
|
X |
Call |
| 30500571 |
Handles for Base Plate |
|
|
X |
Call |
| 30500572 |
Sectional Block, 12 mm Vials |
|
|
X |
Call |
| 30500573 |
Sectional Block, 15 mm Vials |
|
|
X |
Call |
| 30500574 |
Sectional Block, 17 mm Vials |
|
|
X |
Call |
| 30500575 |
Sectional Block, 21 mm Vials |
|
|
X |
Call |
| 30500576 |
Sectional Block, 28 mm Vials |
|
|
X |
Call |
| 30500577 |
Sectional Block, 12 mm Test Tubes |
|
|
X |
Call |
| 30500578 |
Sectional Block, 16 mm Test Tubes |
|
|
X |
Call |
| 30500579 |
Sectional Block, 20 mm Test Tubes |
|
|
X |
Call |
| 30500580 |
Sectional Block, 25 mm Test Tubes |
|
|
X |
Call |
| 30500581 |
Uni Block, 12 mm Vials |
|
|
X |
Call |
| 30500582 |
Uni Block, 15 mm Vials |
|
|
X |
Call |
| 30500583 |
Uni Block, 17 mm Vials |
|
|
X |
Call |
| 30500584 |
Uni Block, 21 mm Vials |
|
|
X |
Call |
| 30500585 |
Uni Block, 28 mm Vials |
|
|
X |
Call |
| 30500586 |
Uni Block, 12 mm Test Tubes |
|
|
X |
Call |
| 30500587 |
Uni Block, 16 mm Test Tubes |
|
|
X |
Call |
| 30500588 |
Uni Block, 20 mm Test Tubes |
|
|
X |
Call |
| 30500589 |
Uni Block, 25 mm Test Tubes |
|
|
X |
Call |
| 30392233 |
Clamp, Specialty, Rod, CLS-RODS |
|
|
X |
Call |
| 30500590 |
Temperature Probe, 20 cm S/S |
X |
X |
X |
Call |
| 30500591 |
Temperature Probe, 20 cm PTFE |
X |
X |
X |
Call |
| 30500592 |
Temperature Probe, 25 cm S/S |
X |
X |
X |
Call |
| 30500593 |
Temperature Probe, 25 cm PTFE |
X |
X |
X |
Call |
| 30500594 |
In Use Cover Guardian, 7" x 7" |
X |
|
|
Call |
| 30500595 |
In Use Cover Guardian, 10" x 10" |
|
X |
|
Call |
| 30500596 |
In Use Cover Guardian, Round |
|
|
X |
Call |
| 30500597 |

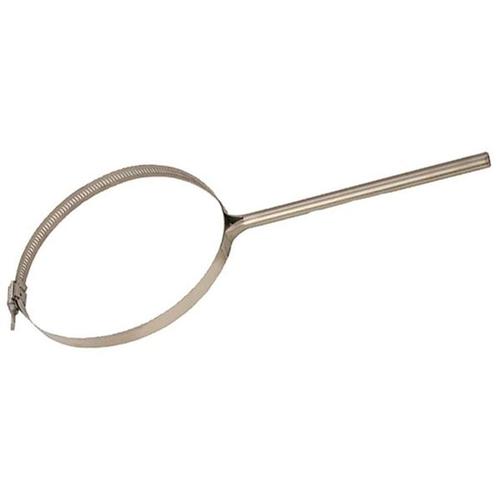

Vessel Clamp |
X |
X |
X |
Call |
| 30500598 |
Stir Bar Retriever |
X |
X |
X |
Call |
| 30412537 |
Wireless Dongle MTICWD-200 |
X |
X |
X |
$254.52
|
| 30392314 |
Clamp, Specialty, Column, CLS-COLMNSS |
X |
X |
X |
$88.40
|
| 30392315 |
Clamp, Specialty, Column, CLS-COLMNSM |
X |
X |
X |
$90.10
|
| 30392316 |
Clamp, Specialty, Column, CLS-COLMNSL |
X |
X |
X |
$91.80
|
| 30392317 |
Clamp, Specialty, Column, CLS-COLMNSX |
X |
X |
X |
$91.80
|
| 30392318 |

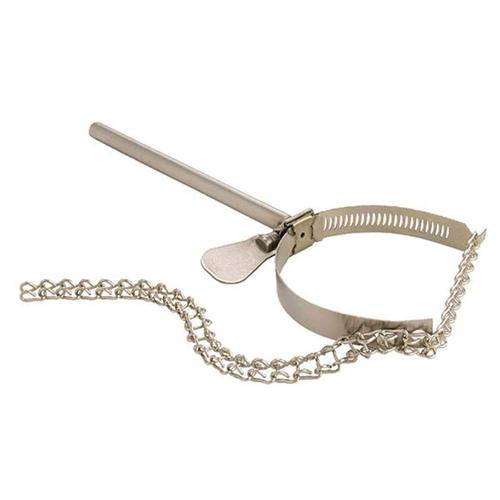

Clamp, Specialty, Nester, CLS-NESTXS |
X |
X |
X |
$119.85
|
| 30400145 |

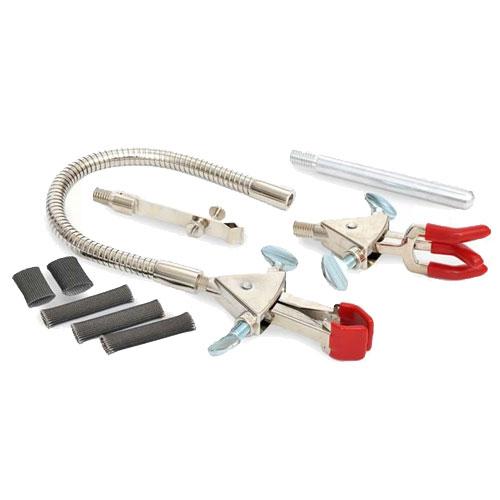

Ultra Flex Support Kit |
X |
X |
X |
$254.52
|
| 30400146 |

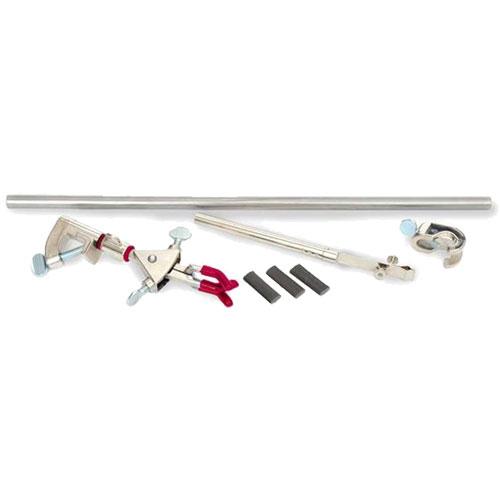

Support Rod And Clamp Kit |
X |
X |
X |
$210.90
|
| 30400147 |
Spinbar, 2.5 cm PTFE |
X |
X |
X |
$20.00
|
| 30400148 |
Spinbar, 3.8 cm PTFE |
X |
X |
X |
$21.00
|
| 30400149 |
Spinbar, 7 cm PTFE |
X |
X |
X |
$62.31
|
| 30400150 |
Spinbar, 10 cm with Pivot Ring PTFE |
X |
X |
X |
$104.55
|
Other Features and Equipment
Icons for SmartRate™, SmartHeat™, SmartPresence™, SmartLink™, green indicator lights when unit is heating and stirring, probe in use, USB port for programming of repeat applications, IP21 Ingress Protection, probe connection, hardened glass front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy-toclean ceramic or aluminum tops
Compliance
- Product Safety: TÜV SÜD certified to CAN/CSA C22.2 61010-1; CAN/CSA C22.2 61010-2-010; CAN/CSA C22.2 61010-2-051; UL 61010-1; UL 61010-2-010; UL 61010-2-051
- Electromagnetic Compatibility: Canada ICES-003 Class A; FCC Part 15 Class A
- Compliance Mark: TÜV SÜD
|
