Ohaus Defender 6000 i-DT61PW Washdown Bench Scales
Authorized Dealer
Defender 6000 series bench scales offer two types of indicators: a polycarbonate indicator housing for superior protection against moisture and a 316 stainless steel indicator for enhanced protection against corrosion from cleaners and additives. Equipped with a 316 stainless steel frame, platform and hermetically-sealed stainless steel load cell, the Defender 6000 series bench scales are specifically designed for washdown, enhancing food safety and reducing downtime.
Industrial Scales >> Ohaus Scales
Ohaus Defender 6000 i-DT61PW Basic Bench Scales
Have Questions?
Call USoremail Us
Our Staff will be glad to help
Legal For Trade Canada Measurement

Front Mount Specifications

Column Mount Specifications

Dims

The Defender 6000 Series Extreme Washdown Bench Scale is specifically designed for food, chemical and pharmaceutical applications, including production and packaging. Defender 6000 handles the most demanding applications with 316 stainless steel platform and frame, and hermeticallysealed stainless steel IP69K load cell. Defender 6000 meets metrological approvals, NSF listing, and supporting HACCP systems.

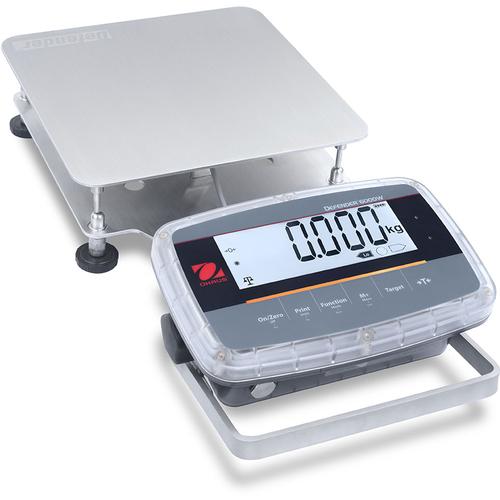

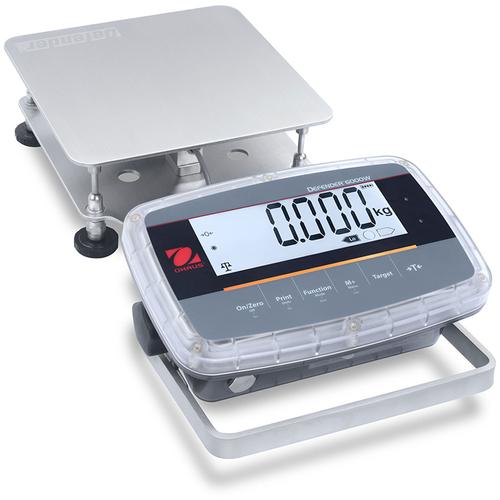

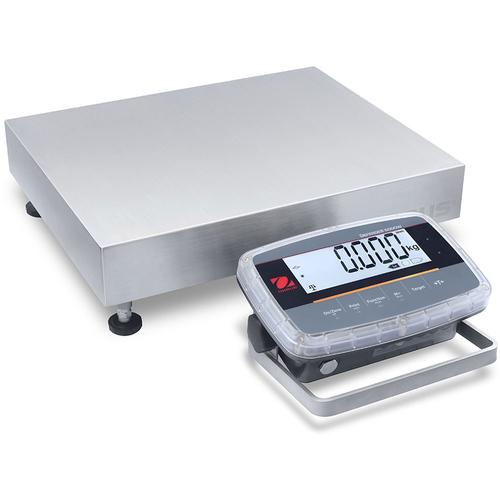

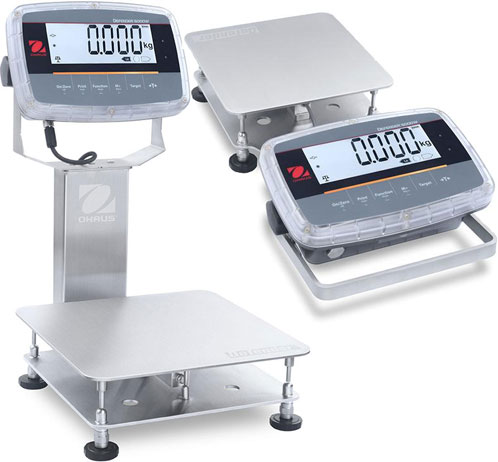

Ohaus Defender 6000 i-DT61PW Washdown Bench Scales

FREE UPS Ground Shipping
(within the 48 continental US States)

Ohaus 30424409 LC Extension Cable, 9 meters, D521
Ohaus 30424409 LC Extension Cable, 9 meters, D521, add $169.20
Ohaus 30572910 IR Communication Kit
Ohaus 30572910 IR Communication Kit, add $79.80
Ohaus 30616409 304 Stainless Steel Wheel Kit for Defender Series
Ohaus 30616409 304 Stainless Steel Wheel Kit for Defender Series , add $169.20


More info

Defender 6000 series bench scales offer two types of indicators: a polycarbonate indicator housing for superior protection against moisture and a 316 stainless steel indicator for enhanced protection against corrosion from cleaners and additives. Equipped with a 316 stainless steel frame, platform and hermetically-sealed stainless steel load cell, the Defender 6000 series bench scales are specifically designed for washdown, enhancing food safety and reducing downtime.

Food Safe Design: NSF listed/certified, USDA-AMS accepted, and supports HACCP compliance. Defender 6000 series bench scales are wash-down IP68/IP69K rated with a knife proof front panel to operate reliably in harsh environments.

i-D61PW models offer an optional Infrared (IR) communication kit for connectivity without opening the housing. The indicator can store up to 1,000 weighing results which can be transferred to a PC or system for traceability.

Application Modes
  • Weighing: Determine the weight of items in the selected unit of measure.
  • Checkweighing: Compare the weight of an item against target limits. Bar matrix or 3-color check light display give clear and bright indication of weight.
  • Parts Counting: Count items of uniform weight. Advanced auto-optimization software recalculates the average piece weight as the overall weight increases.
  • Checkcounting: Compare the count of a package against target limits. Bar matrix or 3-color check light display give clear and bright indication of count.
  • Percent Weighing: Display the weight of an item as a percentage of a pre-established reference weight.
  • Dynamic Weighing and Display Hold: Take an average of weights for an item over a period of time to account for vibration or other interference. The Display Hold feature manually or automatically holds the last stable weight of an item on the display.
Unique Features Include:
  • Defender 6000 stands up to harsh cleaning in processing and packaging environments with IP68 immersion/ IP69K washdown protection, 316 stainless steel construction and hermetically-sealed load cell.
  • Durable Defender 6000 is NSF certified, supporting HACCP systems with a 316 stainless steel base and sturdy indicator providing corrosion protection in food, chemical processing, and packaging.
  • Versatile scales include fast weight display and multiple software modes to meet food, chemical processing, and packaging needs
  • Defender 6000 is designed for simple connectivity in a variety of application settings
Model i-D61PW5K1S5
30575568
i-D61PW12K1R5
30575562
i-D61PW25K1R5
30608733
i-D61PW50K1L5
30608734
i-D61PW150K1L5
30608735
Price Ohaus i-D61PW5K1S5 (30575568) Defender 6000 NTEP Extreme Washdown Front Mount Bench Scale - 10 lb x 0.001 lb / 5 kg x 0.5 g
$1,746.90
Ohaus i-D61PW12K1R5 (30575562) Defender 6000 NTEP Extreme Washdown Front Mount Bench Scale - 25 lb x 0.002 lb / 12.5 kg x 1 g
$1,817.10
Ohaus i-D61PW25K1R5 (30608733) Defender 6000 NTEP Extreme Washdown Front Mount Bench Scale - 50 lb x 0.005 lb / 25 kg x 2g
$1,813.50
Ohaus i-D61PW50K1L5 (30608734) Defender 6000 NTEP Extreme Washdown Front Mount Bench Scale -100 lb x 0.01 lb / 50 kg x 5 g
$2,352.60
Ohaus i-D61PW150K1L5 (30608735) Defender 6000 NTEP Extreme Washdown Front Mount Bench Scale - 300 lb x 0.02 lb / 150 kg x 10 g
$2,352.60
Capacity x Readability 10 lb x 0.001 lb 25 lb x 0.002 lb 50 lb x 0.005 lb 100 lb x 0.01 lb 300 lb x 0.02 lb
5 kg x 0.5 g 12.5 kg x 1 g 25 kg x 2 g 50 kg x 5 g 150 kg x 10 g
Maximum Displayed Resolution 1:10,000 1:12,500 1:12,500 1:10,000 1:15,000
Linearity/Repeatability ±2d ±2d ±2d ±2d ±2d
Legal for Trade
Capacity x Readability
10 lb x 0.002 lb 25 lb x 0.005 lb 50 lb x 0.01 lb 100 lb x 0.02 lb 300 lb x 0.1 lb
5 kg x 1 g 12.5 kg x 5 g 25 kg x 5 g 50 kg x 10 g 150 kg x 50 g
Legal For trade NTEP CC# 20-043 Class lll, IIIL,
Canada AM-6159 Class lll, lllHD
Maximum Certified Resolution 1:5,000
Pan Size

9.8 x 9.8 in

11.8 x 11.8 in

11.8 x 11.8 in

19.7 x 15.7 in

19.7 x 15.7 in

Indicator i-DT61PW
Indicator Construction Polycarbonate plastic housing, 316 stainless steel bracket
IP Rating IP68 immersion/ IP69K
A/D Conversion Rate 80 Hz
Capacity Selections Up to 99,999 g/kg/lb/t
Weighing Units Kilogram, Gram, Pound, Ounce, Pound: Ounce, Tonne (Metric Tonne)
Application Modes Weighing, Checkweighing, Percent Weighing, Dynamic Weighing/Display Hold, Counting with APW optimization, Checkcounting
Display 6-digit, 7-segment LCD display with white backlight, 45 mm / 1.8 in high digits
Check Indicator 3 Color (red, green, yellow) LED Bar
Keyboard 6 function mechanical keys
Auto-Zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range i-DT61PW
Indicator 2% or 100% of capacity
Calibration Zero, Span or 3 point-Linear
Span Calibration 1 lb or 1 kg to capacity
Stabilization Time Within 1.5 seconds
Power 6 x D type cell battery
Battery Life Up to 1600 hours continuous use with backlight off
Interface Optional IR Communication Kit (with magnetic front panel connection)
Column 316 stainless steel front-mount bracket with handle
Base Construction 316 stainless steel top and bottom frame, hermetically sealed IP68/IP69K stainless steel loadcell 316 stainless steel removable weighing platform with 316 stainless steel frame, hermetically sealed IP68/IP69K stainless steel loadcell
Safe Overload Capacity 150% of maximum capacity
Operating Temperature Range 14 °F to 104 °F / -10 °C to 40 °C

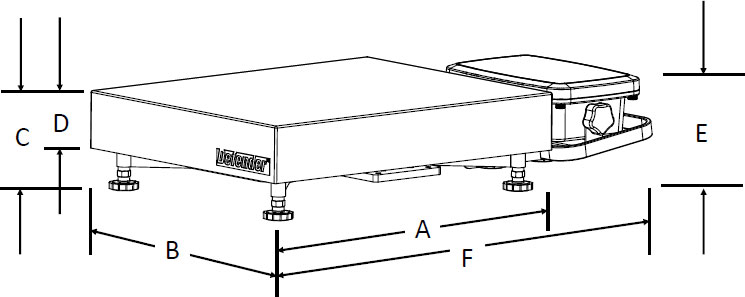

Scale Dimensions
(A x B x C x D x E x F)
9.8 x 9.8 x 4.2 x - x 5.1 x 21.5 in
250 x 250 x 106 x - x 129x 545 mm
11.8 x 11.8 x 4.2 x - x 5.1 x 23.5 in
300 x 300 x 106 x - x 129 x 596 mm19.7
19.7 x 15.7 x 5.4 x 3.1 x 5.1 x 30.2 in
500 x 400 x 137 x 80 x 129 x 767 mm
Shipping Dimensions
(L x W x H)
490 x 450 x 380 mm
19.3 x 17.7 x 15 in
1000 x 690 x 250 mm
39.4 x 27.2 x 9.8 in
Approx. Net Weight 22.1 lb / 10 kg 24.7 lb / 11.2 kg 44.1 lb / 20 kg 46.7 lb / 21.2 kg
Approx. Shipping Weight 26.5 lb / 12 kg 30.9 lb / 14 kg 50.7 lb / 23 kg 52.9 lb / 24 kg



Model i-D61PW5K1S6
30575569
i-D61PW12K1R6
30575570
i-D61PW25K1R6
30575571
i-D61PW50K1L7
30575572
i-D61PW150K1L7
30575573

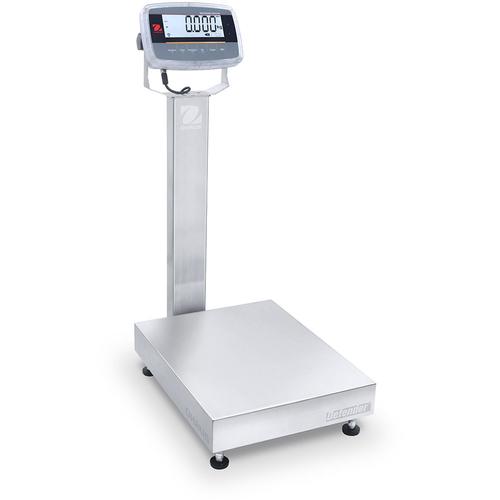

Price Ohaus i-D61PW5K1S6 (30575569) Defender 6000 NTEP Extreme Washdown Column Mount Bench Scale - 10 lb x 0.001 lb / 5 kg x 0.5 g
$1,700.10
Ohaus i-D61PW12K1R6 (30575570) Defender 6000 NTEP Extreme Washdown Column Mount Bench Scale - 25 lb x 0.002 lb / 12.5 kg x 1 g
$1,795.50
Ohaus i-D61PW25K1R6 (30575571) Defender 6000 NTEP Extreme Washdown Column Mount Bench Scale - 50 lb x 0.005 lb / 25 kg x 2g
$1,795.50
Ohaus i-D61PW50K1L7 (30575572) Defender 6000 NTEP Extreme Washdown Column Mount Bench Scale - 100 lb x 0.01 lb / 50 kg x 5 g
$2,305.80
Ohaus i-D61PW150K1L7 (30575573) Defender 6000 NTEP Extreme Washdown Column Mount Bench Scale - 300 lb x 0.02 lb / 150 kg x 10 g
$2,304.00
Capacity x Readability 10 lb x 0.001 lb 25 lb x 0.002 lb 50 lb x 0.005 lb 100 lb x 0.01 lb 300 lb x 0.02 lb
5 kg x 0.5 g 12.5 kg x 1 g 25 kg x 2 g 50 kg x 5 g 150 kg x 10 g
Maximum Displayed Resolution 1:10,000 1:12,500 1:12,500 1:10,000 1:15,000
Linearity/Repeatability ±2d ±2d ±2d ±2d ±2d
Legal for Trade
Capacity x Readability
10 lb x 0.002 lb 25 lb x 0.005 lb 50 lb x 0.01 lb 100 lb x 0.02 lb 300 lb x 0.1 lb
5 kg x 1 g 12.5 kg x 5 g 25 kg x 5 g 50 kg x 10 g 150 kg x 50 g
Legal For trade NTEP CC# 20-043 Class lll, IIIL,
Canada AM-6159 Class lll, lllHD
Maximum Certified Resolution 1:5,000 1:3,000
Pan Size

9.8 x 9.8 in

11.8 x 11.8 in

11.8 x 11.8 in

19.7 x 15.7 in

19.7 x 15.7 in

Indicator i-DT61PW
Indicator Construction Polycarbonate plastic housing, 316 stainless steel bracket
IP Rating IP68 immersion/ IP69K
A/D Conversion Rate 80 Hz
Capacity Selections Up to 99,999 g/kg/lb/t
Weighing Units Kilogram, Gram, Pound, Ounce, Pound: Ounce, Tonne (Metric Tonne)
Application Modes Weighing, Checkweighing, Percent Weighing, Dynamic Weighing/Display Hold, Counting with APW optimization, Checkcounting
Display 6-digit, 7-segment LCD display with white backlight, 45 mm / 1.8 in high digits
Check Indicator 3 Color (red, green, yellow) LED Bar
Keyboard 6 function mechanical keys
Auto-Zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range i-DT61PW
Indicator 2% or 100% of capacity
Calibration Zero, Span or 3 point-Linear
Span Calibration 1 lb or 1 kg to capacity
Stabilization Time Within 1.5 seconds
Power 6 x D type cell battery
Battery Life Up to 1600 hours continuous use with backlight off
Interface Optional IR Communication Kit (with magnetic front panel connection)
Column 10.2 in / 260 mm 316 stainless steel 26.4 in / 670 mm 316 stainless steel
Base Construction 316 stainless steel top and bottom frame, hermetically sealed IP68/IP69K stainless steel loadcell 316 stainless steel removable weighing platform with 316 stainless steel frame, hermetically sealed IP68/IP69K stainless steel loadcell
Safe Overload Capacity 150% of maximum capacity
Operating Temperature Range 14 °F to 104 °F / -10 °C to 40 °C
Scale Dimensions
(A x B x C x D x E x F)
9.8 x 9.8 x 4.2 x - x 19.8 x 14.8 in
250 x 250 x 106 x - x 504 x 376 mm
11.8 x 11.8 x 4.2 x - x 19.8 x 16.8 in
300 x 300 x 106 x - x 129 x 596 mm19.7
19.7 x 15.7 x 5.4 x 3.1 x 5.1 x 30.2 in
500 x 400 x 137 x 80 x 129 x 767 mm
Shipping Dimensions
(L x W x H)
490 x 450 x 380 mm
19.3 x 17.7 x 15 in
1000 x 690 x 250 mm
39.4 x 27.2 x 9.8 in
Approx. Net Weight 22.1 lb / 10 kg 24.7 lb / 11.2 kg 47.4 lb / 21.5 kg 50.1 lb / 22.7 kg
Approx. Shipping Weight 26.5 lb / 12 kg 30.9 lb / 14 kg 55.1 lb / 25 kg 57.3 lb / 26 kg

Compliance

  • Metrology: NTEP: CC 20-043 Class lll, IIIL, Measurement Canada: AM-6159 Class lll, lllHD
  • Product Safety: CAN/CSA C22.2 61010-1; UL61010-1; IEC/EN 61010-1
  • Electromagnetic Compatibility: FCC Part 15 Class A; Canada ICES-003 Class A; IEC/EN 61326-1 Class B, basic environments
  • Food Safety: ANSI/NSF 169
  • Ingress Protection: IEC 60529 – IP68, ISO 20653 – IP69K
  • Compliance Marks: CSA, CE
  • Other: WEEE, RoHS

Accessories

LC Extension Cable, 9 meters......................................................... 30424409
M16 Gland with Ferrite............................................................... 30379716
Light Tower, 3 Colors, 243mm, IP65 (Requires 30097591)............................... 30424021
IR communication kit i-DT61PW........................................................ 30572910

Dims
