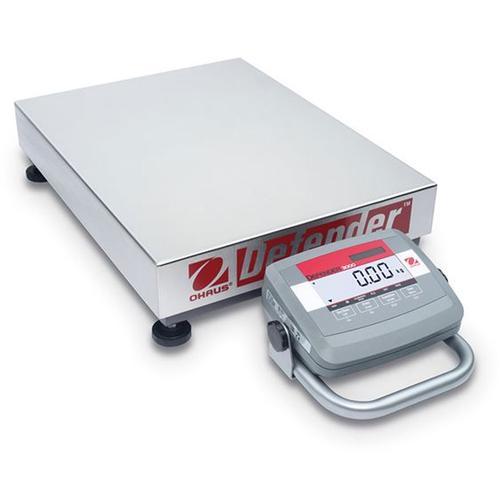

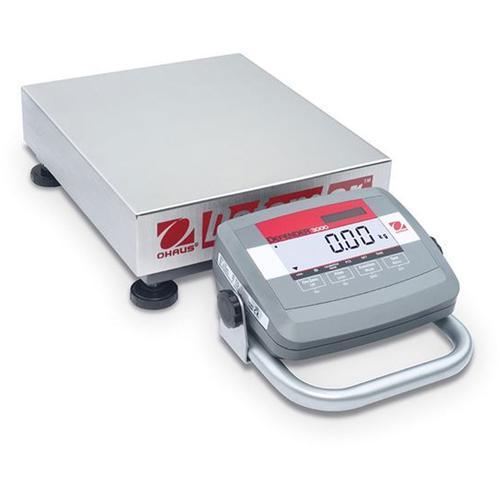

Ohaus Defender 3000 Economical Low Profile Bench Scales
Authorized Dealer
The OHAUS Defender 3000 Series bench scales are ideal for general weighing and simple counting applications in production, packaging, warehouse, inventory, and shipping and receiving areas. Featuring a simple yet rugged tubular-frame base design, indicators with tactile keys, backlit LCD display, built-in rechargeable battery operation and flexible mounting capabilities, these scales are ready to take your operation to the next level.
Industrial Scales >> Ohaus Scales
Ohaus Defender 3000 Legal for Trade Low Profile Bench Scales
call us
Legal For Trade Canada Measurement

Specifications Chart

The OHAUS Defender 3000 Series bench scales are ideal for general weighing and simple counting applications in production, packaging, warehouse, inventory, and shipping and receiving areas. Featuring a simple yet rugged tubular-frame base design, indicators with tactile keys, backlit LCD display, built-in rechargeable battery operation and flexible mounting capabilities, these scales are ready to take your operation to the next level.
  • Applications - Weighing, Parts Counting
  • Display - Backlit Liquid Crystal Display (LCD)
  • Operation - AC adapter (included) or rechargeable battery (included)
  • Communication - Easy access communication port with RS232 interface (included)
  • Construction - ABS indicator with reversible rear cover, painted steel base mount bracket with handle, 304 grade stainless steel platform with painted steel tubular frame, IP67 aluminum load cell, self-adjusting stainless steel feet with removable rubber caps
  • Design Features - 125% overload protection, selectable span calibration points, averaging level, auto-zero tracking, battery saving auto-off, Geo Code geographical gravity calibration adjustment and software menu lockouts

Designed with affordability in mind, but with no compromise on quality! The OHAUS Defender 3000 Series economy line of bench scales is ideal for general weighing and simple counting applications in production, packaging, warehouse, inventory, shipping and receiving areas. The Defender 3000 Series feature a simple, rugged tubular steel base with overload stops and durable stainless steel pan. The Defender 3000 Series is the solution to your weighing applications that require dependability within an affordable budget.

Standard Features:
  • Four Capacities: 33 lb/15 kg, 66 lb/30 kg, 132 lb/60 kg, and 330 lb/150 kg (depending on calibration unit used).
  • Default resolution 1:6,000 to 1:7,500; NTEP certified and Measurement Canada approved to 3,000e.
  • 304 stainless steel pan with painted carbon steel frame and aluminum IP67 load cell
  • Indicator features a high-impact durable ABS plastic housing with painted steel mounting to front of scale base for applications requiring a low-profile. Mounting has handle built in for easy transportation.
  • Adjustable non-slip rubber leveling feet with externally visible level indicator
  • Multiple weighing units: lb, oz, lb:oz, kg, g (depending on model)
  • Parts counting mode with selectable sample sizes, last sample size and Average Piece Weight data
  • 1-in/25mm high LCD weight display with high-contrast backlight
  • Built-in RS232 for printing and data connection
  • AC adapter and internal rechargeable lead acid battery included
  • Durable ABS plastic terminal houses a 100-hour rechargeable battery which allows for continuous operation for five straight days
  • This tough industrial scale features a 304 stainless steel platform, painted steel tubular frame, aluminum load cell, and painted steel base mount bracket. Includes a handle for easy scale mobility.
  • Easy-to-read display & basic counting mode allow for simple operation for everyday basic industrial applications. Offered with NTEP/Measurement Canada or OIML/EC Type approvals (depending on region).
Ohaus Defender 3000 Economical Low Profile Bench Scales

FREE UPS Ground Shipping
(within the 48 continental US States)

See Lowest Price In Cart

Ohaus 80500524 RS232 Cable, PC 25-pin to Defender 5000 & 7000 with T7IP, T51P
Ohaus 80500524 RS232 Cable, PC 25-pin to Defender 5000 & 7000 with T7IP, T51P, add $158.40
Ohaus 80500525 RS-232 Cable PC 9 Pin
Ohaus 80500525 RS-232 Cable PC 9 Pin , add $158.40
Ohaus SF40A Portable Dot-Matrix Impact Printer
Ohaus SF40A Portable Dot-Matrix Impact Printer, add $811.80
Ohaus STP-103 Palm-Sized Thermal Printer
Ohaus STP-103 Palm-Sized Thermal Printer, add $621.00
Ohaus 30304101 - Interface Kit, RS232-USB
Ohaus 30304101 - Interface Kit, RS232-USB, add $118.80
Ohaus 30304102 - Interface Kit, RS232-Ethernet
Ohaus 30304102 - Interface Kit, RS232-Ethernet, add $118.80
Ohaus 30372146 Wheel Kit for Defender Series
Ohaus 30372146 Wheel Kit for Defender Series, add $108.00

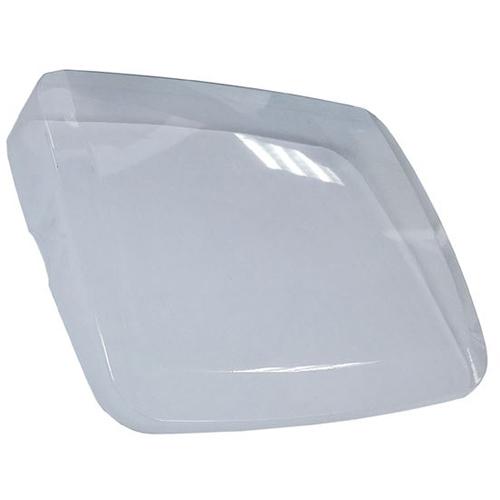

Ohaus 30101017 - In-Use Display Cover for T24P T31P
Ohaus 30101017 - In-Use Display Cover for T24P T31P, add $28.80


More info
Model D31P15BR5
30490640
D31P30BR5
30490641
D31P60BR5
30490642
D31P60BL5
30490643
D31P150BL5
30490644
Price Ohaus D31P15BR5 Defender 3000  Economical 12 x 14 Low Profile Bench Scale 33 x 0.005 lb and Legal for Trade 30 x 0.01 lb
$520.00
ClickPrice
Ohaus D31P30BR5 Defender 3000  Economical 12 x 14 Low Profile Bench Scale 66 x 0.01 lb and Legal for Trade 60 x 0.02 lb
$520.00
ClickPrice
Ohaus D31P60BR5 Defender 3000  Economical 12 x 14 Low Profile Bench Scale 132 x 0.02 lb and Legal for Trade 132 x 0.05 lb
$520.00
ClickPrice
Ohaus D31P60BL5 Defender 3000  Economical 16.5 x 21.6 Low Profile Bench Scale 132 x 0.02 lb and Legal for Trade 132 x 0.05 lb
$600.00
ClickPrice
Ohaus D31P150BL5 Defender 3000  Economical 16.5 x 21.6 Low Profile Bench Scale 330 x 0.05 lb and Legal for Trade 330 x 0.1 lb
$600.00
ClickPrice
Capacity x Readability 33 lb x 0.005 lb
528 oz x 0.05 oz
33 lb x 0.05 oz
15 kg x 0.002 kg
15,000 g x 2 g
66 lb x 0.01 lb
1056 oz x 0.2 oz
66 lb x 0.2 oz
30 kg x 0.005 kg
30,000 g x 5 g
132 lb x 0.02 lb
2,112 oz x 0.5 oz
132 lb x 0.5 oz
60 kg x 0.01 kg
60,000 g x 10 g
132 lb x 0.02 lb
2,112 oz x 0.5 oz
132 lb x 0.5 oz
60 kg x 0.01 kg
60,000 g x 10 g
330 lb × 0.05 lb
5,280 oz × 0.5 oz
330 lb × 0.5 oz
150 kg × 0.02 kg
150,000 g × 20 g
Capacity x Readability (d) (Cal unit lb) 30 lb x 0.005 lb
480 oz x 0.1 oz
30 lb x 0.1 oz
13.6 kg x 0.002 kg
13,600 g x 2 g
60 lb x 0.01 lb
960 oz x 0.2 oz
60 lb x 0.2 oz
27 kg x 0.005 kg
27,000 g x 5 g
150 lb x 0.02 lb
2,400 oz x 0.2 oz
150 lb x 0.2 oz
68 kg x 0.01 kg
68,000 g x 10 g
150 lb x 0.02 lb
2,400 oz x 0.2 oz
150 lb x 0.2 oz
68 kg x 0.01 kg
68,000 g x 10 g
300 lb × 0.05 lb
4,800 oz × 1 oz
300 lb × 1 oz
136 kg × 0.02 kg
136,000 g × 20 g
Displayed Resolution 1:7,500 1:6,000 1:7,500 1:7,500 1:7,500
Legal for Trade
Capacity x Readability
30 lb x 0.01 lb
480 oz x 0.2 oz
60 lb x 0.02 lb
960 oz x 0.5 oz
150 lb x 0.05 lb
2,400 oz x 1 oz
150 lb x 0.05 lb
2,400 oz x 1 oz
300 lb x 0.1 lb
4,800 oz x 2 oz
Approved Resolution 1:3,000
Platform (W × D × min H) 12 x 14 x 4.8 in
305 x 355 x 123 mm
16.5 x 21.6 x 5.4 in
420 x 550 x 136 mm

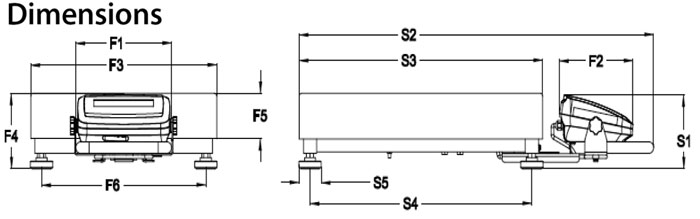

Front View Dimensions
(F1 x F2 x F3 x F4 x F5 x F6)
8.3 x 6.5 x 12 x 4.8 x 2.9 x 10.1 in
210 x 166 x 305 x 123 x 75 x 256 mm
8.3 x 6.5 x 16.5 x 5.4 x 3.2 x 14.6 in
210 x 166 x 420 x 136 x 80 x 371 mm
Side View Dimensions
(S1 x S2 x S3 x S4 x S5)
5.1 x 23.8 x 13.8 x 12 x 2 in
130 x 605 x 355 x 306 x 52 mm
5.1 x 31.5 x 21.7 x 19.7 x 2 in
130 x 800 x 550 x 500 x 52 mm
Safe Overload Capacity 125% of rated capacity
Functions Weighing, Parts Counting
Weight Display 6-digit, 7-segment backlit LCD, 1 inch / 25 mm high digits
Keyboard Parts Counting, Dynamic, Checkweighing, Weight Accumulation
Display 6-digit, 7-segment LCD, 25 mm Digit Height, High-Contrast White LED Backlight
Keypad 4 function mechanical keys, raised, tactile
Stabilization Time Within 2 seconds
Auto-zero Tracking Off, 0.5, 1 or 3 divisions
Key Zeroing Range 2% or 100% of capacity
Span Calibration 5 lb or kg to 100% of capacity
Power AC adapter with 100-hour internal rechargeable lead acid battery included
Interface Bi-directional RS232C
Operating Temperature 14°F to 104°F / -10°C to 40°C, Maximum relative humidity 80 % for temperatures up to 88°F / 31°C
Range Decreasing linearly to 50 % relative humidity at 104°F / 40°C, non condensing
Net Weight 25 lb
11.5 kg
43 lb
19.5 kg
Shipping Weight 33 lb
15 kg
51 lb
23 kg
Shipping Dimensions 25.3 x 19.6 x 8.5 in
642 x 497 x 212 mm
33.7 x 22.2 x 8.9 in
857 x 564 x 225 mm

Features Indicator housing with internal rib reinforcements, reversible front/rear cover, built-in RS232C with manual continuous/interval printing, hardware configuration lockout switch, internal lead-acid rechargeable battery and AC adapter. Software included for parts counting mode with selectable sample sizes, selectable span calibration points, averaging level, auto-zero tracking, battery saving auto-off, Geo Code geographical gravity calibration adjustment and software menu lockouts.

Accessories Call OHAUS for information on wheel kit, USB and Ethernet adapters, printer and cable accessories

Compliance
  • Markings: CE, cULus, RCM
  • Metrology: Measurement Canada (Indicator: NoA AM-5713C, Platforms: NoA AM-5667); NTEP (Indicator: CC 08-066, Platforms: CC 08-021)
  • Product Safety: EN 61010-1; UL 60950-1; CSA C22.2 60950-1
  • Electromagnetic Compatibility: EN 61326-1 Class B, Basic environments; FCC Part 15 Class A; ICES-003 Class A
 Ohaus Defender 3000 Economical Low Profile Bench Scales
D31P15BR5
D31P30BR5
D31P60BR5
D31P60BL5
D31P150BL5
Front View Dimensions
(F1 x F2 x F3 x F4 x F5 x F6)
8.3 x 6.5 x 12 x 4.8 x 2.9 x 10.1 in
210 x 166 x 305 x 123 x 75 x 256 mm
8.3 x 6.5 x 16.5 x 5.4 x 3.2 x 14.6 in
210 x 166 x 420 x 136 x 80 x 371 mm
Side View Dimensions
(S1 x S2 x S3 x S4 x S5)
5.1 x 23.8 x 13.8 x 12 x 2 in
130 x 605 x 355 x 306 x 52 mm
5.1 x 31.5 x 21.7 x 19.7 x 2 in
130 x 800 x 550 x 500 x 52 mm
