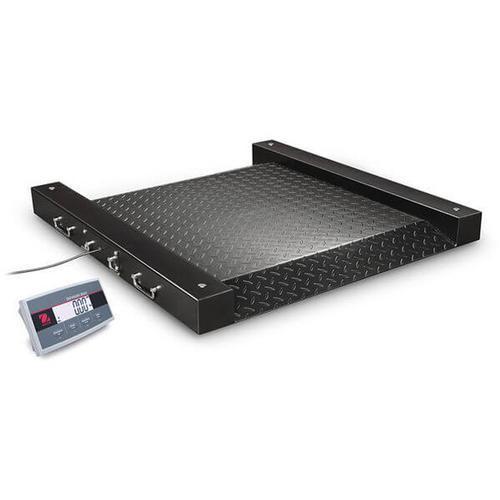

Defender 2500 Drum Scale is a durable portable floor scale designed for industry applications. Defender 2500 features a powder coated carbon steel treaded platform, built-in front/back access ramps, four load cells, and the new i-DT25P indicator for clear display of weighing results.
Defender 2500 Drum Scale is a durable portable floor scale designed for industry applications. Defender 2500 features a powder coated carbon steel treaded platform, built-in front/back access ramps, four load cells, and the new i-DT25P indicator for clear display of weighing results. Includes folding stainless steel cleats to store the 20ft. indicator cord. For quick transport, the base can be rotated on its side using the stainless steel handles and moved around the shop floor using the two integrated wheels.
Unique Features Include:
Our Drum Scales come in five models with two platform sizes of 30” × 30” and 36” × 36”, and capacities from 500 to 2,500 lb, allowing greater flexibility to best suit your weighing needs.
Platform constructed of powder coated carbon steel which enables the scale to stand up to heavy industrial use. Items can be weighed on treaded platform or across side rails for larger items.
Low-profile design with front/back access ramps allow pallet jacks, carts and drums to be easily rolled onto the platform. Integrated high-density polyurethane wheels enable convenient portability
OHAUS DFD25P FLOOR SCALES
The OHAUS DFD25P Series includes five versatile drum and ramp floor scales: i-DFD25P500E1S, i-DFD25P1000E1S, i-DFD25P2500E1S, i-DFD25P1000E1R, and i-DFD25P2500E1R. These models are designed for high-accuracy weighing, counting, checkweighing, and totalization in warehouse, industrial, and shipping environments. Featuring durable painted steel platforms, a user-friendly i-DT25P indicator with multiple connectivity options, and optional portability features like wheels and built-in ramps, the DFD25P Series ensures efficient and reliable performance.
Durable design: Powder-coated carbon steel platform with treaded surface, IP65 junction box, and top-access load cells.
Easy operation: i-DT25P ABS plastic indicator with white backlit LCD, RS232 and USB-C interfaces.
Portable configurations: Models include integrated wheels and handles; “R” models feature a built-in ramp for easy loading.
Flexible power options: AC adapter and USB-C included, plus optional rechargeable battery kit.
i-DFD25P500E1S
i-DFD25P1000E1S
i-DFD25P2500E1S
i-DFD25P1000E1R
i-DFD25P2500E1R
Price
Capacity x Readability
500 x 0.1 lb 250 x 0.05 kg
1000 x 0.2 lb 500 x 0.1 kg
2500 x 0.5 lb 1250 x 0.2 kg
1000 x 0.2 lb 500 x 0.1 kg
2500 x 0.5 lb 1250 x 0.2 kg
Platform Size
30 x 30 inch 762 x 762 mm
30 x 30 inch 762 x 762 mm
30 x 30 inch 762 x 762 mm
36 x 36 inch 914.4 x 914.4 mm
36 x 36 inch 914.4 x 914.4 mm
Platform Material
Painted Carbon Steel, Treaded Surface, Fixed Top Plate
Feet
4 x Swivel Design, Screw-In, Carbon Steel with Rubber Bottom Cap, Top Adjustable
IP65, Die-cast Aluminum, with 6 m (20 ft) Indicator Cable
Operating Temperature
50 oF to 104 oF / 10 oC to 40 oC
Indicator
i-DT25P, ABS plastic housing
Weighing Units
lb, kg
Modes
Weighing, Parts Counting, Totalization, Dynamic Weighing/Display Hold, Peak Hold
Display
6-digit, 7-segment LCD display with white backlight, 1.1 in./28 mm high digits
Keypad
4 Function Mechanical Switches and Raised Tactile Keys
Stabilization Time
Within 1 seconds
Auto-zero Tracking
Off, 0.5, 1 or 3d
Zeroing Range
2% or 100% of capacity
Span Calibration
5 lb or kg to 100% of capacity
Interfaces
RS232 & USB (Type C) Standard
Power
Standard AC adapter with USB type C cable, detachable (included) or 4 AA batteries (not included)
Battery
20 hours continuous use with backlight off
Indicator Dimensions (W x D x H)
8.0 x 4.1 x 1.7 in 205 x 105 x 43 mm
Scale Shipping Dimensions (W x D x H)
41.1 x 40.2 x 7.9 in. 1,044 x 1,022 x 200 mm
46.9 x 46.3 x 7.9 in. 1,190 x 1,175 x 200 mm
Scale Net Weight
101 lb / 46 kg
126 lb / 57 kg
Scale Shipping Weight
110 lb / 50 kg
135 lb / 61 kg
Other Standard Features and Equipment
Selectable environmental and auto-print settings, stability indicator, overload/underload indicators, auto-off, auto tare.
Alloy steel feet with top height adjustment. Parts Counting and Checkweighing modes for packaging and checking inventories, Totalization mode allows
running tally of weight totals, Dynamic Weighing/Display Hold feature with selectable weight threshold for wheelchair and medical weighing, painted and
stainless steel floor stands (available as accessories)
Compliance
Product Safety (indicator): UL 61010-1; CAN/CSA C22.2 61010-1; IEC/EN 61010-1
Electromagnetic Compatibility: IEC/EN 61326-1 Class B, basic environments; FCC Part 15 Class A; Canada ICES-003 Class A
