Ohaus COURIER 7000 Legal for Trade Dedicated Shipping Scales |
Authorized Dealer |
| The Courier 7000 Series is designed specifically for the needs of manufacturing, distribution, and office shipping. The Courier 7000 Series features intuitive integration with PC-based shipping software so that data is captured accurately and efficiently - every time
|
| Shipping Scales >> Ohaus Scales |
|
Precise Standard Scales for Dedicated Shipping Applications
The Courier 7000 Series is designed specifically for the needs of manufacturing, distribution, and office shipping. The Courier 7000 Series features intuitive integration with PC-based shipping software so that data is captured accurately and efficiently - every time.
Unique Features:
- Designed to withstand constant use from offices to distribution centers. Fast setup with connection to shipping systems like UPS & FedEx. “GeoCode” application for local calibration adjustment.
- Display Hold retains weight data and presents it on a large, easily accessible backlit display. Its Weight Alert™ mode alerts users to packages that may be too heavy in relation to defined values
- AC adapter power included, and disposable battery power (not included) for portable use
- User-Friendly Basic Low-Profile Scales for General Shipping and Veterinary Applications
- Display Hold retains weight data and presents it on a large, easily accessible backlit display. Its Weight Alert™ mode alerts users to packages that may be too heavy in relation to defined values.
- Courier 7000 can run on USB type-C or disposable battery power. Optional Ethernet, second RS232, Bluetooth/WiFi, remote display, ball top and roller top for material handling efficiency are available.
- Communication Easy access communication ports including standard RS232 and USB type C Ethernet or 2nd RS232 or WiFi/Bluetooth (available as accessories sold separately)
Simple to use with four-key operation, the Courier 7000 can be quickly setup with UPS WorldShip, FedEx Ship Manager, and other systems via the standard USB-HID interface. Weights can also be integrated into 3rd party software using RS232 output. Additional data connections include Ethernet TCP/IP, 2nd RS232 or choice of Bluetooth or WiFi.
The sturdy powder-coated carbon steel frame and thick stainless steel platform ensures years of use in heavy daily shipping use. Precise loadcells and software for NTEP/ Measurement Canada use are included.

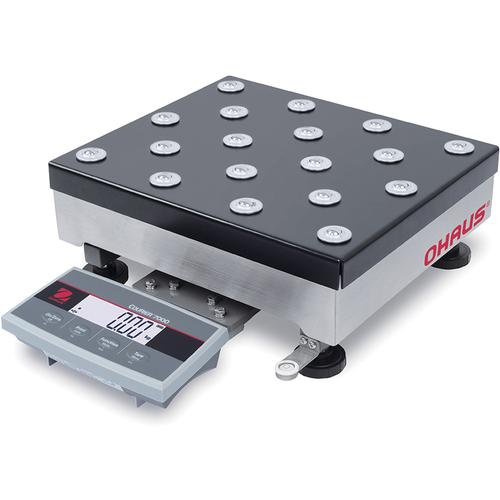

Ball top and roller top platform options can be used in conveyor and warehousing to reduce operator stress and workload, increasing efficiency
The large, bright display clearly shows weights in dimly-lit warehouse and loading dock areas. The indicator comes base mounted but can be attached to a column for display above the platform. A second Remote Display and column can be used to show the results for added verification.
|
|
Application Modes
- Display Hold Holds the weight of a package on the display after loading, perfect for larger boxes and reducing lost data.
- Totalization Is included to provide statistical data and a running total of package weights for shift or station tracking.
- Weight Alert™ Tells the operator when a package may be too heavy for postal or courier service and may require freight service - saving your business from potentially costly errors.
- Dynamic Weighing Provides simple averaging of weights for unstable loads.
Precise Standard Scales for Dedicated Shipping Applications
- Display - 6-digit, 7-segment LCD display with white backlight, 1.1 in./28 mm-high digits
- Communication - Easy access communication ports including standard RS232 and USB type C Ethernet or 2nd RS232 or WiFi/Bluetooth (available as accessories sold separately)
- Construction - ABS indicator, 304-stainless steel platform, powder-coated frame, aluminum load cell, non-slip adjustable rubber feet
- Design Features - 150% overload protection
- Operation - Standard AC adapter with USB type C cable detachable (included) or 4 AA batteries (not included)
Display Hold
Totalization
Weighing
Auto Shut-Off
Auto Standby
Backlight
Battery Power
Environmental Filters
Level Indicator
Leveling Feet
Low Battery Indicator
Overload Protection
Overload/Underload Indicators
Software Lockout
Stability Indicator
Measurement Canada Approved
NTEP Certified
Compliance
- Metrology: NIST Handbook 44 (NTEP CC 23-013), Canada Weights and Measures Regulations (AM-6218)
- Product Safety: UL 61010-1; CAN/CSA C22.2 61010-1; IEC/EN 61010-1
- Electromagnetic Compatibility: FCC Part 15 Class A; Canada ICES-003 Class A; IEC/EN 61326-1 Class B, basic environments
- Compliance Marks: CSA, CE
- Other: WEEE, RoHS
| Model With Balltop Included |
i-C71M15RBALL |
i-C71M75RBALL |
i-C71M50LBALL |
i-C71M125LBALL |
i-C71M125XBALL |
| Price |
$580.60
|
$580.60
|
$895.05
|
$895.05
|
$1,104.93
|
| Model |
i-C71M15R
30745875 |
i-C71M75R
30745876 |
i-C71M50L
30745877 |
i-C71M125L
30745878 |
i-C71M125X
30745879 |
| Price |
$418.60
|
$418.60
|
$658.35
|
$658.35
|
$775.53
|
| Capacity x Redability Non-approved |
30 lb x 0.01 lb |
150 lb x 0.05 lb |
100 lb x 0.02 lb |
250 lb x 0.05 lb |
250 lb x 0.05 lb |
| 15 kg x 0.005 kg |
75 kg x 0.02 kg |
50 kg x 0.01 kg |
125 kg x 0.02 kg |
125 kg x 0.02 kg |
| 15,000 g x 5 g |
75,000 g x 20 g |
50,000 g x 10 g |
125,000 g x 20 g |
125,000 g x 20 g |
| 30 lb x 0.2 oz |
150 lb x 1 oz |
100 lb x 0.5 oz |
250 lb x 1 oz |
250 lb x 1 oz |
| 480 oz x 0.2 oz |
2,400 oz x 1 oz |
1,600 oz x 0.5 oz |
4,000 oz x 1 oz |
4,000 oz x 1 oz |
| Maximum Displayed Resolution |
1:3,000 |
1:3,750 |
1:5,000 |
1:3,000 |
1:6,250 |
| Capacity x Redability Legal for Trade |
30 lb x 0.01 lb |
150 lb x 0.05 lb |
100 lb x 0.02 lb |
250 lb x 0.05 lb |
250 lb x 0.05 lb |
| 15 kg x 0.005 kg |
75 kg x 0.05 kg |
50 kg x 0.01 kg |
125 kg x 0.05 kg |
125 kg x 0.05 kg |
| 15,000 g x 5 g |
75,000 g x 50 g |
50,000 g x 10 g |
125,000 g x 50 g |
125,000 g x 50 g |
| 480 oz x 0.2 oz |
2,400 oz x 1 oz |
1,600 oz x 0.5 oz |
4,000 oz x 1 oz |
4,000 oz x 1 oz |
| Legal For Trade |
NTEP CC 23-013 - Canada Weights and Measures AM-6218 |
| Maximum Displayed Resolution Approved (pound) |
1:3,000 |
1:3,000 |
1:5,000 |
1:5,000 |
1:5,000 |
| Pan Size |
12 x 14 |
18 x 18 |
24 x 24 |
| Weighing Units |
g, kg, lb, oz, lb:oz |
| Application Mode |
Weighing, Dynamic/Display Hold, Totalization, Weight Alert™ |
| Display |
1.1 in / 28 mm digit height, 6-digit, 7-segment LCD display with white backlight |
| Keyboard |
4 mechanical function keys |
| Construction |
ABS Plastic Indicator Housing
Stainless Steel Platform with carbon steel frame and rubber leveling feet |
| Stabilization Time |
1 second |
| Auto-zero Tracking |
Off, 0.5 d, 1 d or 3 d |
| Zeroing Range |
2% or 100% of capacity |
| Interface |
Standard: USB Type-C, RS232, Mini DIN for optional interfaces
Optional: 2nd RS232, Ethernet, Wi-Fi/Bluetooth |
| Power |
Dry cell battery: 4 x AA (LR6) Batteries or AC Power adapter: 100-240VAC ~ 0.5A 50/60Hz;
Power output: 5.0 VDC 1.0 A or USB cable (USB connection to PC)
Battery life: 70 hours continuous use with backlight off |
| Operating Temperature Range |
14 oF to 104 oF / -10 oC to 40 oC |
| Safe Overload Capacity |
150% of capacity |
| Pan Dimensions |
12.0 x 14.0 in
305 x 355 mm |
18.0 x 18.0 in
457 x 457 mm |
24.0 x 24.0 in
610 x 610 mm |
| Net Weight |
17.6 lb / 8 kg |
28.6 lb / 14 kg |
71.5 lb / 32 kg |
| Shipping Weight |
22.5 lb / 10 kg |
39.6 lb / 18 kg |
81.4 lb / 37 kg |
| Shipping Dimensions |
25.3 x 19.6 x 8.3 in
642 x 497 x 212 mm |
39.1 x 26.8 x 9.3 in
994 x 680 x 235 mm |
45.9 x 30.7 x 9.3 in
1,165 x 780 x 235 mm |
Accessories
2 nd RS232 Kit i-C71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30745880
Ethernet Kit i-C71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30745882
Remote Display AD7-MD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30472063
Ball Top i-C71 for R Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30819625
Roller Top i-C71 for R Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30819626
Ball Top i-C71 for L Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30819627
Ball Top i-C71 for X Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30819648
Roller Top i-C71 for L Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30819649
Roller Top i-C71 for X Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30819650
Remote Column Kit 13 in / 330 mm Painted Steel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30800931
Remote Column Kit 38.6 in / 980 mm Painted Steel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30795819
Wi-Fi / Bluetooth Kit i-C71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30745881
Cable RS232 IBM 9P Male-to-Female . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80500525
SF40A Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30064203

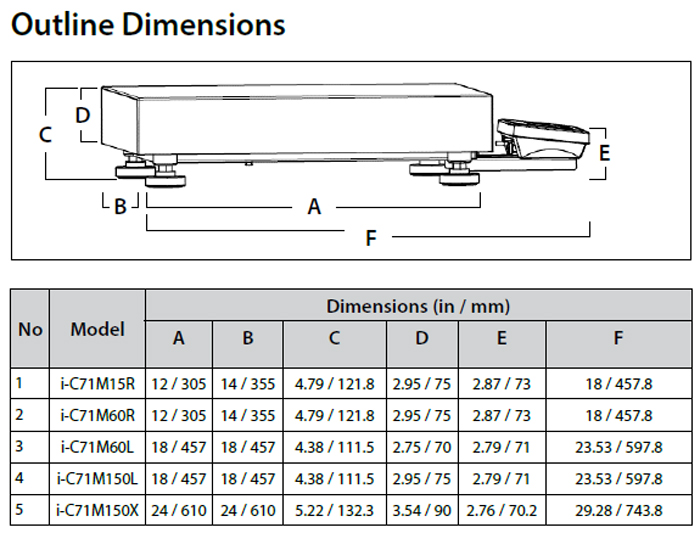

Dims
|
