Ohaus Achiever 5000 Overhead Stirrers
Authorized Dealer
OHAUS Achiever 5000™ Overhead Stirrers are designed for powerful, precise stirring, safety and simplicity in all applications. The sealed design has an IP54 rating and ensures safe mixing performance even in the most demanding applications. The keyless chuck and software controlled speed ramping provide easy set up and safe stirring to protect the sample and user. Select from five models with up to 200 Ncm torque and up to 100 L volume capacity.
Ohaus Scales

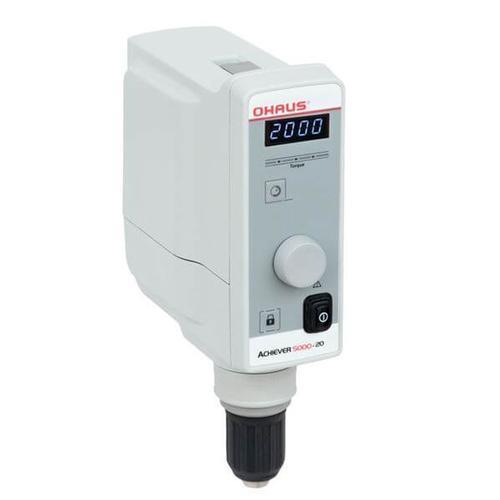

Ohaus Achiever 5000 Overhead Stirrers

Specifications Chart

Accessories

Have Questions?
Call USoremail Us
Our Staff will be glad to help

Reliable Overhead Stirrers with Excellent Performance for Everyday Use

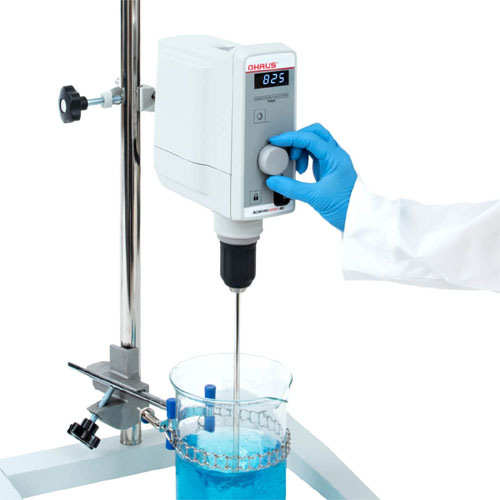

OHAUS Achiever 5000™ Overhead Stirrers are designed for powerful, precise stirring, safety and simplicity in all applications. The sealed design has an IP54 rating and ensures safe mixing performance even in the most demanding applications. The keyless chuck and software controlled speed ramping provide easy set up and safe stirring to protect the sample and user. Select from five models with up to 200 Ncm torque and up to 100 L volume capacity.

    Unique Features:
  • Powerful mixing and constant speed is assured with the brushless motor and torque compensation technology - delivering accurate, controlled stirring of viscous liquids with quiet operation.
  • Simplify set up with the Keyless Chuck - no tools required. Change shafts quickly and easily with one handed operation. This unique design will save time and effort for everyone in the lab.
  • Designed for safety. The lock button prevents accidental speed changes and the motor’s overload sensing technology simply shuts off stirring before an overload condition occurs to protect the sample.
  • Compact and easy to use. Simple knob control combined with the bright digital display allows for precise setting and monitoring. Customize for your application with over 12 accessories.
Applications - Stirring, dissolving, dispersion, emulsification and homogenization for the following the industries: food and beverage, cosmetics, paint/coatings, pharmaceutical, chemical, glue/adhesive, plastics/polymer and cement/construction. Used for pilot scale in manufacturing.
Display - Bright LED digital display for speed, real-time torque tendency LED indicator bar, and integrated timer
Operation - Stirring from 6 rpm to 2000 rpm with speed accuracy of 1 rpm and maximum torque from 20 Ncm to 200 Ncm, depending on model. Stable torque at any speed, and volume capacity ranging from 25L to 100L
Construction - Sealed aluminum housing with IP54 ingress protection rating. Keyless Chuck for simple, one-hand operation, and brushless motor for quiet operation and main power switch
Design Features - Compact design for easy handling, simple knob control, lock button to prevent unintentional setting changes, and full protection for overload, overtemperature and overcurrent conditions

Other Standard Features & Equipment Speed accuracy of 1 rpm, sealed housing with IP54 rating, digital display, timer, torque tendency LED indicator, digital speed control, chuck range 1 to 13 mm, pass through shaft diameter up to 8.5 mm, support stand and clamp required for set up (sold separately).

Compliance
  • Product Safety: CAN/CSA C22.2 No. 61010-1, CAN/CSA C22.2 No. 61010-2-051, EN 61010-1, EN 61010-2-051, IEC 61010-1, IEC 61010-2-051, UL 61010-1, UL 61010-2-051
  • Electromagnetic Compatibility: EN 61326-1: 2013 Class A Industrial Environment; Canada ICES-003 Class A; FCC Part 15 Class A
  • Compliance Marks: CE; RCM; cNus; WEEE; CN RoHS
Ohaus Achiever 5000 Overhead Stirrers

FREE UPS Ground Shipping
(within the 48 continental US States)

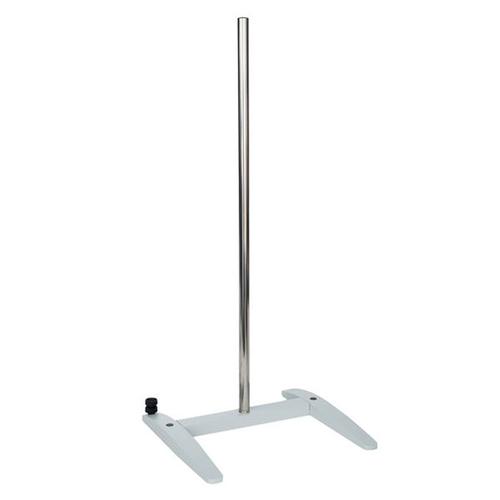

Ohaus 30586771 Support Stand Universal-H For Overhead Stirrers
Ohaus 30586771 Support Stand Universal-H For Overhead Stirrers, add $315.00
Ohaus 30586772 Support Stand Telescopic-H For Overhead Stirrers
Ohaus 30586772 Support Stand Telescopic-H For Overhead Stirrers, add $495.00

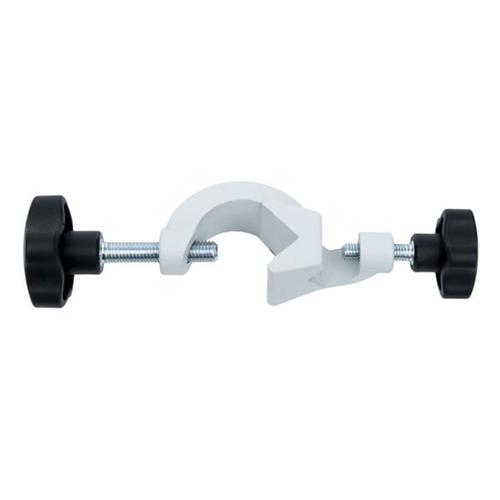

Ohaus 30586773 Clamp Double For Overhead Stirrers
Ohaus 30586773 Clamp Double For Overhead Stirrers, add $71.25

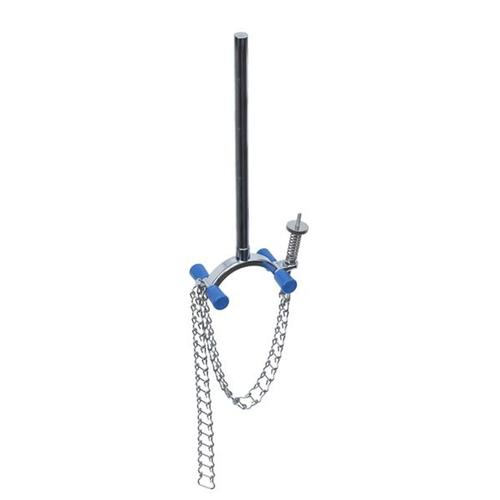

Ohaus 30586774 Clamp Ribbon For Overhead Stirrers
Ohaus 30586774 Clamp Ribbon For Overhead Stirrers, add $99.00

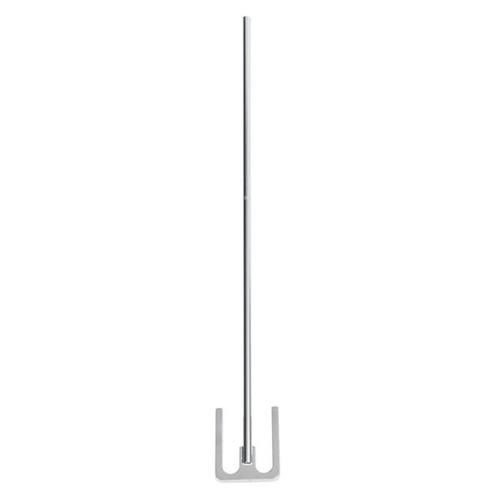

Ohaus 30586775 Stirrer Shaft 40x0.7 cm Anchor Blade For Overhead Stirrers
Ohaus 30586775 Stirrer Shaft 40x0.7 cm Anchor Blade For Overhead Stirrers, add $108.00

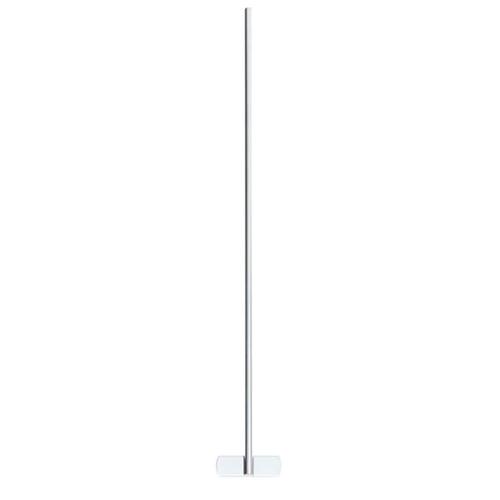

Ohaus 30586776 Stirrer Shaft 40x0.7 cm Fixed Blade For Overhead Stirrers
Ohaus 30586776 Stirrer Shaft 40x0.7 cm Fixed Blade For Overhead Stirrers, add $108.00
Ohaus 30586777 Stirrer Shaft 40x0.7 cm, Floating Blade For Overhead Stirrers
Ohaus 30586777 Stirrer Shaft 40x0.7 cm, Floating Blade For Overhead Stirrers, add $112.50

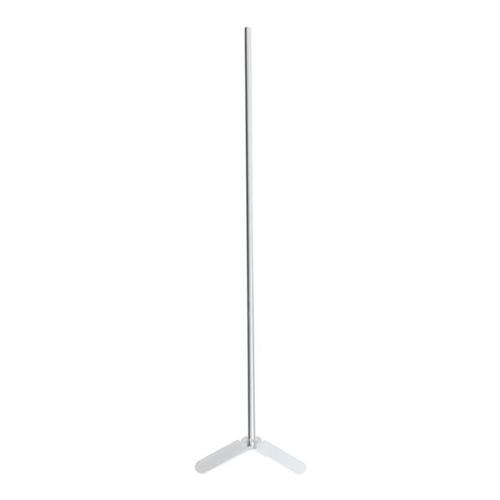

Ohaus 30586778 Stirrer Shaft 40x0.7 cm Folding Blade For Overhead Stirrers
Ohaus 30586778 Stirrer Shaft 40x0.7 cm Folding Blade For Overhead Stirrers, add $112.50

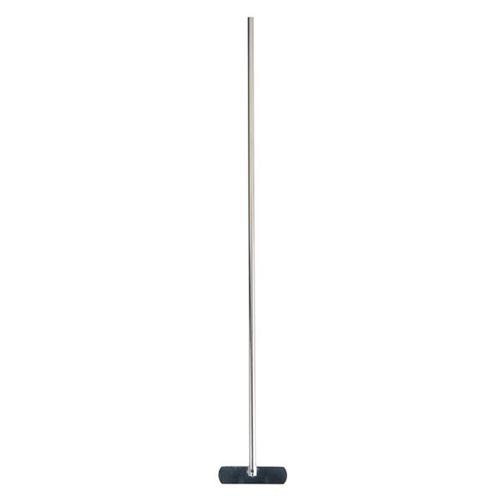

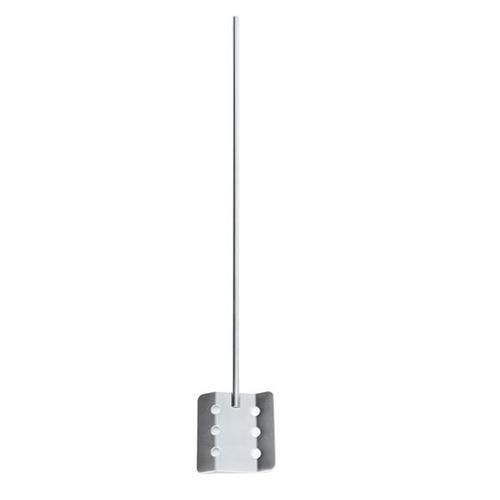

Ohaus 30586779 Stirrer Shaft 51x0.7 cm Paddle 6 Holes For Overhead Stirrers
Ohaus 30586779 Stirrer Shaft 51x0.7 cm Paddle 6 Holes For Overhead Stirrers, add $112.50

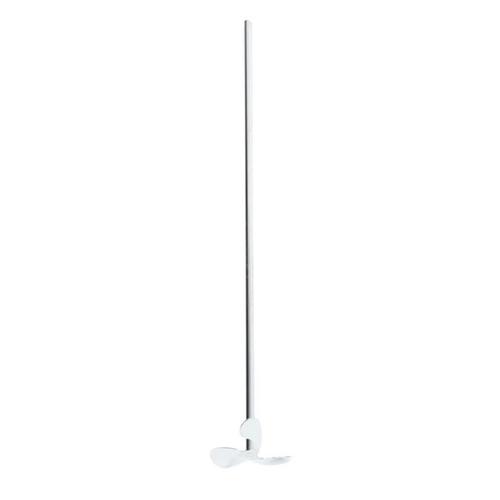

Ohaus 30586780 Stirrer Shaft 40x0.7 cm Propeller For Overhead Stirrers
Ohaus 30586780 Stirrer Shaft 40x0.7 cm Propeller For Overhead Stirrers, add $112.50

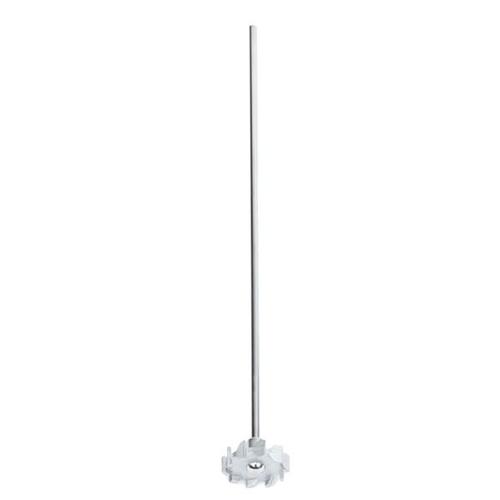

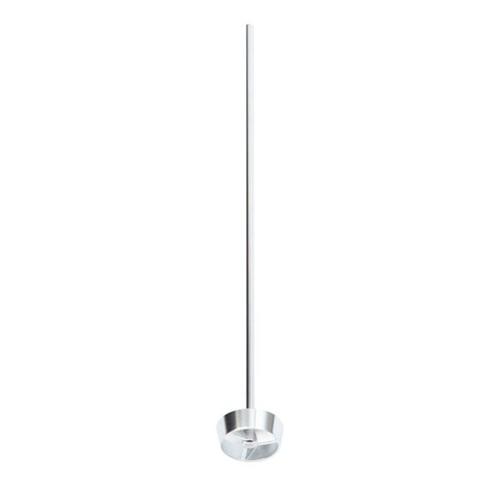

Ohaus 30586781 Stirrer Shaft 40x0.7 cm Turbine For Overhead Stirrers
Ohaus 30586781 Stirrer Shaft 40x0.7 cm Turbine For Overhead Stirrers, add $202.50
Ohaus 30586782 Stirrer Shaft 40x0.7 cm Turbo Propeller For Overhead Stirrers
Ohaus 30586782 Stirrer Shaft 40x0.7 cm Turbo Propeller For Overhead Stirrers, add $202.50

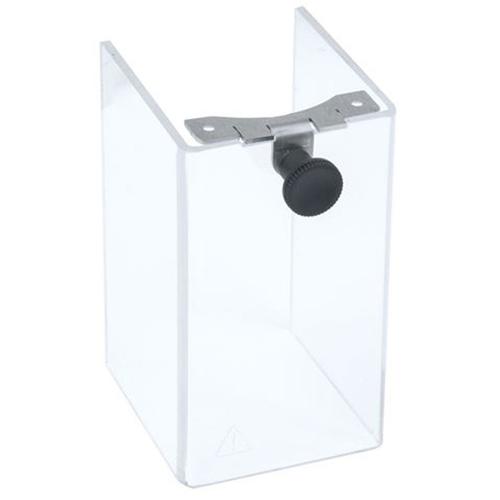

Ohaus 30586842 Chuck Cover e-A51 For Overhead Stirrers
Ohaus 30586842 Chuck Cover e-A51 For Overhead Stirrers, add $90.25


Accessories

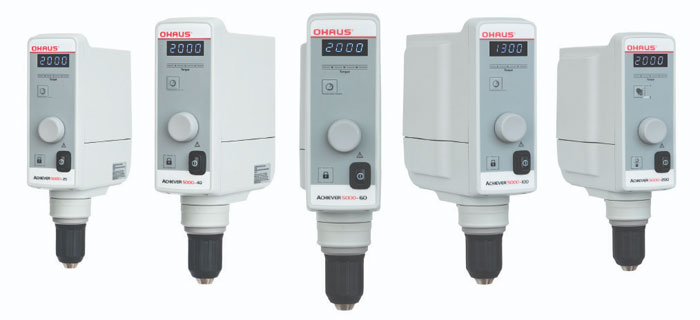

Models e-A51ST020
(30586763)
e-A51ST040
(30586764)
e-A51ST060
(30586765)
e-A51ST100
(30586766)
e-A51ST200
(30586767)
Price Ohaus e-A51ST020 Achiever 5000 Overhead Stirrer Viscosity 10,000 mPas
$1,143.00
Ohaus e-A51ST040 Achiever 5000 Overhead Stirrer Viscosity 25,000 mPas
$1,264.50
Ohaus e-A51ST060 Achiever 5000 Overhead Stirrer Viscosity 50,000 mPas
$1,432.80
Ohaus e-A51ST100 Achiever 5000 Overhead Stirrer Viscosity 70,000 mPas
$1,875.60
Ohaus e-A51ST200 Achiever 5000 Overhead Stirrer Viscosity 100,000 mPas
$1,991.70
Stirring Speed Range 30-2000 rpm 30-2000 rpm 30-2000 rpm 30-1300 rpm 6-400 rpm (I)
30-2000 rpm (II)
Stirring Volume (H2O) up to 25L up to 40L up to 100L
Maximum Viscosity (cP or mPas) 10,000 25,000 50,000 70,000 100,000
Maximum Torque (Ncm) 20 40 60 100 200
Speed Gears 1 2
Speed Accuracy 1 rpm
Speed Control Digital
Display LED
Timer Yes
Lock Button Yes
Chuck Range (Diameter) 1 - 13 mm
Shaft Pass Through (Diameter) up to 8.5 mm
Ingress Protection IP54

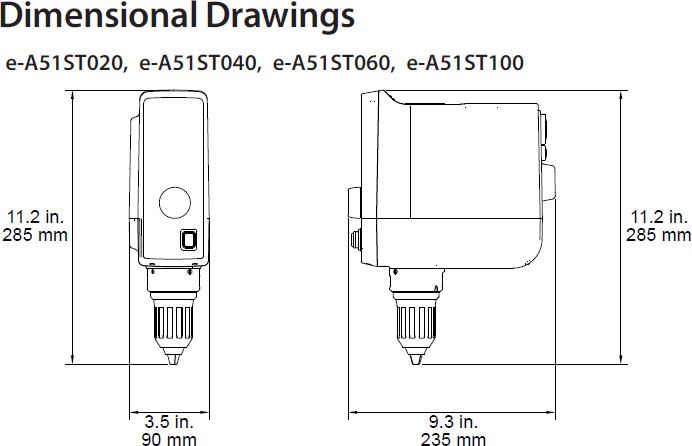

Dimensions (H x L x W) 11.2 x 9.3 x 3.5 in
28.5 x 23.5 x 9.0 cm
12.4 x 9.3 x 3.5 in
31.5 x 23.5 x 9.0 cm
Net Weight 4.1 kg 4.6 kg
Power Supply 115V, 50/60Hz / 230V, 50/60Hz
Power Input 190W (115V) / 190W (230V)
Working Environment 41 °F – 104 °F, 80 % RH, non-condensing / 5 °C – 40 °C, 80 % RH, non-condensing

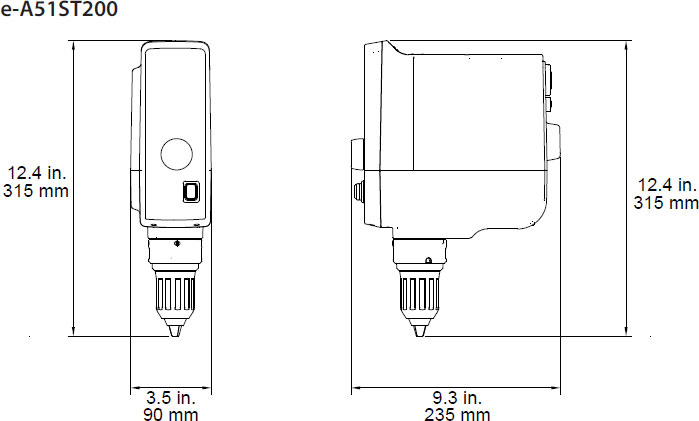

Dims Dims

Ohaus Achiever 5000 Overhead Stirrers

Have Questions?
Call USoremail Us
Our Staff will be glad to help


Item No. Description Price
30586771 Support Stand Universal-H Ohaus 30586771 Support Stand Universal-H For Overhead Stirrers
$315.00
30586772 Support Stand Telescopic-H Ohaus 30586772 Support Stand Telescopic-H For Overhead Stirrers
$495.00
30586773 Clamp Double Ohaus 30586773 Clamp Double For Overhead Stirrers
$71.25
30586774 Clamp Ribbon Ohaus 30586774 Clamp Ribbon For Overhead Stirrers
$99.00
30586775 Stirrer Shaft 45x0.7 cm, Anchor Blade Ohaus 30586775 Stirrer Shaft 40x0.7 cm Anchor Blade For Overhead Stirrers
$108.00
30586776 Stirrer Shaft 40x0.7 cm, Fixed Blade Ohaus 30586776 Stirrer Shaft 40x0.7 cm Fixed Blade For Overhead Stirrers
$108.00
30586777 Stirrer Shaft 40x0.7 cm, Floating Blade Ohaus 30586777 Stirrer Shaft 40x0.7 cm, Floating Blade For Overhead Stirrers
$112.50
30586778 Stirrer Shaft 40x0.7 cm, Folding Blade Ohaus 30586778 Stirrer Shaft 40x0.7 cm Folding Blade For Overhead Stirrers
$112.50
30586779 Stirrer Shaft 45x0.7 cm, Paddle 6 Holes Ohaus 30586779 Stirrer Shaft 51x0.7 cm Paddle 6 Holes For Overhead Stirrers
$112.50
30586780 Stirrer Shaft 40x0.7 cm, Propeller Ohaus 30586780 Stirrer Shaft 40x0.7 cm Propeller For Overhead Stirrers
$112.50
30586781 Stirrer Shaft 45x0.7 cm, Turbine Ohaus 30586781 Stirrer Shaft 40x0.7 cm Turbine For Overhead Stirrers
$202.50
30586782 Stirrer Shaft 45x0.7 cm, Turbo Propeller Ohaus 30586782 Stirrer Shaft 40x0.7 cm Turbo Propeller For Overhead Stirrers
$202.50
30586842 Chuck Cover e-A51 Ohaus 30586842 Chuck Cover e-A51 For Overhead Stirrers
$90.25
