NCI 7820 / 7820R Series Shipping Scales

Manufacturers

NCI 7820 / 7820R Series Shipping Scales	Authorized Dealer
The 7820 is simple to use, durable, accurate and reliable. This NTEP approved scale fits into any operation as a stand-alone scale, interfaced to a shipping manifest software, or receiving station
Shipping Scales

NCI Model 7815 Parcel Shipping Scale w/Internal Dispay & ABS Plastic Platter, 150 lb x 0.1 lb

7820 - 9503-16504, 9503-16505
Internal display

NCI 7620 Series 9503-16638 Shipping Scale with Ball-Top 10 x 0.005 lb - 100 x 0.02 lb

7820R 9503-17229
Remote Display

Specifications Chart

The 7820 is simple to use, durable, accurate and reliable. This NTEP approved scale fits into any operation as a stand-alone scale, interfaced to a shipping manifest software, or receiving station.

Display Controls– ZERO: Includes Auto Zero Tracking or Manual push button to re-establish zero reference. TEST: Runs a diagnostic test to ensure scales is fully functional, and allows a real-time view of internal settings.
Construction– Stainless steel weight platter, die cast aluminum base
Field Calibration– Alternate span points can simplify field calibration by using less than full capacity weights. Can be set-up as either decimal pound or kilogram.
RS-232 Cable– Included with each scale, DB 9-pin, null modem, female connector allows you to connect to a PC
Emulation Protocols– Standard NCI default with field configurable settings of 8213, 3835, SMA, and Auto Weight Send. This allows you to select compatible scale communication settings or scale drivers during field installation when interfacing with shipping software programs or host devices.
Internal Display– 1/2" high, 6 digit LCD

7820R Remote Display

Remote Display– Six-digit LCD display housed in an extruded enclosure with a 7' cable, connected via RJ45 connector on the rear of the scale
Remote Display Bracket– Front mounted, using velcro strips to attach the remote display to base

Model	7820 9503-16504	7820 9503-16509	7820 9503-16505	7820 9503-16510	7820R 79503-17229	7820R 9503-17230
Model	$790.00	$920.50	$790.00	$931.00	$785.00	$915.00
Capacity x Readability	100 lb x 0.02 lb	100 lb x 0.02 lb	150 lb x 0.05 lb	150 lb x 0.05 lb	150 lb x 0.05 lb	150 lb x 0.05 lb
Capacity x Readability	50 kg x 0.01 kg	50 kg x 0.01 kg	60 kg x 0.02 kg	60 kg x 0.02 kg	60 kg x 0.02 kg	60 kg x 0.02 kg
Legal For Trade	Class III
	NTEP CC#95-070
	Canada: MOI #AM-5076 Rev 2
Computer Interface	RS232	RS232	RS232	RS232	RS232	RS232
Platter Type	Flat Stainless Steel	Stainless Steel Ball Top	Flat Stainless Steel	Stainless Steel Ball Top	Flat Stainless Steel	Stainless Steel Ball Top
Platter Size	12" x 14"	12" x 14"	12" x 14"	12" x 14"	12" x 14"	12" x 14"
Construction	Stainless steel weight platter, die cast aluminum base
Display	1/2" high, 6 digit LCD
Dimensions	12.5" L x 14" W x 4" H 318 mm (L) x 358 mm (W) x 104 mm (H)
Power	120 VAC (+10% -15%), 60 Hz, standard 3-wire ground
Operating Environment	Temperature: 42^o F to 104^o F (5^o C to 40^o C) Relative Humidity: 10 to 95% (non-condensing)
Input/Output	RS-232, bi-directional, configurable 1200 – 19.2K baud. Transmits weight and scale status whenever ASCII “W” <CR> is sent by a remote device.

NCI 7820 / 7820R Series Shipping Scales

7820R Remote Display

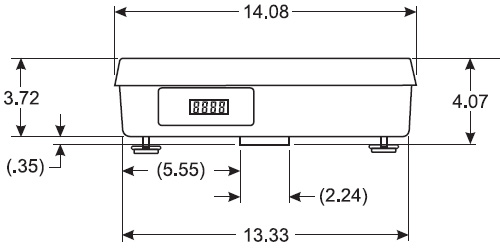

Model 7820

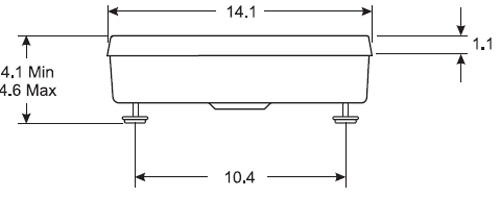

Model 7820R
