MSI-9600HT Crane Scales
|
 |
Legal For Trade
(Selected Models Only) |
Have Questions?
Our Staff will be glad to help |
Specifications Chart |

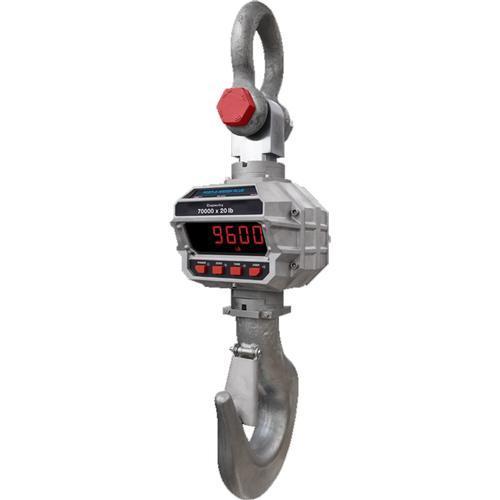

The MSI-9600HT Hi-Torque Port-A-Weigh Plus crane scale, integrated with ScaleCore technology, has models up to 200,000-pound capacity that captures weight within a +/- 0.2% accuracy.
The MSI-9600HT has a unique configuration designed for heavy capacity coil handling, or other applications, reaching up to 100 tons. A fixed hook is featured for interface compatibility with crane hooks equipped with powered rotation and where high torque conditions exist between the crane hook and load.
The enclosure, made with IP66 marine grade alloy anodized aluminum, features a rear-battery casting with snap-closure—keeping everything weathertight. The MSI-9600HT’s vibrant, extra-large, six-digit LED display shows either red, green or orange digits, ensuring operators can view weight in any light condition. Internal setpoints can be used to program the display to change color when nearing an overload condition.
Meeting or exceeding all industrial safety requirements, the MSI-9600HT features a 200% Safe and 500% Ultimate Safety Factor, minimizing overloading accidents.
With a battery life up to 250 hours (see specifications), the MSI-9600HT is built to perform reliably between charges and minimize overload accidents. Choose between an optional Wi-Fi or RF modem for connectivity to the MSI-8000, MSI-8000HD, MSI-8004HD, TranSend™, LaserLight2™ remote display and MSI ScaleCore Webserver.
STANDARD FEATURES
- LED display (red/orange/green) and annunciators
- Top shackle (sold separately)
- 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
- Hi-torque load train designed for use with powered rotation
OPTIONS(Contact ScalesGalore for application consultation)
- Top shackle
- Dual radio capability
- Rugged remote control (control for On/Off, Zero, Tare and other functions)
- Anti-heat shielding for high-temperature applications
- Substitute bottom hook with shackle
- Oversized top or shackle
- Oversized bottom hooks
- Universal direct power supply
- Wi-Fi communication is available for specialty applications
- RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display, TranSend and LaserLight2 remote display
- Typically 100 to 300ft, line of sight; for longer range consult factory
- Low headroom top adaptor
- Audible alarm
- Custom top and bottom interfaces
|
|
| Model |
214371 |
214370 |
214369 |
214477 |
214474 |
214479 |
| Price |
Call (800)-832-0055
For Pricing |
Call (800)-832-0055
For Pricing |
Call (800)-832-0055
For Pricing |
Call (800)-832-0055
For Pricing |
Call (800)-832-0055
For Pricing |
Call (800)-832-0055
For Pricing |
| Capacity x Redability |
10,000 lb x 2 lb |
30,000 lb x 10 lb |
70,000 lb x 20 lb |
100,000 lb x 20 lb |
120,000 lb x 50 lb |
200,000 lb x 100 lb |
| 5,000 kg x 1 kg |
15,000 kg x 5 kg |
35,000 kg x 10 kg |
50,000 kg x 10 kg |
60,000 kg x 20 kg |
100,000 kg x 50 kg |
| Legal For Trade |
Indicator: NTEP: CC 19-122A1 |
| Accuracy |
+ (0.1% +1 d) of capacity |
+ (0.2% +1 d) of capacity |
| Resolution |
3,000 to 5,000 d standard
(Up to 10,000 d available) |
| Enclosure |
NEMA Type 4, IP66, marine grade 356 alloy anodized cast aluminum |
| Lifting Eye, Shackle & Hook |
Shackle is optional and Crosby® fixed hook provided as standard |
| Safe Design Overload |
200% |
| Ultimate Design Overload |
500% |
400% |
| Functions |
Power: Turns unit on or off Zero: Zeros applied load up to 100% of capacity
Tare: Tares applied load and displays weight in net Mode
F1: Programmable as test, units, net/gross, total and peak hold
|
| Display |
6 digit, 1.5 in (38 mm) LED with programmable brightness control |
| Displayable Units |
Pounds or kilograms selectable |
| Power |
12 Volt rechargeable battery, 115/230 VAC battery charger included |
| Operating Time |
Up to 30 hours between charging with typical use |
| Operating Temperature |
40 oF to 140 oF (-40 oC to 60 oC)
Max: -76 oF to 176 (-60 oC to 80 oC)
Radio may not be reliable below -40 oF (-40 oC)
Continuous operation above 140 oF (60 oC) may reduce battery life |
| Calibration |
Digital |
| Filtering |
OFF, LO, HI-1 or HI-2 selectable |
| Radio Link |
802.15.4 at 2.4 GHz, Wi-Fi |
| Radio Link Effective Range |
Typically 100 to 300 ft line of sight |
| Warranty |
One-year limited |
| Est. Weight |
62 lb |
125 lb |
270 lb |
420 lb |
550 lb |
1100 lb |
Options/Accessories

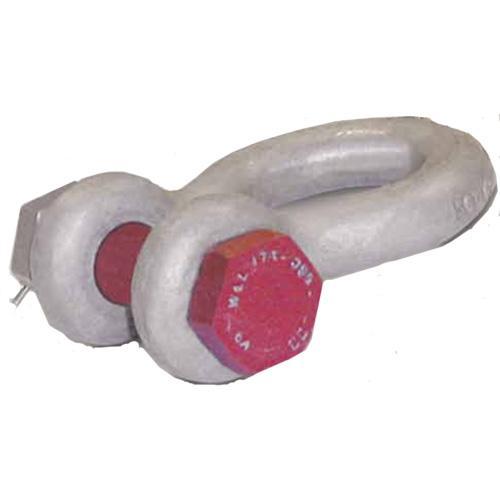

141992 Top lifting shackle Crosby® G2130 17 ton for 30,000 lb cap unit
146335 Top lifting shackle Crosby® G2140 40 ton for 70,000 lb cap unit
146336 Top lifting shackle Crosby® G2140 55 ton for 120,000 lb cap unit
150971 MSI RF modem option kit (used in MSI-4260, MSI-4260M, MSI-6360, MSI-9600HT) 3 lb
173014 RF rugged remote control (requires MSI-9600HT equipped with RF modem)
153591 MSI-8000HD RF remote display AC powered ( no A/D) 180 lb
178004 4in LaserLight2 MSI RF 21 lb
159221 Universal crane scale transport cart
AC direct power supply-Consult
Anti-heat shield-Consult
Audible alarm-Consult
176956 MSI Wi-Fi modem option kit (used in MSI-4260, MSI-4260M, MSI-6360, MSI-9600HT)
150367 Battery assembly, 12 V rechargeable 7 lb
138006 Universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard) 4 lb Consult
138007 Universal 115/230 VAC, 50/60 Hz battery charger (UK plug standard) 4 lb Consult
138008 Universal 115/230 VAC, 50/60 Hz battery charger (EC plug standard) 4 lb Consult
|
