MSI-6360 Crane Scales
|
 |
Legal For Trade
(Selected Models Only) |
Have Questions?
Our Staff will be glad to help |
Specifications Chart |
Overhead Weighing Meets High-Temperature Applications

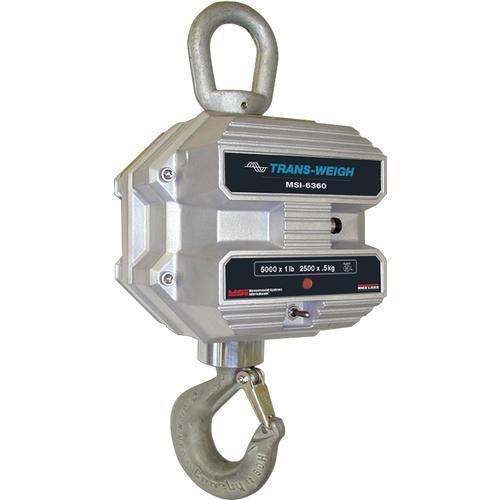

The MSI-6360 Trans-Weigh is an NTEP Certified industrial crane scale specifically designed to withstand high-temperature applications. With ScaleCore technology, the MSI-6360 can be remotely controlled and monitored safely from virtually anywhere.
Two integrated antennas allow the operator to connect up to two remote devices or networks via the optional RF or Wi-Fi modules. Connected ScaleCore remote devices can wirelessly display weight information—improving operation versatility and overall efficiency.
All electronics are securely mounted in a robust IP66 marine grade 356 alloy cast aluminum enclosure. The enclosure is designed for easy access for calibration and quick removal of the rechargeable battery.
Capturing weight with + 0.1% accuracy of applied load, the MSI-6360 is ideal for use in demanding industrial applications and offers Legal for Trade configurations in capacities up to 70,000 pounds. A non-Legal for Trade configuration has capacities up to 100,000 pounds for industrial applications
Standard Features
- Top lifting eye or shackle, bottom thrust bearing swivel hook
- 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA Plug Standard)
- Meets or exceeds OSHA, ANSI, ASME and other safety design standards (5:1 Ultimate Safety Factor)
- NTEP Certified configuration
Options(Contact ScalesGalore for application consultation)
- Anti-heat shielding for high-temperature applications
- Substitute bottom swivel hook with shackle
- Rugged remote control (control for On/Off, Zero, Tare and other functions)
- Oversized top lifting eye or shackle
- Oversized bottom hook
- Low headroom top adaptor
- Universal direct power supply; 85 to 265 VAC, 47 to 440 Hz / 130 to 300 VDC
- Wi-Fi communication is available for specialty applications and for use with the ScaleCore Webserver
- RF modem install for connectivity to MSI-8000, MSI-8000HD, MSI-8004HD, TranSend and LaserLight2 remote displays
- Custom top and bottom interfaces
- Crane scale cart
|
|
MSI-6360 Trans-Weigh Crane Scale |
| Model |
Price |
Capacity x Readability |
Est. Weight |
| 215829 |
Call (800)-832-0055
For Pricing |
500 x 0.2 lb |
250 x 0.1 kg |
53 lb |
| 215830 |
Call (800)-832-0055
For Pricing |
2000 x 1.0 lb |
1000 x 0.5 kg |
53 lb |
| 215831 |
Call (800)-832-0055
For Pricing |
5000 x 1 lb |
2500 x 0.5 kg |
62 lb |
| 215832 |
Call (800)-832-0055
For Pricing |
10,000 x 2 lb |
5000 x 1 kg |
62 lb |
| 215833 |
Call (800)-832-0055
For Pricing |
20,000 x 5 lb |
10,000 x 2 kg |
105 lb |
| 215834 |
Call (800)-832-0055
For Pricing |
30,000 x 10 lb |
15,000 x 5 kg |
125 lb |
| 215835 |
Call (800)-832-0055
For Pricing |
50,000 x 10 lb |
25,000 x 5 kg |
235 lb |
| 215836 |
Call (800)-832-0055
For Pricing |
70,000 x 20 lb |
35,000 x 10 kg |
270 lb |
| 215837 |
Call (800)-832-0055
For Pricing |
100,000 x 20 lb |
50,000 x 10 kg |
420 lb |
| Specifications |
| Approvals |
NTEP CC 19-122: 500 to 70,000 lb |
| Accuracy |
+ 0.1% +1 d of applied load |
| Resolution |
3,000 to 5,000 d standard
(Up to 10,000 d available) |
| Enclosure |
NEMA Type 4, IP66, marine grade 356 alloy cast aluminum |
| Lifting Eye, Shackle & Hook |
Crosby® or equivalent with 360o thrust-bearing swivel hook |
| Design Overload |
200% Safe / 500% Ultimate (except where noted) |
| Functions |
On/Off |
| Displayable Units |
Pounds or kilograms selectable |
| Power |
12 Volt rechargeable battery, 115/230 VAC battery charger included |
| Operating Time |
Up to 40 hours between charging with typical use |
| Temperature Range |
-4 oF to 140 oF (-20 oC to 60 oC)
Legal for Trade: 14 oF to 104 oF (-10 oC to 40 oC)
|
| Calibration |
Digital via MSI ScaleCore remote display |
| Filtering |
OFF, LO, HI-1 or HI-2 selectable |
| Radio Link |
802.15.4 at 2.4 GHz |
| Radio Effective Range |
Typically 100 to 300 ft line of sight |
| Warranty |
One-year limited |
|
