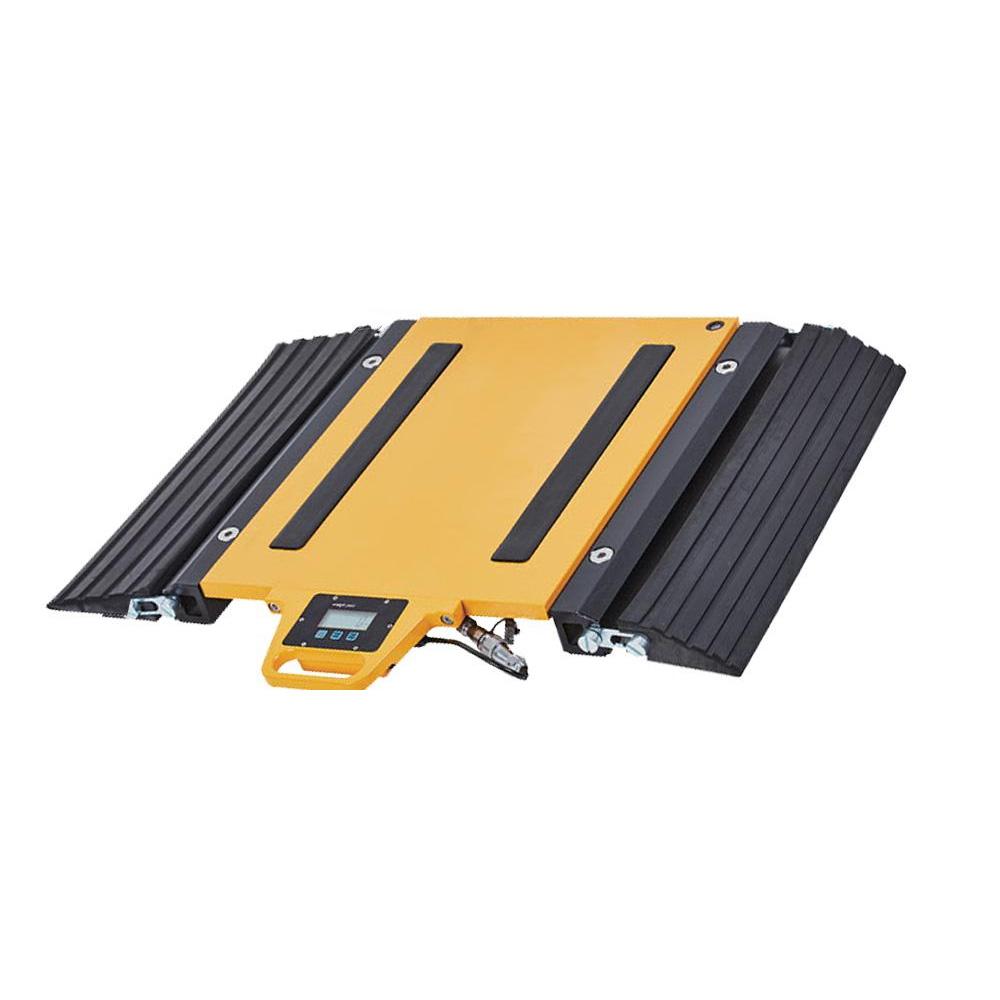

LP-Scale LP7660B With Display Axle Scales

Manufacturers

LP-Scale LP766XB With Display Axle Scales	Authorized Dealer
The LP Scale LP7660 axle load scale (dynamic weighing platform scales) is ideal for rapidly and accurately weighing heavy equipment with multiple contact points, such as automobiles, tractors, carts, airplanes, trucks, tankers, and containers. Its lightweight and portable design enables quick setup of mobile weighing stations on various flat surfaces
LP Scales >> Wheel Weighing Scales

Have Questions?

email Us

Our Staff will be glad to help

Specifications Charts

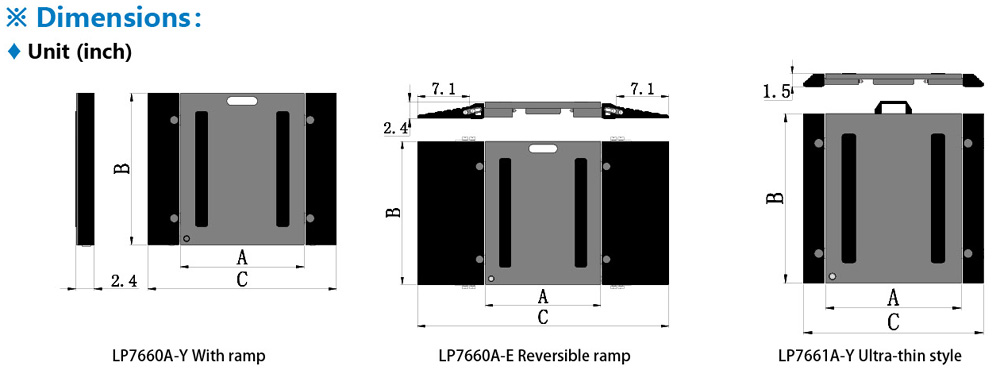

Dims

LP-Scale LP766XB With Display Axle Scales

Cases
	LP Scale LPMOVEBOX-1416-2PADS Moveable steel 14 x 16 packing box - 2 pads, add $288.00
	LP Scale LPMOVEBOX-1416-4PADS Moveable steel 14 x 16 packing box - 4 pads, add $576.00
	LP Scale LPMOVEBOX-1624-2PADS Moveable steel 16 x 24 packing box - 2 pads, add $305.00
	LP Scale LPMOVEBOX-1624-4PADS Moveable steel 16 x 24 packing box - 4 pads, add $434.00
	LP Scale LPMOVEBOX-1624-4PADS Moveable steel 16 x 24 packing box - 4 pads, add $434.00
	LP Scale LPMOVEBOX-2432-4PADS Moveable steel 24 x 32 packing box - 4 pads, add $691.20

More info

The LP Scale LP7660 axle load scale ( pesaje dinamico basculas de puente) are used in all applications in which it is necessary to quickly and simply weigh very heavy devices with various resting points, such as automobiles, tractors, carts, airplanes, trucks, tankers, containers, etc. These are particularly suitable for creating mobile weighing solutions: thanks to their reduced weight and the ease in moving and placing them, in a few minutes it’s possible to create a weighing station on any type of flat surface.

Accuracy class: 0.5%F.S (Static weighing)
Include Single pad with ramp, Weighing indicator
Option moveable steel packing box; 3 or 4 pads

Main technical features:

Accuracy of the platform : 3000e
Low profile: only 58mm high
Structure in special aluminum, for guaranteeing the lightness as well as sturdiness and long duration in time.
Vulcanized antislip rubber in the resting areas, for maximum grip on any type of surface.
IP68 stainless steel load cells.
Extremely easy and reliable connection of the scale to the weight indicator
Very easy to manoeuvre.
Waterproof keyboard
In dynamic mode, there are two types for options: high accuracy dynamic mode and normal accuracy dynamic mode

Versatile and simple to use

LP7660 platforms are an excellent alternative to the classic fixed weighting system (like weighbridges), especially when weighing vehicles, when one needs to:
Create weighing stations in a short time and on any surface
Check the weight of the material transported by the vehicles
Execute an unlimited number of daily weighs, without having to use weighbridges.
Weigh for limited periods of time (harvest, crops, etc.).
Verify the weight of each single wheel, of each single axle, and all the various weight sums of a vehicle.
Weigh in small spaces

Easy to transport
The reduced weight and ergonomic handles make it easy to transport LP7660 platforms; furthermore, the bigger size are fitted with wheels which further simplify their movement.

Models	LP7660B-Y-1416-10	LP7660B-Y-1624-20	LP7660B-Y-2432-30	LP7660B-E-1416-10	LP7660B-E-1624-20	LP7660B-E-2432-30	LP7661B-Y-1416-5
Price	$825.00	$1,125.00	$1,425.00	$870.00	$1,170.00	$1,470.00	$1,575.00
Display	6-digit 1 inch LCD with backlight
Capacity x Redability	10000 x 5 lb	20000 x 10 lb	30000 x 20 lb	10000 x 5 lb	20000 x 10 lb	30000 x 20 lb	5000 x 1 lb
Size	14 x 16 inch	16 x 24 inch	24 x 30 inch	14 x 16 inch	16 x 24 inch	24 x 30 inch	14 x 16 inch
Material	Aluminum with self ramp			Aluminum with rubber ramp			Aluminum with self ramp
Ramp Size	4 inch	7 inch	7 inch	4 inch	7 inch	7 inch	2.5 inch
Legal For Trade	-
Units	kg/lb switchable
Temperature range	-10ºC ~ +40ºC
Tare range	+10%F.S
rating	IP68
Include	Single pads with ramps, Weighing indicator
Power	AC 110V 60Hz built-in rechargeable battery
