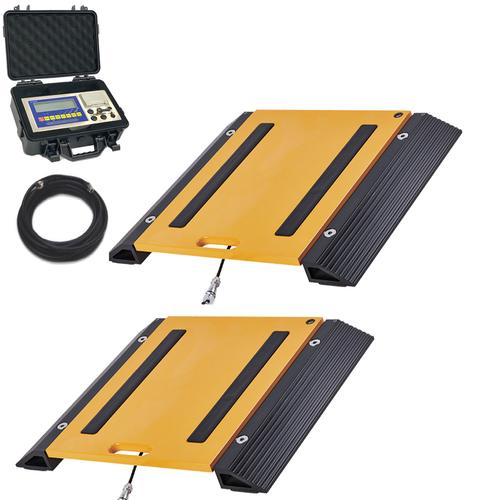

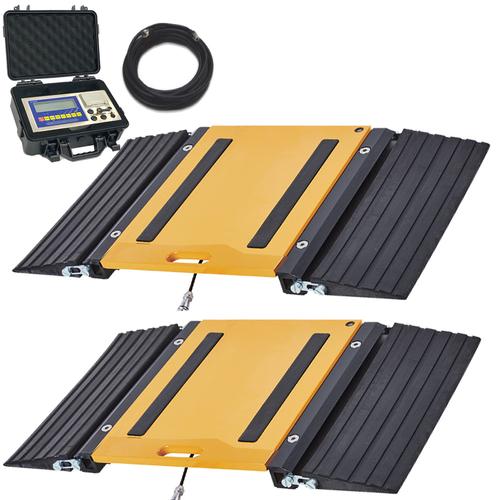

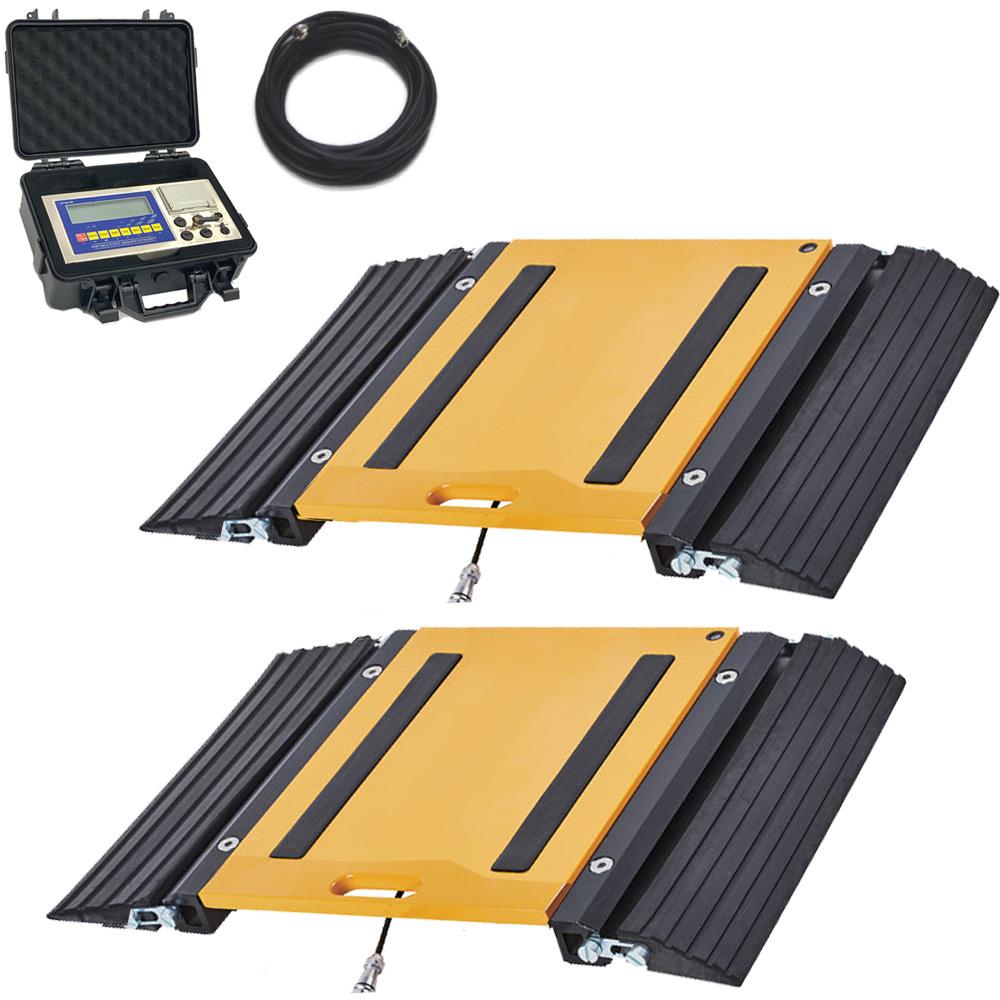

LP-Scale LP766XA Wired Axle Scales with 32 ft cable, 2 pads and Weighing indicator |
Authorized Dealer |
The LP Scale LP7660 axle load scale ( pesaje dinamico basculas de puente) are used in all applications in which it is necessary to quickly and simply weigh very heavy devices with various resting points, such as automobiles, tractors, carts, airplanes, trucks, tankers, containers, etc. These are particularly suitable for creating mobile weighing solutions: thanks to their reduced weight and the ease in moving and placing them, in a few minutes it’s possible to create a weighing station on any type of flat surface.
|
| LP Scales >> Wheel Weighing Scales |
|
Have Questions?
Our Staff will be glad to help |
Dims
|
|
|
The LP Scale LP7660 axle load scale ( pesaje dinamico basculas de puente) are used in all applications in which it is necessary to quickly and simply weigh very heavy devices with various resting points, such as automobiles, tractors, carts, airplanes, trucks, tankers, containers, etc. These are particularly suitable for creating mobile weighing solutions: thanks to their reduced weight and the ease in moving and placing them, in a few minutes it’s possible to create a weighing station on any type of flat surface.
- Accuracy class: 0.5%F.S (Static weighing)
- Include 2 pads with ramp, Weighing indicor, Cables
- Indicator LP7561C with printer
- Option moveable steel packing box; 3 or 4 pads

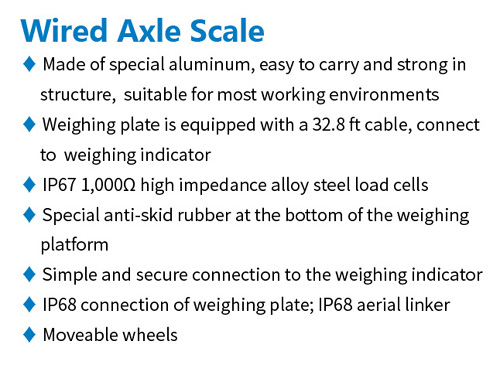

Main technical features:
- Accuracy of the platform : 3000e
- Low profile: only 58mm high
- Structure in special aluminum, for guaranteeing the lightness as well as sturdiness and long duration in time.
- Vulcanized antislip rubber in the resting areas, for maximum grip on any type of surface.
- IP68 stainless steel load cells.
- Extremely easy and reliable connection of the scale to the weight indicator
- Very easy to manoeuvre.
- Fitted with 10m cable and connector for connection to weight indicator.
- High-definition LCD backlit
- With built-in printer
- Waterproof keyboard
- In dynamic mode, there are two types for options: high accuracy dynamic mode and normal accuracy dynamic mode
Versatile and simple to use
- LP7660 platforms are an excellent alternative to the classic fixed weighting system (like weighbridges), especially when weighing vehicles, when one needs to:
- Create weighing stations in a short time and on any surface
- Check the weight of the material transported by the vehicles
- Execute an unlimited number of daily weighs, without having to use weighbridges.
- Weigh for limited periods of time (harvest, crops, etc.).
- Verify the weight of each single wheel, of each single axle, and all the various weight sums of a vehicle.
- Weigh in small spaces
Easy to transport
The reduced weight and ergonomic handles make it easy to transport LP7660 platforms; furthermore, the bigger size are fitted with wheels which further simplify their movement.
Suitable for dynamic weighing
LP7660 combined with a LP7650 indicator, allow to create dynamic weighing systems, with automatic acquisition of the weight of the axles and calculation of the total weight of the vehicle.

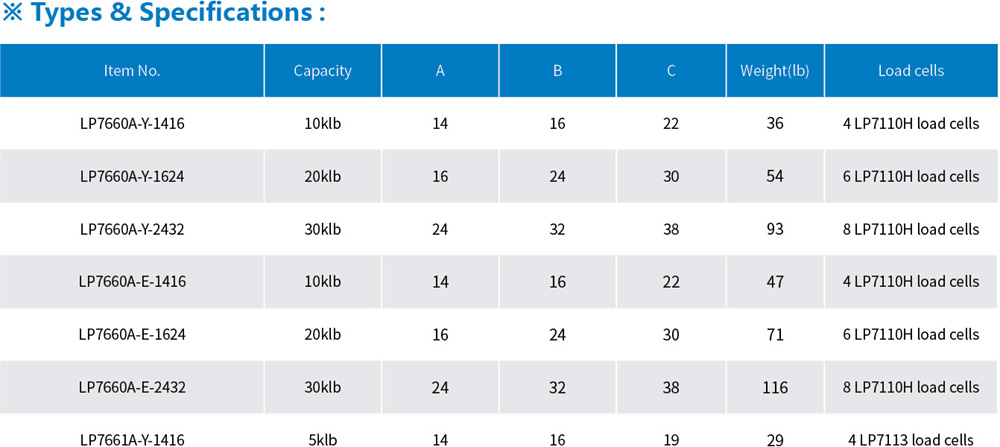

| Models |
LP7660A-Y-1416-10 |
LP7660A-Y-1624-20 |
LP7660A-Y-2432-30 |
LP7660A-E-1416-10 |
LP7660A-E-1624-20 |
LP7660A-E-2432-30 |
LP7661A-Y-1416-5 |
| Price |
$1,920.00
|
$2,424.00
|
$3,744.00
|
$2,016.00
|
$2,544.00
|
$4,032.00
|
$1,800.00
|
| Display |
6-digit 1 inch LCD with backlight |
| Capacity x Redability |
20000 x 5 lb
(2 Pads 10000 x 5 lb) |
40000 x 10 lb
(2 Pads 20000 x 10 lb) |
60000 x 20 lb
(2 Pads 30000 x 20 lb) |
20000 x 5 lb
(2 Pads 10000 x 5 lb) |
40000 x 10 lb
(2 Pads 20000 x 10 lb) |
60000 x 20 lb
(2 Pads 30000 x 20 lb) |
10000 x 1 lb
(2 Pads 5000 x 1 lb) |
| Size |
14 x 16 inch |
16 x 24 inch |
24 x 30 inch |
14 x 16 inch |
16 x 24 inch |
24 x 30 inch |
14 x 16 inch |
| Material |
Aluminum with self ramp |
Aluminum with ruber ramp |
Aluminum with self ramp |
| Ramp Size |
4 inch |
7 inch |
7 inch |
4 inch |
7 inch |
7 inch |
2.5 inch |
| Legal For Trade |
- |
| Units |
kg/lb switchable |
| Temperature range |
-10ºC ~ +40ºC |
| Tare range |
+10%F.S |
| rating |
IP68 |
| Include |
2 pads with ramps & transmitter, Weighing indicor, Cables |
| Optinal |
Self display transmitter; 4 or 6 pads |
| Power |
AC 110V 60Hz built-in rechargeable battery |
LP766XW
Moveable steel packing box
| Models |
LPMOVEBOX-1416-2PADS |
LPMOVEBOX-1624-2PADS |
LPMOVEBOX-2432-2PADS |
LPMOVEBOX-1416-4PADS |
LPMOVEBOX-1624-4PADS |
LPMOVEBOX-2432-4PADS |
| Price |
$288.00
|
$576.00
|
$305.00
|
$434.00
|
$345.60
|
$691.20
|
| Material |
Mild Steel With Wheels |
| Size |
14 x 16 |
16 x 24 |
24 x 32 |
14 x 16 |
16 x 24 |
24 x 32 |
| Number of pads |
2 |
2 |
2 |
4 |
4 |
4 |
|
