LP-Scale LP7622A Legal for Trade Drum Scales with External Ramps |
Authorized Dealer |

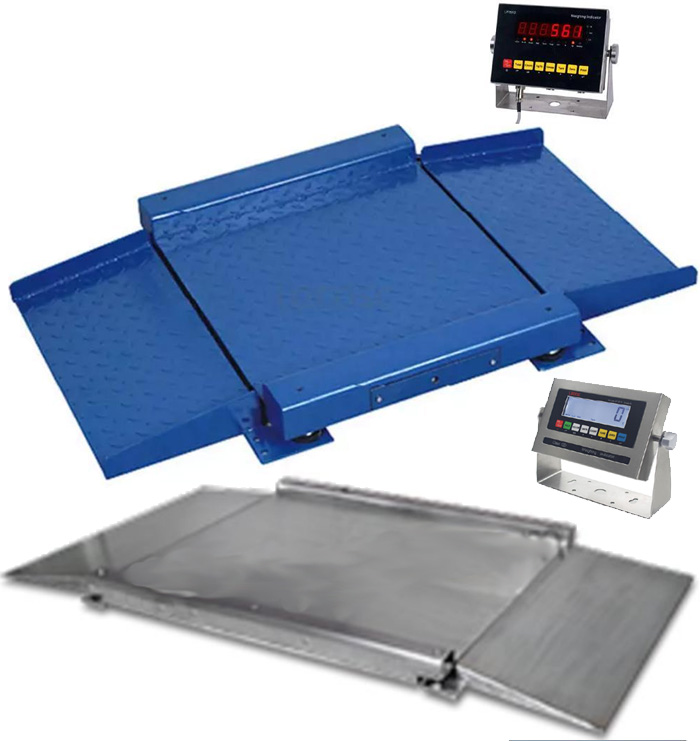

| LP7622A With farme Heavy duty weighing scales suitable for all kinds weighing. With a capacity of 1000lb, 2500lb,5000lb, these tough Drum scales can handle big jobs with ease. This type Drum scale also offers the enhanced resolution and diagnostic capability.
|
| Industrial Scales >> LP Scales > Drum Scales |
|
Have Questions?
Our Staff will be glad to help |
 |
| Legal For Trade |

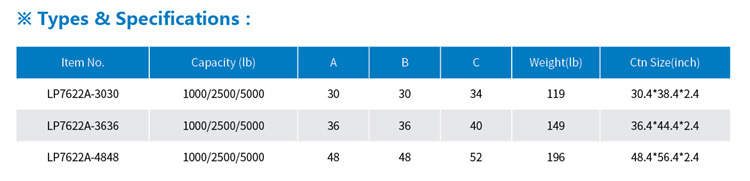

Specifications Charts
Dims
|
LP7622A With farme Heavy duty weighing scales suitable for all kinds weighing. With a capacity of 1000lb, 2500lb,5000lb, these tough Drum scales can handle big jobs with ease. This type Drum scale also offers the enhanced resolution and diagnostic capability.

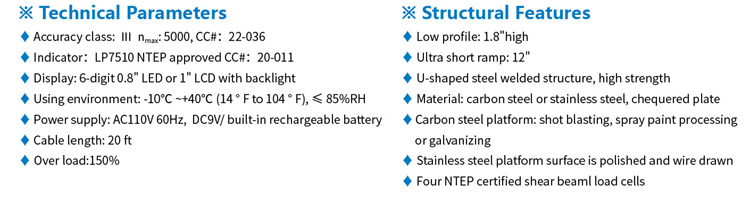

Feature:
- Integral side and end guards protect the load cells from accidental side-impact damage
- Ramps are available for lifting the load onto and off scales easily
- Accuracy class: III nmax: 5000 CC# 22-036
- Include Frame, 2 Ramps, 4 Load cells, Weighing indicor,Cable
- Indicator LP7510 NTEP approved CC# 20-011
- Option Indicator Stand
- Option Printer, Remote display, Software
|
|
| Mild Steel Model |
LP7622A-3030-1000 |
LP7622A-3030-2500 |
LP7622A-3030-5000 |
LP7622A-3636-1000 |
LP7622A-3636-2500 |
LP7622A-3636-5000 |
| Mild Price |
$744.00
|
$744.00
|
$744.00
|
$840.00
|
$840.00
|
$496.00
|
| Mild Frame Material |
Mild Steel |
| Mild Pan Material |
Mild Steel shot blasting epoxy powder coating or galvanizing |
| Mild Display |
0.8" LED Display |
| SS Stainless Steel Model |
LP7622ASS-3030-1000 |
LP7622ASS-3030-2500 |
LP7622ASS-3030-5000 |
LP7622ASS-3636-1000 |
LP7622ASS-3636-2500 |
LP7622ASS-3636-5000 |
| Mild Price |
$1,800.00
|
$1,800.00
|
$1,800.00
|
$1,920.00
|
$1,920.00
|
$1,920.00
|
| SS Frame Material |
Stainless Steel |
| SS Pan Material |
3040SS Stainless Steel |
| SS Display |
1" LCD Display with backlight |
| Capacity x Redability |
1000 x 0.2 lb |
2500 x 0.5 lb |
5000 x 1 lb |
1000 x 0.2 lb |
2500 x 0.5 lb |
5000 x 1 lb |
| Legal For Trade |
Accuracy class: III nmax: 5,000 divisions CC# 22-036 Base Indicator: #20-011 |
| Top Plate Size |
30 x 30 in(2.5 x 2.5 ft) |
36 x 36 in(3 x 3 ft) |
| Column Height |
0 in |
0 in |
| Weighing function |
Zero, tare, G.W, N.W, accumulation. printing, animal -weighing. |
| Units |
kg/lb switchable |
| Mounting bracket |
Mounting bracket and Hardware |
| Power |
AC110V 60Hz |
| Interface |
Full Duplex RS-232 Serial Port |
| limit alarm |
Upper/lower |
| power save |
Automatic power off and power save |
| warning alarm |
Automatic error warning alarm |

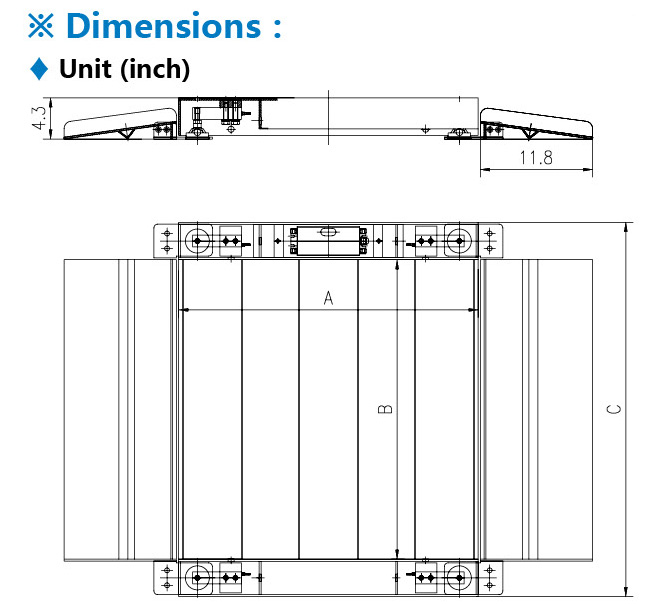

Dims
|
