Intelligent Weighing Technology PH-Touch Series High Capacity Precision Balances |
Authorized Dealer |

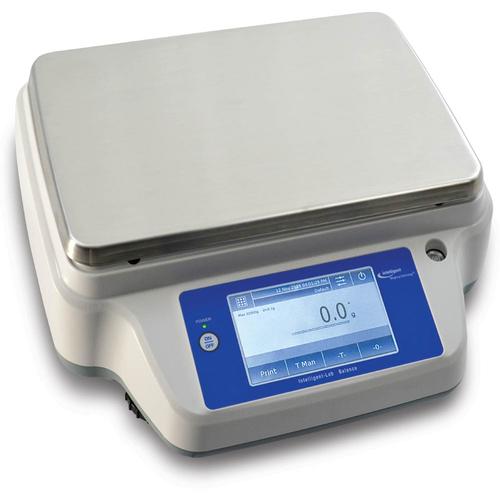

| The PH-Touch is a “very high capacity” laboratory balance with an impressive readability of 0.1g. The series comes in capacities ranging from 12,000 g to 32,000 g. The PH-Touch is a great choice when you need the precision of a laboratory balance, but the capacity of a more industrial weighing machin |
The PH-Touch is a “very high capacity” laboratory balance with an impressive readability of 0.1g. The series comes in capacities ranging from 8,000 g to 32,000 g. The PH-Touch is a great choice when you need the precision of a laboratory balance, but the capacity of a more industrial weighing machine.
- Five Inch Color Touch-Screen display
- Multi-User with Password Protection
- GLP / ISO Calibration Data Storage
- RS232 Interface / USB Port
- In Use Dust Cover
- Under Weighing Hook
| Model |
PH-Touch 8001
6-PH1-S800-122 |
PH-Touch 16001
6-PH1-S160-122 |
PH-Touch 25001
6-PH1-S250-122 |
PH-Touch 32001
6-PH1-S320-122 |
| Price |
$1,200.60
|
$1,125.18
|
$1,286.10
|
$1,298.28
|
| Capacity x Readability |
8,000 x 0.1 g |
16,000 x 0.1 g |
25,000 x 0.1 g |
32,000 x 0.1 g |
| Recommended Minimum Load |
2 g |
| Linearity |
+0.2 g |
+0.3 g |
+0.3 g |
+0.4 g |
| Repeatability (Std. Dev.) |
0.1 g |
0.1 g |
0.1 g |
0.1 g |
| Stabilization Time |
< 3 sec |
< 3 sec |
< 4 sec |
< 4 sec |
| Sensitivity Drift |
+6ppm / oC (+10oC to + 30oC) |
| Weisghing Unit |
g, lb, ct, oz, dwt, oz t, GN, taels (HK, Singapore, R.O.C.), mommes, custom |
| Functions |
Checkweighing, %, peak hold, below balance weighing, density, counting, animal weighing, statistics, GLP formulation, multi-languages, password protection |
| Tare Range |
To capacity by subtraction |
| Power Source |
110 -230 VAC, 50/60 Hz / 9 V adapter |
| Construction |
Cast aluminum base with ABS housing |
| Display |
5-inch color touchscreen display |
| Pan Size |
12.6 x 8.6 in / 320 x 220 mm |
| Connectivity |
RS 232 bi-directional, configurable, USB |
| Dimensions (W x D x H) |
14.2 x 14 x 5.1 in / 360 x 355 x 130 mm |
| Operating Environment |
+41oF to +95oF / +5oC to +35oC, 95% RH |
| Net Weight |
17.6 lb / 8 kg |
| Shipping Weight |
20 lb / 10 kg |
| Options |
Printer |
| Country of Origin |
China |
China |
China |
China |
| Features |
Benefits |
| Configurable backlight |
Saves battery power |
| Easy to use keyboard arrangements and menu |
Makes training and operation simple, reducing mistakes |
| Alpha-numeric display |
Easy to understand menu navigation |
| Tactile keypad |
Positive feedback allows for precise entry of information |
| Waterproof keypad |
Protects against damage to electronic components |
| Adjustable environmental filter settings (5 levels) |
Can adjust balance response to differing environmental conditions for more controlled results |
| Multiple weighing units (11) |
Allows fl exibility of weighing across many disciplines |
| Parts counting function |
Allows accurate counting of components and small parts. (can be enabled / disabled) |
| RS-232 bi-directional serial interface – user selectable for printer or computer |
Allows communication with peripheral data collection and printing instructions |
| Selectable Baud rate |
Allows connection do different data collection devices |
| One key calibration function |
Calibration is simple, ensuring that the balance will be calibrated often during use |
| Auto zero can be enabled/disabled |
Applications such as evaporation can be accommodated |
| 100% subtractive tare |
Enables the weight of containers to be ignored |
| Large, bright backlit LCD display |
Easy to read in all lighting conditions including bright sunlight |
| Adjustable feet / spirit level |
The balance remains level for accurate results even on uneven working surfaces |
| Below balance weighing |
Allows for easy weighing of bulky items |
| Density function (optional) |
Allows for easy calculation of density |
|
