Imada SVL-220 Manual Lever Test Stand 220 lbs FREE UPS Ground Shipping (48 US States Only) Model Select SVL-220 $1,300.00 SVL-220S $1,750.00

Force gauge sold separately

Model SVL-220 vertical manual lever test stands provide quick, consistent testing. Both compression and tension tests can be performed with a simple downward stroke of the lever. The test stand is designed to provide a simple move to change from compression to tension mode. Return springs reset the lever in compression mode and gravity does the work in tension mode. The stroke can be adjusted with a mechanical limit. The stands accommodate any of the standard range Imada mechanical or digital force gauges and can be equipped with a precision digital distance meter. SVL-220 is perfect for compression and tension applications where rapid action is desired.

Distance Meter Specifications:

• Display - Push button for inch/mm, zero set and on/off
• Resolution - 0.0005"/0.01 mm
• Accuracy - ±0.01"/0.2mm

Model	SVL-220	SVL-220S	SVH-220	SVH-220S
	$1,300.00 Add to Cart	$1,750.00 Add to Cart	$1,300.00 Add to Cart	$1,750.00 Add to Cart
Capacity	220 lb	220 lb	220 lb	220 lb
Type	Lever		Hand Wheel
Distance Meter	NO	YES	NO	YES
Accuracy	±0.01"/0.2mm		0.1% of reading or 0.005"/0.1mm, whichever is greater
Stroke	2.3" 60mm per 170°		2.36" (60mm)
Resolution	0.0005"/0.01 mm

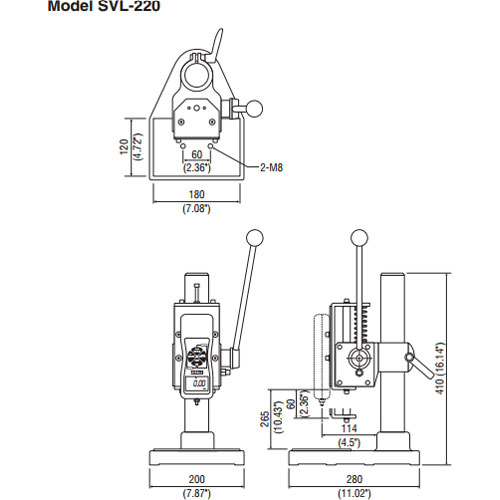

DIMENSIONS
