1124 Series
Portable Mechanical Beam Scale 1124 Series Fairbanks 1124 Series is a rugged and economical beam scale for industrial and commercial general utility weighing. Its large platform and 1,000 pound capacity make it the ideal scale for a variety of applications. The base, lever system and platform are all made of durable cast iron, providing exceptional accuracy and reliability over many years of service, with virtually no maintenance.
APPLICATIONS
- Intrinsically safe
- Parts distribution
- Material handling
- Inventory Management
- Warehousing
- Bag Filing
FEATURES
- Cost-effective solution for basic, portable mechanical utility scale applications.
- Mechanical design makes the 1124 Series perfect for all hazardous locations.
- Easy to maneuver, even in tight spaces.
- Easy to read, chrome-plated beam with brass inset
- Open face poise with pointer in place when preset
- NTEP and CWM approved for Legal For Trade applications

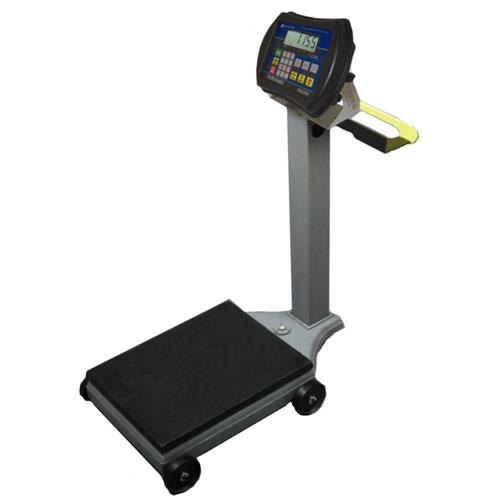

1155 Series
Fairbanks 1155 Series combines digital electronics with reliable, mechanical weighing to create a general purpose, 1000 pound capacity utility scale that is approved for commercial applications. The full-numeric keypad provides easy means for manual input of tare weights and product IDs.
ECONOMICAL AND EASY TO USE
This portable, cast iron scale runs on AC or battery-power, enabling it to operate virtually anywhere. Easy-rolling wheels and a new, non-slip, ergonomic handle make moving the scale a simple task.
APPLICATIONS
- Material handling
- Inventory management
- Parts distribution
- Warehousing
- Auditing
- Bag filling
FEATURES
- Sturdy cast iron base, lever system, platform and wheels provide years of accurate service.
- Made for easy portability with cast iron wheels and new, non-slip, ergonomic handle.
- Battery or AC power.
- Fairbanks low-power technology enables batteries to last up to 55 hours of continuous use.
- 1.0 in backlit LCD is easy to read in most lighting conditions.
- NTEP and MC approved for “Legal for Trade” applications.
Specifications
| Model |
1124 Series |
1155 Series |
| 55652 |
55653 |
| Price |
Selected
$599.00
|
$1,457.60
|
| Capacity x Readability |
1000 x 0.5 lb |
1000 x 0.2 lb |
| Legal for Trade |
NTEP CC# 88-266, MC #AM-4657 |
NTEP CC# 92-110, MC #AM-5720 |
| Construction |
Cast iron |
Cast iron |
| Column |
Fabricated steel |
Fabricated steel |

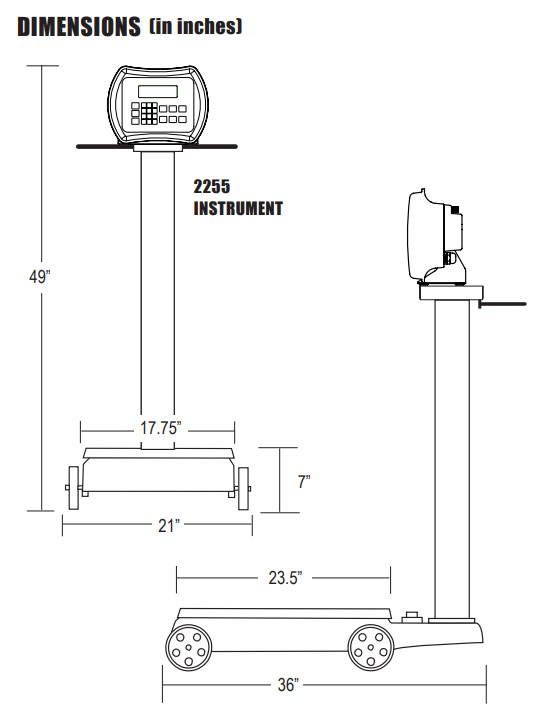

| Pan Size |
23.5" x 17.75" |
| Wheels |
5.0" diameter, cast iron |
| Units |
lb |
lb, kg, oz, g, custom |
| Display |
- |
1.0 in tall, 6-digit, green backlit LCD |
| Enclosure |
- |
ABS plastic enclosure NEMA 1 rated |
| Push Button Keys |
- |
0-9, Decimal, Enter, ID/Left arrow, Right arrow, Menu, Zero, Print, Units, Tare, On/Off, B/G Net |
| Communications |
- |
COM 1 - RS232, RS422, RS485
COM 2 - RS232, RS422, RS485, 20 mA
External - DB9 |
| Power |
- |
AC or 5 D cell batteries |
|
