Dillon EDjunior RED Crane Scales dillon logo
Authorized Dealer

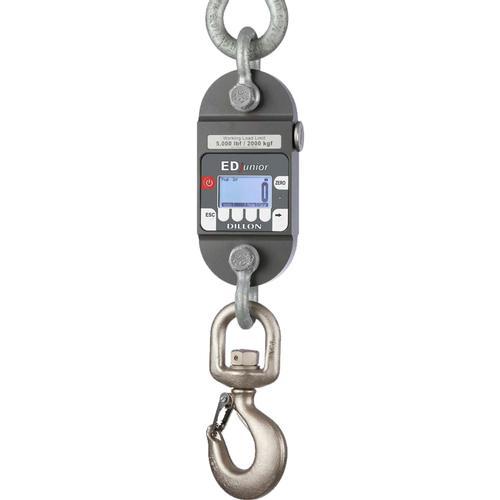

The EDjunior Crane scale is well suited for applications that are looking for a reliable, rugged, outdoor suitable instrument at an extremely affordable price. The price includes a dynamometer, standard upper shackle, basic swivel hook , manual, 2 C-cell batteries, calibration certificate and a wooden shipping crate.
Dillon EDjunior RED Dynamometers with two Shackles and Carry Case
Call Now 8008320055

View Specifications Chart

View PDF brochure
Dillon EDjunior RED Crane Scales

Price From: $1,740.80

FREE UPS Ground Shipping
(48 US States Only)

Model

EDjunior Red Crane Scales

The EDjunior is all about value. Behind its simple design and easy operation, you will find the quality and performance not found elsewhere. With the EDjunior, Dillon proves that economy can go hand-in-hand with accuracy, long service life and, most importantly, worker safety – just compare the Dillon EDjunior to the competition. Nothing else comes close!

Measurement Capabilities
The EDjunior provides peak detection as well as live load readings. Selectable units of measure include lbf, kgf and Newtons.

  • Accuracy — The load element design and strain gauges chosen for the EDjunior produce an accuracy of 0.2 % (full scale). This level of precision offers flexibility for use in a broad range of applications. Capacities up to 10,000 lb (5000 kg) available.
  • Resolution — Readings are displayed with a resolution of 1 part in 1000 to ensure the level of readability required for critical lifting applications.

Control Interface
The exclusive Dillon SOFTKEY interface provides direct access to setup and display functions without the typical confusing menu structure. The 6-digit dot-matrix display features 1 inch (25 mm) high numerals for greater visibility.

High Strength, Low Weight
Heavy, cumbersome tools make tough jobs even harder. Through the use of aircraft quality materials, Dillon has made the EDjunior an easy-to-position, highly mobile instrument with exceptional strength. It offers an impressive factor of safety at all capacities.

All Environments
With its NEMA4/IP55 design, the EDjunior is at home in virtually any environment and ideally-suited to outdoor job-site applications as well as in-plant use.

The EDjunior Crane scale is well suited for applications that are looking for a reliable, rugged, outdoor suitable instrument at an extremely affordable price. The price includes a dynamometer, standard upper shackle, basic swivel hook , manual, 2 C-cell batteries, calibration certificate and a wooden shipping crate.

Model EDjr-1T-S-BS-WC
AWT05-509242
EDjr-2T-S-BS-WC
AWT05-509243
EDjr-5T-S-BS-WC
AWT05-509244
EDjr-10T-S-BS-WC
AWT05-509245
EDXtreme Red Crane Dillon EDjr-1T-S-BS-WC EDjunior Crane Scale (AWT05-509242) 2500 x 2 lb
$1,740.80
buy now
Dillon EDjr-2T-S-BS-WC EDjunior Crane Scale (AWT05-509243) 5000 x 5 lb
$1,856.40
buy now
Dillon EDjr-5T-S-BS-WC EDjunior Crane Scale (AWT05-509244) 10000 x 10 lb
$2,259.30
buy now
Dillon EDjr-10T-S-BS-WC EDjunior Crane Scale (AWT05-509245) 25000 x 20 lb
$3,082.95
buy now
Capacity x Resolution 2500 x 2 lb
1000 x 1 kg
10000 x 10 N
5000 x 5 lb
2000 x 2 kg
20000 x 20 N
10000 x 10 lb
5000 x 5 kg
50000 x 50 N
25000 x 20 lb
10000 x 10 kg
100000 x 100 N
Ultimate overload protection 700% 500%
Body Construction and Overload Design Aircraft-quality 2024 aluminum Aircraft-quality E4340 alloy steel
Enclosure Designed to NEMA4X/IP55. Suitable for continuous outdoor use.
Accuracy 0.2% of capacity
Repeatability 0.2% of capacity
Proof Load 150% of capacity
Safe Overload 200% of capacity
Display 128 x 64 dot-graphic LCD display shows all digits 1.0” (26 mm) high plus annunciators and softkeys
Display Update Rate 2 times per second.
Peak Capture Rate 10 times per second typical
Calibration Traceable to the National Institute of Standards and Technology. Calibration card included.
Battery Life 425 hours typical use with two C-cell alkaline batteries
Backlight Configurable. Using backlight will consume more battery power, reducing battery life
Operating Temperature -4° F to 158° F (-20° to 70° C)
Upper shackle Included Included Included Included
Swivel Hook Included Included Included Included
Shipping crate Included Included Included Included
Included with Instrument Standard upper shackle, basic swivel hook , manual, 2 C-cell batteries, calibration certificate and a wooden shipping crate.
Warranty 2 years parts and labor
Recorded at 120% with date and time stamp

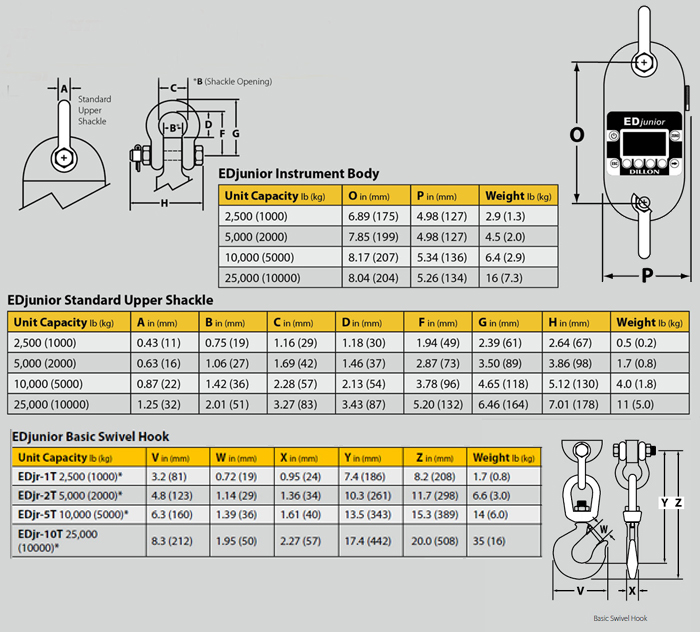

dims
