Adam Equipment Luna Analytical and Precision Balances

Analytical and Precision Balances

Lab Balances by Readability

Manufacturers

Adam Equipment Luna Analytical and Precision Balances	Authorized Dealer
Luna analytical balances are designed with an array of features and functions to accommodate most lab applications. The Luna range offers improved performance for faster, more accurate readings. With stylish, modern backlighting, Luna’s impressive display gives an aura of smart sophistication

Adam Equipment

0.1 mg Models
Specifications Chart

Have Questions?

email Us

Our Staff will be glad to help

1 mg Models
Specifications Chart

0.01g , 0.1g Models
Specifications Chart
Adam Equipment Solis Precision Balances

High Capacity Models
Specifications Chart

Luna analytical balances are designed with an array of features and functions to accommodate most lab applications. The Luna range offers improved performance for faster, more accurate readings. With stylish, modern backlighting, Luna’s impressive display gives an aura of smart sophistication.

The LCD features large, readily discernible 24mm digits in white on a black background. Multilingual text and display capability make Luna well-suited for users in various regions. For simple operation, navigation buttons are color-coded, helping users perform functions with minimal training. Luna provides USB and RS-232 interfaces to facilitate data collection and transmission to computers or printers. ABS plastic construction and rugged grade 304 stainless steel pan mean Luna is easy to clean and can withstand demanding lab use. Available in four models with capacities up to 250g, Luna offers a readability of 0.0001g and can perform basic and detailed measuring tasks.

With stylish, modern backlighting, Lunas impressive display gives an aura of smart sophistication. The LCD features large, readily discernible 24mm digits in blue on a black background. Multilingual text and display capability make Luna well-suited for users in various regions. Luna provides USB and RS-232 interfaces for speedy data collection and transmission to computers or printers. ABS plastic construction and rugged grade 304 stainless steel pan mean Luna is easy to clean and can withstand demanding lab use. Available in four models with capacities up to 250g, Luna offers a readability of 0.0001g and can perform basic and detailed measuring tasks.

Features and Benefits
Hardware

Color-coded keys facilitate quick recognition of the most frequently used buttons
Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
Security slot for optional Kensington-type lock and cable to help prevent theft
Large, grade 304 stainless steel pan allows swift cleaning
Sealed keypad protects against dirt and spills
USB and RS-232 interfaces provide speedy communication with computers and printers

Software

External calibration allows for verification and adjustment with weights
Multilingual display permits use in various regions
Parts counting with preset sample sizes
Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
Selectable digital filtering for animal/dynamic weighing enables consistent results for moving subjects
Auto power-off to save energ

Display

Vivid, backlit LCD easily visible in any lighting conditions

Power

AC adapter included

Adam Equipment Equinox Analytical and Semi-Micro Balances

	Adam Equipment 3012014259 In-use Cover, add $35.00
	Adam Equipment 3074010267 - USB Cable for Precision Balances, add $35.00
	Adam Equipment 3014011014 RS-232 cable M-F, add $35.00
	Adam Equipment 700100410 ABI-1 Ionizer, add $1,021.50
	Adam Equipment - 1120014641 AIP dot matrix printer , add $310.50
	Adam Equipment - ATP Thermal Printer (1120011156), add $220.50
	Adam Equipment 700100046 Kensington-type lock and cable, add $30.00
	Adam Equipment 600002028 AdamDU - Data Collection Program, add $90.00
	Adam Equipment 700660290 Calibration Certificate, add $81.00

Specifications Chart

Model with External calibration	LAB-84e	LAB-124e	LAB-214e	LAB-254e	LPB 223e	LPB 423e	LPB 623e	LPB 823e
Model with External calibration	$1,323.85	$1,514.75	$1,705.65	$1,983.70	$846.60	$983.55	$1,157.85	$1,340.45
Model with Internal calibration	LAB-84i	LAB-124i	LAB-214i	LAB-254i	LPB 223i	LPB 423i	LPB 623i	LPB 823i
Model with Internal calibration	$1,514.75	$1,792.80	$1,884.10	$2,162.15	$1,000.15	$1,149.55	$1,332.15	$1,514.75
Capacity x Readability	80 g x 0.1 mg	120 g x 0.1 mg	210 g x 0.1 mg	250 g x 0.1 mg	220 g x 1 mg	420 g x 1 mg	620 g x 1 mg	820 g x 1 mg
Repeatability (S.D.)	0.0002 g	0.0002 g	0.0002 g	0.0002 g	0.002 g	0.002 g	0.002 g	0.002 g
Linearity (+/-)	0.0003 g	0.0003 g	0.0003 g	0.0003 g	0.003 g	0.003 g	0.003 g	0.003 g
Pan Size	3.5" ø / 90mm ø				4.7" ø / 120mm ø
Weighing Units	mg, g, ct, GN, N, dr, oz, ozt, dwt, mm, tl.T, tl.H, tl.S, T, custom unit				mg, g, ct, GN, dr, ozt, dwt, mm, tl.T, tl.H, tl.S, T, custom unit
Stabilization Time (sec)	2
Interface	RS-232, USB
Calibration	LAB XXe models: External calibration LAB XXi models: Internal automatic calibration / External calibration
Display	Backlit LCD with 0.9"/ 24mm -high digits
Power Supply	18VDC 830mA adapter
Operating Temperature	15^o to 35^oC / 59^o to 95^oF
Housing	ABS plastic
Draft Shield	Chamber 7.6"x7.7"x9.1" / 192x195x230mm
Overall Dim.	8.8"x14.7"x13.3" / 224x374x338mm (wxdxh)
Net Weight	LAB XXe models: 12.8lb / 5.8kg LAB XXi models: 13.7lb / 6.2kg				XXe models: 9 lb / 4.1 kg XXi models: 9.9 lb / 4.5 kg		XXe models: 9.9 lb / 4.5 kg XXi models: 13 lb / 5.9 kg

Model with External calibration	LTB 2602e	LTB 3602e	LTB 4602e	LTB 6002e	LBB 6001e	LBB 8001e	LBB 12001e	LBB 15001e
Model with External calibration	$830.00	$913.00	$1,020.90	$1,601.90	$975.25	$1,062.40	$1,444.20	$1,626.80
Model with Internal calibration	LTB 2602i	LTB 3602i	LTB 4602i	LTB 6002i	-	-	-	-
Model with Internal calibration	$1,000.15	$1,095.60	$1,182.75	$1,780.35	-	-	-	-
Capacity x Readability	2600 x 0.01 g	3600 x 0.01 g	4600 x 0.01 g	6000 x 0.01 g	6000 x 0.1 g	8000 x 0.1 g	12 kg x 0.1 g	15 kg x 0.1 g
Repeatability (S.D.)	0.02 g	0.02 g	0.02 g	0.02 g	0.2 g	0.2 g	0.2 g	0.2 g
Linearity (+/-)	0.03 g	0.03 g	0.03 g	0.03 g	0.3 g	0.3 g	0.3 g	0.3 g
Pan Size	7.3" x 7.3" / 185 x 185 mm
Weighing Units	g, kg, ct, GN, N, dr, lb, oz, lb:oz, ozt, dwt, tl.T, tl.H, tl.S, T, custom unit				g, kg, ct, GN, N, dr, lb, oz, lb:oz, ozt, dwt, tl.T, tl.H, tl.S, T, custom unit
Stabilization Time (sec)	2
Interface	RS-232, USB
Calibration	LAB XXe models: External calibration LAB XXi models: Internal automatic calibration / External calibration
Display	Backlit LCD with 0.9"/ 24mm -high digits
Power Supply	18VDC 830mA adapter
Operating Temperature	15^o to 35^oC / 59^o to 95^oF
Housing	ABS plastic
Draft Shield	-
Overall Dim.	8.8" x 14.7" x 8.6" / 224 x 374 x 219 mm (wxdxh)
Net Weight	XXe models: 9.9 lb / 4.5 kg XXi models: 13 lb / 5.9 kg				XXe models: 9.9 lb / 4.5 kg

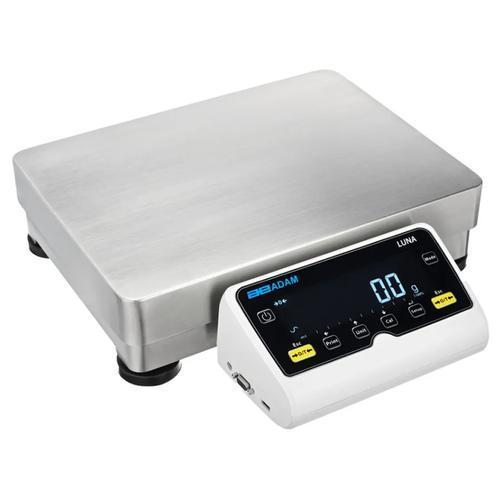

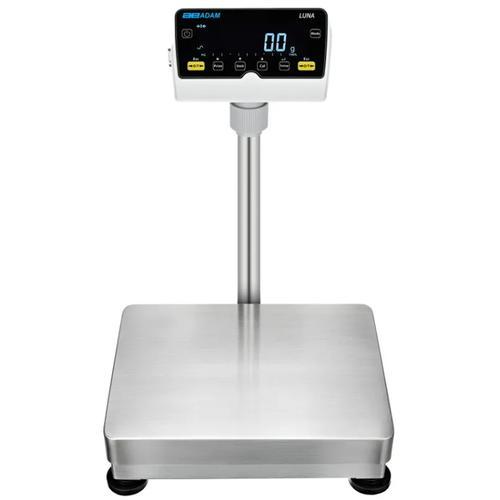

Combining high-precision weighing with the capacity of a large-pan bench scale, Luna LBL delivers a fine readability of 0.1g with capacities of up to 75lb / 34kg. Its stainless steel pan measures a generous 15.7” x 11.8” / 400mm x 300mm to accommodate large samples. LBL performs data transfer to printers or PCs via ethernet, USB and RS-232 interfaces to simplify compliance with GLP and GMP standards. To allow optimal visibility of weighing results, LBL is available in two versions: one with a pillar-mounted indicator and one with a detachable indicator, which may be wall-mounted or used while attached to the machine. The LCD indicator features bright, easily-read 0.9” / 24mm digits.

Features

Heavy duty weighing base and large, crystal-clear weight display
Rugged stainless steel construction for ultimate durability
Sealed keypad protects against dirt and spills
Send weight data to printers and PCs via RS-232 or USB outputs Applications
Weighing
Parts counting
Percentage weighing
Dynamic / animal weighing
Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
Connect to a network with the RJ45 ethernet interface
Optional hook enables below-balance weighing
Capacity tracker built into display for easily monitoring possible overloads
Wall-mount bracket for placing indicator on vertical surface
Lockdown device to secure balance
Selectable digital filtering helps minimize effects of vibration and disturbances
Zero-tracking feature ensures display returns to zero reading
Multilingual display permits use in various regions
Optional rechargeable battery for operation almost anywhere
Auto power-off to save energy
AC adapter included
External calibration allows for verification and adjustment with weights
Solid ABS housing is durable for industrial use

Applications

Weighing
Parts counting
Percentage weighing
Dynamic / animal weighing
Density determination
Checkweighing
Check counting
Net total weighing

Model with External calibration	LBL 14001e 1010016761	LBL 14001P 1010016850	LBL 24001e 1010016765	LBL 24001P 1010016852	LBL 34001e 1010016849	LBL 34001P 1010016853
Model with External calibration	$1,938.05	$2,037.65	$3,149.85	$3,257.75	$3,759.90	$3,871.95
Capacity x Readability	30 lb x 0.0002 lb	30 lb x 0.0002 lb	50 lb x 0.0002 lb	50 lb x 0.0002 lb	75 lb x 0.0002 lb	75 lb x 0.0002 lb
Capacity x Readability	14 kg x 0.1g	14 kg x 0.1g	24 kg x 0.1g	24 kg x 0.1g	34 kg x 0.1g	34 kg x 0.1g
Repeatability (S.D.)	0.0005 lb 0.2g	0.0005 lb 0.2g	0.0005 lb 0.2g	0.0005 lb 0.2g	0.0005 lb 0.2g	0.0005 lb 0.2g
Pan Size	15.7 x 11.8 inch / 400 x 300 mm
Weighing Units	g, kg, lb, oz, lb:oz, ct, GN, N, T, custom unit
Resolution	1:140000
Interface	RS-232, USB, Ethernet RJ45
Calibration	External
Display	Backlit LCD with 0.9” / 24mm-high digits
Power Supply	18VDC 830mA adapter
Operating Temperature	15^o to 35^oC / 59^o to 95^oF
Housing	ABS Plastic indicator with mild steel base and stainless steel pan
Overall Dimensions	18.1 x 15.7 x 4 inch 470 x 400 x 100 mm	14.7 x 15.7 x 23.2 inch 335 x 401 x 590 mm	18.1 x 15.7 x 4 inch 470 x 400 x 100 mm	14.7 x 15.7 x 23.2 inch 335 x 401 x 590 mm	18.1 x 15.7 x 4 inch 470 x 400 x 100 mm	14.7 x 15.7 x 23.2 inch 335 x 401 x 590 mm

Accessories Item number Description
104008036..................... Anti-vibration table
3012014259.................... In-use wet cover
3074010267.................... USB cable
3014011014...................... RS-232 cable M-F
700100410....................... ABI-1 Ionizer
1120014641...................... AIP impact printer
1120011156....................... ATP thermal printer
700100046 .................... Kensington-type lock and cable
600002028.................... AdamDU Data Collection Program
700660290.................... Calibration certificate
