The new Sartorius Quintix® sets new benchmarks in every aspect for standard lab balances: features, technology, ergonomic style, and, above all, the entirely new, user-friendly operating design of the Quintix® that helps make workflows much more efficient. What it boils down to is the Quintix® is fail-safe: it rules out weighing errors due to incorrect operation and eliminates the time-consuming chore of fine-tuning the settings. Fractions of a second are all it takes for any user to adapt the Quintix® to specific requirements and obtain traceable results much faster than ever.

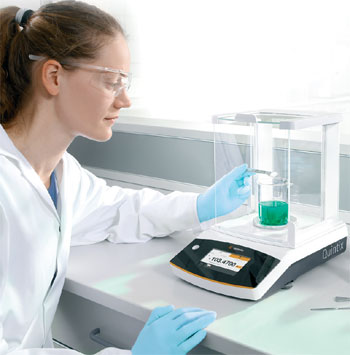

Sartorius teamed up with experienced lab users to develop the user interface of the new Quintix®. Lab users’ No. 1 priority was to ensure easy, intuitive operation without having read the manual first. They did it! The self-explanatory icons and plain-text prompts on the large touch screen show you all the information you need to know for the procedure – no more, no less. For example, the touch-activated print key will appear only when Quintix® has detected that a Sartorius printer is connected. The Quintix® also excels in compliance with workplace safety requirements: Even if you are wearing several pairs of lab gloves, you can still correctly use all the functions of the balance.
|
|
Sartorius Quintix balances Specs:
Specifications Chart for 0.00001g - 0.001g Scales
Model |
Quintix 35-1S |
Quintix 65-1S |
Quintix 125D-1S |
Quintix 64-1S |
Quintix 124-1S |
Quintix 224-1S |
Quintix 213-1S |
Quintix 313-1S |
Quintix 513-1S |
Quintix 613-1S |
Price |
$5,133.15
|
$5,339.70
|
$5,569.20
|
$3,075.30
|
$3,411.90
|
$3,863.25
|
$2,019.60
|
$2,157.30
|
$2,922.30
|
$3,075.30
|
Capacity x Readability |
30 x 0.00001g |
60 x 0.00001g |
60 x 0.00001g 120 x 0.0001g |
64 x 0.0001 g |
120 x 0.0001 g |
220 x 0.0001 g |
210 x 0.001 g |
310 x 0.001 g |
510 x 0.001 g |
610 x 0.001 g |
Repeatability |
0.03 mg |
0.04 mg |
0.04 mg 0.1 mg |
0.1 mg |
0.1 mg |
0.1 mg |
1 mg |
1 mg |
1 mg |
1 mg |
Linearity |
0.1 mg |
0.1 mg |
0.1 mg 0.2 mg |
0.2 mg |
0.2 mg |
0.2 mg |
2 mg |
2 mg |
2 mg |
2 mg |
Typical stabilization time (seconds) |
6 |
6 |
6 3 |
3 |
3 |
2 |
1.5 |
1.5 |
1.5 |
1.5 |
Weighing pan size diameter |
80 mm |
80 mm |
80 mm |
90 mm |
90 mm |
90 mm |
120 mm |
120 mm |
120 mm |
120 mm |
Weighing chamber height |
218 mm |
218 mm |
218 mm |
209 mm |
209 mm |
209 mm |
209 mm |
209 mm |
209 mm |
209 mm |
Dimensions, D x W x H |
14.8 x 8.4 x 2.4 inch |
360 x 216 x 320 mm - 14.1 x 8.5 x 12.6 inch |
Draft shield for analytical balances (Designs 1+2) |
– Analytical draft shield chamber with doors that glide open smoothly for fatigue-free weighing
– Interior chamber featuring spill-proof design; exceptionally easy to clean
– All panes can be individually cleaned or exchanged |
Housing |
Chemically resistant finish of the housing for the easiest cleaning ever |
Weigh cell |
– Sartorius weigh cell
– Mounted on a heavy-duty die-cast plate made of a special aluminum alloy
– Stable and repeatable weighing results guaranteed, along with minimum dependence on temperature
|
Calibration |
isoCAL – fully automatic, temperature- and time-controlled internal adjustment |
Interface |
mini USB |
Automatic recognition of Sartorius printer models YDP30 or YDP40 |
Direct data transfer to Microsoft® Windows programs |
Programmable interval for data output |
Choice of SBI, xBPI, table format or text format data transfer protocols |
Supervisor lock |
Menu lock for protection against unintentional changes |
In-use cover |
Provides added protection against dirt and scratches; supplied standard with the balance |
Anti-theft device |
Kensington lock and lug for attaching a chain or a cable |
Built-in application programs |
Special lab applications such as Mixing, Components, Statistics and Conversion; plus standard lab applications such as Weighing, Density, Percentage, Checkweighing, Peak Hold, Counting and Unstable Conditionse |
Below-balance weighing |
Standard, built-in feature |
Specifications Chart for 0.01g, 0.1 g and 1g Scales
Model |
Quintix 412-1S |
Quintix 612-1S |
Quintix 1102-1S |
Quintix 2102-1S |
Quintix 3102-1S |
Quintix 5102-1S |
Quintix 6102-1S |
Quintix 2101-1S |
Quintix 5101-1S |
Quintix 6101-1S |
Quintix 5100-1S |
Quintix 6100-1S |
Price |
$1,484.10
|
$1,705.94
|
$1,935.45
|
$2,157.30
|
$2,386.80
|
$2,402.10
|
$2,811.38
|
$1,484.10
|
$1,705.95
|
$2,050.20
|
$1,369.35
|
$1,484.10
|
Capacity x Readability |
410 x 0.01 g |
610 x 0.01 g |
1100 x 0.01 g |
2100 x 0.01 g |
3100 x 0.01 g |
5100 x 0.01 g |
6100 x 0.01 g |
2100 x 0.1 g |
5100 x 0.1 g |
6100 x 0.1 g |
5100 x 1 g |
6100 x 1 g |
Repeatability |
10 mg |
10 mg |
10 mg |
10 mg |
10 mg |
10 mg |
10 mg |
100 mg |
100 mg |
100 mg |
500 mg |
500 mg |
Linearity |
20 mg |
20 mg |
20 mg |
20 mg |
20 mg |
20 mg |
20 mg |
3000 mg |
3000 mg |
3000 mg |
1000 mg |
1000 mg |
Typical stabilization time (seconds) |
2 |
2 |
2 |
2 |
1.5 |
1.5 |
1.5 |
2 |
2 |
2 |
2 |
2 |
Weighing pan size diameter |
180 mm |
180 mm |
180 mm |
180 mm |
180 mm |
180 mm |
180 mm |
180 mm |
180 mm |
180 mm |
180 mm |
180 mm |
Dimensions, D x W x H |
360 x 216 x 95 mm - 14.1 x 8.5 x 3.75 inch |
Draft shield for analytical balances (Designs 1+2) |
– Analytical draft shield chamber with doors that glide open smoothly for fatigue-free weighing
– Interior chamber featuring spill-proof design; exceptionally easy to clean
– All panes can be individually cleaned or exchanged |
Housing |
Chemically resistant finish of the housing for the easiest cleaning ever |
Weigh cell |
– Sartorius weigh cell
– Mounted on a heavy-duty die-cast plate made of a special aluminum alloy
– Stable and repeatable weighing results guaranteed, along with minimum dependence on temperature
|
Weighing units |
g, ct, mom, kg, lb, oz, ozt, tlh, tls, tlt, GN, dwt, mg, parts | lb, tlc, Kt, tol, bat, MS, N |
Calibration |
isoCAL – fully automatic, temperature- and time-controlled internal adjustment |
Interface |
mini USB |
Automatic recognition of Sartorius printer models YDP30 or YDP40 |
Direct data transfer to Microsoft® Windows programs |
Programmable interval for data output |
Choice of SBI, xBPI, table format or text format data transfer protocols |
Supervisor lock |
Menu lock for protection against unintentional changes |
In-use cover |
Provides added protection against dirt and scratches; supplied standard with the balance |
Anti-theft device |
Kensington lock and lug for attaching a chain or a cable |
Built-in application programs |
Special lab applications such as Mixing, Components, Statistics and Conversion; plus standard lab applications such as Weighing, Density, Percentage, Checkweighing, Peak Hold, Counting and Unstable Conditionse |
Below-balance weighing |
Standard, built-in feature |
- Checkweighing - Helps you zip through seriesof samples when you have to quickly determine whether each one is within a specific tolerance range.
- Density - Takes the effort out of determining the density of a solid, irregularly-shaped object.
- Weighing - In addition to this app, all Quintix® balances feature isoCAL, the fully automatic internal calibration and adjustment function engineered by Sartorius to ensure total accuracy.
- Conversion - Takes care of the math when you need to convert a weight using a factor, say, to calculate the weight per unit area.
- Peak Hold - Locks in the reading so you can later view the maximum force released in milliseconds when a switch is activated during an experiment, or the weight of a bulky sample that hides the display while weighing.
- Unstable Conditions - Delivers rock-steady results when you have to weigh in an extremely unstable environment or measure the weight of a hyper little mouse that just won’t sit still
- Percentage - Makes comparisons of samples easy when you need to determine their difference in percent from a reference standard.
- Counting - Gives you the exact count when you want to know how many identical parts, such as tablets, are in a bag.
- Mixing - Enables you to weigh in various components of a formula quickly with 100% traceability
- Components - Conveniently lets you weigh components of a formula into separate containers and retrieve the total amount weighed-in at any time.
- Statistics - Saves you work when you need to know the standard deviation and other statistics on an entire group of different samples, but don’t have the time to do the number-crunching yourself.
Every advanced analytical laboratory requires GLP- | GMPcompliant records, as well as fast and secure processing of the data generated. The Plug and Work technology in Quintix® saves you considerable time and effort in generating fast and reliable documents

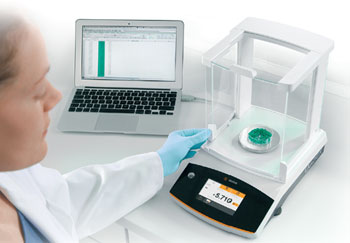

Quintix® substantially simplifies processing data in spreadsheets. How? After connecting the USB port on Quintix® to a computer, just open the Microsoft® Office program you need. Quintix® delivers data in your choice of format, either text or numbers, enabling effortless and accurate spreadsheet calculations. No additional software or special configuration settings are needed.
The Sartorius standard printer YDP40 is automatically detected by Quintix®. Thanks to interactive user guidance, Quintix® provides help in generating error-free printouts, for instance, by inputting the correct sample ID numbers.
Repeatable results and linearity are the key prerequisites to obtaining accurate and traceable weighing results. That’s why Quintix® has been subjected to extensive automated repeatability, linearity and temperature drift tests to guarantee that it meets our high metrological specifications. Inside a virtual “rigorous testing chamber”, Quintix® test samples undergo more than 1,000,000 load stress tests to ensure that after years of standing up to the rigours of daily use with different weight loads, it will still deliver accurate results just like it did on day one.
Quintix® is crafted in Germany with high-grade components and materials. For example, the weigh cells are mounted on a solid, special aluminum alloy base plate, which is extremely impervious to ambient conditions, such as temperature fluctuations and vibration.
All these tests and features add up to user benefits like the legendary reliability of the Sartorius Quintix®, a major advantage it shares with every other Sartorius balance.
Temperature fluctuations have an influence on the accuracy of your weighing results This is why every Quintix® comes equipped with the internal adjustment function isoCAL that ensures consistently accurate results. Each time isoCAL is performed, the Cal Audit Trail function in Quintix® records all data on this procedure so it can be traced for your quality assurance.
|
